Configured for terminal signal distribution and physical loop termination in industrial control networks, the Allen-Bradley 1794-TB32 (1794-TB32 Flex I/O Terminal Base Unit) provides direct physical/electrical execution.

Nomenclature and Suffix Breakdown

• Platform Identifier: 1794
• Module Series: Flex I/O Terminal Base
• Variant Code: TB32 (32-terminal configuration block)

Hardware Specification Matrix

Allen-Bradley Industrial Control and Drive Architecture

• Backplane Bus Communication Velocity: Maintains low-latency passive pass-through for high-speed deterministic network backplanes across modular rack assemblies.
• Profinet and EtherNet/IP Deterministic Networks: Accommodates high-speed fieldbus node communication protocols by ensuring stable physical terminal interfaces without signal degradation.
• I/O Density Scaling: Supports high-density point distribution by housing 32 distinct connection terminals within a compact footprint.
• Firmware Flash Compatibility: Acts as a transparent physical intermediary hardware base that permits system control and module firmware updates without rewiring requirements.

Delivery Package Contents

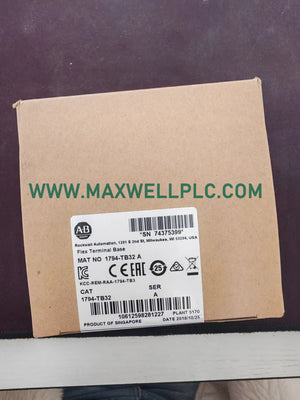

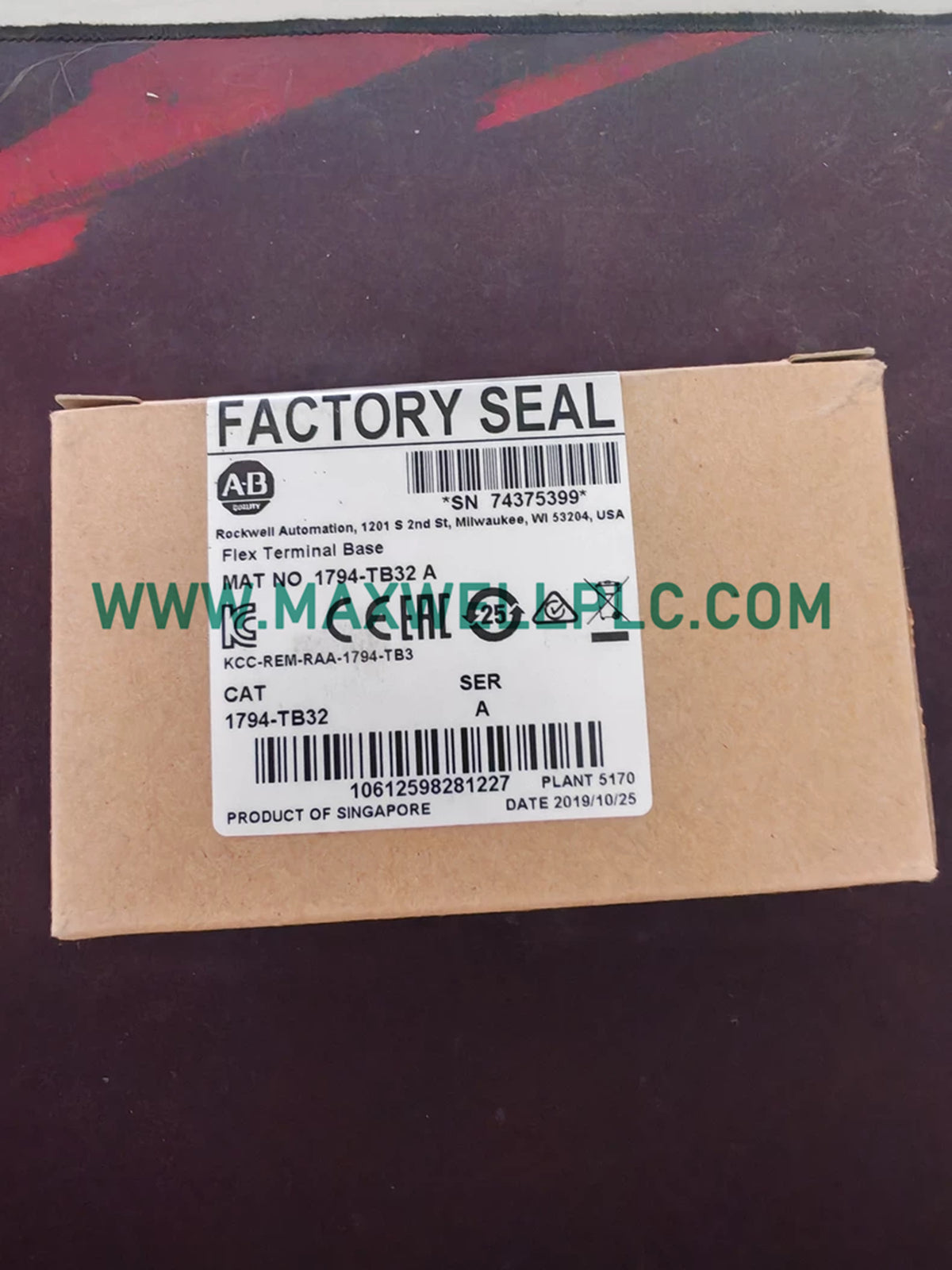

• 1 x Allen-Bradley 1794-TB32 Flex I/O Terminal Base Unit
• 1 x Integrated Terminal Label Sheet
• 2 x Mechanical Mounting Retention Clips

Physical Mounting and Hardware Installation Guidelines

• DIN-Rail Fastening: Mount the terminal base securely onto a standard 35 mm DIN rail inside the enclosure before snapping on the corresponding I/O module.
• Conductor Torque Limits: Apply terminal screw tightening torque between 0.56 Nm and 0.79 Nm to prevent loose connections or terminal block fracture.
• Wiring Separation Rules: Route low-level analog or digital signal wires away from high-voltage power conduits to minimize electromagnetic noise coupling.

Technical Operation Queries

• What is the maximum voltage rating supported by this terminal base?

  The unit is rated for 24 V DC/AC operational circuits with an absolute maximum supply voltage ceiling of 31.2 V DC/AC at 50/60 Hz and 10 A.

• Does the terminal base actively consume power from the rack?

  No, the 1794-TB32 is a passive hardware component and does not draw internal operating power from the backplane.

• What is the continuous isolation voltage threshold?

  The isolation voltage limit is established at 50 V continuous maximum to protect connected instrumentation loops.

• How should field wiring be secured into the terminal blocks?

  Conductors must be stripped to the recommended length and secured using a calibrated torque driver set between 0.56 Nm and 0.79 Nm.

• Can this terminal base support hot-swapping of I/O modules?

  Yes, the mechanical base design allows compatible Flex I/O modules to be removed or inserted under power when system architecture permits.

• What are the physical dimensions of the unit for cabinet layout planning?

  The estimated shipping and physical size dimensions are 9.5 cm x 10 cm x 6 cm with a mass of 0.2 kg.

• What country is designated as the manufacturing origin?

  The unit originates from the United States, with standard dispatch processed through Xiamen, China.

• What is the purpose of the 32-terminal arrangement?

  The 32 terminals provide comprehensive connection points for multi-channel sensor and actuator field loops mapped to high-density I/O cards.
