Product Overview

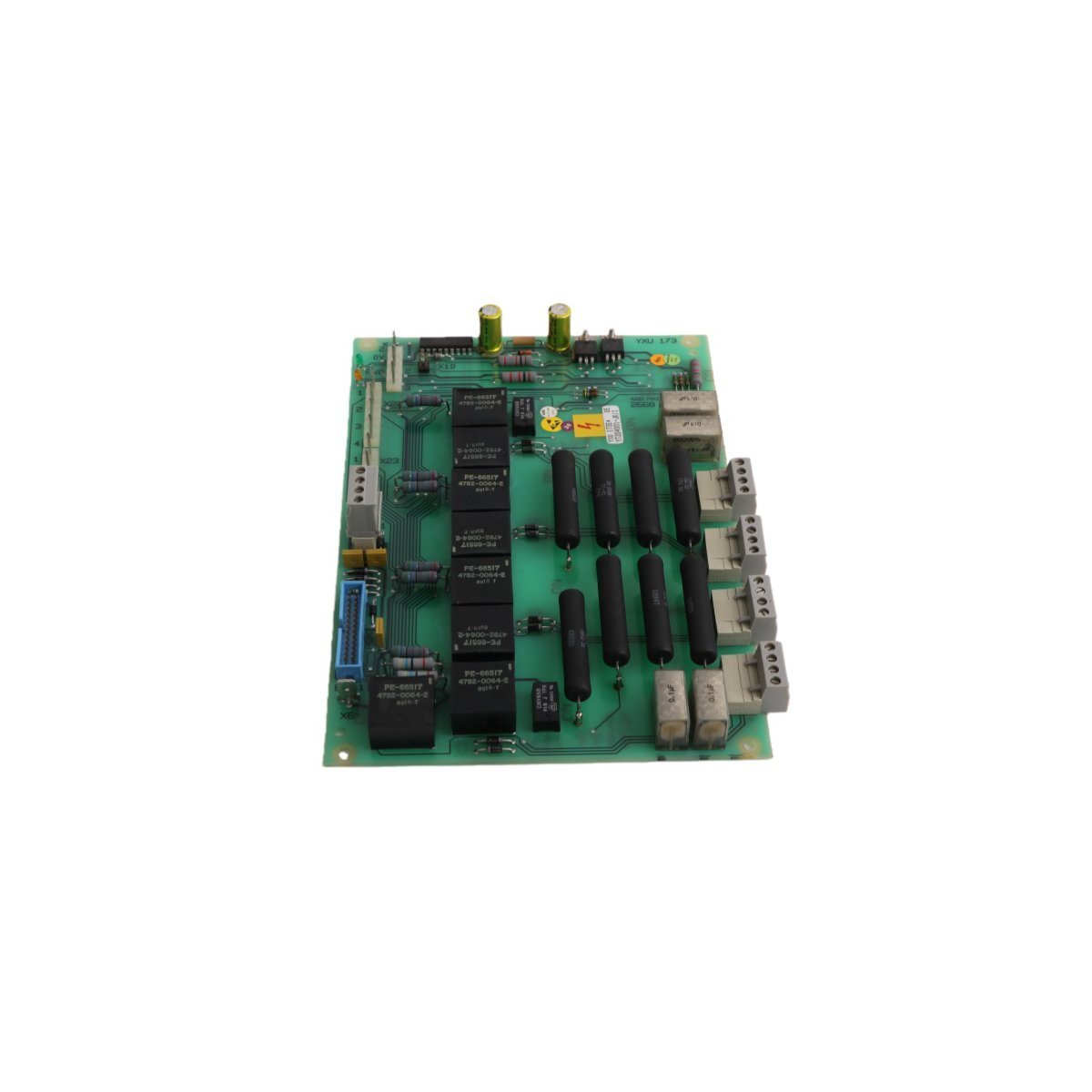

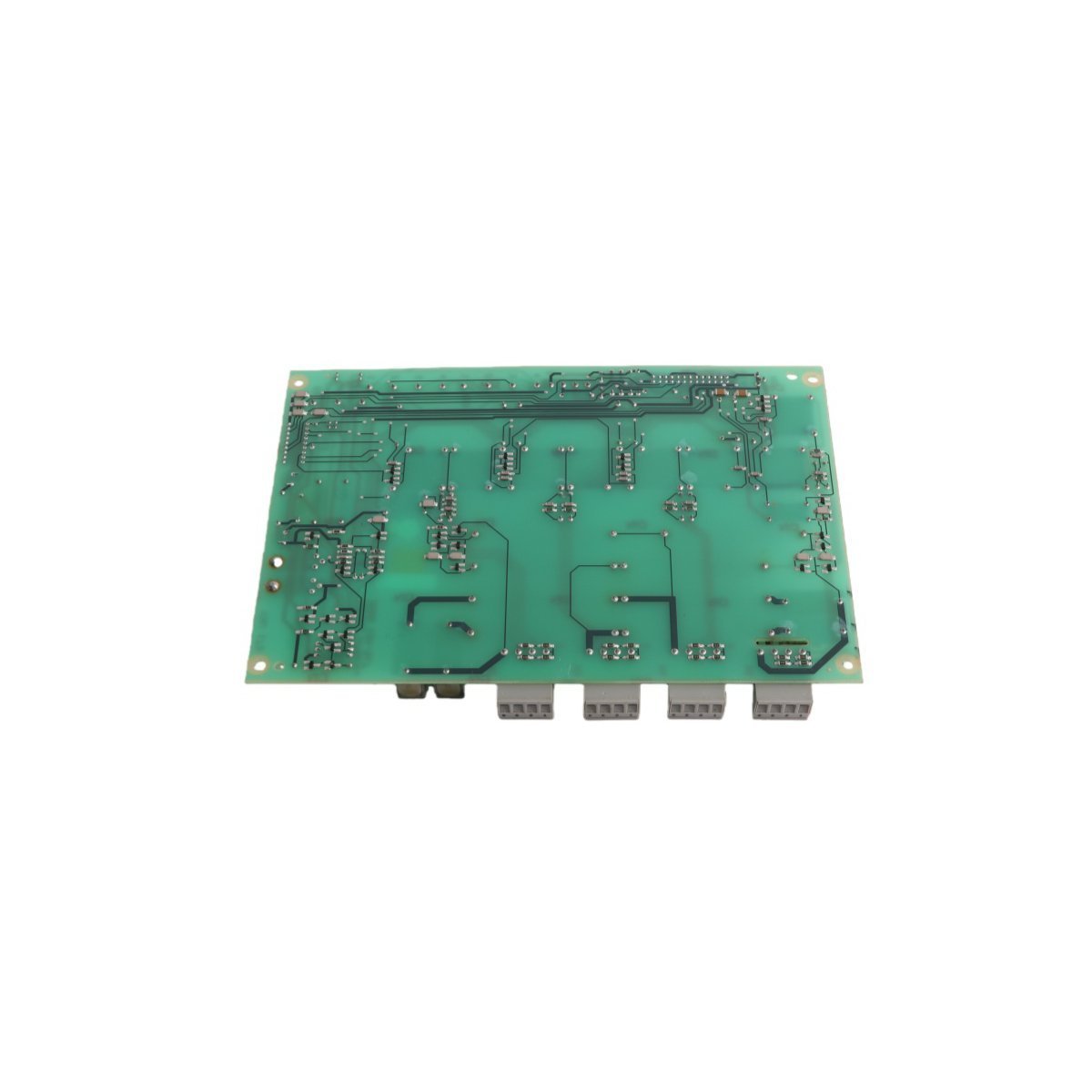

The ABB YPQ108A, designated by order number YT204001-DT, is a multi-purpose circuit I/O board engineered for the Advant OCS and Advant-800xA distributed control architectures. This Swedish-manufactured module serves as a high-density data gateway, bridging the gap between field-level instrumentation and centralized processing units. It is designed to manage complex data acquisition tasks, translating physical sensor feedback into digital logic for real-time monitoring. With its focus on signal integrity and rapid response times, the YPQ108A ensures that critical process variables are communicated with absolute precision, making it an indispensable component for maintaining the deterministic performance of ABB automation systems.

Hardware Configuration and Physical Attributes

The YPQ108A is built with industrial-grade electrical isolation and signal conditioning to ensure peak performance in electrically "noisy" factory environments.

• Module Weight: 1.22 kg

• Unit Dimensions: 24 x 19 x 5.3 cm

• System Series: Advant OCS / 800xA

• Input/Output Type: Versatile Analog and Digital signal handling

• Signal Protection: Integrated electrical isolation and noise filtering

• Networking Compatibility: Supports communication via Ethernet router services

• Country of Origin: Sweden

• Product Condition: Factory New

This module is housed in a robust 5.3 cm chassis, providing significant mechanical protection and efficient heat dissipation. Its architecture is specifically designed to eliminate ground loops and minimize electromagnetic interference (EMI), ensuring that measurement accuracy remains consistent over long-term continuous operation.

Industrial Deployment and System Utility

The YPQ108A YT204001-DT is frequently implemented in large-scale industrial projects where reliability and high-speed I/O processing are required.

• Process Control Stations: Acting as a localized interface for reading complex sensor data and driving field actuators in chemical or pharmaceutical plants.

• Energy Management: Monitoring voltage, current, and temperature inputs within power distribution and generation facilities.

• Manufacturing Integration: Providing the essential I/O link for automated assembly lines that require high-speed synchronization between controllers and machinery.

• System Expansion: Serving as a reliable, plug-and-play expansion unit for existing Advant 800xA systems to increase field device capacity.

Q: What is the primary function of the YPQ108A board within a DCS?

The YPQ108A functions as a comprehensive I/O interface that collects various signal types from the field and transmits them to the Advant controller for processing and logic execution.

Q: Does the YT204001-DT include built-in protection against electrical noise?

Yes, the board features integrated signal conditioning and galvanic isolation, which protects the internal logic from electrical surges, ground loops, and high-frequency noise common in industrial settings.

Q: Can this module handle both analog and digital signals simultaneously?

The YPQ108A is designed with a versatile I/O configuration that allows it to process a mix of signal types, making it highly flexible for complex automation tasks involving different types of sensors and valves.

Q: Is the YPQ108A compatible with modern Ethernet-based DCS networks?

While it is a native I/O board for the Advant series, it supports communication through Ethernet router services, enabling it to bridge field data to high-level network management tools.

Q: What are the maintenance requirements for the YT204001-DT?

Due to its robust Swedish design and lack of moving parts, the YPQ108A requires minimal maintenance. Its long-service-life components are engineered for continuous operation in demanding factory conditions.
