Product Overview

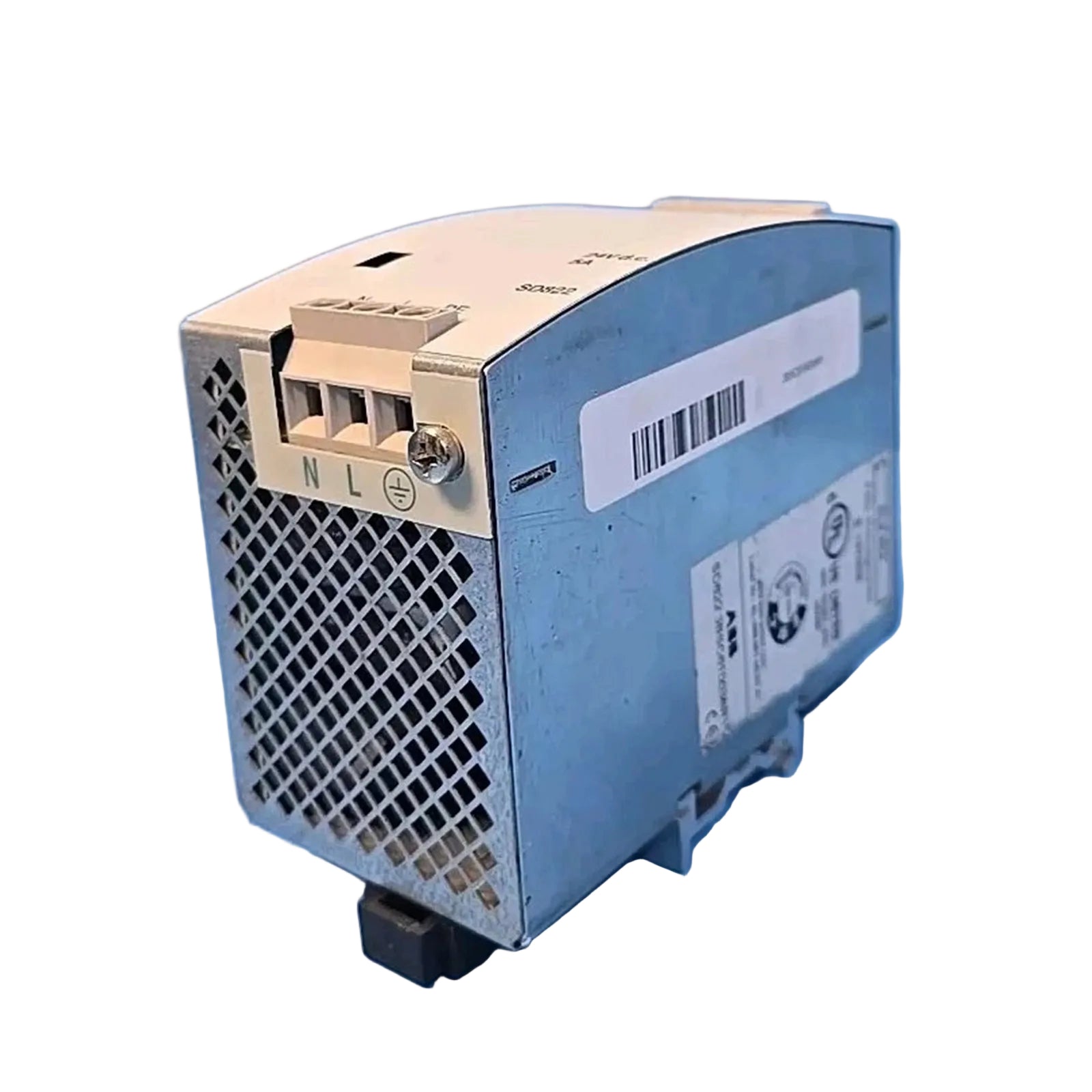

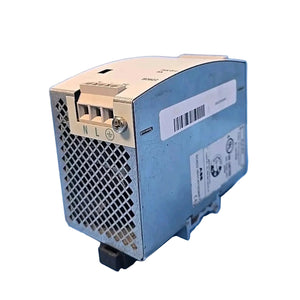

The ABB SD822 (Engineering Part Number: 3BSC610038R1) operates as a high-density, space-saving DIN-rail mounted power supply module designed specifically for the AC 800M controller and S800 I/O product lines. This highly resilient power conversion unit provides a continuous, clean 24 VDC output rated up to 5 Amperes from a versatile AC mains input. It provides the foundation for critical control loops across complex industrial infrastructures, including petrochemical refineries, automated assembly facilities, and high-integrity emergency shutdown (ESD) systems.

In mission-critical Distributed Control Systems (DCS), power volatility or output sagging risks dropping rack communication nodes and triggering catastrophic process trips. The SD822 module prevents systemic hardware drops by enforcing a strict protective separation between its primary and secondary circuitry, maintaining compatibility with Safety Extra-Low Voltage (SELV) and Protected Extra-Low Voltage (PELV) architectures. The underlying hardware firmware and premium capacitors absorb heavy input surges and line dropouts flawlessly. By choosing this genuine, certified power module, plant engineers guarantee deterministic power delivery and unlock seamless integration within IEC 61508 SIL2 and SIL3 rated functional safety solutions.

Power Conversion Matrix and Protection Architecture

This industrial power supply employs a robust switching topology that maintains a stabilized 24 VDC output even during severe AC grid fluctuations. The onboard electronics feature integrated physical safeguards that continuously monitor output health.

Over-Current and Over-Voltage Protection

The secondary circuit integrates active current-limiting logic alongside over-voltage protection (OVP). This dual-tier hardware barrier blocks accidental field shorts or inductive energy spikes from traveling backward into the internal processing matrix of the AC 800M controller rack.

Flexible Dual-Input Configuration

The power card incorporates a mechanical voltage selection switch directly on its outer surface shell. This allows rapid hardware configuration between 115V AC and 230V AC nominal inputs, enabling engineering teams to deploy the exact same module hardware across differing global utility standards.

Electrical Parameters and Mechanical Metrics

Field Commissioning and Cabinet Mounting Mandates

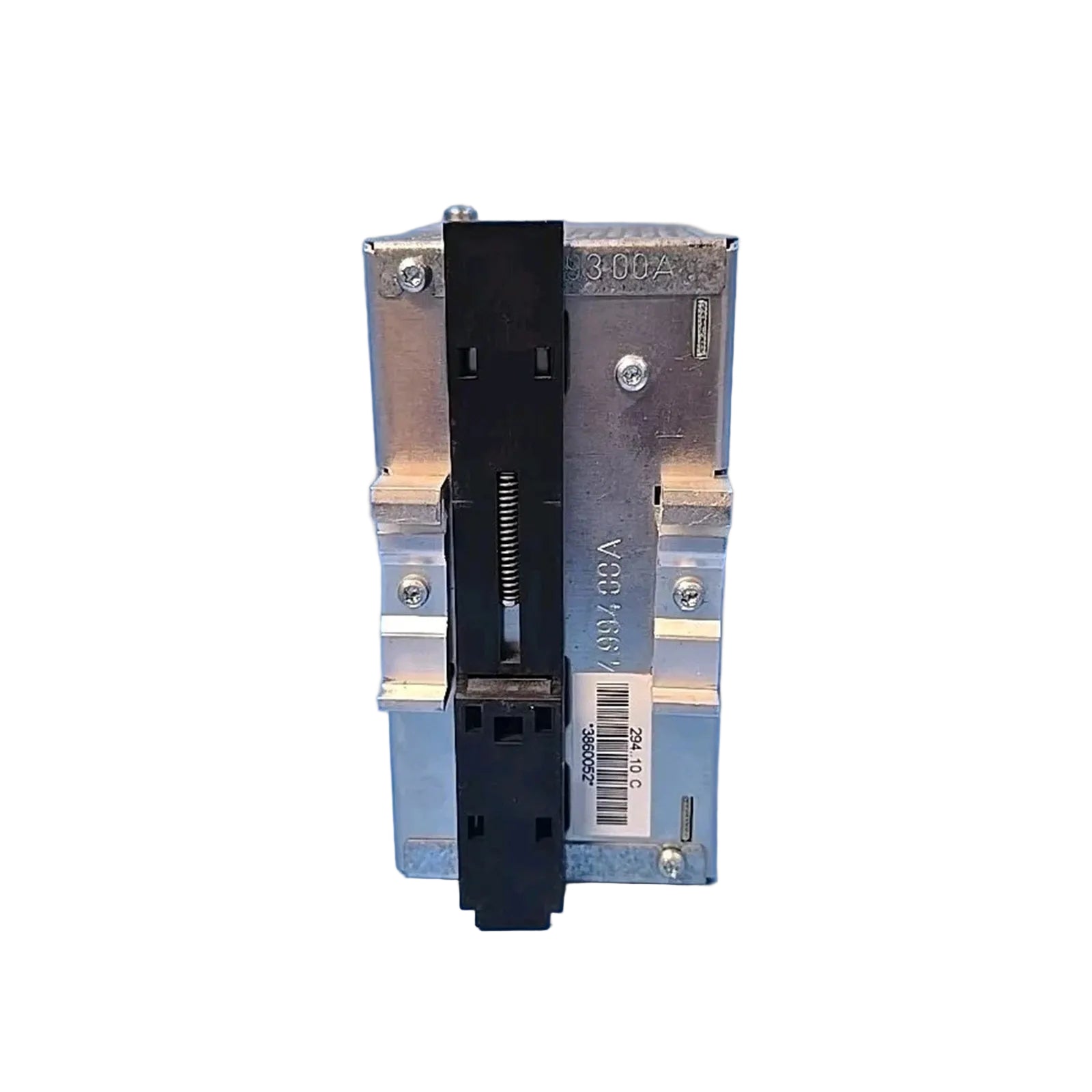

Snap the compact chassis footprint smoothly onto standard 35mm DIN rails inside the marshalling panel, maintaining a clear physical gap above and below the ventilation grilles to allow unimpeded natural convection cooling.

Voltage Selector Verification

Technicians must verify the position of the surface-mounted voltage selection slide switch prior to connecting incoming AC mains cables. The factory sets this switch to a default 230V AC position; applying 230V AC while configured for 115V will cause terminal internal hardware damage.

Protective Earth Continuity

This hardware module classifies strictly as Class I Equipment. The installation engineer must connect a heavy-gauge copper grounding conductor directly from the designated Protective Earth (PE) terminal block to the master cabinet copper ground bar to ensure safe static dissipation and fault clearance.

Grid Resilience and System Redundancy Integration

The SD822 operates comfortably across an ambient thermal window up to 50 degrees Celsius without requiring active cooling fans. The rugged housing protects the delicate transformers and switching arrays from airborne dust, vibration, and typical electromagnetic interference found on plant floors.

Fault-Tolerant Voting Configurations

The power module supports N+1 and 1+1 redundant power supply topologies to eliminate single points of failure. To configure a fully redundant power array, engineers simply route the output lines of parallel SD822 units directly into an external ABB SS822 voting module, guaranteeing uninterrupted 24 VDC power during hot-swap maintenance procedures.

Ordering info

The standard factory-certified industrial fulfillment kit includes the following items:

(1) Brand New ABB SD822 Power Supply Module

(2) Pre-Installed DIN Rail Locking Clips

(3) Original Factory Component Safety Sheet

Logistics Management and Heavy Industrial Packaging

Delivery time: 2-7 days when payment finish. All high-availability power modules route from our regional fulfillment centers via leading express carrier services including DHL, FEDEX, and UPS to secure rapid, fully tracked transit directly to your job site. To guarantee that the heavy internal transformers and inductive components suffer zero structural stress, each device travels encased inside double-wall, shock-deflecting anti-static industrial packaging complete with dense moisture-barrier layers.

Industrial Power Infrastructure FAQ

Q1: How can an operator implement an automated main circuit breaker system for this specific power supply?

A1: ABB offers a dedicated, matching Mains Breaker Kit designed for direct DIN rail mounting alongside the power supply. This kit provides localized, fast-acting overcurrent protection and a physical isolation point right at the power input terminal, which simplifies safe maintenance access.

Q2: What happens if an operator accidentally shorts the 24 VDC field output terminals on an active SD822 module?

A2: The module engages its active hardware current-limiting protection loop immediately. Instead of blowing internal fuses or damaging the components, the power supply restricts the output current to a safe maximum threshold until the field short circuit is cleared, returning to normal voltage output automatically.

Q3: Can the SD822 module accept a direct DC input voltage instead of standard AC mains?

A3: The SD822 processing matrix is engineered and certified specifically for alternating current (AC) input ranges via its selectable transformer links. Inputting direct current (DC) power to the primary terminals falls outside the factory specification envelope and may damage the input rectifier circuitry.
