Product Overview

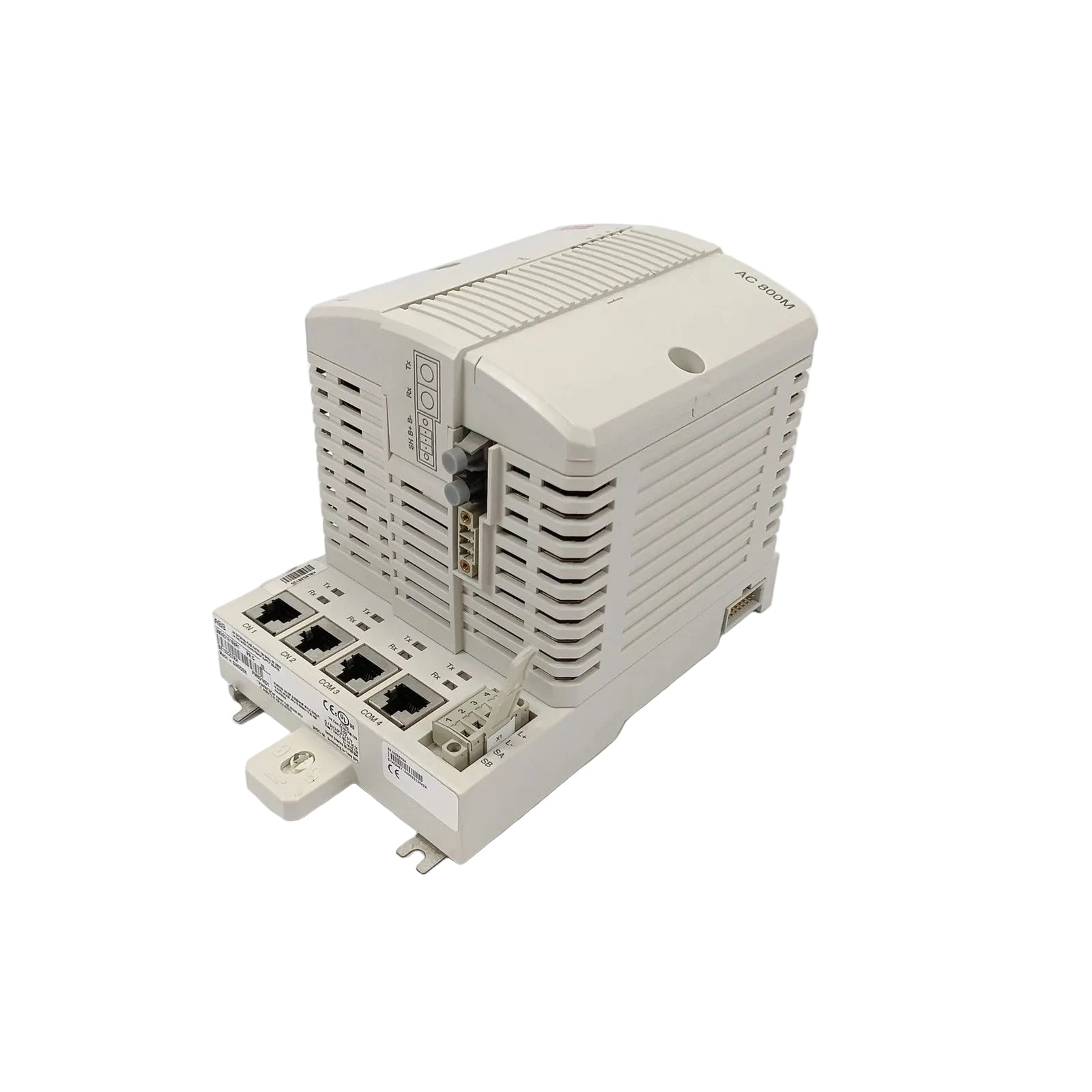

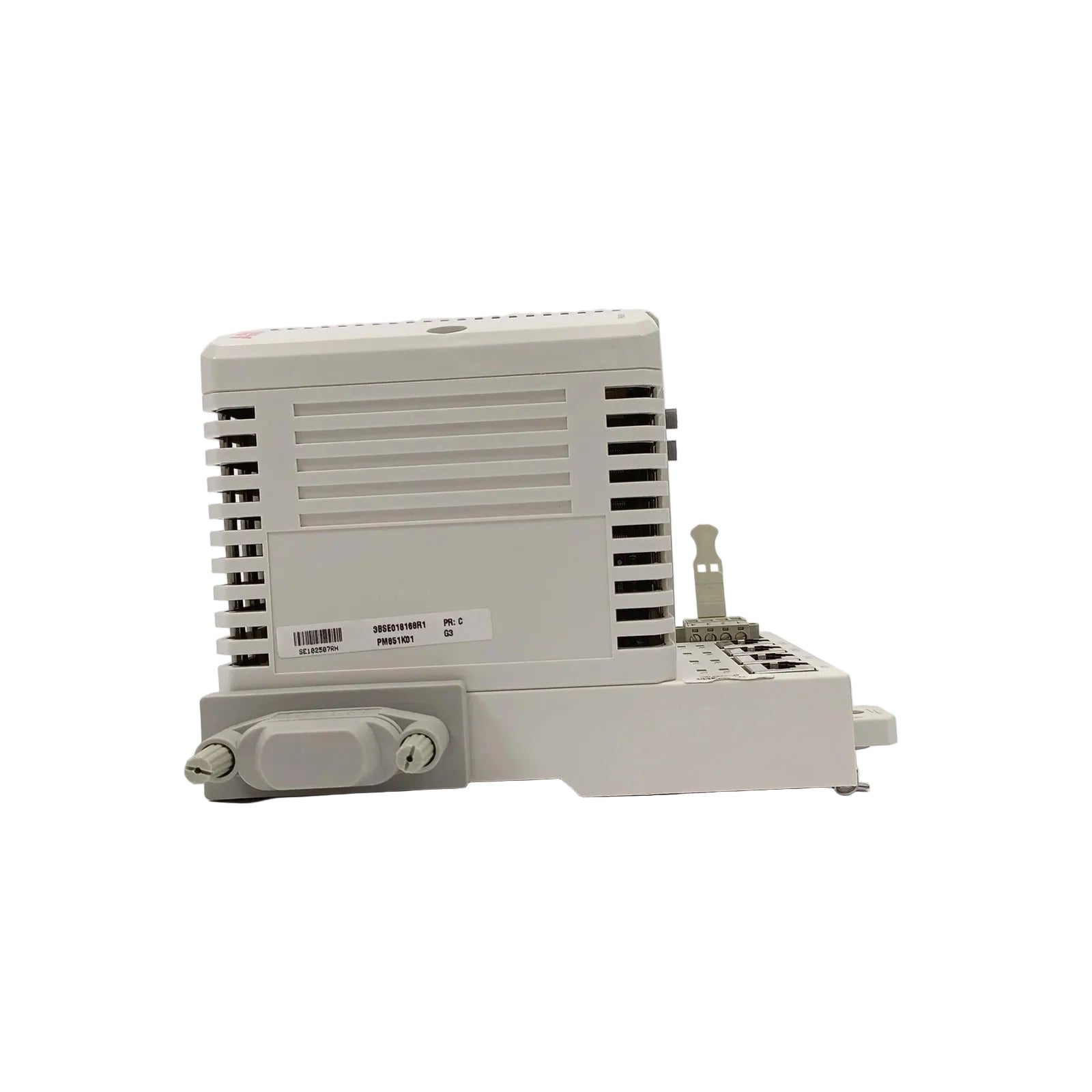

The ABB PM851K01 3BSE018168R1 acts as a highly reliable central processing core designed for the modular AC 800M control subsystem within the System 800xA distributed control architecture. This premium processing unit executes complex control loops, processes high-density diagnostic data, and manages real-time industrial communication tasks with zero system-level lag. Engineered specifically for complex process automation settings—such as continuous chemical distillation, heavy power grid distribution, and manufacturing assembly plants—the PM851K01 provides continuous processing stability. By deploying this unit, engineering managers maintain high runtime availability, minimize unplanned maintenance overhead, and optimize critical control loop operations across complex infrastructure.

Computational Core & Network Topology

The hardware architecture of the PM851K01 is optimized to perform deterministic processing for large-scale industrial loops.

Processing Efficiency and Memory Management

The core processor executes standard IEC 61131-3 programming logic at high speeds. Equipped with integrated RAM and flash memory storage capacities, the unit retains application logic, local variables, and diagnostic logs safely through transient power losses.

Native Fieldbus Communication

The processor module includes built-in communication ports that handle native Control Network (Control-Network over Ethernet) and serial protocols. This ensures smooth horizontal data exchange with neighboring AC 800M racks and reliable vertical communication to central 800xA human-machine interfaces.

Hardware Baseline Characteristics

The following technical matrix details the mechanical dimensions, structural build, and electrical specifications verified for this processing unit.

On-Site Mounting & Commissioning Directives

Proper physical integration prevents signal disruption and safeguards critical processing components from localized environmental risks.

Baseplate Grounding Integrity

Mount the module firmly onto its matching TP830 baseplate assembly. Technicians must bond the baseplate DIN rail directly to the common cabinet functional earth bar using a heavy-gauge copper strap to shield the internal high-speed microprocessors from electromagnetic interference.

Firmware Flash Procedures

Before restoring power to a replaced node, verify the existing firmware version of the system using Compact Control Builder software. Ensure the new processor matches the plant's running revision exactly to avoid application synchronization errors.

Component Isolation Space

Keep a 50mm clearance gap around the top and bottom ventilation slits of the module. This maintains steady thermal convection currents, drawing heat away from internal components and sustaining long-term component lifecycle performance.

System Integration Capabilities

This processing unit provides distinct structural and operational advantages over basic commercial controller alternatives.

Direct Legacy Migration Paths

The unit handles direct field upgrades for aging control architectures without requiring complete field-wiring replacement. It acts as an optimal solution for lifecycle extensions, fitting straight into active configurations to immediately improve processing speeds.

Harsh Environment Resilience

The circuit boards utilize robust multi-layered architectural protection, offering high immunity against voltage spikes and strong high-frequency vibrations often caused by large industrial compressor lines and nearby manufacturing machinery.

Procurement Manifest Inclusions

Each ordered kit contains the specific components needed to execute immediate replacement tasks:

(1) Original ABB PM851K01 Processor Core Module

(2) Built-in backup battery element (unactivated)

(3) Factory protective anti-static transport wrapping

Please note that the required TP830 connection baseplate, specialized field termination blocks, and control builder software licenses are distinct items and are not included in this kit.

Expedited Logistics & Dispatch Parameters

Our supply chain infrastructure minimizes downtime through rapid global fulfillment protocols.

Dispatch Timeline

We process and dispatch all orders within 2 to 7 business days following verified payment clearance.

International Courier Delivery

All packages travel via premium global networks including DHL, FedEx, and UPS, providing complete end-to-end tracking updates and secure delivery.

Sensitive Electronics Packaging

To prevent accidental transit damage, components are packed in thick anti-static industrial enclosures, surrounded by high-density impact-resistant foam to shield the processing logic from shocks and environmental hazards during travel.

Hardware Diagnostics & FAQs

Q1: What steps should be taken if the PM851K01 displays a steady red "F" (Fault) light during initial power-up?

A1: A steady red Fault indicator generally indicates either an unresolved hardware self-test error or missing application firmware. Connect an engineering laptop to the serial service port, open the diagnostics tool, and check if a firmware download is required to clear the internal flash memory state.

Q2: Can the PM851K01 processor support redundant controller operations out of the box?

A2: No. The PM851K01 is designed for non-redundant, single-processor architectures. For plants requiring true high-availability CPU redundancy with automatic bumpless transfer, you should deploy higher-tier processing modules like the PM861A or PM864A along with matching redundant baseplates.

Q3: How long will the internal backup battery preserve the control application if main cabinet power is lost?

A3: When fully charged, the standard internal backup battery preserves memory contents and application code for up to several months under normal ambient temperatures. However, we recommend replacing the battery during scheduled yearly plant maintenance windows to prevent application loss during extended shutdowns.
