Product Overview

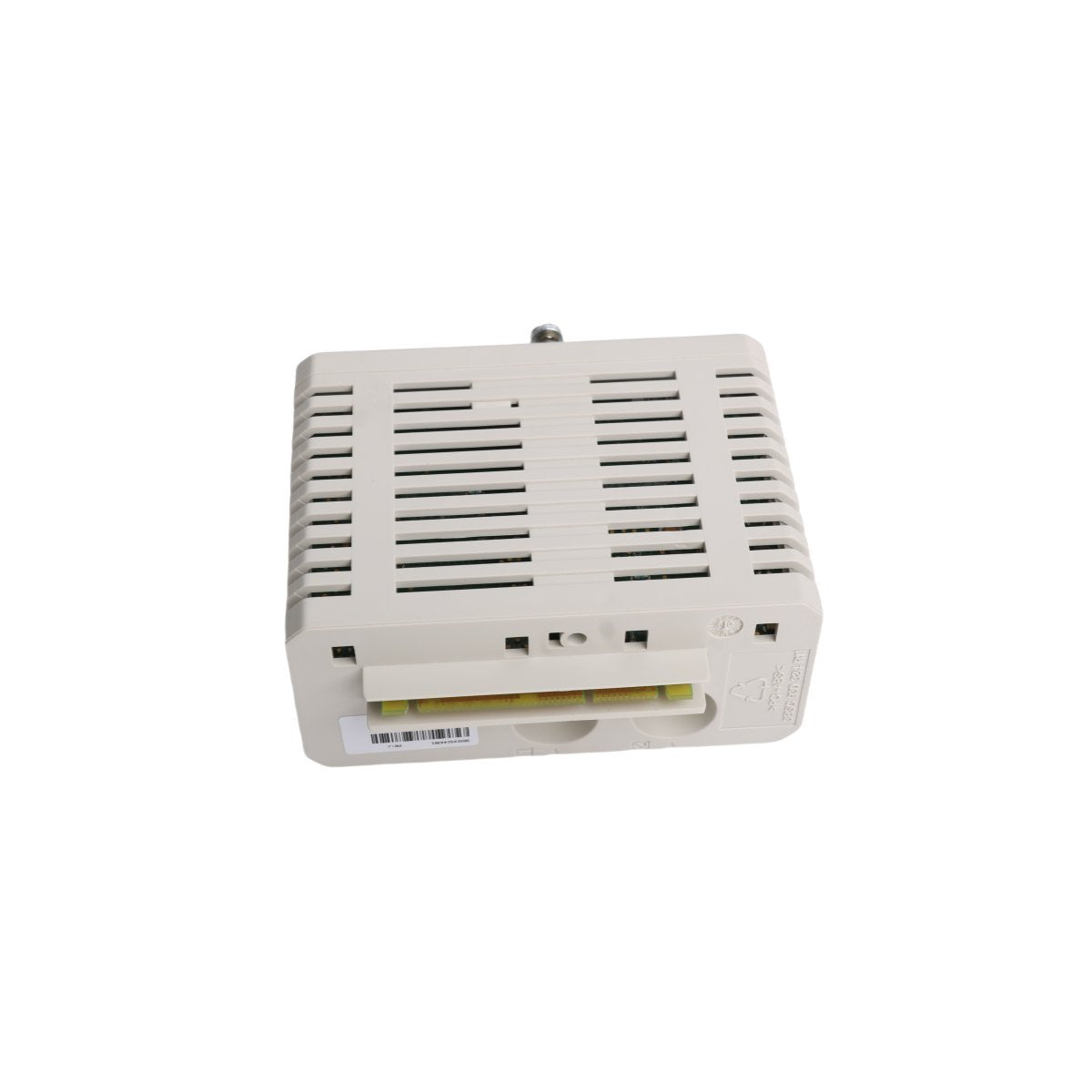

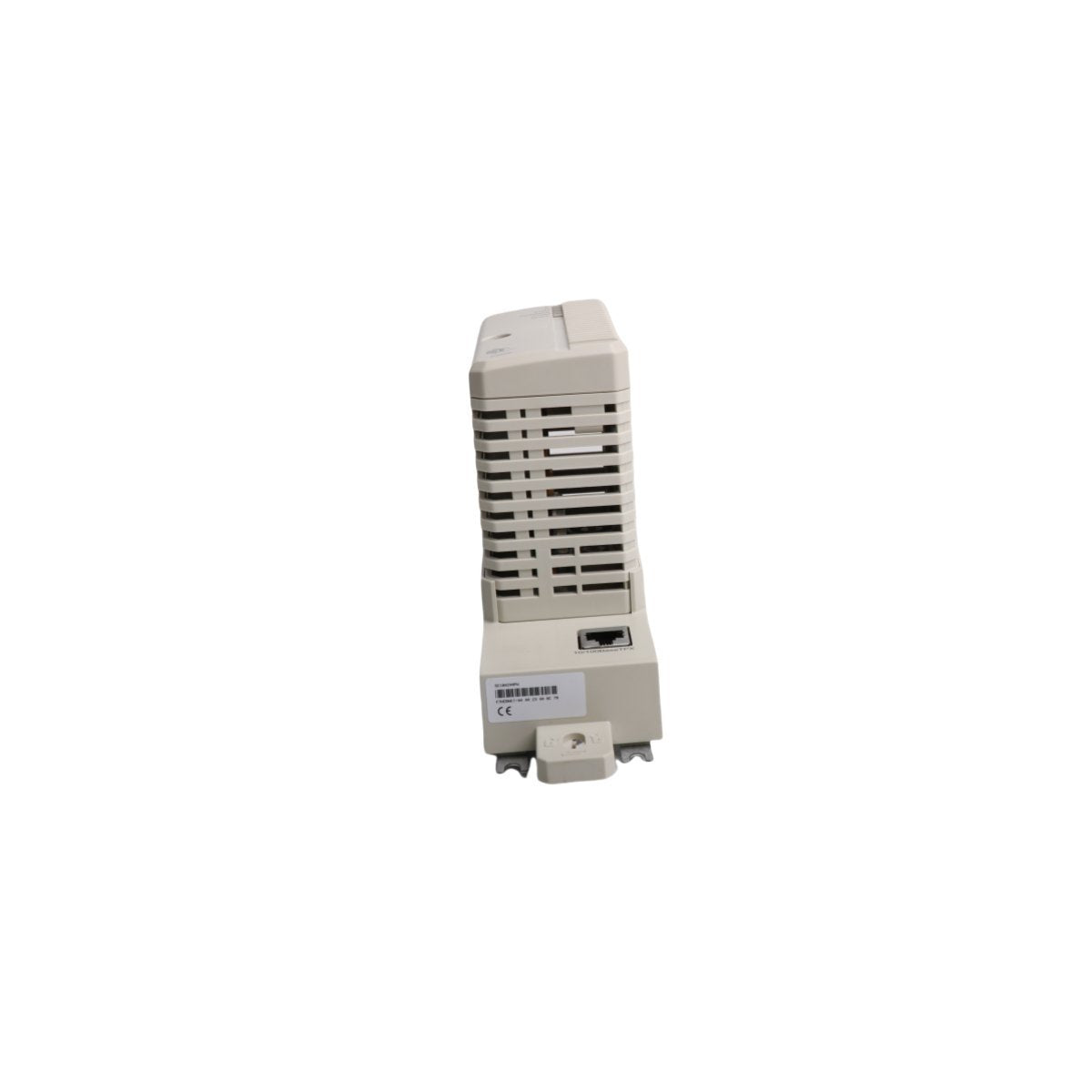

The ABB CI860 (Order Code 3BSE032444R1) is a specialized communication processor designed to integrate Foundation Fieldbus HSE (High Speed Ethernet) networks into the AC800M and Distributed Control System (DCS) architectures. This interface module facilitates the high-speed transfer of complex process data between the controller and decentralized field devices. By acting as a high-bandwidth gateway, the CI860K01 allows for the centralization of diagnostics and control logic for smart sensors and actuators. Engineered for high-availability environments, this unit ensures that deterministic data exchange is maintained across the industrial backbone, providing the necessary infrastructure for advanced asset management and real-time process optimization.

Engineering Parameters and Hardware Attributes

• Identity Designation CI860 / CI860K01

• Commercial Part Number 3BSE032444R1

• Protocols Supported Foundation Fieldbus HSE (High Speed Ethernet)

• Physical Mass 0.12 kg

• Module Proportions 2 x 10.5 x 11 cm

• System Environment AC800M Controller / DCS integration

• Network Speed 100 Mbit/s high-speed data throughput

• Diagnostic Suite Integrated SNMP support and web-based status monitoring

• Production Origin Sweden

• Standard Classification 8537101190 (HS Code)

Strategic Industrial Implementations

The 3BSE032444R1 module is deployed in sectors requiring high-density device communication:

• Petrochemical and Refining Managing hundreds of smart field instruments over HSE networks to enable predictive maintenance and precise valve control.

• Large-Scale Power Generation Coordinating the feedback loops of turbines and boilers where High Speed Ethernet is required for rapid data refresh rates.

• Advanced Water Treatment Integrating decentralized pumping stations and filtration sensors into a unified AC800M control scheme.

• Asset Management Systems Utilizing the HSE backbone to transmit rich diagnostic data from smart devices to central management software without taxing the primary control logic.

FAQ

Q: What is the primary difference between FF H1 and the FF HSE supported by this module?

A: Foundation Fieldbus H1 operates at lower speeds (31.25 kbps) for field-level wiring, while the CI860's HSE (High Speed Ethernet) operates at 100 Mbps, acting as a high-speed backbone for linking multiple H1 links or high-speed devices to the controller.

Q: Does the CI860 3BSE032444R1 support redundancy?

A: Yes, this module is typically used in redundant pairs within the AC800M system to ensure that communication with critical field networks is maintained even in the event of a single hardware failure.

Q: Can this module be configured using standard ABB Control Builder software?

A: Absolutely. The CI860 is fully integrated into the ABB engineering toolset, allowing for seamless configuration of HSE linking devices and field instruments within a single environment.

Q: What is the power consumption profile of this interface?

A: The CI860 is designed for high efficiency, drawing minimal power from the internal CEX-bus of the AC800M controller, which helps in maintaining lower thermal levels in the control cabinet.

Q: How does the CI860 handle network security and diagnostics?

A: The module includes built-in diagnostic tools and supports standard IT protocols like SNMP, allowing network administrators to monitor the health of the HSE network alongside the industrial process.
