Product Overview

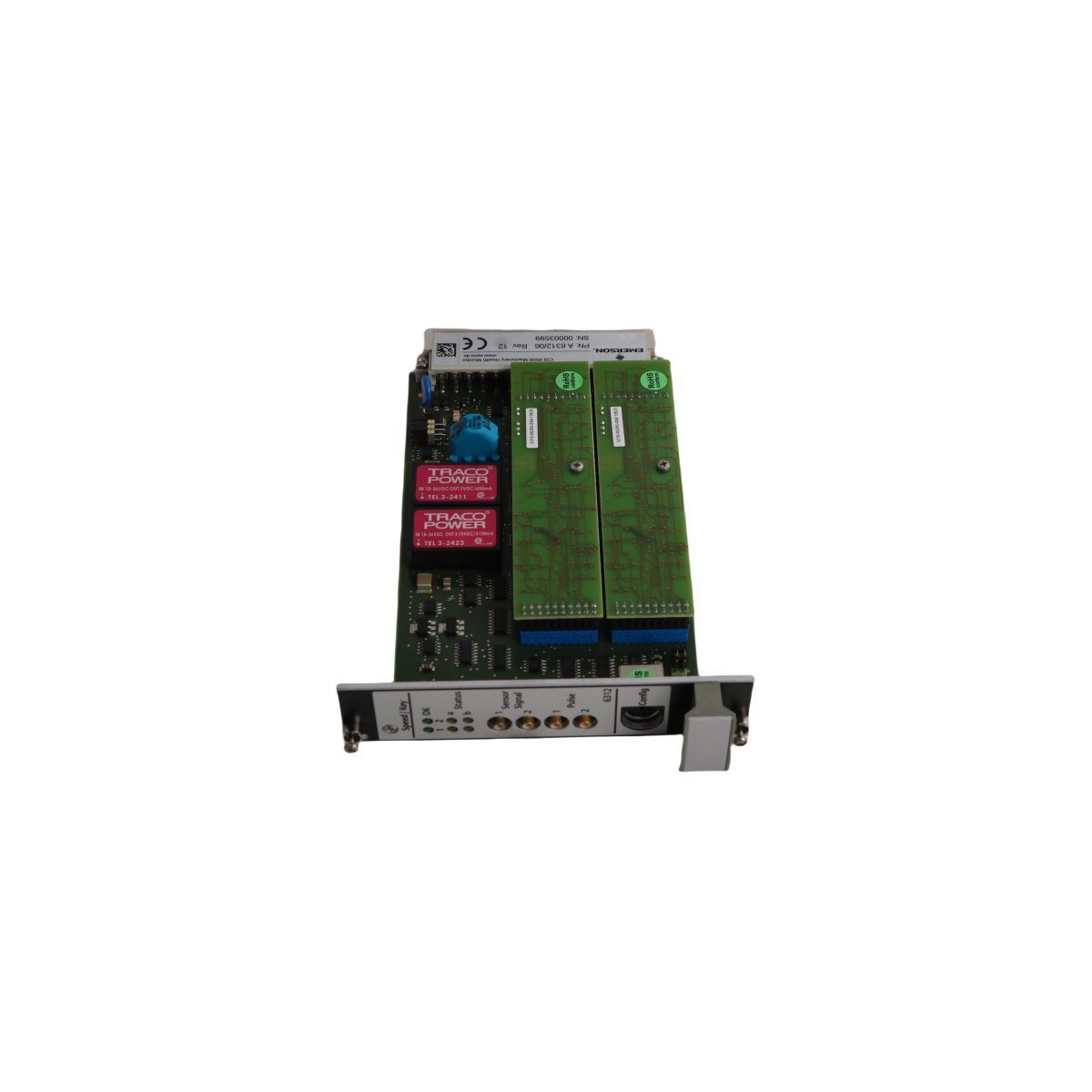

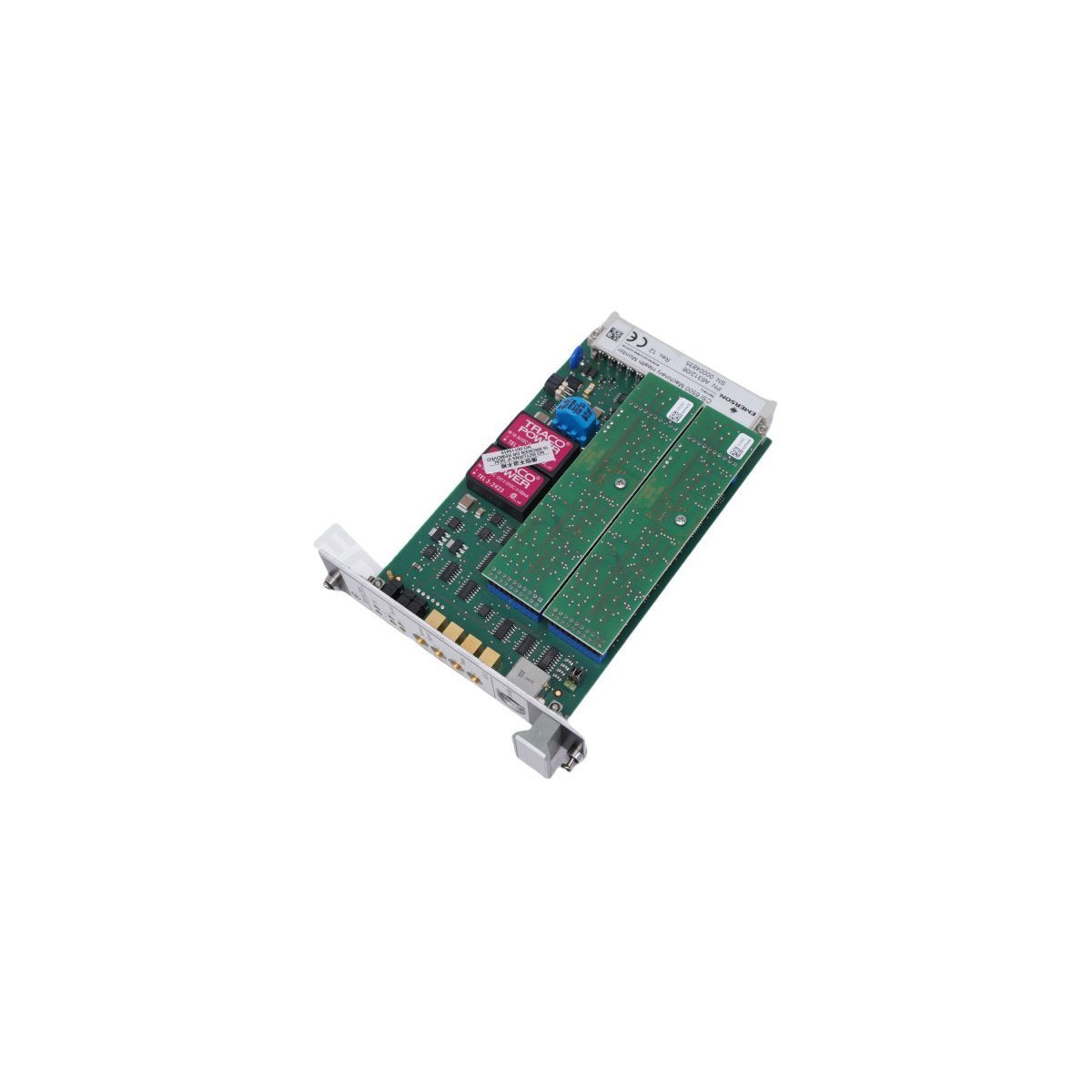

The Emerson A6312/06 is a high-performance speed and phase reference module designed specifically for the CSI 6500 Machinery Health Monitor chassis. This specialized Speed Key Module serves as the primary interface for processing pulse signals from tachometers and proximity sensors. By accurately calculating rotational velocity and detecting "Keyphasing" signals, the A6312/06 provides the essential timing reference required for synchronized vibration analysis. This allows maintenance engineers to correlate vibration data with shaft position, which is fundamental for identifying phase-related mechanical issues such as rotor imbalance, misalignment, and shaft cracks.

Core Processing Capabilities and Physical Configuration

The A6312/06 is engineered to provide stable pulse detection across a broad dynamic range, ensuring signal integrity in electrically noisy industrial environments.

• Monitoring Channels: Dual-channel input capability for simultaneous speed and phase tracking.

• Signal Compatibility: Interface supports eddy current probes, hall-effect sensors, and magnetic pickups.

• Measurement Precision: High-resolution rotational speed calculation from low RPM to high-speed turbine velocities.

• System Integration: Plugs directly into the CSI 6500 backplane for high-speed data exchange with prediction cards.

• Diagnostic Features: Built-in self-test and sensor health monitoring to detect open or short circuit conditions.

• Data Output: Real-time pulse stream for phase-locked loop (PLL) synchronization.

• Environmental Tolerance: Hardened circuitry designed for continuous operation in cabinet temperatures up to 70°C.

Strategic Deployment and Machine Analytics

In heavy industrial environments, the A6312/06 is a mandatory component for advanced machinery protection and diagnostics. It is predominantly utilized on large-scale rotating assets where phase data is critical for safety and operational stability.

Within power generation and petrochemical facilities, this module is applied to steam turbines, gas turbines, and large centrifugal compressors. By providing a steady "Once-per-Revolution" pulse, the A6312/06 enables the CSI 6500 system to perform vector-based vibration monitoring (Amplitude and Phase). This level of detail is necessary for balancing procedures and for distinguishing between different mechanical fault frequencies. The module’s deep integration with AMS Suite software allows for detailed trend analysis and automated reporting, empowering reliability teams to make data-driven decisions that minimize unplanned outages and maximize the lifespan of critical turbomachinery.
