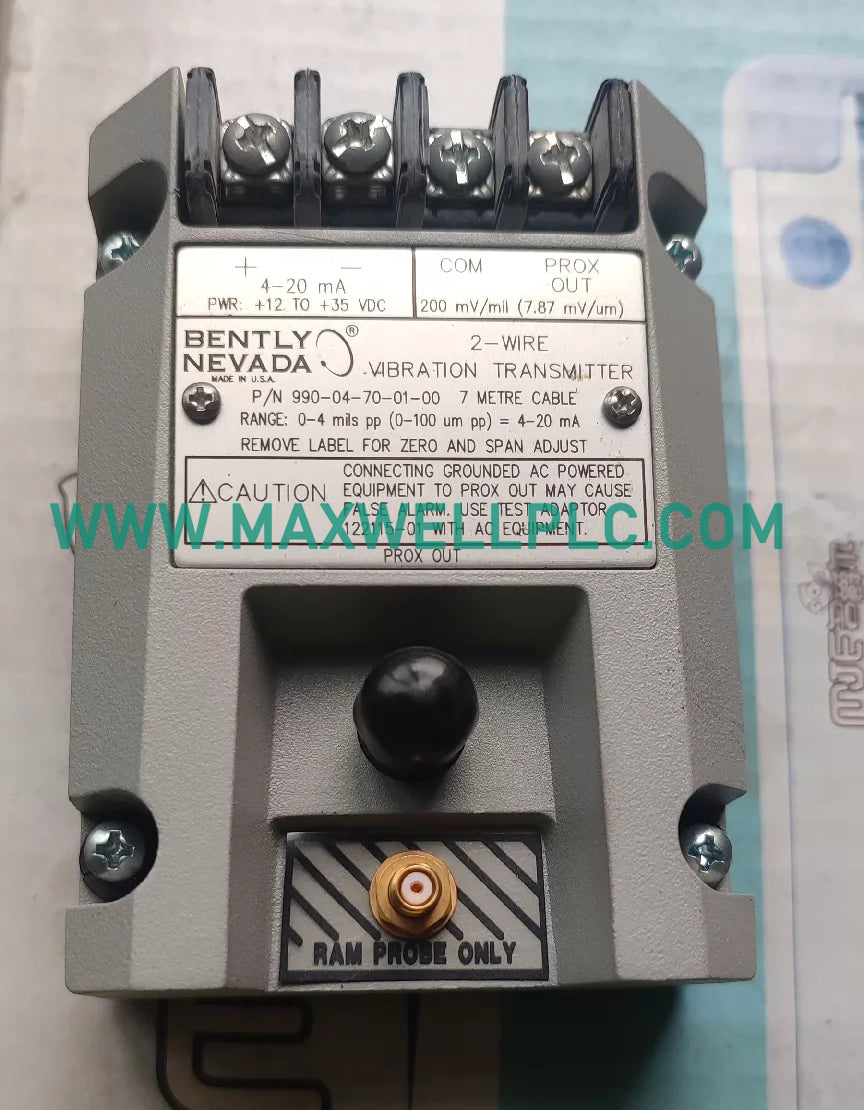

The Bently Nevada 990-04-70-01-00, also cataloged as the 990 Vibration Transmitter, operates as a dedicated hardware component for converting vibration displacement signals into conditioned electrical outputs within Bently Nevada machinery monitoring systems.

Configuration Overview

The 990-04-70-01-00 is a 990 Series vibration transmitter configured with a 0-4 mils peak-to-peak measurement range, 7.0 meter system length option, and 35 mm DIN rail mounting clips. The unit requires a +12 to +35 VDC supply input at the transmitter terminal.

Model Configuration Details

Hardware Specifications

TSI Signal Processing Characteristics

The Bently Nevada 990 transmitter conditions vibration displacement signals from compatible eddy-current proximity measurement systems. The transmitter converts the probe signal into a processed output representing shaft vibration amplitude.

Eddy-current probe scaling must match the connected sensing circuit parameters to maintain correct displacement conversion. During commissioning, probe gap voltage validation and -10 VDC target gap settings should be verified according to the associated monitoring system requirements.

Rotor Dynamics Monitoring Interface

The 990 Series transmitter provides signal conditioning for rotating equipment vibration monitoring loops. The 0-4 mils pp configuration is designed for applications requiring lower vibration measurement ranges with external zero and span adjustment capability.

Proper cable routing is required to reduce electromagnetic interference. Shield termination and grounding practices should follow the installation requirements of the connected machinery monitoring system to reduce cross-talk effects.

Ordering Information

• 1 x Bently Nevada 990-04-70-01-00 Vibration Transmitter
• 1 x 990 Series transmitter electronics assembly
• 1 x 35 mm DIN rail mounting clip set
• 1 x Configured 0-4 mils pp measurement range option

Installation Guidelines

Mechanical Installation

• Mount the transmitter on a compatible 35 mm DIN rail.
• Verify mounting position allows access to field terminals and adjustment points.
• Install the unit according to the enclosure and system installation requirements.

Electrical Wiring

• Connect a +12 to +35 VDC supply directly to the transmitter terminal.
• Keep vibration signal wiring separated from power switching conductors.
• Connect cable shields using the grounding method specified for the monitoring system.

Signal Adjustment

• Confirm the connected probe sensitivity before calibration.
• Use the external zero and span adjustments for signal range configuration.
• Verify output response against the expected vibration input signal.

Frequently Asked Questions

• What vibration range is supported by the 990-04-70-01-00?

  The transmitter is configured for a 0-4 mils peak-to-peak vibration range, equivalent to 0-100 um peak-to-peak.

• What power input is required for operation?

  The unit requires a +12 to +35 VDC supply connected at the transmitter terminal.

• What mounting hardware is included in this configuration?

  The model includes 35 mm DIN rail clips for installation on standard industrial mounting rails.

• What is the configured system cable length?

  This configuration uses a 7.0 meter system length option, equivalent to 23.0 feet.

• Does this model provide zero and span adjustment?

  Yes. The transmitter provides non-interacting external zero and span adjustments for calibration.

• Is the transmitter designed for proximity probe systems?

  The 990 Series transmitter is designed to process vibration signals from compatible eddy-current proximity measurement systems.

• How should the signal cable shield be installed?

  The shield should be terminated according to the connected monitoring system grounding specification to reduce interference.

• Does this unit support hot-swapping?

  The transmitter is a field-mounted device and does not specify hot-swap capability. Power isolation is recommended before wiring changes.
