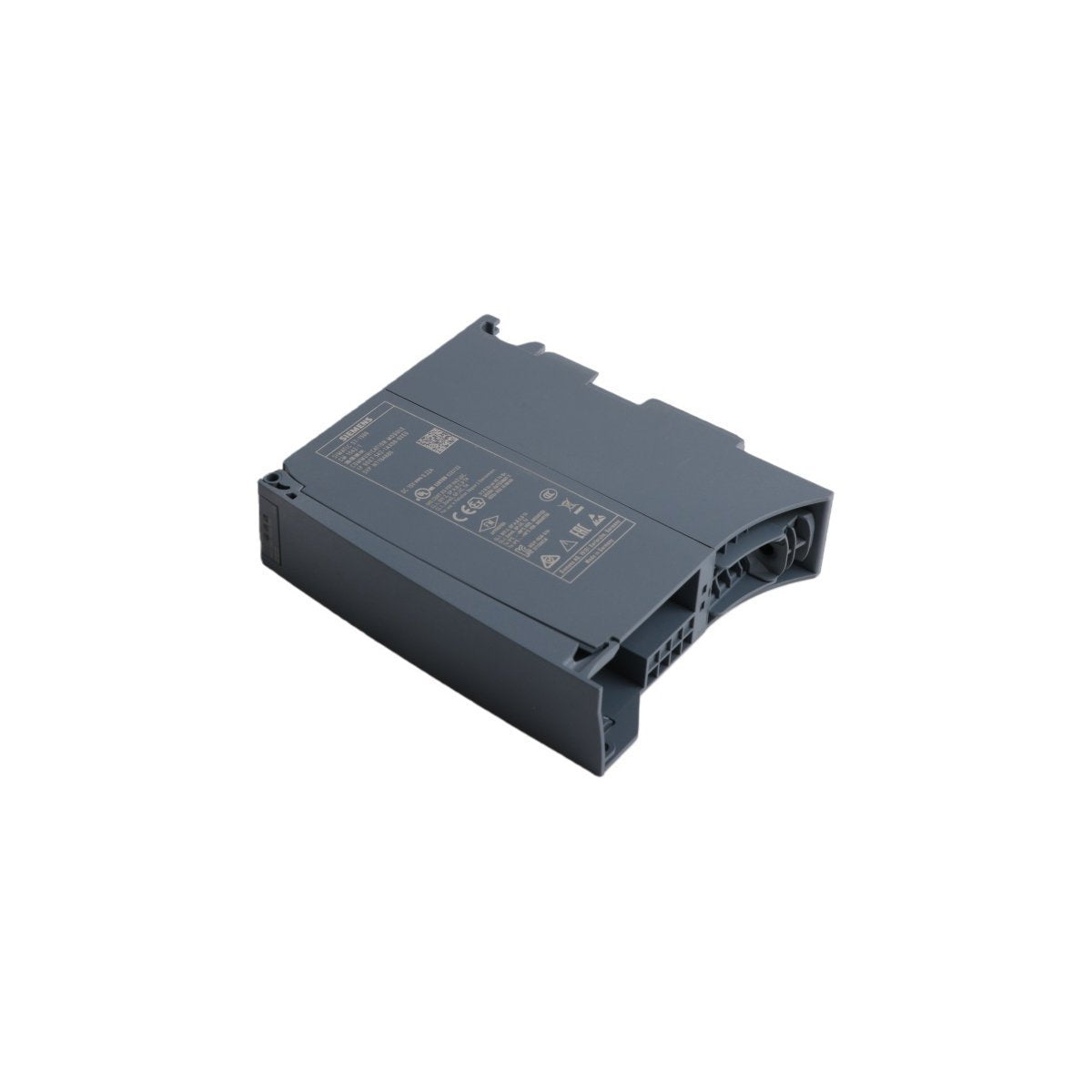

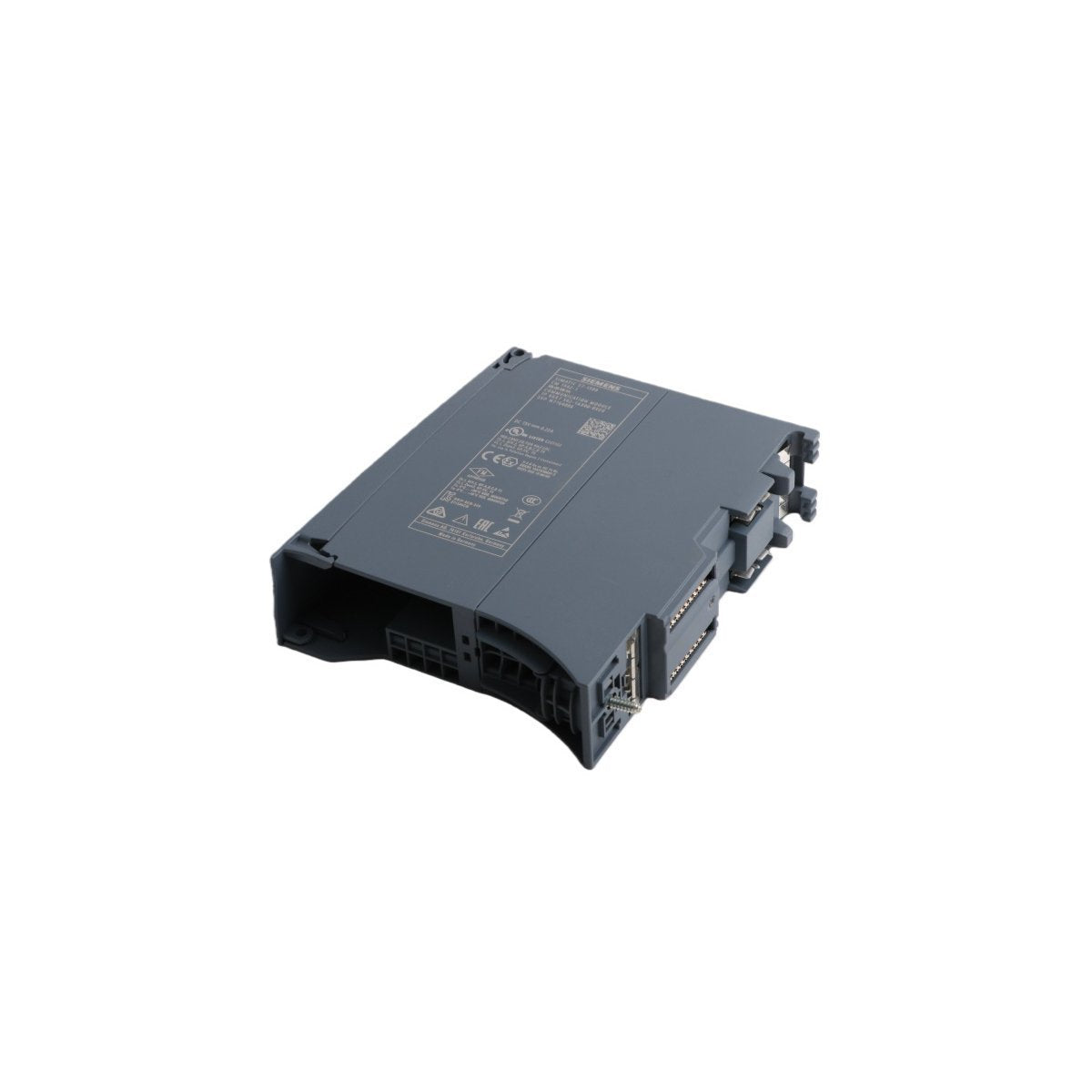

6GK7542-1AX00-0XE0 Siemens SIMATIC S7-1500 CP 1542-1 Communication Module
-
Dimensions: 12.9 x 3.5 x 14.2 cm
-
Country of origin: Germany
-
Payment: T/T, Western Union
-
Shipping port: Xiamen
Product Overview
The Siemens 6GK7542-1AX00-0XE0 is a high-performance communication module designed to expand the networking capabilities of the SIMATIC S7-1500 controller family. This processor acts as a dedicated interface for PROFINET IO communication, effectively offloading communication tasks from the main CPU to ensure optimal logic execution speeds. It provides a robust gateway for connecting the S7-1500 to Industrial Ethernet networks, supporting a wide array of standardized protocols for vertical and horizontal data integration. By serving as both a controller and a device simultaneously, this module facilitates complex network topologies and high-speed data exchange in modern, decentralized automation environments.
Network Architecture and Connectivity Specs
The 6GK7542-1AX00-0XE0 is equipped with advanced networking features to ensure secure and synchronized industrial communication:
-
Dual Interface Design: Features an integrated 2-port real-time switch with RJ45 connections, supporting 10/100 Mbit/s full-duplex Ethernet.
-
Multi-Protocol Support: Enables simultaneous operation of PROFINET IO, TCP/IP, ISO-on-TCP, UDP, and S7 communication.
-
Synchronization Logic: Supports NTP (Network Time Protocol) for millisecond-accurate time stamping across the entire automation plant.
-
Management & Diagnostics: Comprehensive network transparency via SNMP V1 and web-based diagnostics through the S7-1500 CPU.
-
Advanced Addressing: Full support for IP Broadcast and Multicast, allowing for efficient one-to-many data distribution.
-
Physical Integration: Compact 35mm width housing (129 x 35 x 142 mm) allows for high-density mounting on the standard S7-1500 DIN rail.
-
Operational Resilience: Built-in protection against electromagnetic interference and designed for wide-range industrial temperature profiles.
Strategic Industrial Networking Applications
This communication processor is a vital asset for facilities transitioning to Industry 4.0 and integrated manufacturing:
| Industrial Scenario | Networking Role |
| Distributed Automation | Connecting a central S7-1500 CPU to remote I/O stations and drives across a large-scale PROFINET IO network. |
| IT/OT Integration | Facilitating secure data transfer from the factory floor to higher-level MES/ERP systems via TCP/IP and UDP protocols. |
| Machine-to-Machine (M2M) | Coordinating synchronized operations between multiple S7-1500 cells through high-speed S7 communication. |
| System Diagnostics | Monitoring remote equipment health and network traffic using SNMP-based management tools. |
| Global Plant Coordination | Ensuring all controllers in a facility are synchronized to a master clock via NTP for consistent event logging. |
