Product Overview

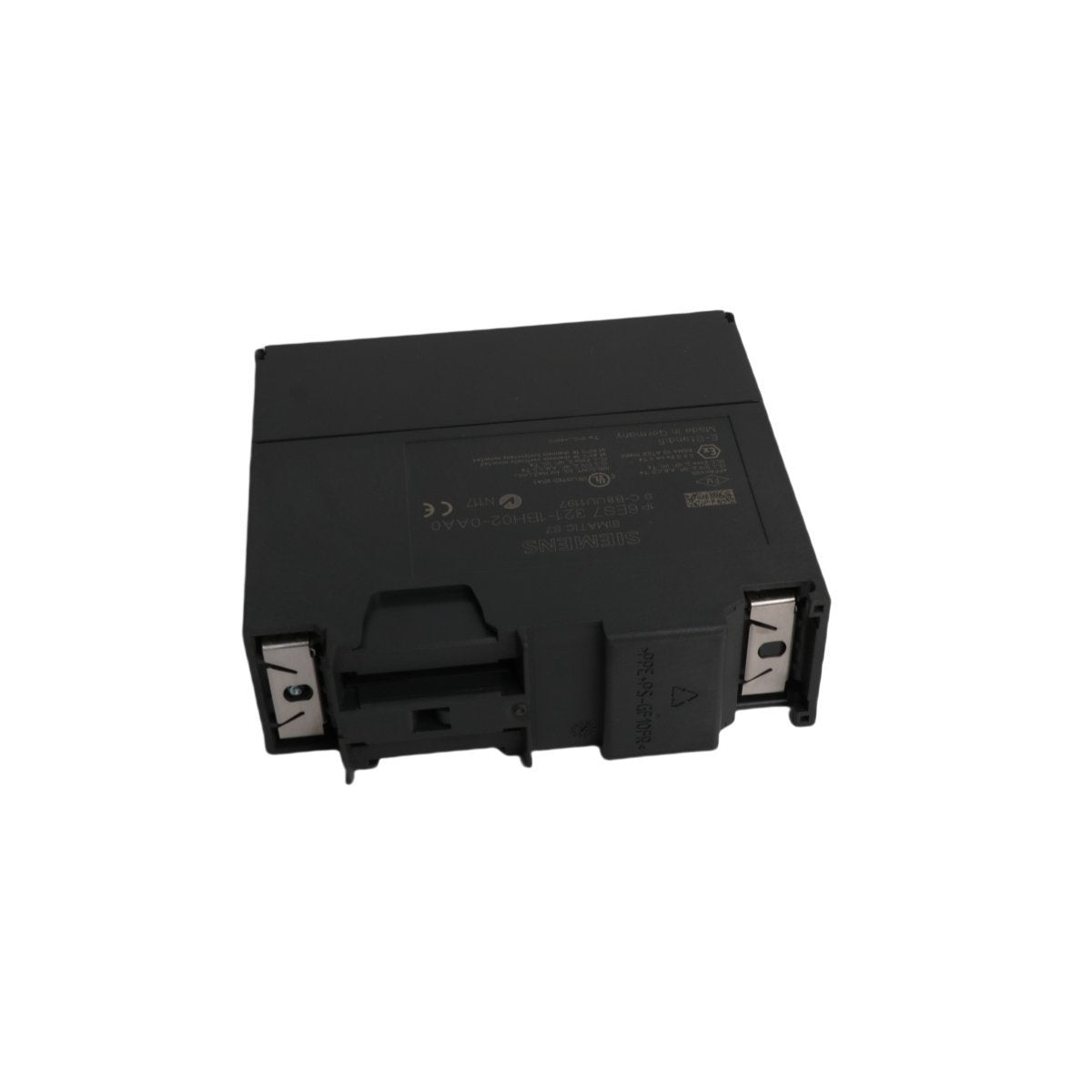

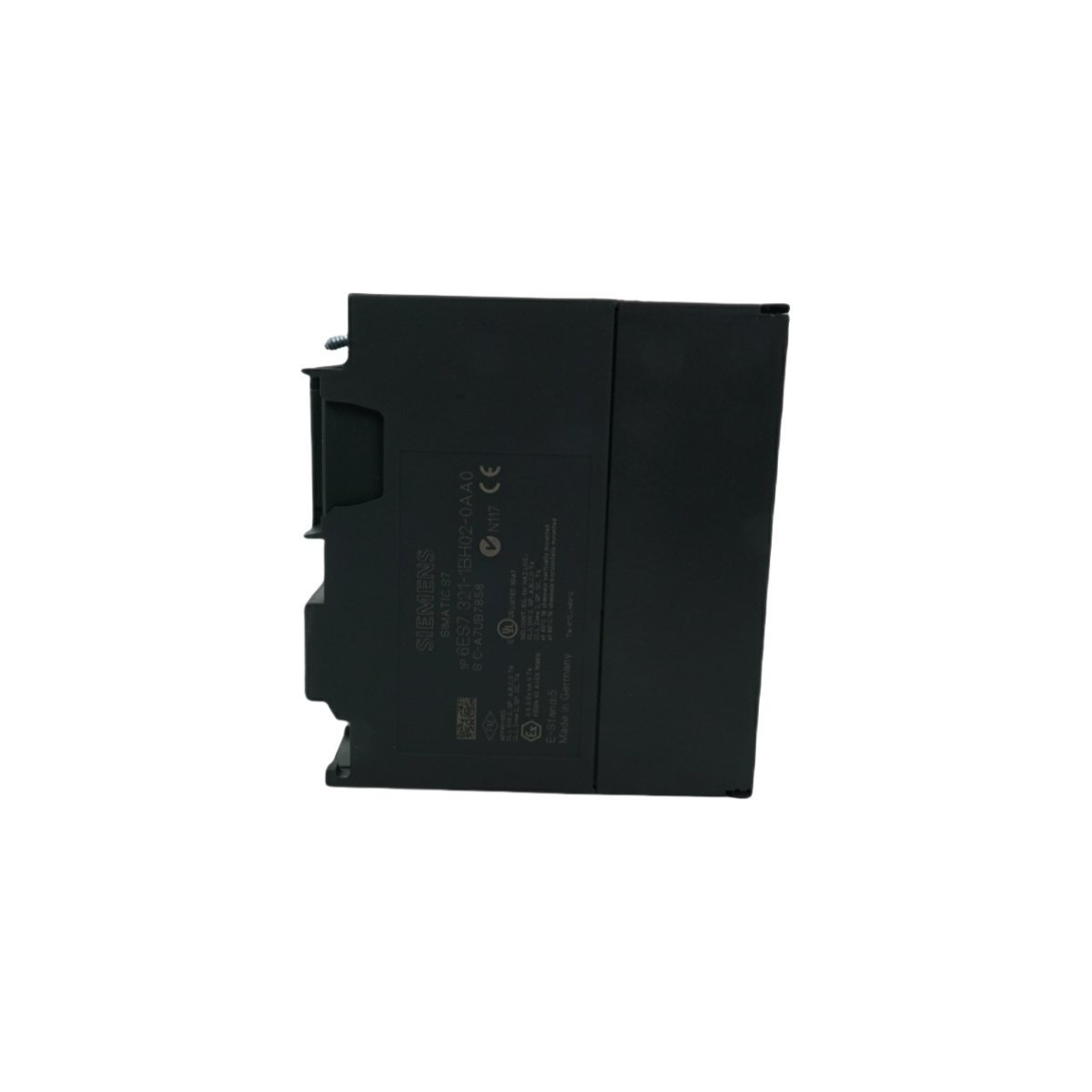

The Siemens 6ES7321-1BH02-0AA0 is a high-density digital signal acquisition module specifically engineered for the SIMATIC S7-300 PLC platform. As an SM 321 series component, it provides the central controller with 16 discrete input channels, allowing for the real-time monitoring of binary field devices such as limit switches, proximity sensors, and pushbuttons. This module utilizes advanced optoelectronic coupling to provide a robust galvanic barrier between the sensitive internal PLC logic and the 24V DC field environment. This architectural design ensures that high-frequency electrical noise and voltage transients common in industrial settings do not compromise data integrity or CPU stability.

Primary Hardware Architecture and Operating Profiles

• Input Quantity: 16 Digital Inputs (isolated in one group)

• Logic Type: Sinking / P-reading (24V DC)

• Galvanic Isolation: Optocouplers safeguard internal backplane bus

• Visual Interface: 16 Front-panel Green LEDs for individual channel status

• Data Processing: User-definable input delay/filtering (typical 1.2 ms to 4.8 ms)

• Physical Mass: 0.18 kg

• Unit Dimensions: 4 x 11.7 x 12.5 cm (Standard 40mm width)

• Environmental Tolerance: -20°C to +60°C operating temperature

• Engineering Reliability: Proven MTBF exceeding 500,000 hours

• Connection Requirements: Compatible with 20-pin S7-300 front connectors

• Manufacturing Origin: Germany

Industrial Implementation and Signal Management

The 6ES7321-1BH02-0AA0 is a fundamental building block for discrete manufacturing and process control. Its primary industrial roles include:

• Automated Material Handling: Detecting pallet positions and conveyor gate statuses in high-throughput logistics centers.

• Packaging and Bottling: Capturing high-speed sensor feedback to synchronize capping, labeling, and wrapping actuators.

• Discrete Assembly Cells: Monitoring safety interlocks, pneumatic cylinder positions, and operator interface signals in robotic manufacturing.

• Smart Factory Integration: Serving as a localized data acquisition point for Industry 4.0 environments where real-time machine telemetry is essential.

• Space-Optimized Control Cabinets: Leveraging the narrow module footprint to maximize I/O density on the DIN rail without increasing enclosure size.
