Product Overview

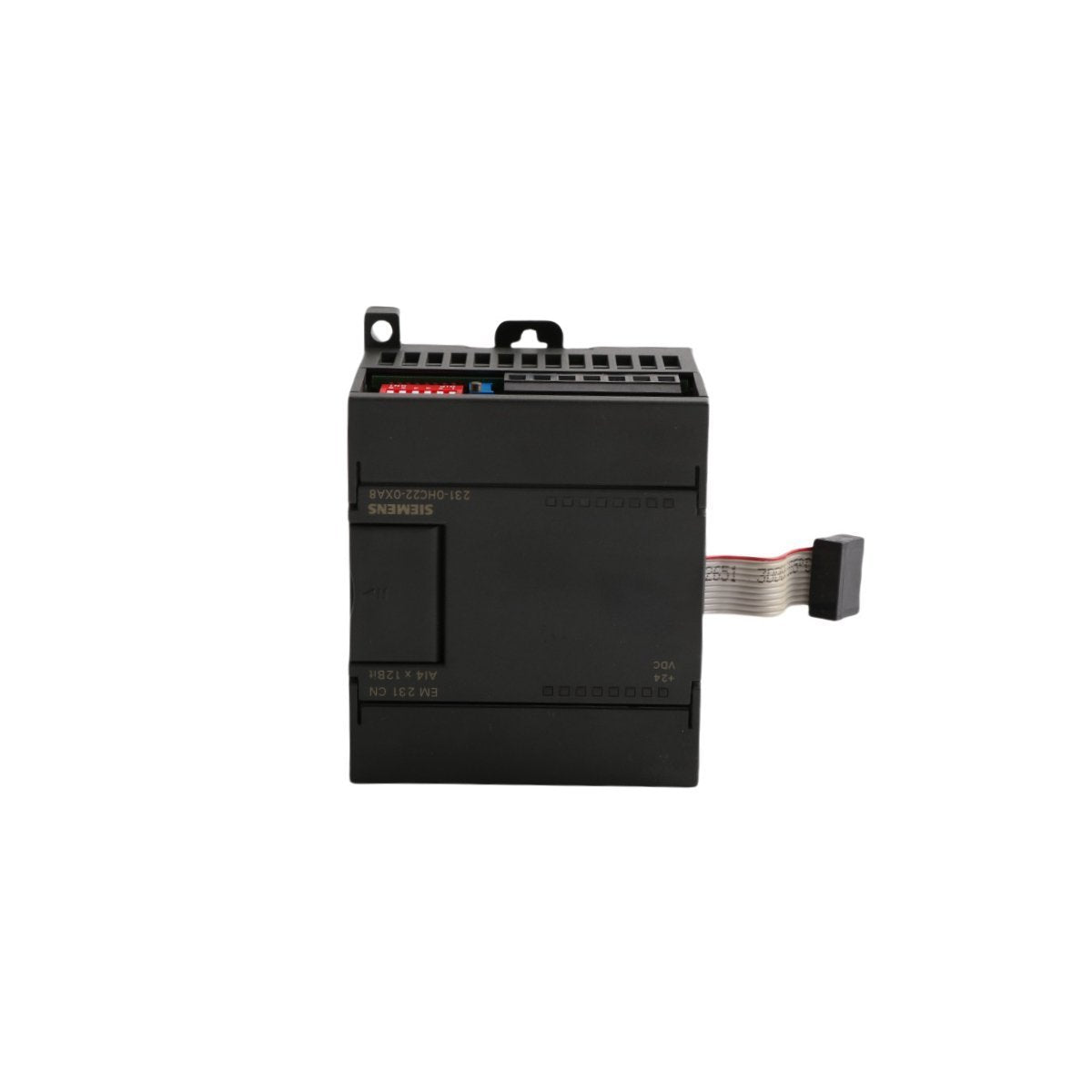

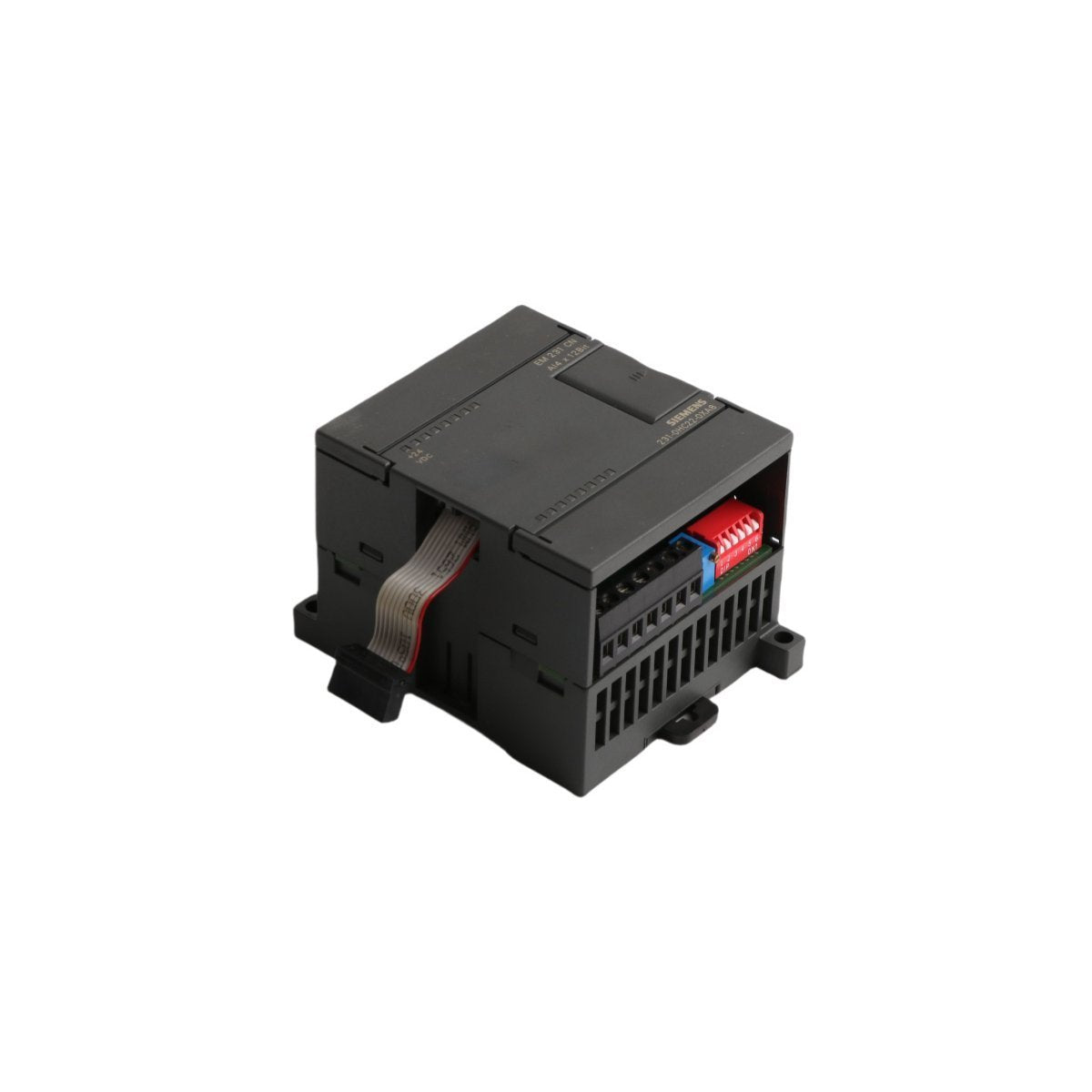

The Siemens 6ES7231-0HC22-0XA8 is a specialized expansion unit for the SIMATIC S7-200 CN series, providing advanced analog-to-digital conversion for localized industrial control. This EM 231 module is engineered to expand the sensory capabilities of CN-type CPUs, allowing for the integration of up to four independent analog signals. It is primarily designed to facilitate high-precision monitoring of voltage-based field instruments while maintaining the compact form factor required for space-sensitive electrical cabinets. By utilizing differential inputs, the module significantly mitigates electromagnetic interference, ensuring stable data acquisition in electrically noisy environments.

Technical Performance Parameters

This module provides high-resolution signal processing and efficient power management for consistent automation performance.

• Input Channels: 4 Isolated Analog Inputs

• Signal Type: 0 to 10V DC Voltage

• Resolution: 12-bit Analog-to-Digital Converter (ADC)

• Input Circuitry: Differential inputs for noise reduction

• Power Consumption: 2 Watts

• CPU Compatibility: Exclusively for SIMATIC S7-22X CN series

• Compliance: CE Certified

• Module Weight: 0.18 kg

• Physical Dimensions: 4.5 cm x 7.5 cm x 10.0 cm

• Origin: Germany

Industrial Deployment Scenarios

The 6ES7231-0HC22-0XA8 is a reliable choice for diverse sectors requiring continuous variable tracking and feedback loops.

• Environmental Monitoring: Interfacing with sensors to track air quality, humidity, and gas concentration levels in HVAC or safety systems.

• Fluid Dynamics: Acquisition of data from electronic flow meters and pressure transmitters in small-scale water treatment facilities.

• Manufacturing Quality Control: Monitoring displacement sensors and weight scales on assembly lines to ensure product consistency.

• Process Heating: Reading analog signals from temperature transmitters to regulate industrial furnace or boiler operations.

• Energy Management: Integration with power transducers to monitor voltage fluctuations and equipment power draw in real-time.
