Product Overview

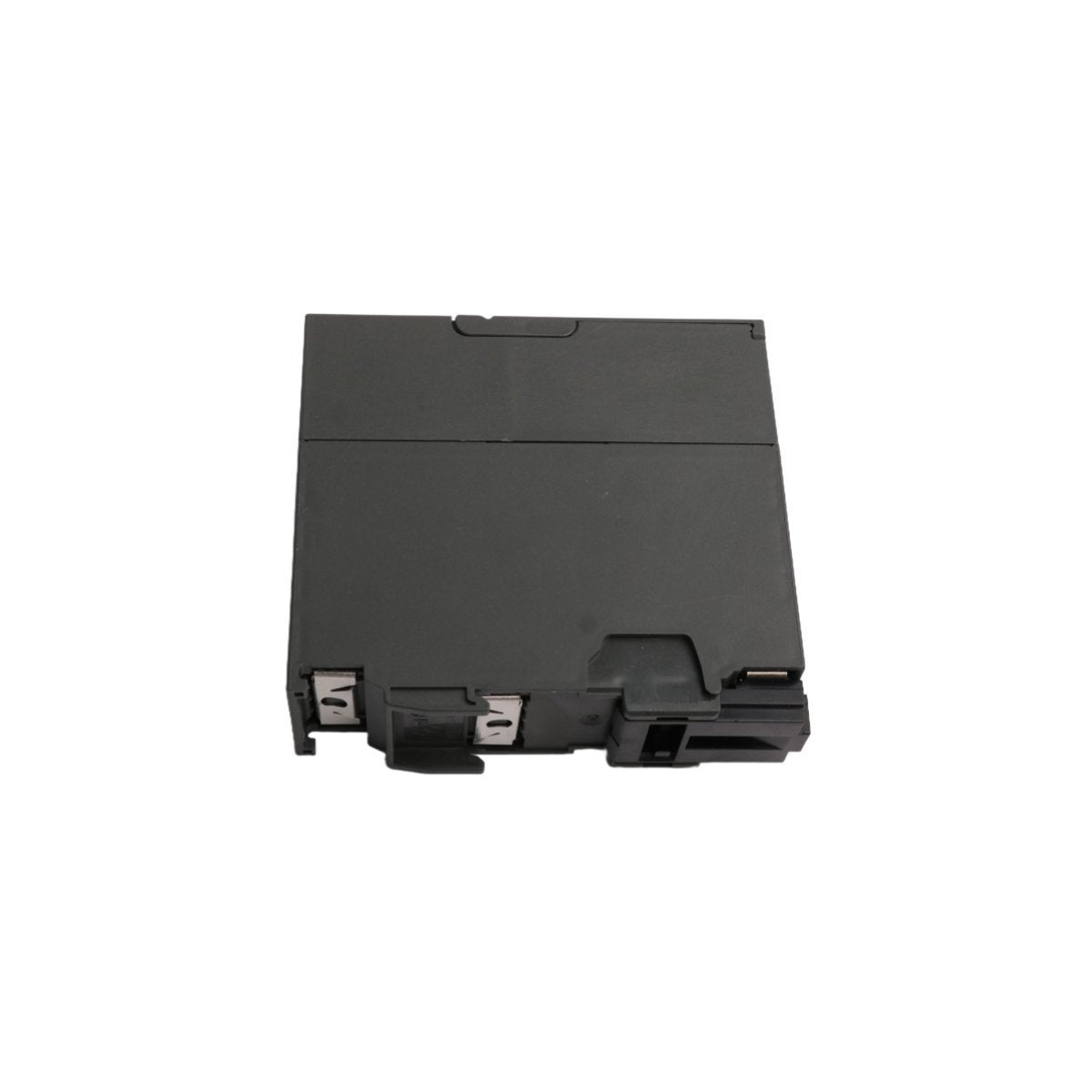

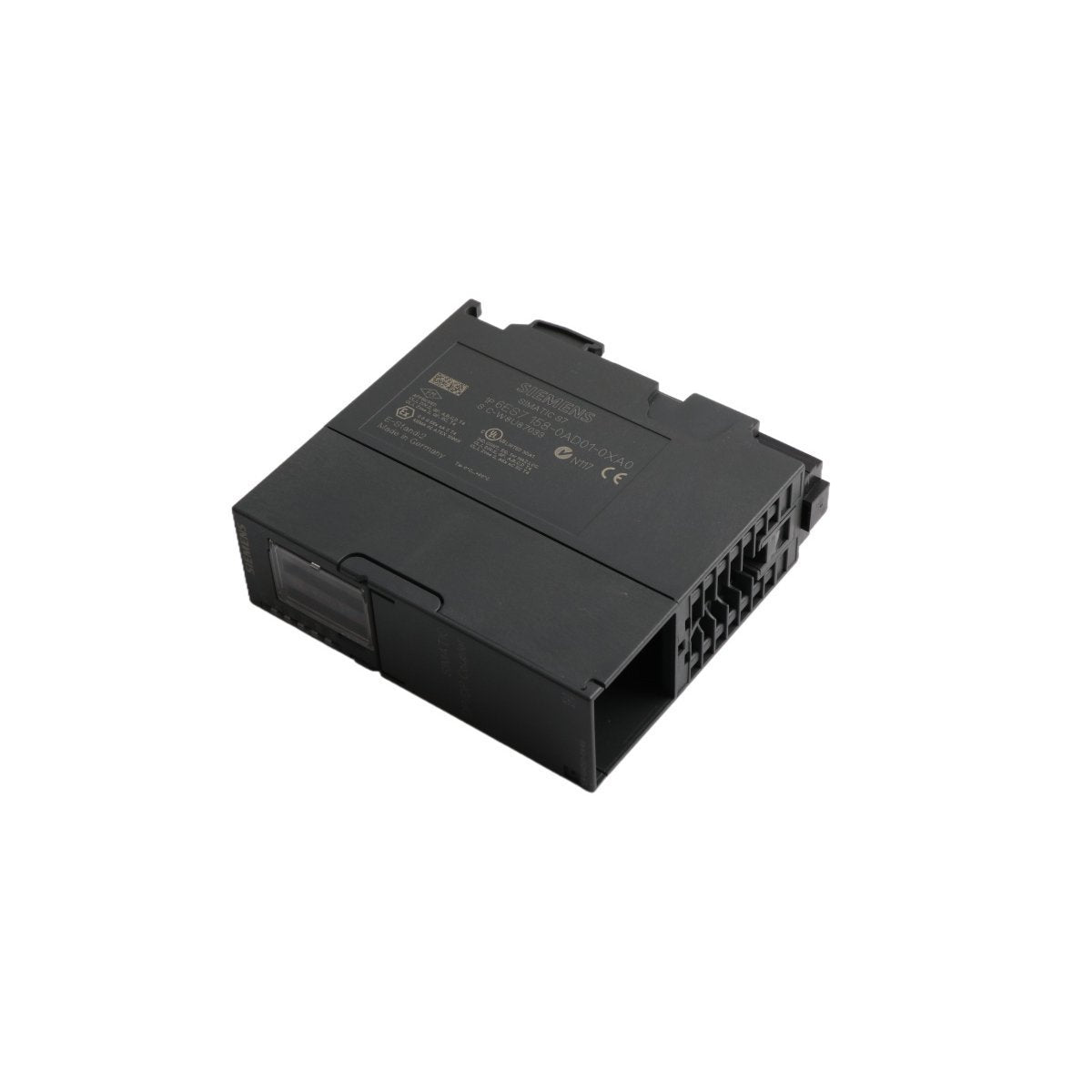

The Siemens 6ES7158-0AD01-0XA0 is a specialized communication module designed to facilitate deterministic data exchange between two independent PROFIBUS DP networks. Functioning as a gateway, this DP/DP coupler allows master systems on different bus segments to communicate without sharing a common electrical circuit. This architecture is essential for linking disparate automation cells, connecting equipment from different vendors, or bridging different plant sections while maintaining strict network autonomy.

By isolating the two PROFIBUS segments, the 6ES7158-0AD01-0XA0 prevents local network faults, electromagnetic interference, or ground potential differences from propagating across the entire facility. This makes it an indispensable component for large-scale distributed systems where network stability and data integrity are paramount.

Technical Specifications

• Baud Rate: Auto-sensing up to 12 Mbps on both interfaces

• Data Capacity: Maximum 244 bytes of input and 244 bytes of output data

• Isolation: Full galvanic isolation between PROFIBUS segment 1 and segment 2

• Power Supply: 24V DC Redundant (Dual inputs)

• Current Consumption: Typically 150 mA

• Status Indicators: LEDs for Bus Fault (BF) and Power (SF/PWR) on both sides

• Addressing: PROFIBUS addresses set via integrated DIP switches (1 to 125)

• Configuration: Integrated via GSD file in STEP 7 or TIA Portal

• Weight: 0.24 kg

• Dimensions: 4cm x 12.5cm x 11.7cm

Reliability and System Integration

The 6ES7158-0AD01-0XA0 is engineered for high-availability environments. Its redundant 24V DC power input ensures that communication remains active even if one power circuit fails. The module acts as a "slave" on both PROFIBUS networks, allowing the respective masters to "see" the coupler as a standard I/O device. This transparency simplifies the programming of data handshakes between separate PLC projects.

The compact housing is designed for standard DIN rail mounting, optimizing cabinet space. It is particularly effective in "brownfield" projects where an existing PROFIBUS network must be connected to a new system without altering the original network configuration or risking bus cycle timing disruptions. With its robust German manufacturing and "Active" product status, it remains a cornerstone for PROFIBUS-based industrial communication.
