Product Overview

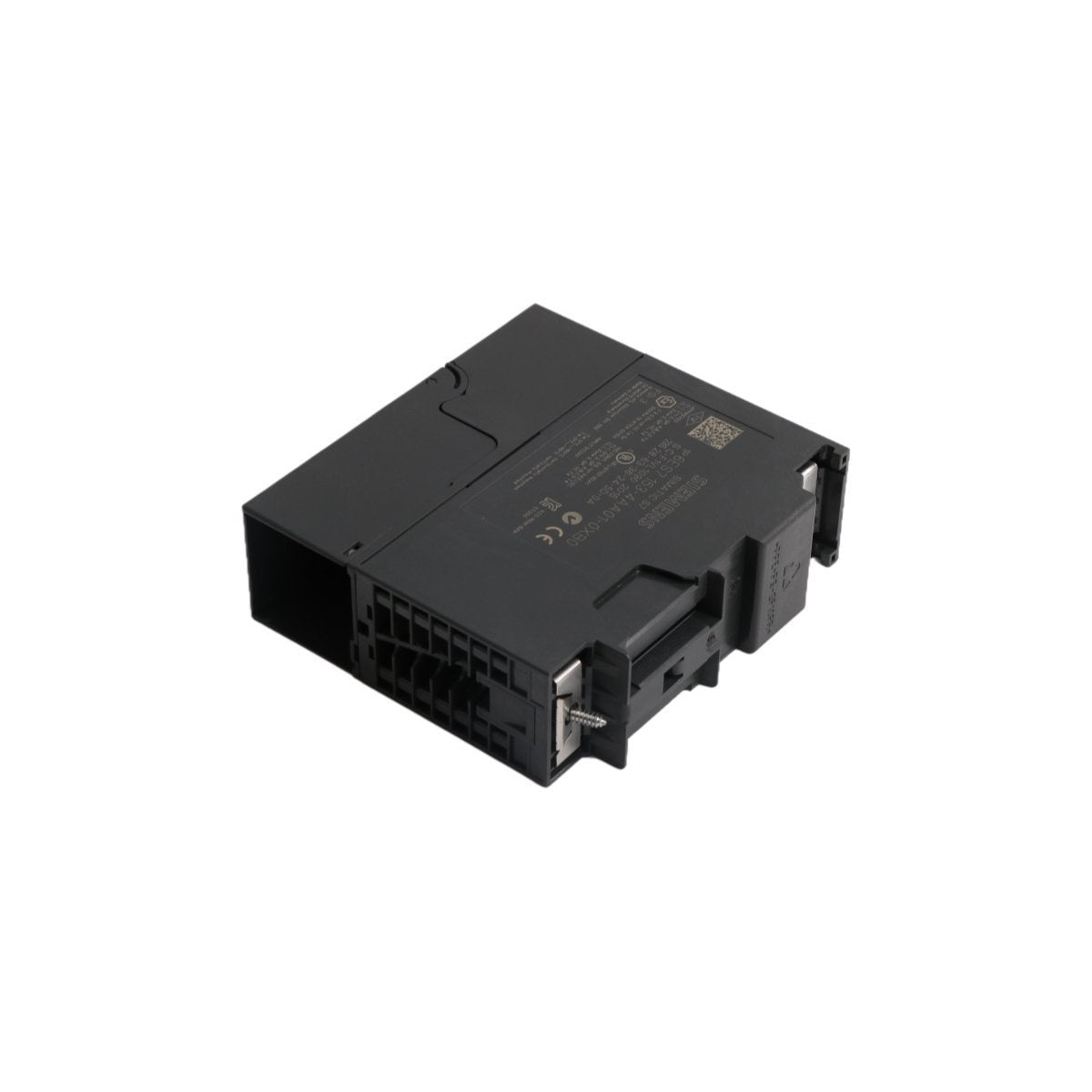

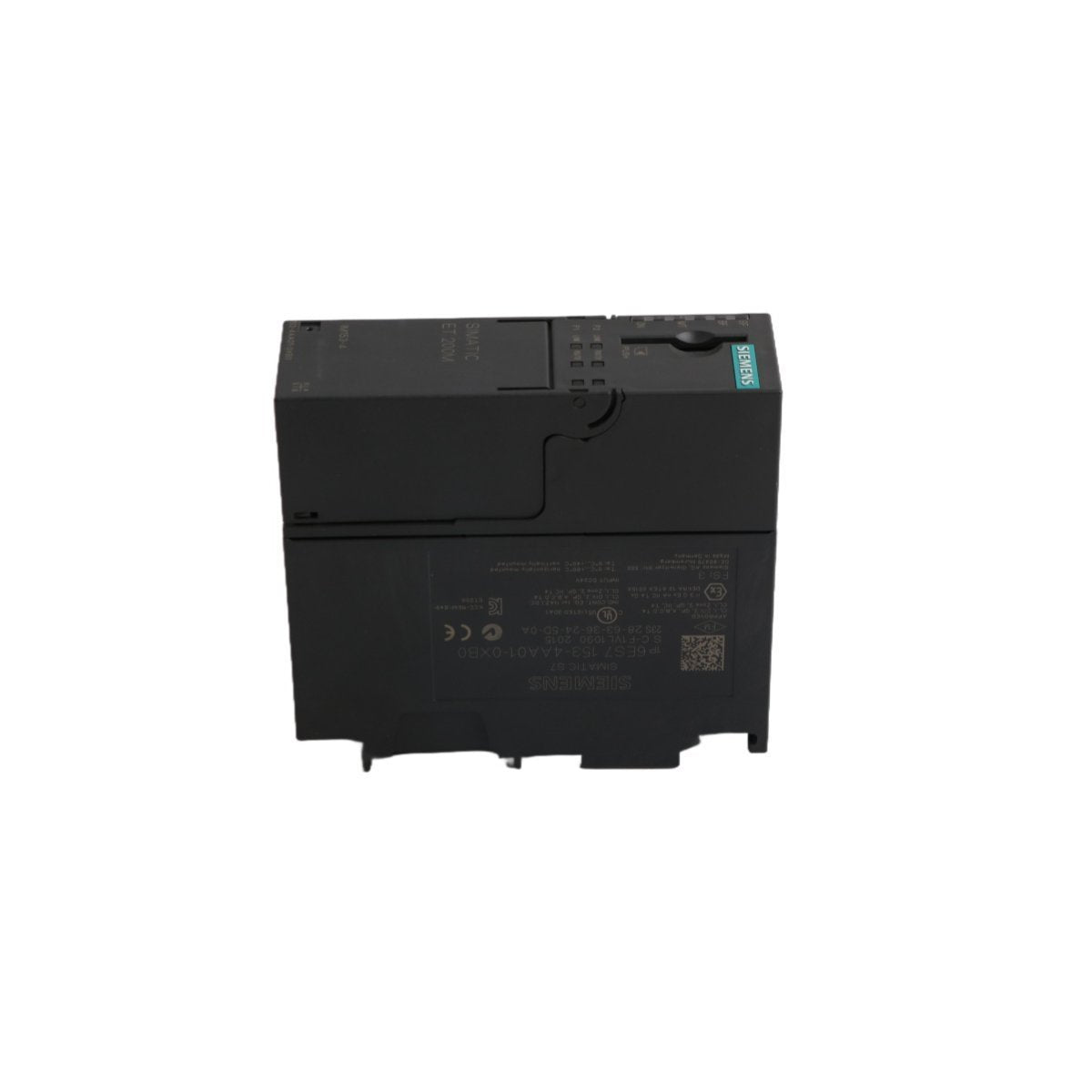

The Siemens 6ES7153-2BA01-0XB0 is a high-performance IM 153-2 High Feature interface module designed to link the ET 200M distributed I/O station to a PROFIBUS DP network. This module acts as the localized communication head, managing data exchange between a central PLC and up to eight S7-300 signal modules. Engineered for maximum system availability, it supports redundant configurations and "Hot Swapping," allowing modules to be replaced while the system remains under power. By providing a deterministic bridge for remote I/O, the 6ES7153-2BA01-0XB0 ensures that complex automation architectures remain scalable, reliable, and easy to maintain in demanding industrial environments.

Core Communication and Hardware Attributes

This Interface Module is built to handle time-critical data and redundant network topologies with high precision:

• Redundancy Support: Optimized for use in redundant PROFIBUS DP systems, ensuring that a single cable or interface failure does not trigger a total process shutdown.

• Temporal Accuracy: Features high-resolution Time Stamping for digital input signals, crucial for sequence-of-events (SOE) recording in safety and diagnostic applications.

• Isochronous Mode: Supports synchronized bus cycles, enabling deterministic communication required for high-speed motion control and coordinated drive systems.

• Module Capacity: Capable of addressing and powering up to 8 S7-300 I/O modules on a single ET 200M station.

• Industrial Durability: A compact 0.24 kg unit measuring 10.5 x 12.5 x 4 cm, designed for rail mounting in high-vibration and thermally variable control cabinets.

• Protocol Compatibility: Fully compliant with PROFIBUS DP V1 standards, allowing for advanced acyclic data exchange and parameterization.

• Self-Diagnostics: Integrated LED indicators for bus faults, system errors, and maintenance requests provide immediate localized troubleshooting data.

Industrial Applications and Network Utility

The 6ES7153-2BA01-0XB0 is the preferred interface for distributed architectures where downtime is not an option:
