Product Overview

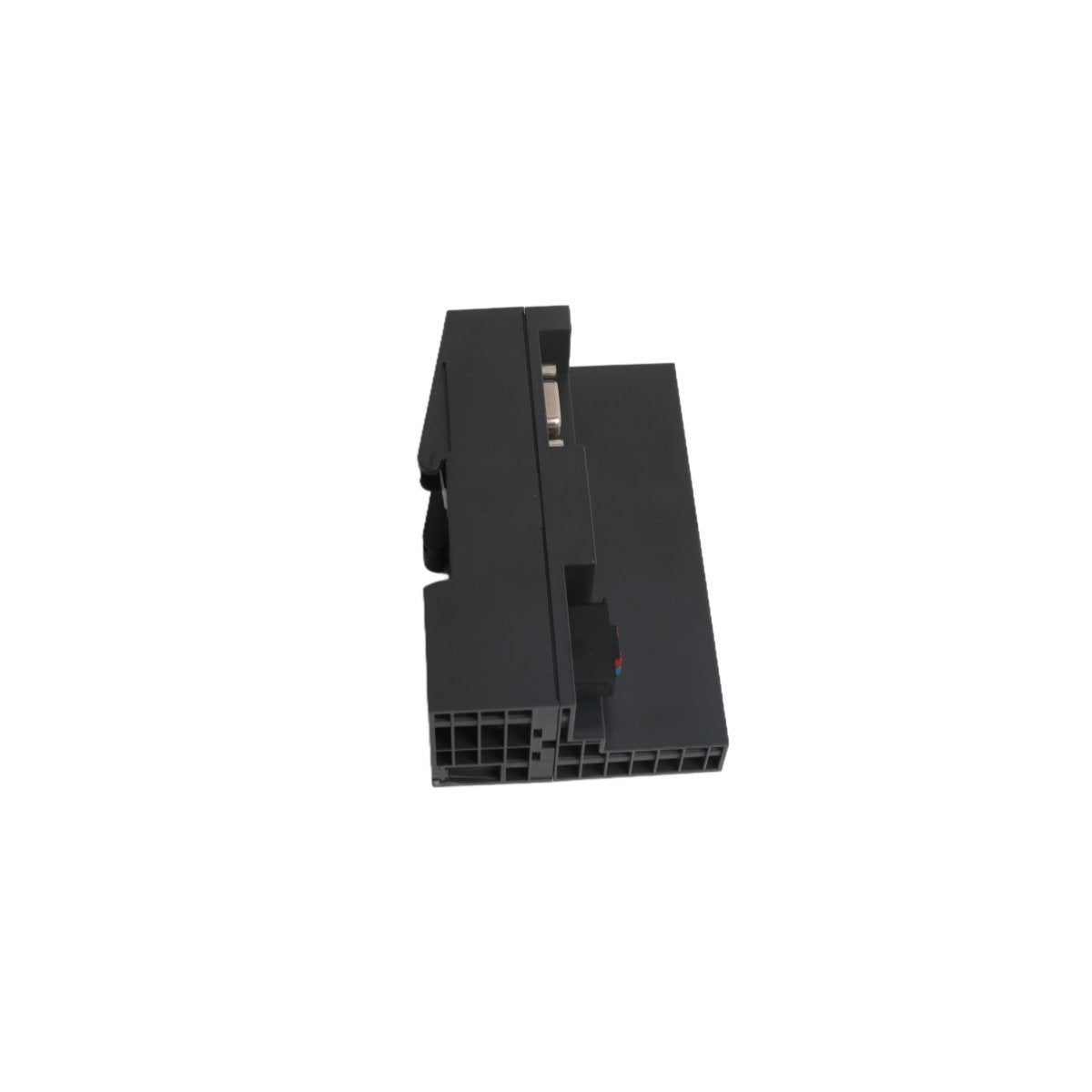

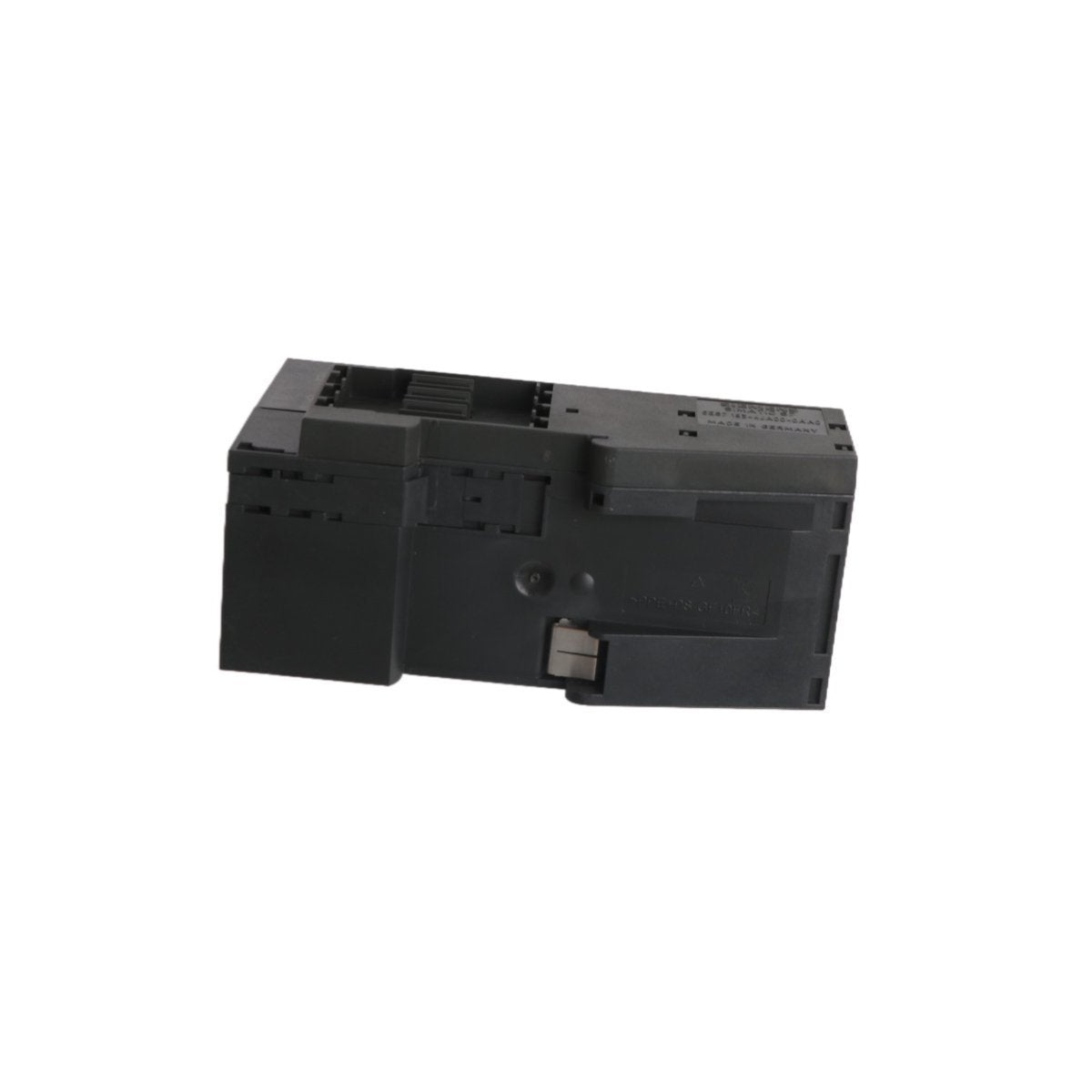

The Siemens 6ES7151-1AA06-0AB0 is a high-performance IM 151-1 Standard interface module engineered to serve as the primary communication gateway for the SIMATIC ET 200S distributed I/O system. This module functions as the link between the higher-level PROFIBUS DP network and the local electronic modules, coordinating data exchange with high precision and speed. Designed for versatility, it supports extensive system modularity, allowing engineers to scale their decentralized I/O configurations based on specific machine requirements. By handling the protocol conversion and internal bus management, the 6ES7151-1AA06-0AB0 ensures that field signals are reliably digitized and transmitted to the central PLC controller.

Hardware Configuration and Technical Data

• Module Series: SIMATIC ET 200S (IM 151-1 Standard)

• Protocol Support: PROFIBUS DP V0 and V1 redundant capabilities

• Maximum Expansion: Supports up to 63 localized I/O modules per station

• Data Throughput: 244 Bytes maximum for both input and output telegrams

• Physical Interface: 9-pin D-sub female connector for PROFIBUS bus connection

• Electrical Supply: 24 V DC nominal input

• Current Profile: 200 mA input current with 80 mA internal bus output capacity

• Net Weight: 0.24 kg

• Device Dimensions: 10.5 x 12.5 x 4 cm

• Included Components: Ships with the required bus termination module

• Origin: Made in Germany

• HS Tariff Classification: 8537101190

Industrial Deployment and Connectivity Scenarios

The 6ES7151-1AA06-0AB0 is a foundational component in modern distributed automation architectures. Its primary industrial use cases include:

• Decentralized Manufacturing Lines: Positioning I/O stations directly on the machinery to reduce wiring costs and signal interference in automotive and packaging assembly.

• Complex Process Automation: Integrating analog and digital field sensors in water treatment or chemical plants where a centralized PROFIBUS master manages multiple remote ET 200S clusters.

• Control Cabinet Optimization: Utilizing the module's compact form factor to manage high-density I/O points within limited enclosure space.

• System Retrofitting: Serving as a drop-in replacement or expansion unit for existing SIMATIC S7-300 or S7-400 systems to enhance data handling capacity and network flexibility.
