Product Overview

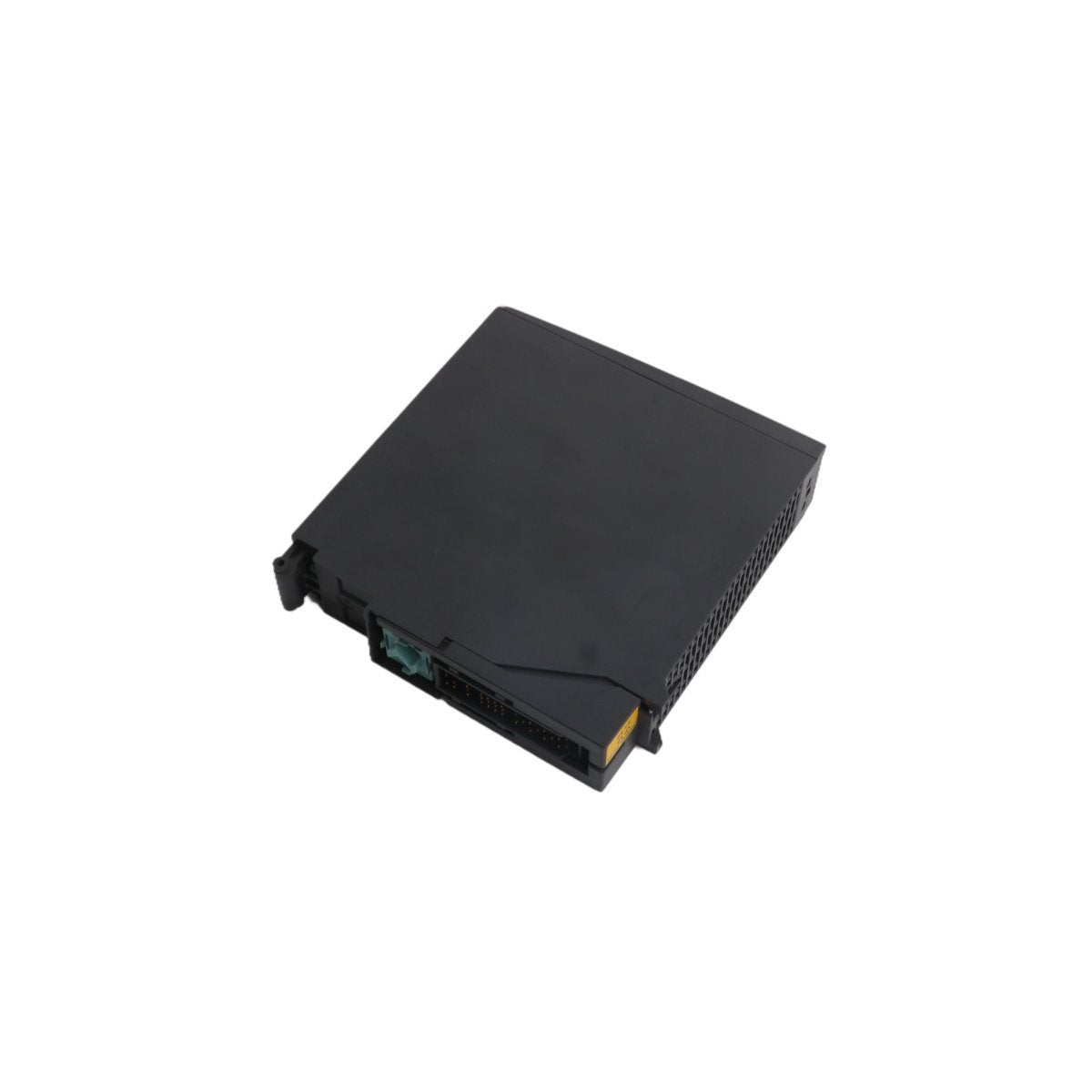

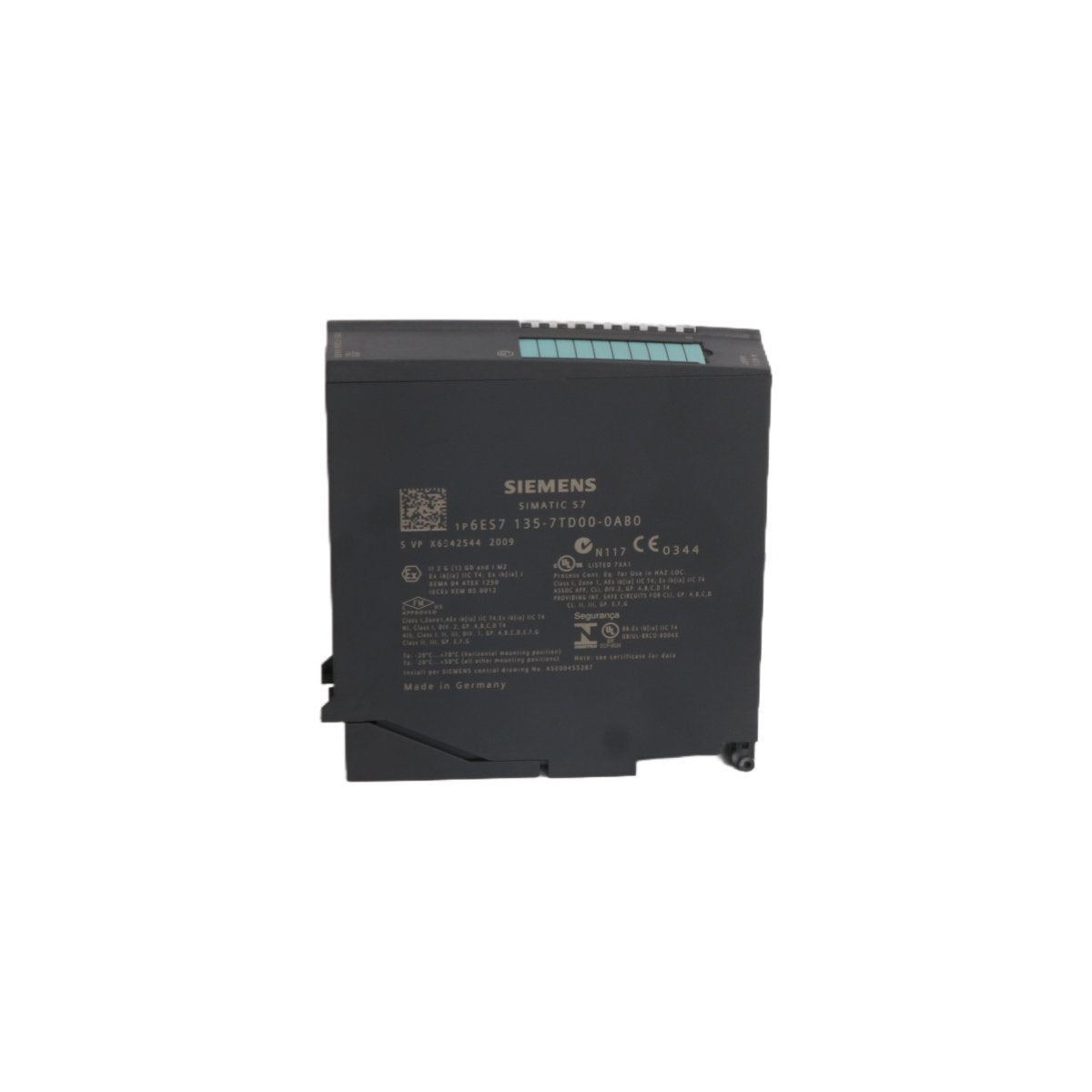

The Siemens 6ES7135-7TD00-0AB0 is a specialized 4-channel analog output module engineered for the SIMATIC ET 200iSP distributed I/O station. This high-integrity hardware is designed specifically for intrinsically safe operations in hazardous zones, delivering 4-20 mA signals with integrated HART (Highway Addressable Remote Transducer) version 6.0 protocol support. By combining precise current loop control with bi-directional digital communication, the module allows operators to perform remote diagnostics and configuration of smart field actuators without disrupting the primary control signal. Its ruggedized architecture is tailored for the stringent demands of process automation where explosive atmospheres require certified, spark-protected electronics.

Performance Specifications and Hardware Attributes

• Output Channels: 4 x Analog Outputs (Current Loop)

• Signal Range: 4 to 20 mA

• Smart Communication: Integrated HART Protocol (v6.0) for device diagnostics

• Explosion Protection: ATEX/IECEx Certified (Ex ib [ia Ga] IIC T4 Gb / Ex ib [ia IIIC Da] IIC T4 Gb)

• Maintenance Features: Supports "Hot Swapping" (removal/insertion under power)

• Resolution: High-fidelity digital-to-analog conversion for fine control increments

• Physical Mass: 0.24 kg

• Module Dimensions: 10.5 x 12.5 x 4 cm

• System Bus Integration: Direct backplane mounting for ET 200iSP racks

• HS Tariff Code: 8537101190

• Country of Manufacture: Germany

Hazardous Area Deployments and Industry Utility

This analog module is a critical component for safe signal transmission in high-risk industrial zones. Key deployment environments include:

• Petrochemical and Refining: Controlling valve positioners and variable frequency drives located in Zone 1 or Zone 2 explosive gas atmospheres.

• Smart Field Management: Leveraging HART functionality to monitor valve health, stroke counts, and calibration drift in real-time.

• Pharmaceutical Synthesis: Managing precise dosing pumps in cleanroom environments where intrinsic safety is a regulatory requirement.

• Offshore Oil Rigs: Providing robust, explosion-proof control for critical safety systems where salt-spray and volatile chemicals are present.

• Distributed Process Control: Reducing cabling costs by placing the ET 200iSP station directly in the field, linked via a single intrinsically safe PROFIBUS connection to the central PLC.
