Product Overview

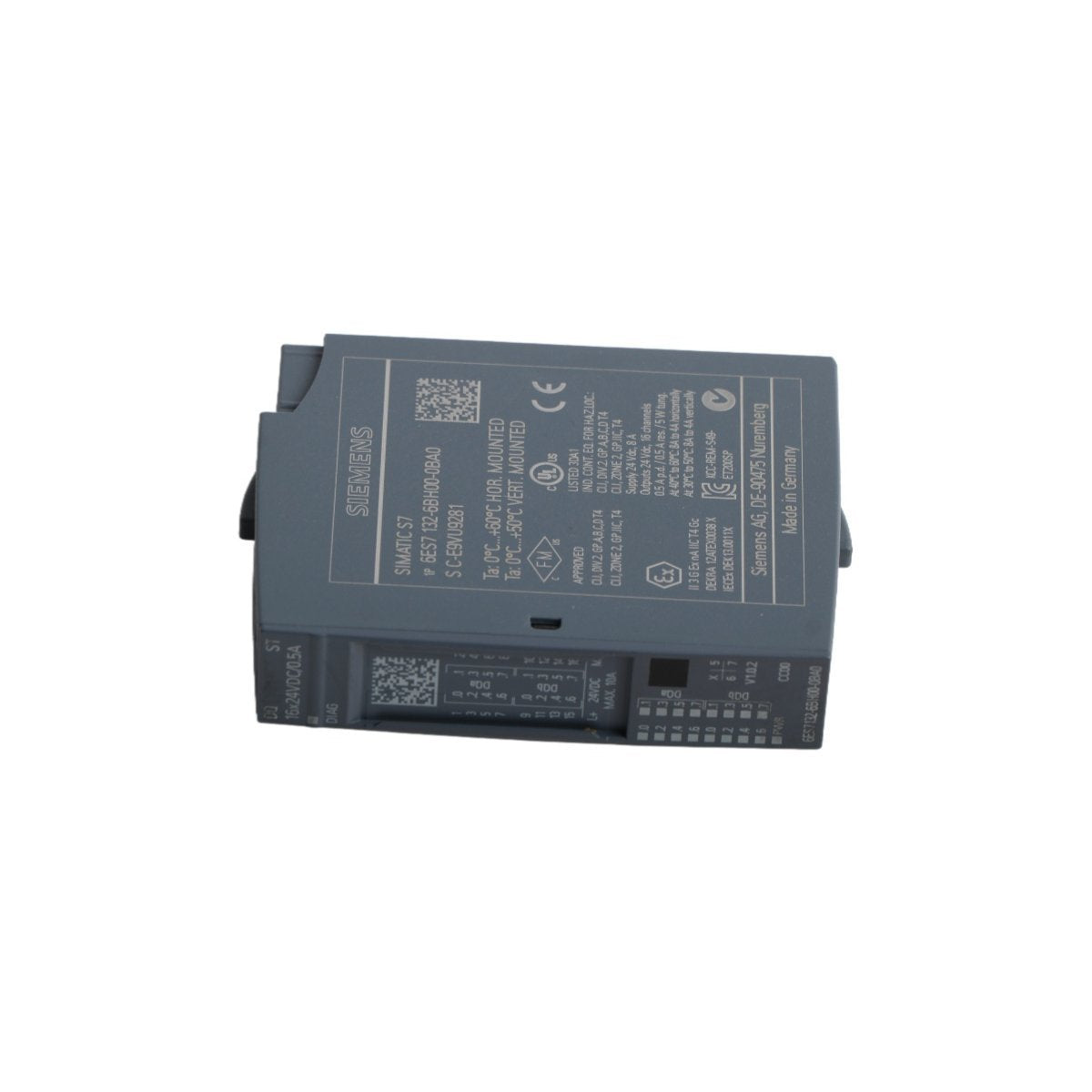

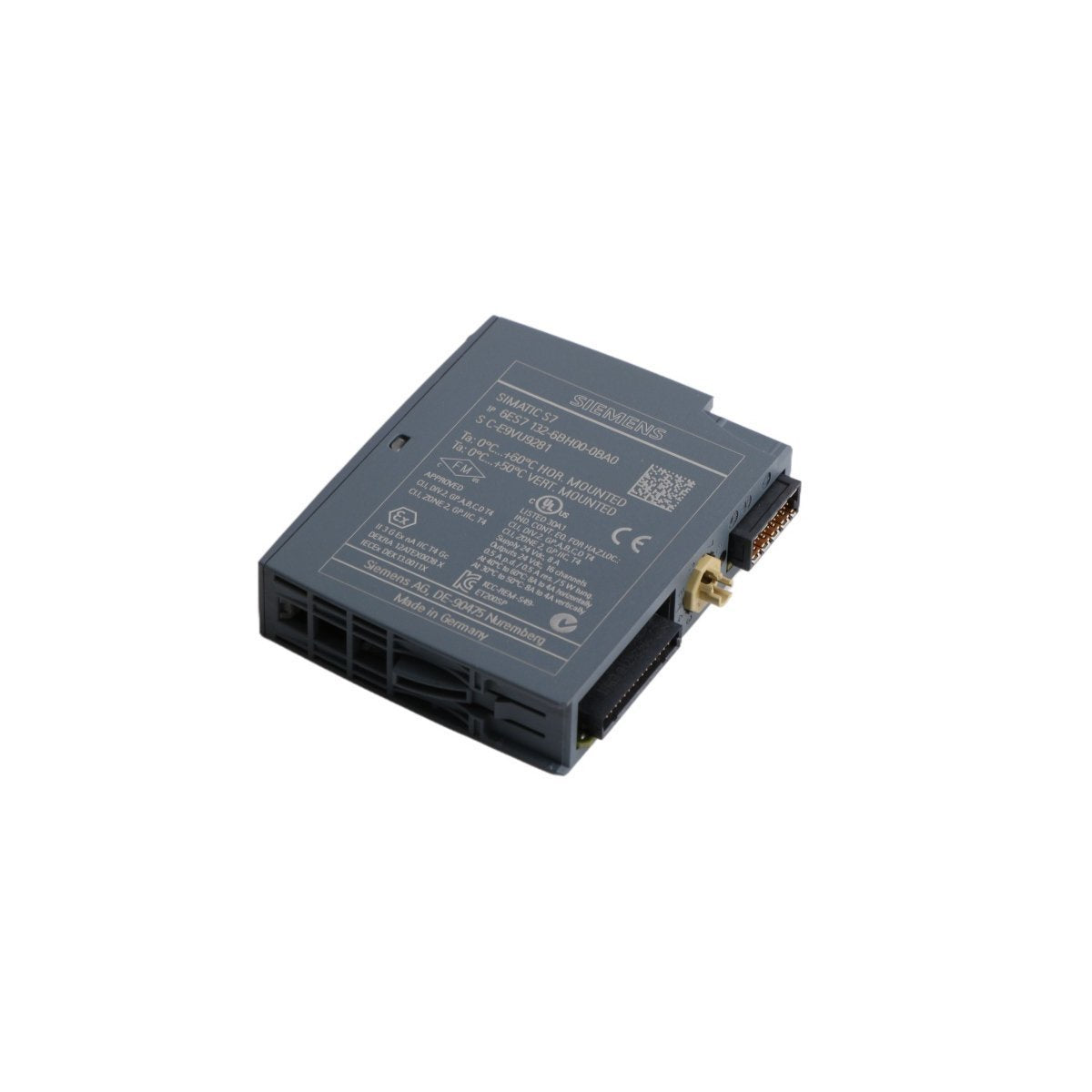

The Siemens 6ES7132-6BH00-0BA0 is a high-density digital output module engineered for the SIMATIC ET 200SP distributed I/O architecture. This "Standard" (ST) class module provides 16 sourcing (PNP) output channels, each capable of switching 0.5A loads. Designed for extreme space efficiency in control cabinets, the unit facilitates the precise control of actuators, solenoid valves, and indicator lamps. By utilizing the ET 200SP’s push-in terminal technology and compact form factor, the 6ES7132-6BH00-0BA0 streamlines decentralized automation setups while providing robust signal integrity for high-speed manufacturing environments.

Essential Hardware Specs and Mechanical Data

• Manufacturer Siemens

• Article Number 6ES7132-6BH00-0BA0

• Output Configuration 16-channel PNP (Source) switching

• Rated Load Voltage 24V DC

• Output Current per Channel 0.5 Amperes

• Total Current per Module Max 8.0 Amperes

• BaseUnit Compatibility Type A0 (Color code CC00)

• Protection Mechanisms Electronic short-circuit protection and thermal shutdown

• Diagnostics Supply voltage monitoring and group error detection

• Unit Weight 0.24 kg

• Casing Dimensions 10.5 cm x 12.5 cm x 4.0 cm

• Manufacturing Origin Germany

• HS Classification 8537101190

The module features integrated substitute value functionality, allowing users to pre-define the output state (On, Off, or Hold last value) in the event of a CPU stop or network communication failure, ensuring a safe process shutdown or transition.

Industrial Utilization and Deployment

This 16-channel digital output module is a cornerstone for modern assembly lines and process plants where high-density I/O is required at the field level. In the automotive and packaging industries, the 6ES7132-6BH00-0BA0 is frequently used to drive pneumatic manifolds and small DC contactors. Its compatibility with PROFINET and PROFIBUS through ET 200SP interface modules makes it ideal for modular machine building where fast reconfiguration and hot-swapping are essential. Furthermore, the integrated diagnostics allow maintenance teams to quickly pinpoint supply voltage drops via the TIA Portal, reducing technical downtime. Its ruggedized internal circuitry handles the inductive kickback of solenoids and relay coils without requiring external suppression in most standard industrial applications.
