Product Overview

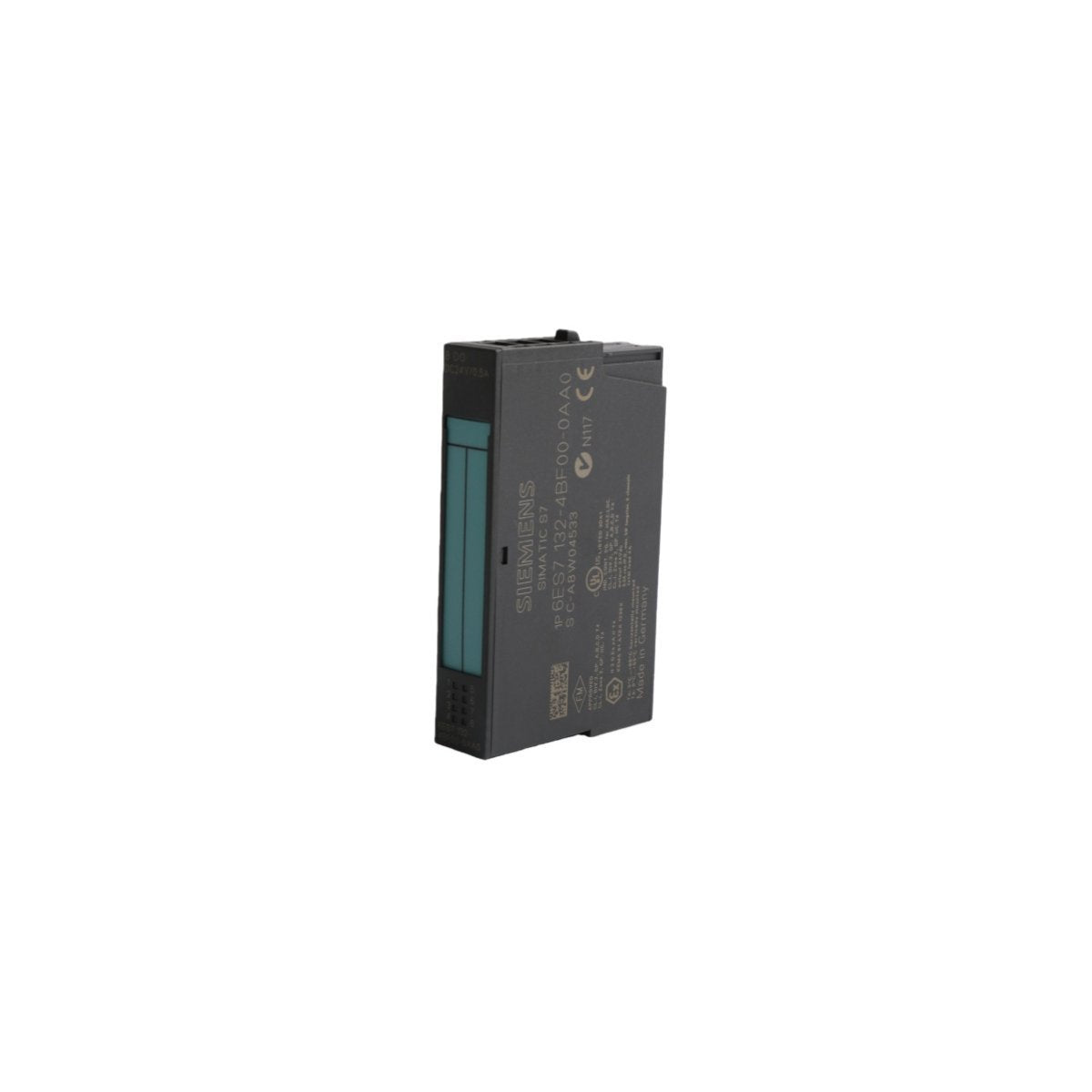

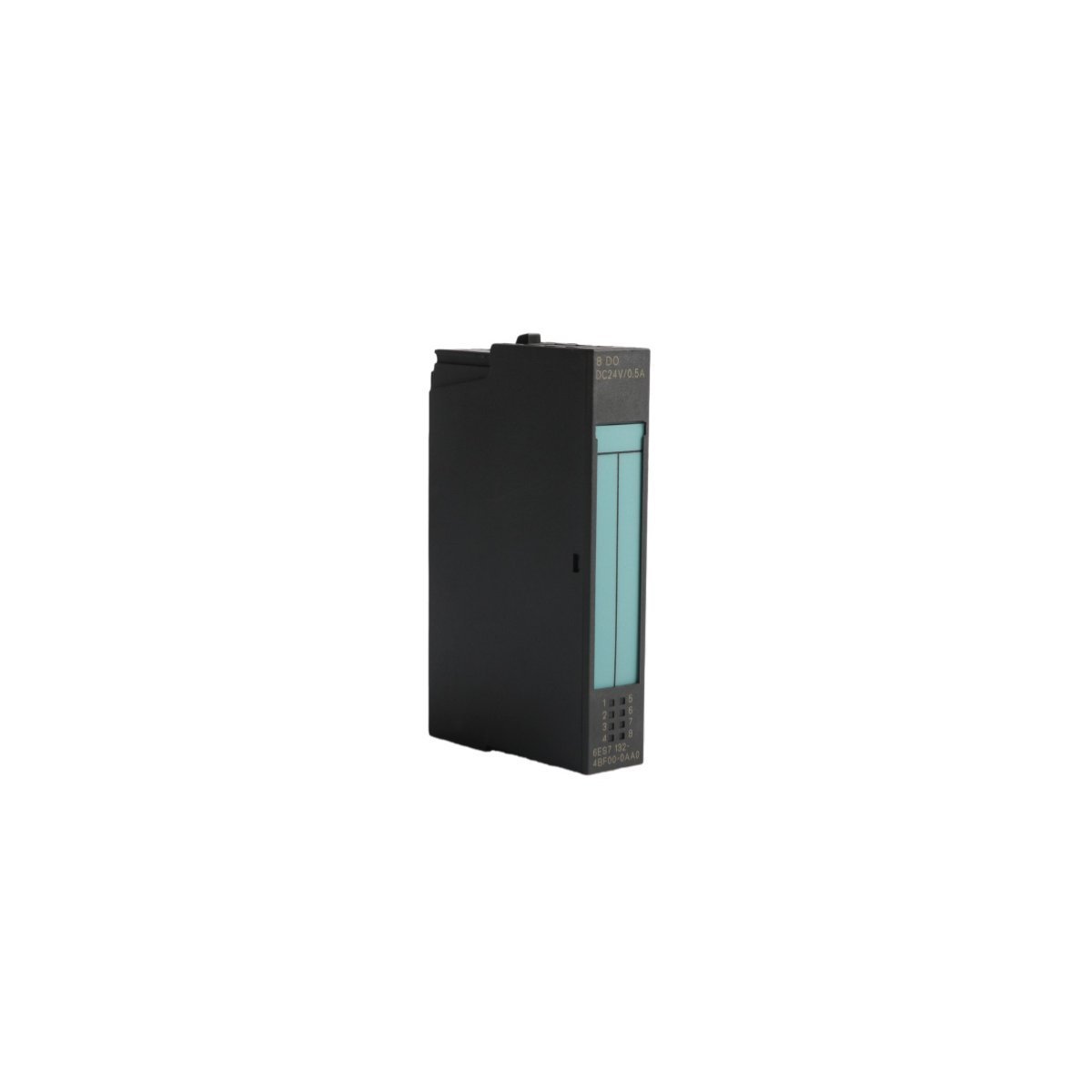

The Siemens 6ES7132-4BF00-0AA0 is a high-density digital output module engineered for the SIMATIC ET 200S distributed I/O series. This electronic component provides eight discrete output channels, facilitating the control of field-level actuators from a decentralized position. By mounting directly onto terminal modules, the 6ES7132-4BF00-0AA0 allows for a modular, "bit-modular" approach to automation, where I/O stations can be customized to the exact requirements of the machinery. Designed for seamless integration with PROFIBUS or PROFINET head stations, this module serves as a reliable interface for translating PLC logic into physical action, ensuring high-speed signal transmission and robust performance in compact control environments.

Technical Configuration and Hardware Properties

The following data outlines the electrical and physical parameters of the 6ES7132-4BF00-0AA0 unit:

• Output Channels 8 Digital Outputs (Sourcing/PNP)

• Rated Load Voltage 24V DC

• Output Current per Channel 0.5 Amperes

• Total Current per Module 4.0 Amperes (max)

• Isolation Test Voltage 500V DC between internal electronics and backplane bus

• Power Dissipation Typically 1.5 Watts

• Operational Features Supports "Hot Swapping" (replacement under power)

• Diagnostic Indicators Green LED per channel for output status

• Mass Weight 0.95 kg

• Device Dimensions 2.5 cm x 5.1 cm x 83.8 cm

• Origin of Manufacture Germany

• HS Tariff Code 8537101190

This module is designed for narrow-profile installation, utilizing a 15mm width that significantly reduces the overall footprint of the distributed I/O station without sacrificing channel density.

Industrial Utilization and Deployment Scenarios

This 8-channel digital module is widely deployed in decentralized automation tasks across various manufacturing sectors. In conveyor systems and material handling, the 6ES7132-4BF00-0AA0 is used to actuate pneumatic cylinders, drive small DC motors, and trigger sorting gates. Its 0.5A current rating makes it ideal for powering solenoid valves and industrial indicator lamps on localized operator panels. The module's support for hot-swapping is particularly beneficial in continuous process industries, such as food and beverage or automotive assembly, where individual modules can be replaced without interrupting the communication of the entire I/O station. This ensures maximum machine uptime and simplifies maintenance procedures. Furthermore, its rugged construction and 500V DC isolation provide the electrical security required for environments prone to switching noise and voltage transients.
