Product Overview

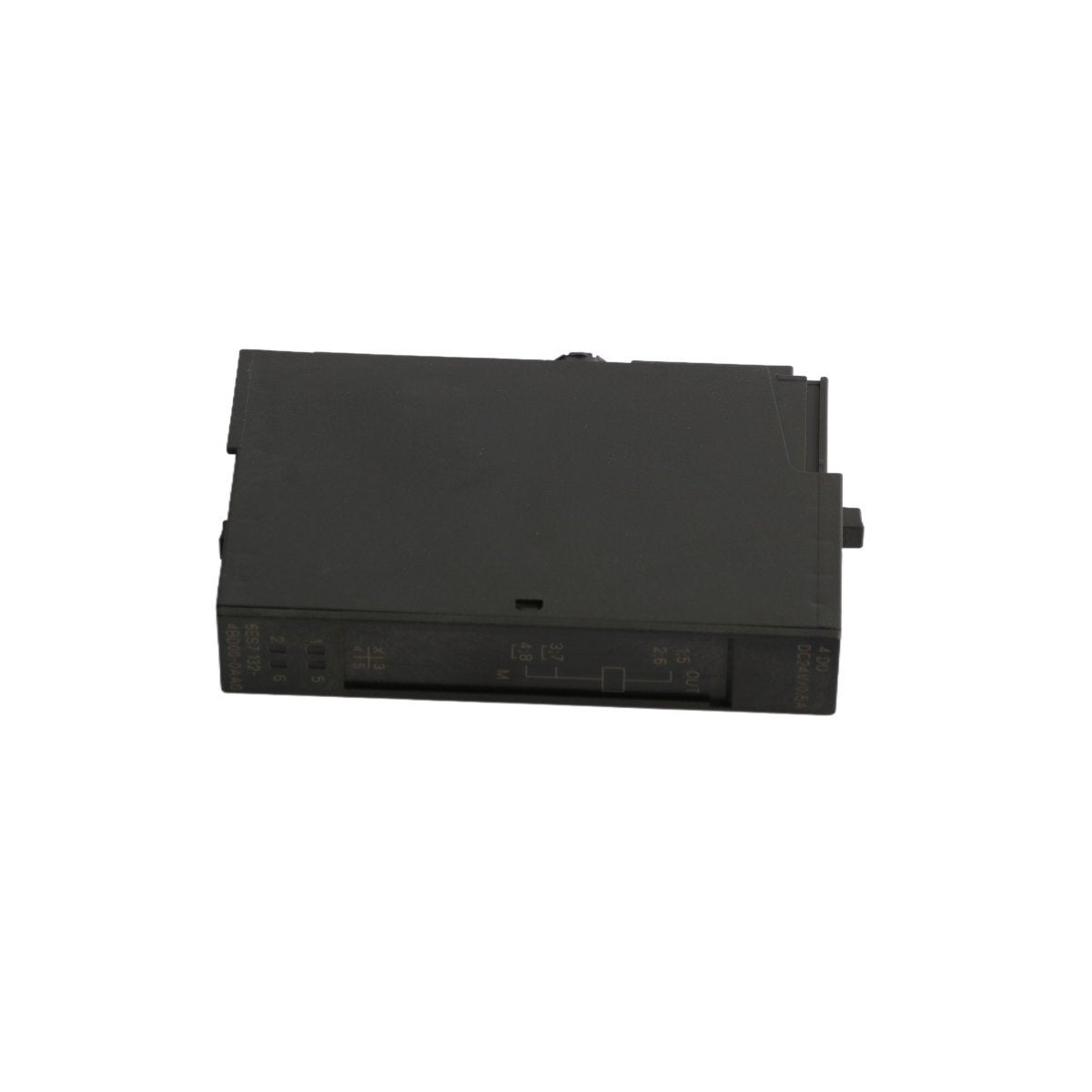

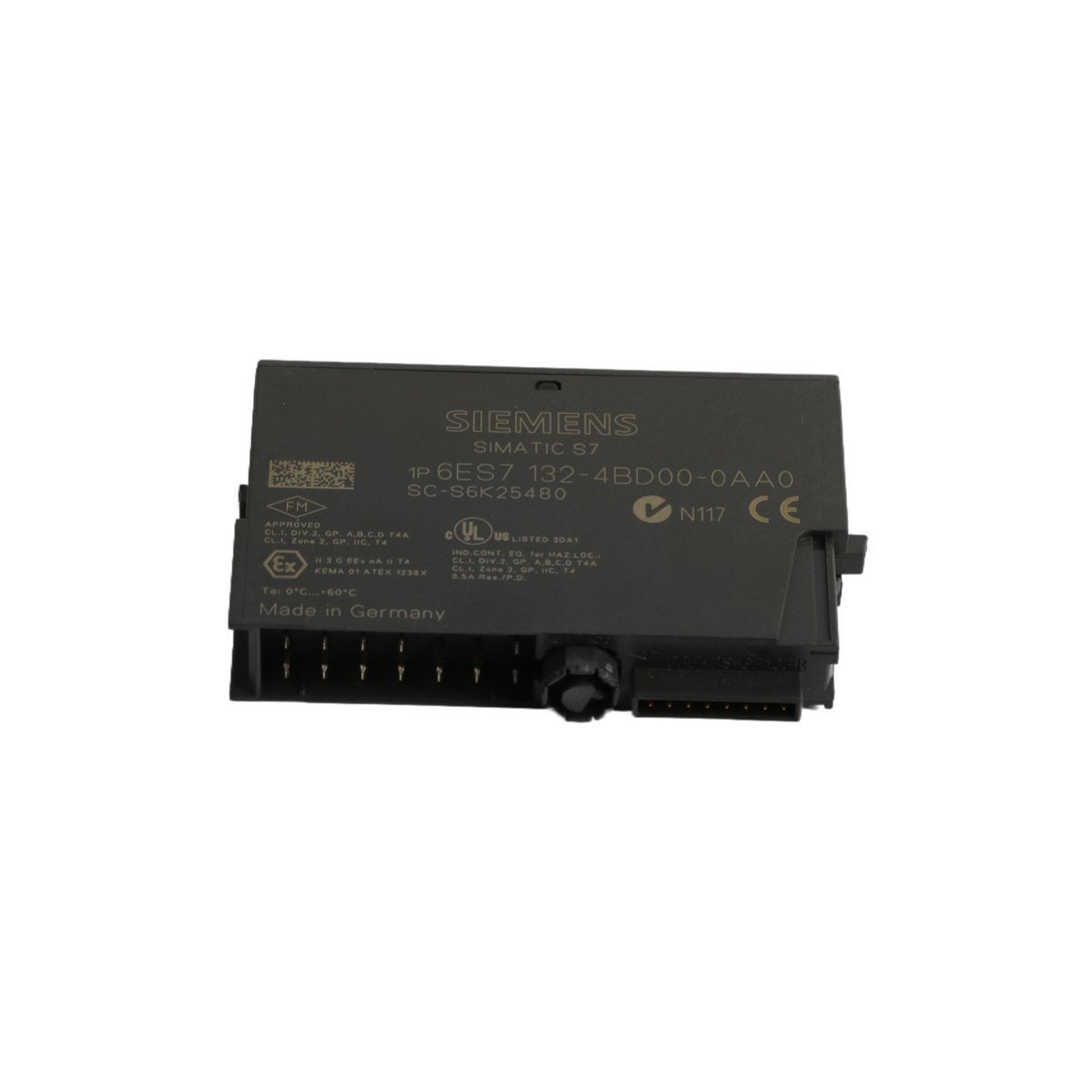

The 6ES7132-4BD00-0AA0 is a high-precision digital output expansion module designed for the Siemens SIMATIC ET 200S decentralized I/O peripheral system. This electronic module provides four discrete channels, each capable of sourcing 24V DC at a 0.5A current rating. Characterized by its ultra-slim 15mm width, the module is engineered for high-density cabinet configurations where rail space is at a premium. It facilitates the reliable switching of actuators, such as small solenoids, DC contactors, and signaling devices, by utilizing solid-state transistor outputs that offer superior switching frequency and longevity compared to traditional relay-based solutions.

Essential Component Architecture and Technical Data

This module is built to meet rigorous industrial standards, ensuring high availability and system protection through integrated electronic safety features.

• Output Channels: 4 Digital Outputs (Transistor/Source type)

• Rated Voltage: 24V DC

• Current Capacity: 0.5A per channel (Aggregate 2A per module)

• Protection Circuitry: Built-in short-circuit protection and reverse polarity safety

• Galvanic Isolation: Fully isolated between the backplane bus and the process load

• Physical Dimensions: 10.5 cm x 12.5 cm x 4.0 cm

• Product Weight: 0.24 kg

• Mounting System: Compatible with ET 200S terminal modules (TM-E)

• Response Speed: Typical output delay of 50 µs to 500 µs

• Origin: Germany

Primary Industrial Applications and Integration

The 6ES7132-4BD00-0AA0 is a versatile interface component utilized across a wide spectrum of automated machinery and process control systems.

• Manufacturing Automation: Perfect for controlling pneumatic valves and pilot lamps on high-speed assembly lines where rapid response times are critical.

• Distributed Control Systems (DCS): Acts as a remote peripheral node in PROFIBUS or PROFINET networks, allowing for localized control without extensive home-run wiring.

• Packaging and Bottling: Used to trigger sensors and small motors in high-cycle environments that demand reliable, wear-free switching.

• Legacy System Expansion: Provides a straightforward path for adding I/O capacity to existing SIMATIC S7-300 or S7-400 installations that utilize ET 200S remote racks.

• Building Management: Controls low-voltage auxiliary circuits for HVAC louvers and localized alarm systems.
