Product Overview

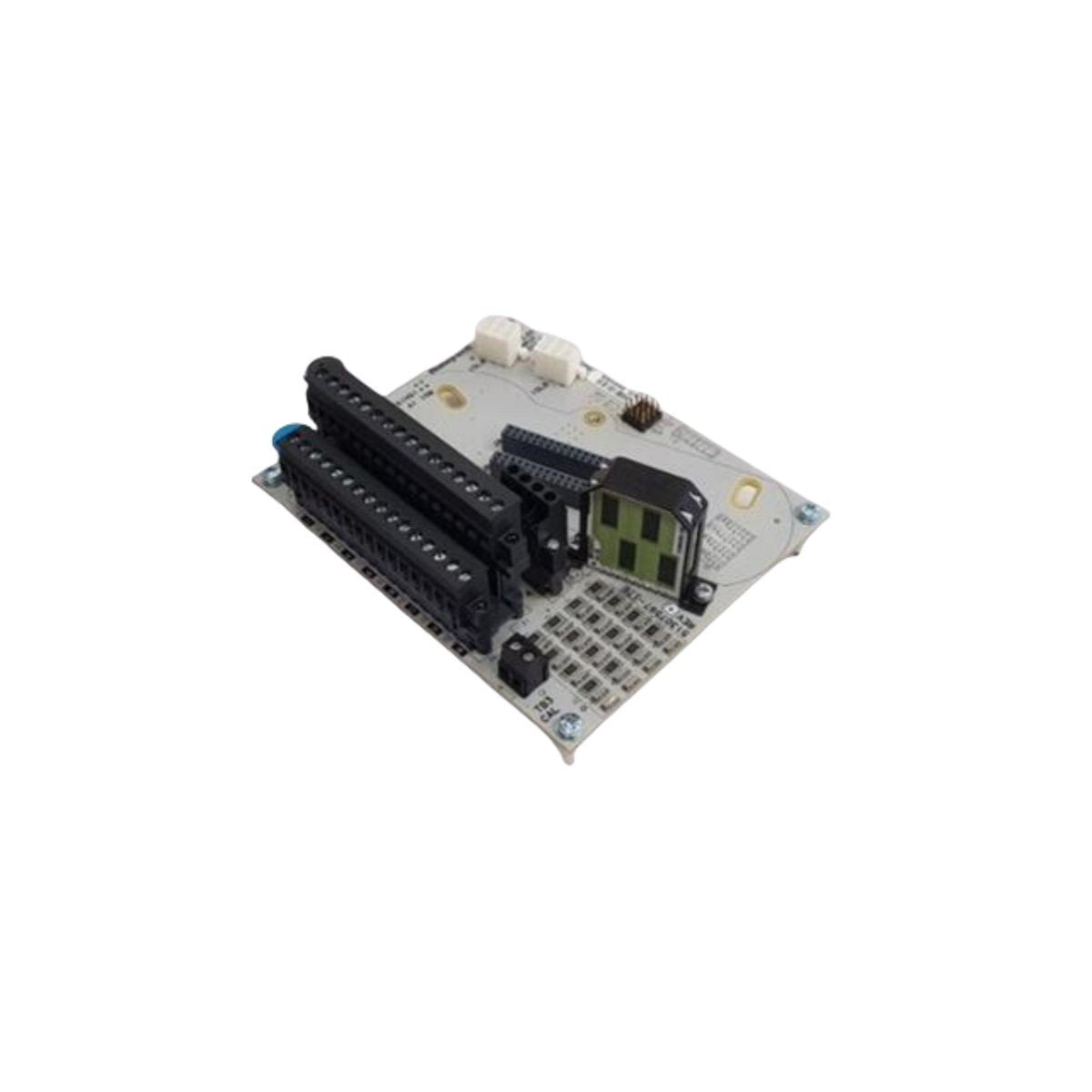

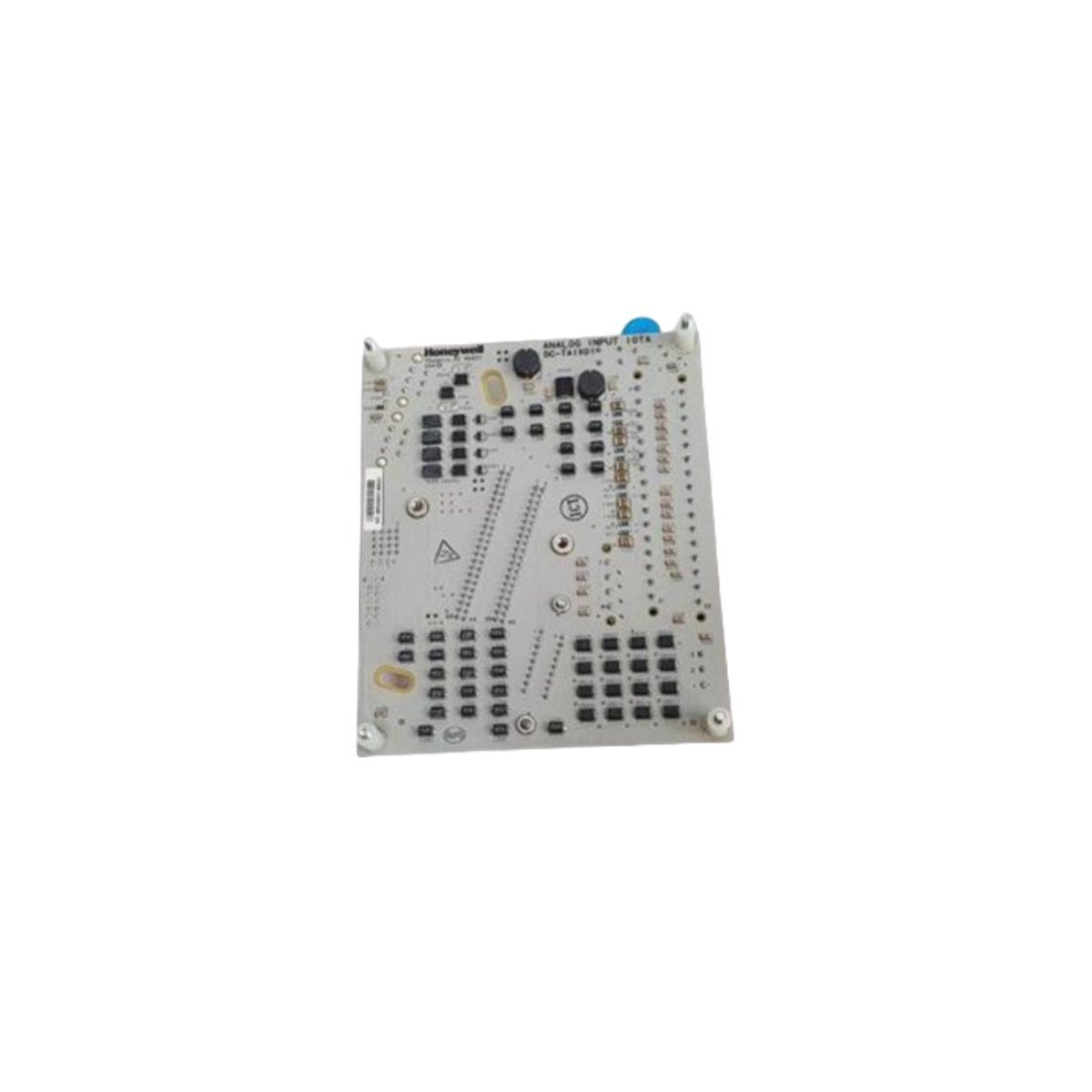

The Honeywell DC-TAIX01, identified by part number 51307597-176, is a high-integrity Analog Input (AI) interface component designed for the Experion PKS and Safety Manager ecosystems. This module functions as a non-redundant Input Output Termination Assembly (IOTA), providing the physical and electrical foundation for analog signal processing. It is engineered to capture high-level process variables—such as pressure, temperature, and flow—from field transmitters and convert them into digital data for the controller. With a focus on signal purity and deterministic sampling, the DC-TAIX01 is a vital link in safety-instrumented systems (SIS) where data accuracy is the primary requirement for maintaining plant stability and functional safety.

Technical Infrastructure and Hardware Parameters

The DC-TAIX01 is built for high-density cabinet mounting, featuring a ruggedized build that ensures reliable electrical contact and thermal management in industrial unconditioned spaces.

• Module Classification Analog Input IOTA (Non-Redundant)

• Signal Support High-level analog current loops and voltage inputs

• System Environment Honeywell Safety Manager / Experion PKS DCS

• Channel Capacity Optimized for multi-channel field instrument termination

• Circuit Integrity Advanced galvanic isolation to protect system logic from field surges

• Interfacing Seamless integration with Series C and legacy safety architectures

• Diagnostic Depth Real-time monitoring of channel health and loop integrity

• Mechanical Weight 0.8 kg

• Physical Proportions 12.7 x 12.7 x 3 cm

• Origin of Production USA

• Customs Header HS Code 8537101190

Industrial Implementation and Operational Use Cases

This Analog Input module is strategically deployed in heavy industries that rely on high-fidelity telemetry for mission-critical control loops.

• Petrochemical Safety Loops Monitoring real-time pressure gradients in distillation columns to trigger emergency shutdown (ESD) protocols if limits are exceeded.

• Power Generation Telemetry Acquiring high-accuracy data from steam temperature sensors to manage turbine efficiency and prevent thermal stress.

• Chemical Batch Processing Tracking 4-20mA signals from flow meters to ensure precise reagent ratios during sensitive exothermic reactions.

• Refining Alarm Management Providing the high-speed data acquisition necessary for Sequence of Events (SOE) recording and post-trip analysis.

• DCS Modernization Serving as a certified, brand-new replacement for aging IOTA boards to restore system reliability and maintain safety certifications.
