Product Overview

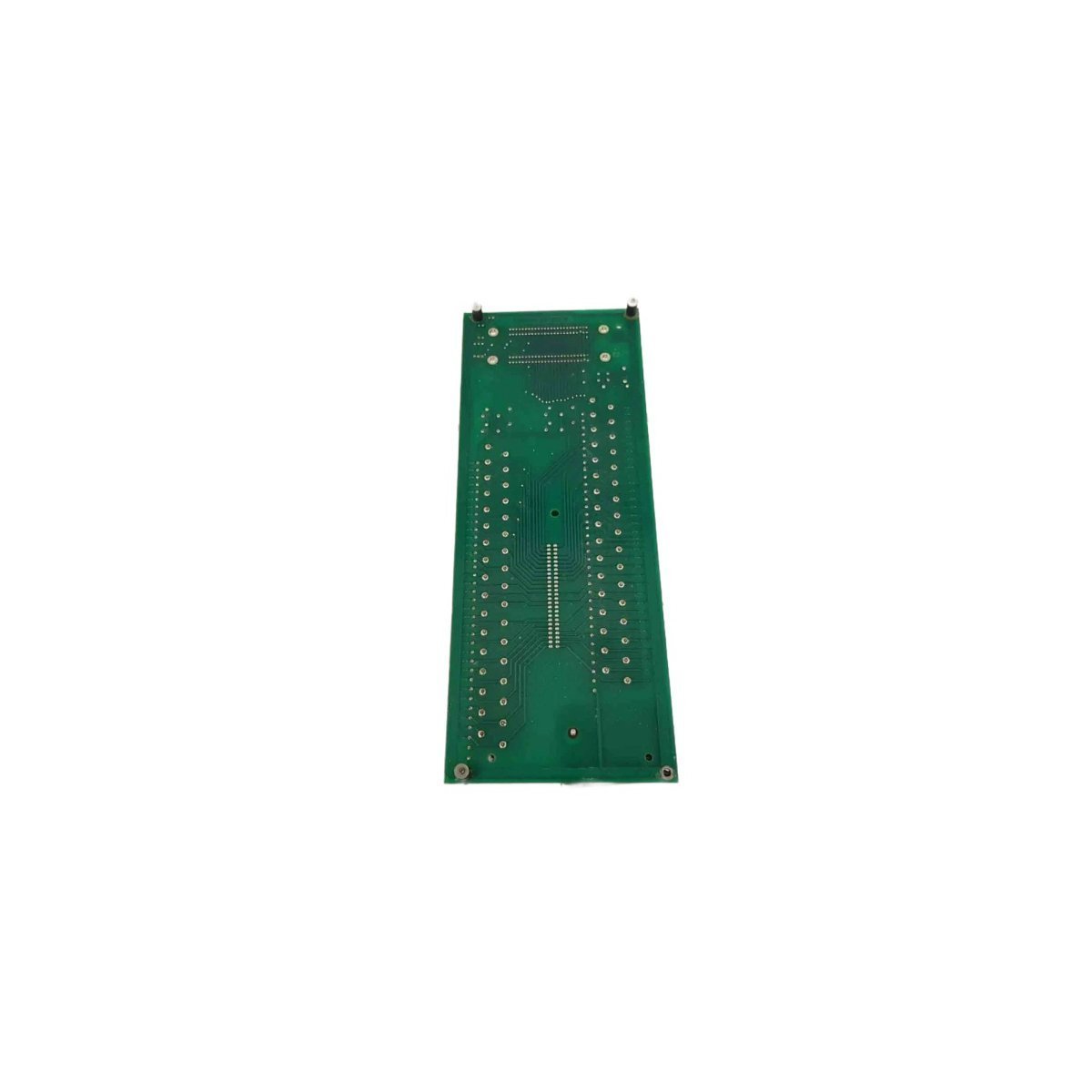

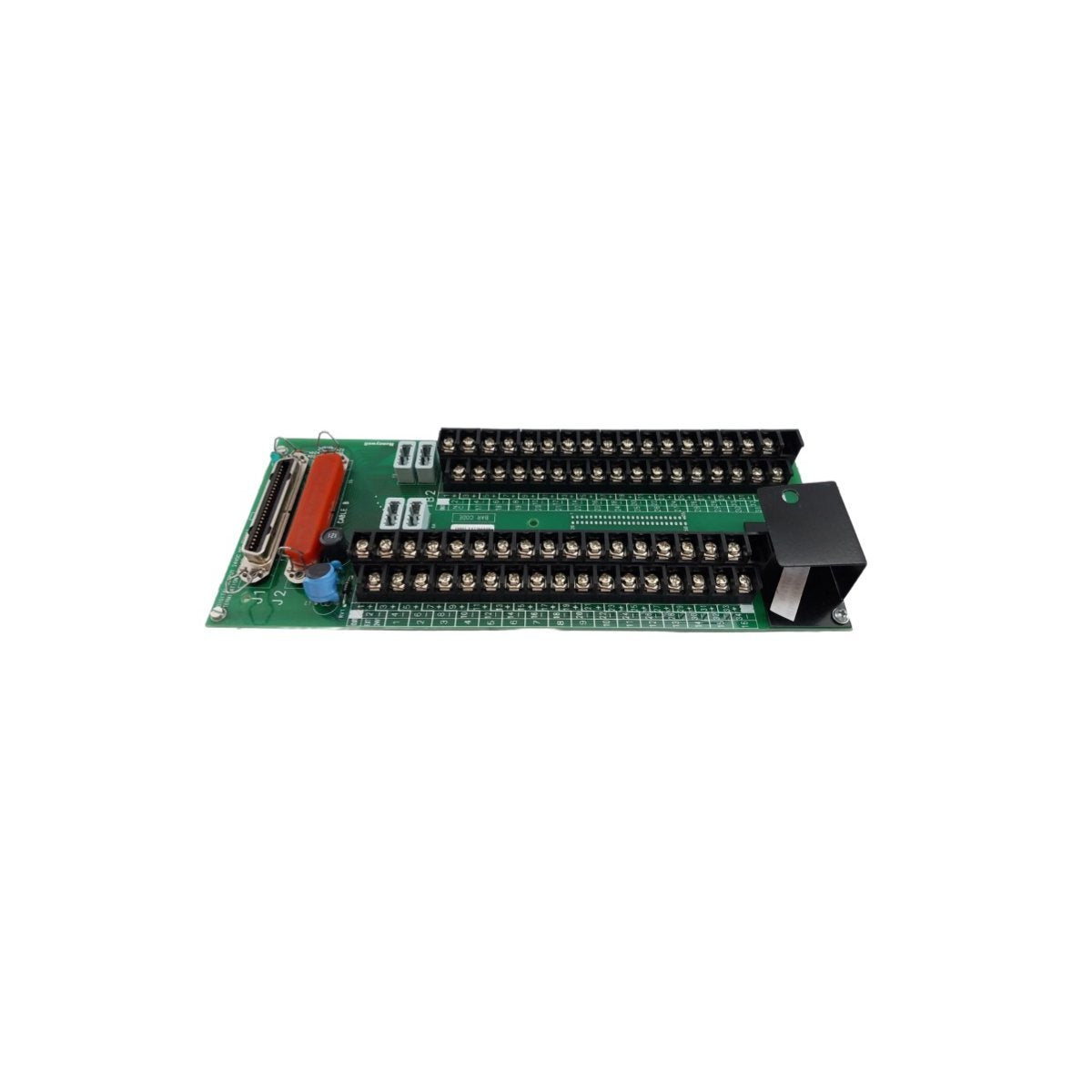

The Honeywell 51204156-175, designated as the MC-TDOY62, is a high-density digital output component integrated within Honeywell Distributed Control Systems (DCS). This module acts as the critical interface between the control logic and field-level hardware, enabling the precise management of discrete devices such as solenoid valves, relays, and motor starters. Designed for reliability in continuous process environments, the MC-TDOY62 ensures signal integrity and electrical isolation between the sensitive control electronics and the rugged field environment.

Hardware Parameters

The MC-TDOY62 is engineered to meet rigorous industrial specifications, focusing on electrical safety and low-latency response times.

• Output Channels: 32 Channels

• Output Configuration: Open-collector

• Voltage Range (Load): 15 VDC to 30 VDC

• Maximum Load Current: 0.5 A per channel

• On-State Voltage Drop: Maximum 0.5 V at 0.5 A

• Off-State Leakage Current: 0.5 µA

• Galvanic Isolation: Up to 30 VAC or ±42.4 VDC

• Switching Speed: 200 milliseconds (Turn-on/Turn-off)

• Weight: 0.4 kg

• Physical Dimensions: 7 x 14 x 14.5 cm

• Origin: USA

Industrial Applications

The versatility and high channel density of the MC-TDOY62 make it a staple in complex automation architectures. It is primarily utilized in the following sectors:

• Oil and Gas Processing: Managing emergency shutdown valves and status indicators in refineries.

• Chemical Manufacturing: Controlling dosing pumps and discrete actuators within hazardous environments.

• Power Generation: Interfacing with switchgear and auxiliary relay logic for plant synchronization.

• Machinery Automation: Executing high-speed sequence control for assembly lines and packaging systems.
