Product Overview

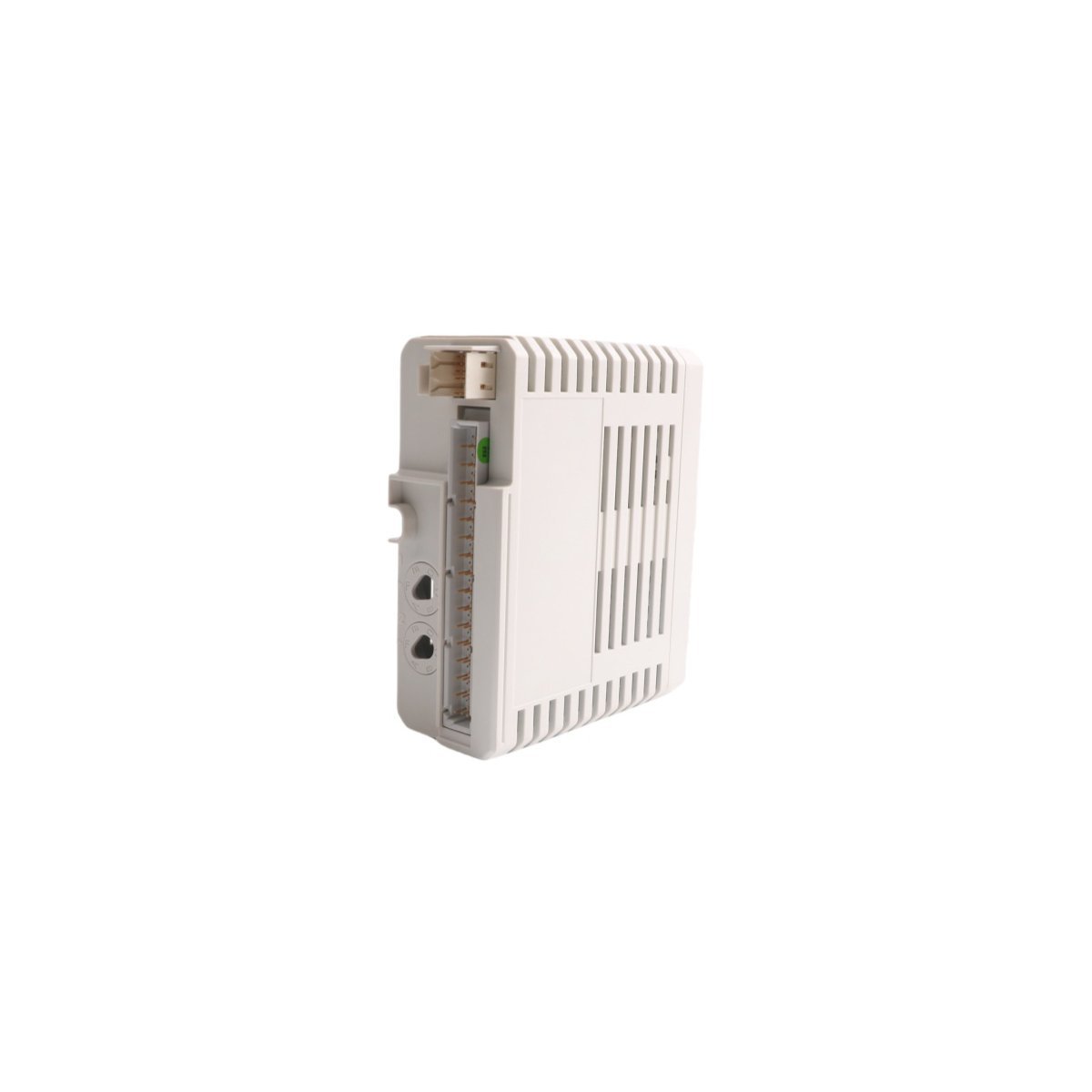

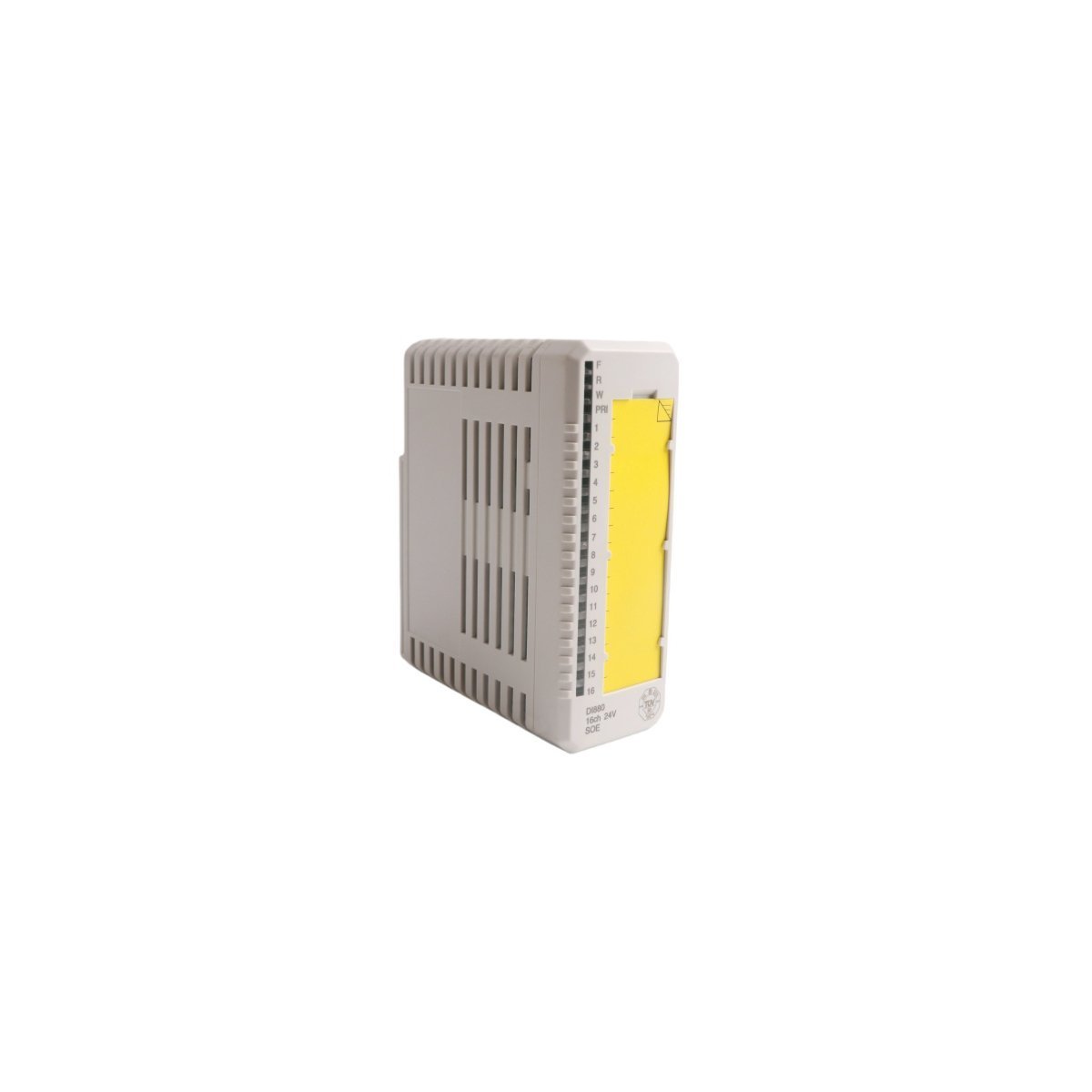

The ABB DI880 (Order Code 3BSE028586R1) is a specialized 16-channel digital input module engineered for High Integrity (HI) and safety-critical applications within the S800 I/O family. This module is designed to interface with the AC 800M High Integrity controller, providing reliable data acquisition for Safety Instrumented Systems (SIS). Its primary function is to monitor field-side discrete signals, such as emergency stops and safety sensors, while performing continuous self-diagnostics to ensure signal validity. The DI880 supports both single and redundant configurations, offering a fault-tolerant architecture that minimizes the risk of false trips while maintaining peak operational safety in distributed control system (DCS) environments.

Technical Performance Parameters

• Channel Density: 16 Digital Input Channels

• Safety Classification: Certified for SIL3 (Safety Integrity Level 3) applications

• Configuration Support: Single or Redundant operation

• Input Voltage Range: 24V DC (nominal)

• Input Filter Delay: Configurable from 0ms to 100ms

• Physical Footprint: 4.5cm x 11.0cm x 11.8cm

• Module Mass: 0.18 kg

• Diagnostic Coverage: Continuous hardware and software self-testing

• Environmental Standard: G3 conformal coating for protection against corrosive gases

• Manufacturing Origin: Sweden

Safety-Critical Industrial Applications

The DI880 3BSE028586R1 is an essential component for industries that prioritize Functional Safety and high availability. It is frequently deployed in:

• Emergency Shutdown (ESD) Systems: Monitoring manual pushbuttons and automated safety triggers in oil refineries and chemical plants.

• Fire and Gas Detection: Interfacing with discrete fire, smoke, and toxic gas sensors to initiate localized suppression or alarms.

• Critical Process Interlocking: Managing safety-critical sequences in power plant boiler controls and high-pressure vessel monitoring.

• Burner Management Systems (BMS): Handling flame detection signals and fuel-valve status inputs to ensure safe ignition and combustion.

• Nuclear & Hydro Power: Coordinating safety-grade signals for auxiliary cooling systems and protection relays.
