Product Overview

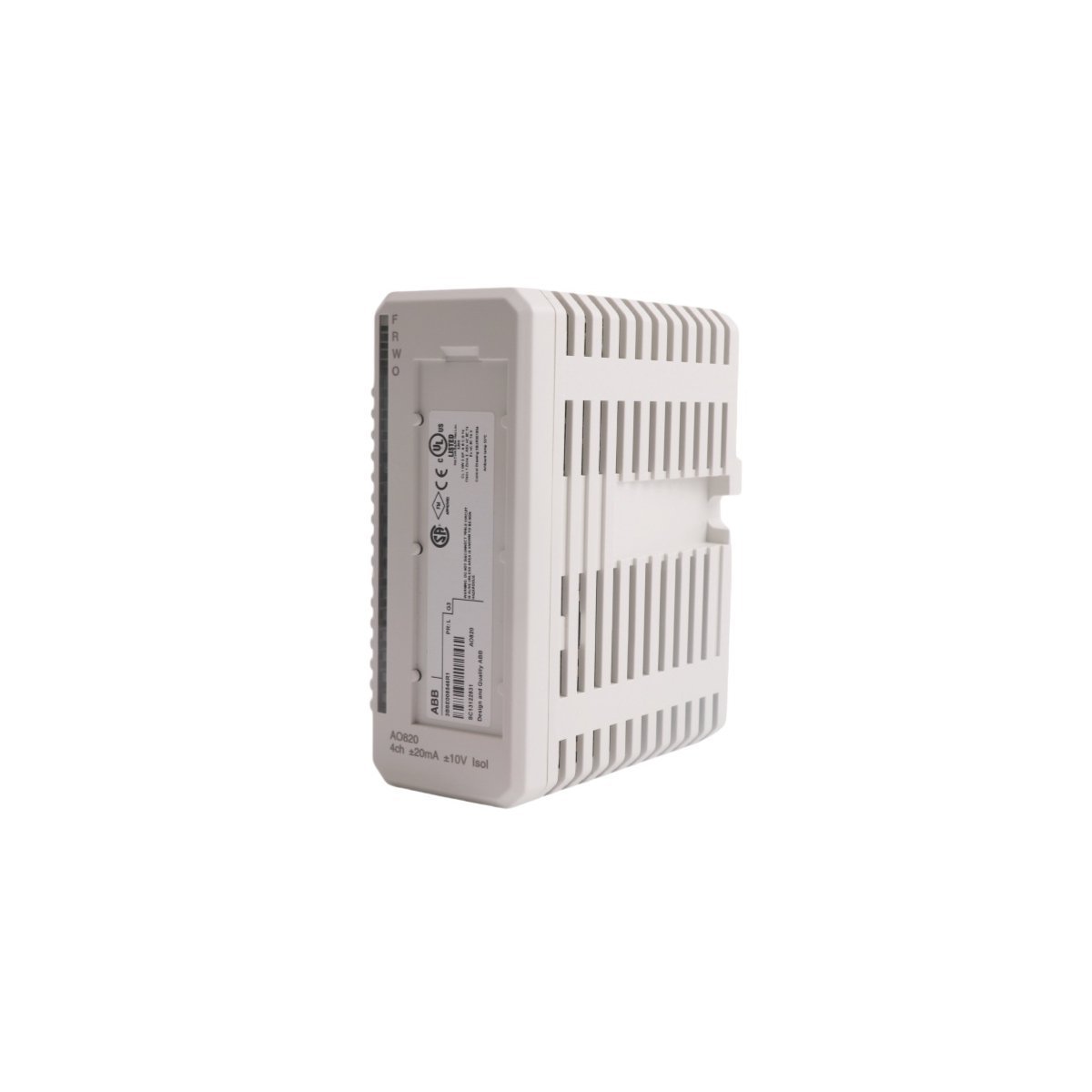

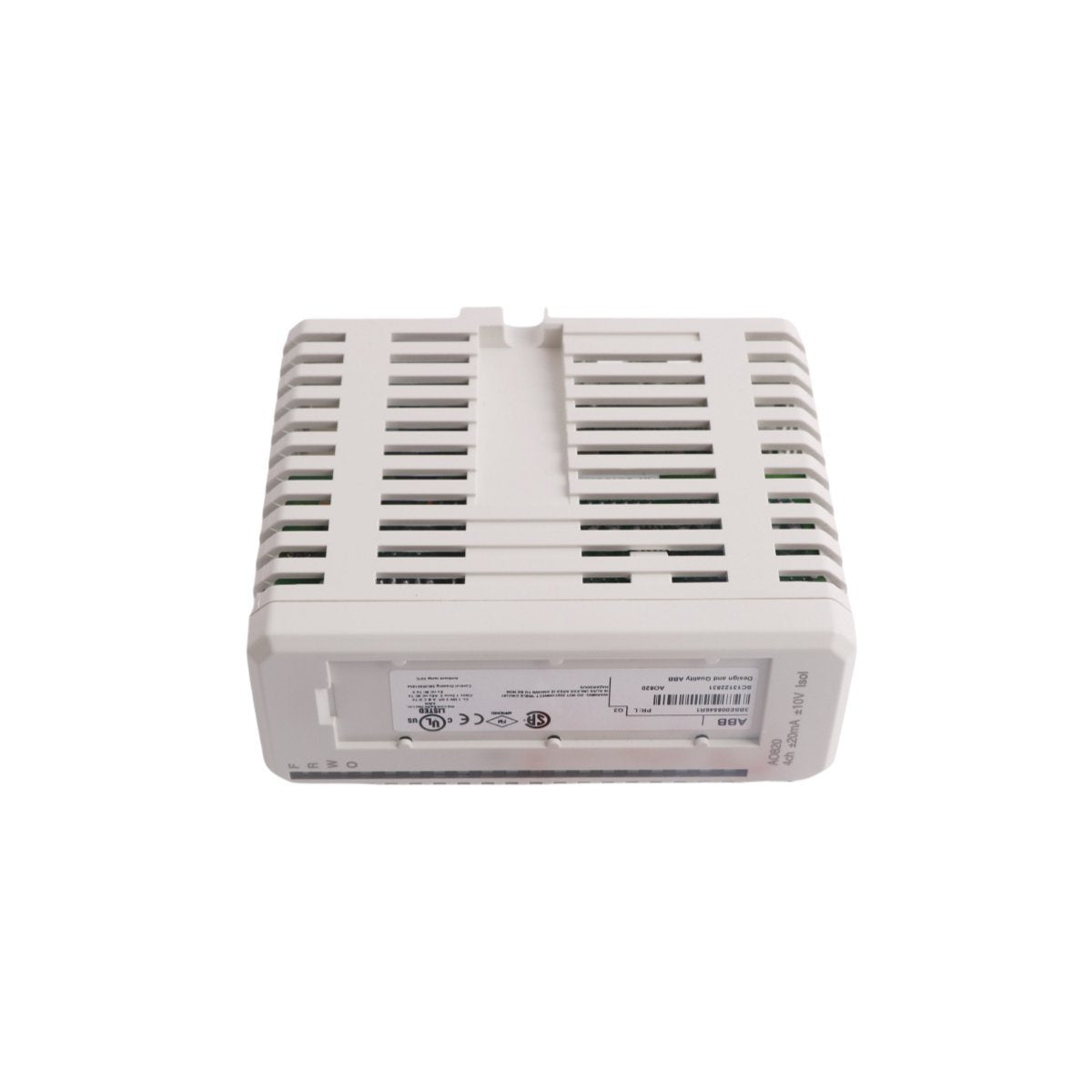

The ABB AO820 (order number 3BSE008546R1) is a 4-channel analog output module for the S800 I/O platform, used in ABB DCS architectures to drive final control elements and other analog-controlled devices. Each output channel can be configured for either current or voltage operation, allowing one module type to support common field standards such as 4–20 mA and 0–10 V.

AO820 is typically used where stable output performance and built-in diagnostics are required for process control loops. The module supervises output conditions and reports faults through the I/O communication bus, supporting faster troubleshooting and improved loop availability.

Hardware Parameters

Additional engineering notes

• Wiring terminals for current and voltage are typically separated; follow the terminal assignment in the cabinet drawings to avoid miswiring.

• Confirm loop power arrangements and grounding practices per site standards to minimize noise and ensure stable output control.

Industrial Applications

Typical operational use includes:

• Control valve positioners and I/P converters using 4–20 mA command signals

• Variable speed drive analog references (speed/torque setpoint) using current or voltage input

• Dampers, actuators, and auxiliary controllers requiring 0–10 V or 2–10 V control signals

• Process control loops in power generation, oil & gas, chemicals, water, and general manufacturing using S800 I/O stations

Commissioning considerations

• Validate channel configuration (current vs voltage) in the controller engineering tools before energizing field wiring

• Perform loop checks to confirm scaling, direction, and safe output values during startup

• Review diagnostics for open-circuit or under/over-range conditions after connecting the load
