Product Overview

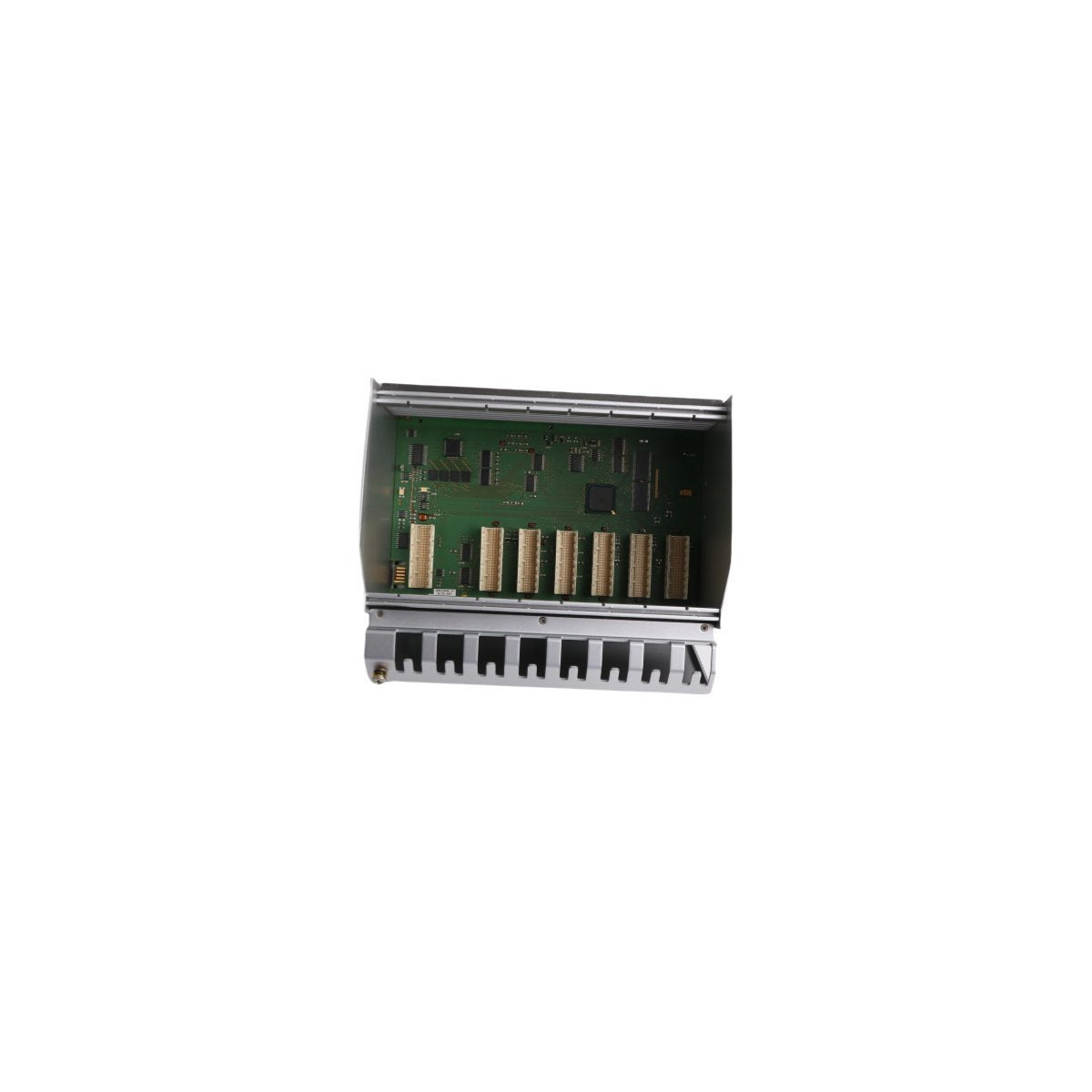

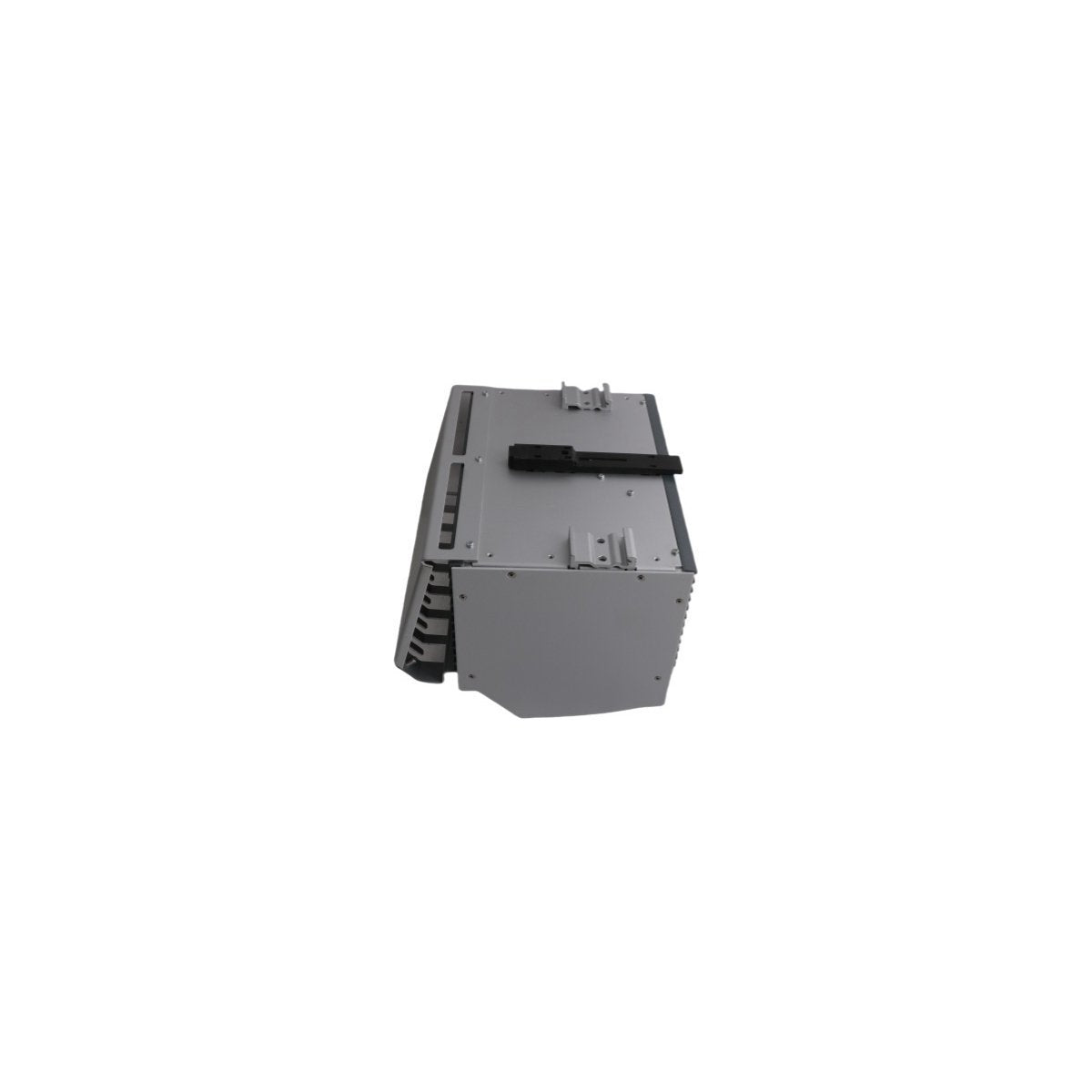

The PM803F (Part Number 3BDH000530R1) serves as the fundamental processor base unit for the ABB Freelance AC 800F hardware platform. This sophisticated control module acts as the "brain" of the Distributed Control System (DCS), integrating logic execution, communication management, and I/O bus regulation into a single, compact assembly. Designed to bridge the gap between field-level instrumentation and high-level operator stations, the PM803F facilitates high-speed data processing and deterministic control. Its modular architecture allows for flexible expansion, making it a cornerstone for both small-scale automation tasks and expansive industrial process networks requiring maximum uptime and reliability.

Engineering Specifications and Physical Properties

• Processor Identification: PM803F

• Commercial Reference: 3BDH000530R1

• Product Ecosystem: AC 800F (Freelance System)

• Execution Frequency: Optimized for high-speed logic and PID control loops

• Unit Net Weight: 1.8 kg

• Chassis Dimensions: 24cm x 20.3cm x 16.2cm

• Input Voltage Compatibility: 24V DC (Standard system supply)

• Communication Interface: Supports Ethernet and various fieldbus modules (Profibus, CAN)

• Country of Origin: Sweden

• Product Status: Active Lifecycle

Strategic Industrial Deployment

The AC 800F PM803F base unit is engineered for versatility across a multitude of heavy industrial sectors, specifically where process continuity is non-negotiable:

• Water and Wastewater: Managing filtration sequences, pump station telemetry, and chemical dosing systems.

• Food and Beverage: Overseeing automated batch processing and high-speed packaging lines where precise timing is critical.

• Renewable Energy: Regulating turbine pitch and power conversion in wind or solar farm substation controllers.

• Chemical Manufacturing: Implementing complex safety interlocks and continuous temperature/pressure regulation.

• Infrastructure Management: Centralized control for tunnel ventilation, lighting, and environmental monitoring systems.

FAQ

Q: What is the main difference between the PM803F and the earlier AC 800F models?

A: The PM803F 3BDH000530R1 offers enhanced processing power and memory capacity, allowing it to handle more complex control strategies and a larger number of I/O points compared to legacy base units.

Q: Can this unit be used in a redundant configuration?

A: Yes, the PM803F supports redundancy. By utilizing two base units in a synchronized pair, the system ensures that if the primary controller fails, the secondary takes over without bumping the process.

Q: Does the PM803F require a separate power supply module?

A: While the base unit manages the logic, it typically requires a standard 24V DC industrial power supply. It is often paired with specific AC 800F power modules designed for the Freelance rack system.

Q: Is this module compatible with Profibus DP communication?

A: The PM803F can be equipped with various communication plug-in modules. When the appropriate interface card is inserted, it fully supports Profibus DP, CAN, and Modbus protocols.

Q: How does the unit handle thermal management in enclosed cabinets?

A: The unit is designed with passive cooling vents. However, users should ensure the cabinet maintains adequate airflow, particularly when the system is operating near its maximum logic capacity or in high-ambient environments.
