Product Overview

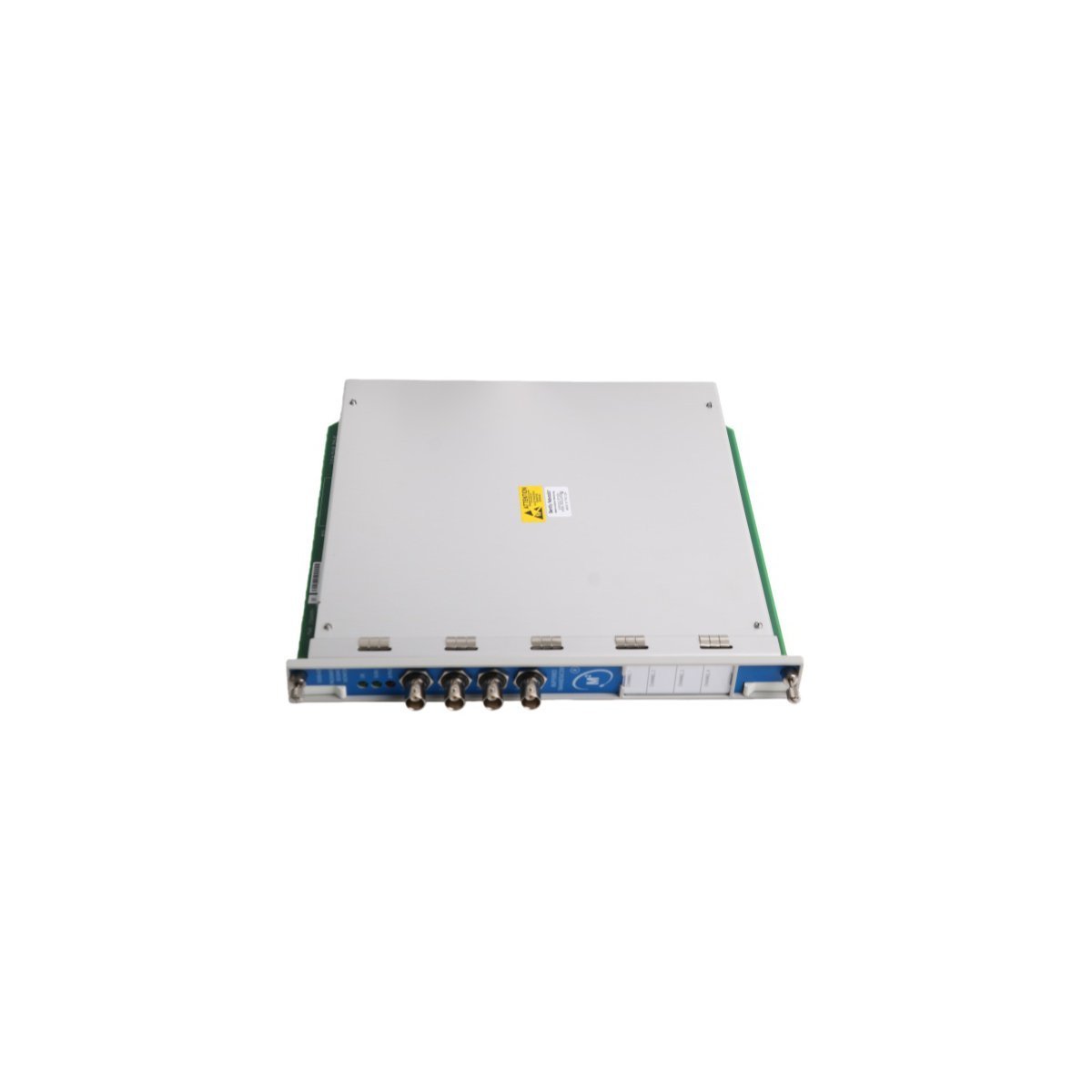

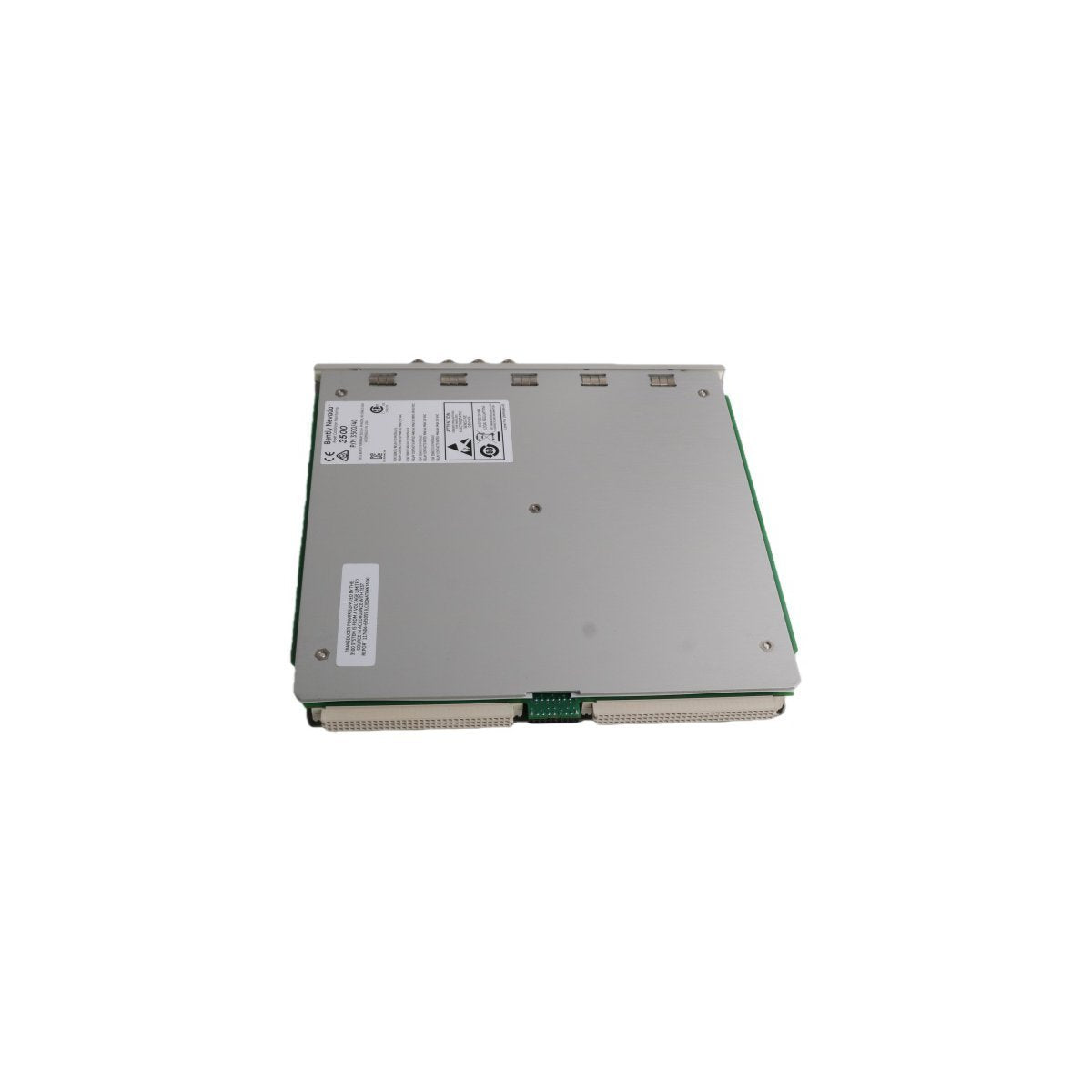

The Bently Nevada 3500/42 is a high-performance 4-channel monitor module designed for the 3500 Series Machinery Protection System. It serves as a universal interface for both non-contacting proximity sensors and seismic transducers (accelerometers or velocity sensors). This module continuously processes vibration and position signals, comparing them against user-defined alarm setpoints to drive automated machinery shutdowns and protect critical rotating assets from catastrophic failure.

Hardware Parameters

• Model: 3500/42 (Available as 3500/42M)

• Channel Count: 4 independent, fully programmable channels

• Input Types: Proximity probes, Accelerometers, Velocity transducers

• Signal Output: 4 to 20 mA proportional outputs per channel; buffered outputs via I/O module

• Accuracy: Within ±0.33% of full-scale range

• Power Consumption: 7.7 watts (typical)

• Configuration: Software-programmable via 3500 Rack Configuration Software

• Mounting: Standard 3500 Series full-height rack slot

• Isolation: 500 Vdc galvanic isolation between channels

Industrial Applications

The 3500/42 is the industry standard for Turbine Supervisory Instrumentation (TSI) in power generation and oil and gas facilities. It is primarily used to monitor:

• Radial Vibration: Monitoring shaft-to-bearing clearance and rotor dynamics.

• Axial Thrust Position: Detecting potential metal-to-metal contact in thrust bearings.

• Eccentricity: Measuring shaft bow during turbine slow-roll or startup.

• Casing Vibration: Using seismic sensors to monitor gearboxes, pumps, and structural integrity.
