Product Overview

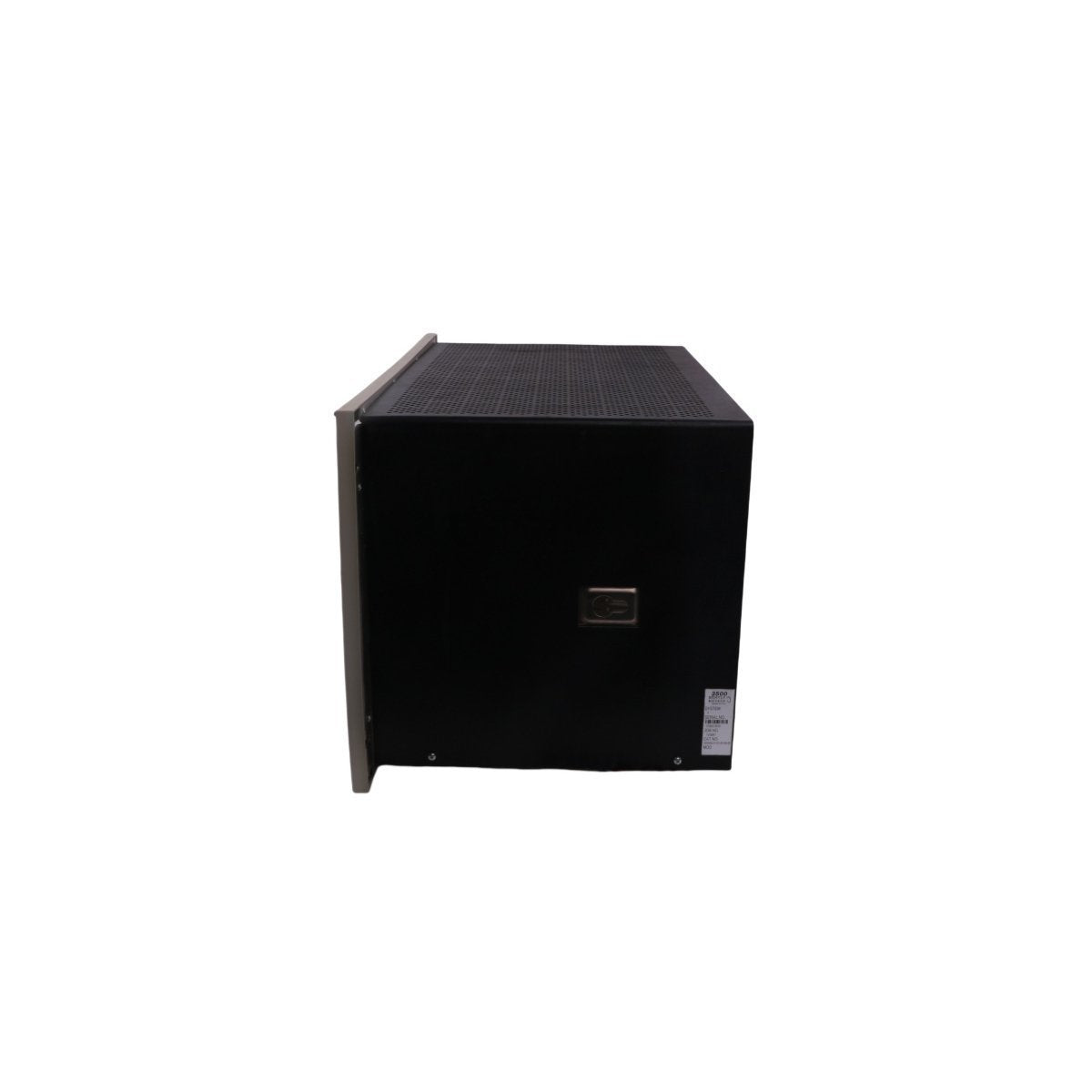

The Bently Nevada 3500/05-01-00-00-01 is the central structural framework for the 3500 Series Machinery Protection System. This 19-inch rack chassis is designed to house, power, and provide a high-speed communication backplane for the various monitoring modules that track vibration, position, speed, and temperature. Engineered to meet API 670 requirements, the chassis provides the essential hardware-level synchronization needed for real-time diagnostics and automated machinery shutdown logic. With 14 universal monitoring slots and dedicated positions for power and interface modules, it offers a scalable and ruggedized environment for asset protection in the most demanding industrial sectors.

System Configuration and Hardware Parameters

The 3500/05 chassis is built with a focus on fault tolerance and high-density signal processing to support plant-wide reliability.

• Total Capacity: 14 Universal slots for monitors and relays, 2 slots for Power Supplies, 1 slot for the Rack Interface Module (RIM/TDI).

• Mounting Standard: 01 Option - Standard 19-inch EIA rack mount.

• Backplane Architecture: High-speed digital bus for synchronized data transfer across all modules.

• Compliance Standards: API 670, ATEX, IECEx, and CSA (Hazardous area approved).

• Redundancy Support: Dual power supply slots for high-availability backup.

• Module Interchangeability: Supports "Hot-Swapping" of components without system interruption.

• Chassis Mass: 5.95 kg (Unpopulated).

• Physical Dimensions: 48.2 cm x 26.6 cm x 27.4 cm.

• Manufacturing Origin: USA.

Industrial Applications and Field Use

• Power Utility Infrastructure: Centralizing the protection of large-scale steam and gas turbines, generators, and auxiliary feed pumps.

• Oil and Gas Processing: Deploying vibration and thrust monitoring for multi-stage centrifugal compressors and pipeline pumps on offshore and onshore facilities.

• Petrochemical Facilities: Housing temperature and mechanical signature monitoring modules for specialized reactors and high-speed motor trains.

• Machinery Health Diagnostics: Serving as the data hub for connectivity to System 1 software for deep-dive predictive maintenance analysis.

• Critical Manufacturing: Providing autonomous safety interlocking for large industrial fans, blowers, and gearboxes.

FAQ

Q: Does the 3500/05-01-00-00-01 include the internal backplane?

A: Yes, the chassis comes with the integrated high-speed backplane already installed, which handles the power distribution and digital communication between all 14 monitoring slots.

Q: Is it possible to use both AC and DC power supplies in the same rack?

A: The 3500/05 chassis is compatible with both AC and DC power supply modules. However, the specific power requirements are determined by the power supply modules you select and install into the dedicated power slots.

Q: What is the benefit of the 14-slot "Universal" design?

A: Unlike older systems with fixed positions, the universal slot design allows you to place any monitor or relay module in any of the 14 slots. This provides maximum flexibility for complex machine trains requiring varied sensor inputs.

Q: Can this chassis be installed in environments with high electromagnetic interference?

A: Yes, the chassis is constructed from heavy-gauge aluminum and specifically shielded to protect the internal digital bus from EMI and RFI, ensuring signal integrity near large motors or VFDs.

Q: Does the rack require specialized cooling?

A: The 3500/05 is designed for convection cooling; however, when fully populated with high-power modules, it is recommended to maintain adequate clearance or cabinet ventilation to ensure the modules stay within their rated temperature range.
