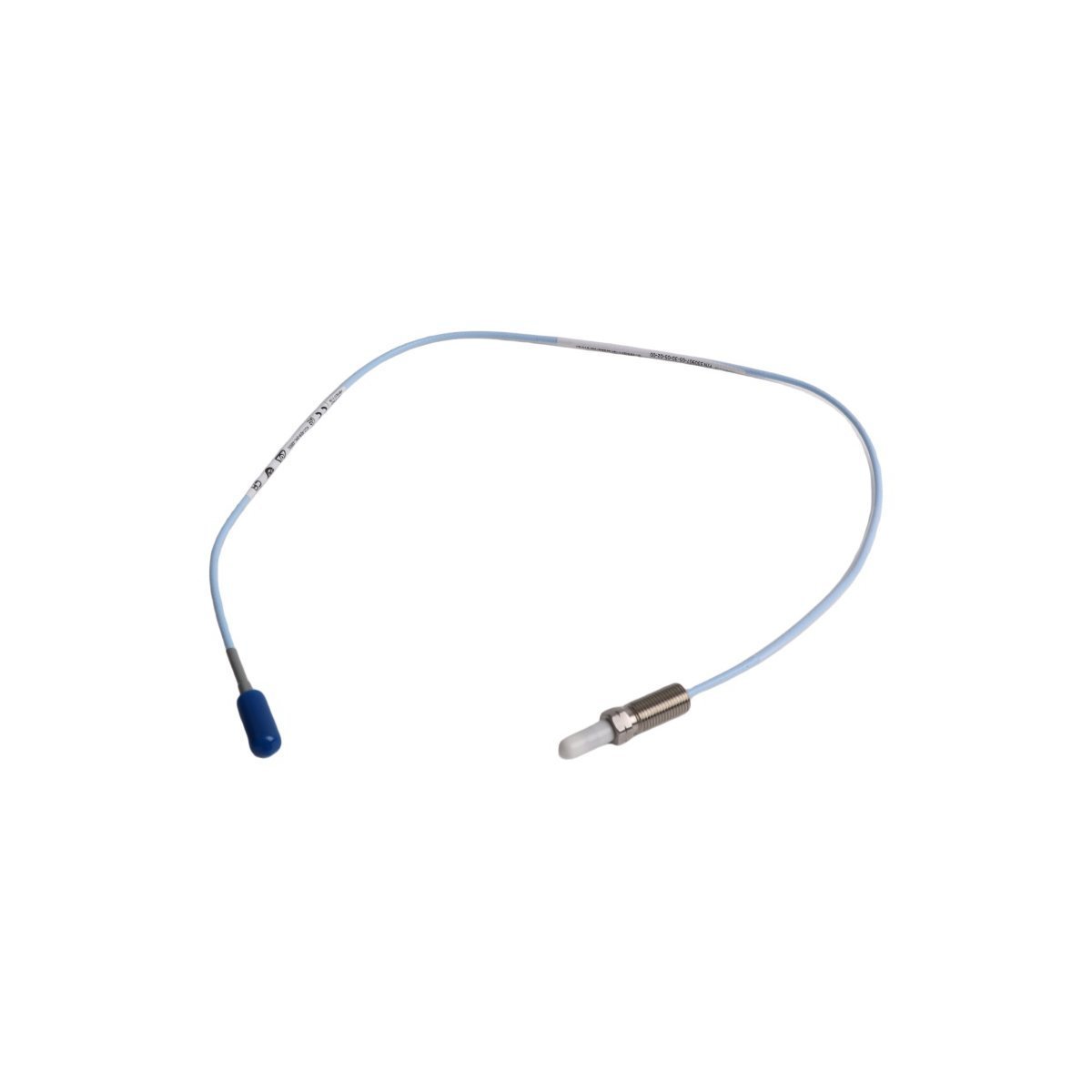

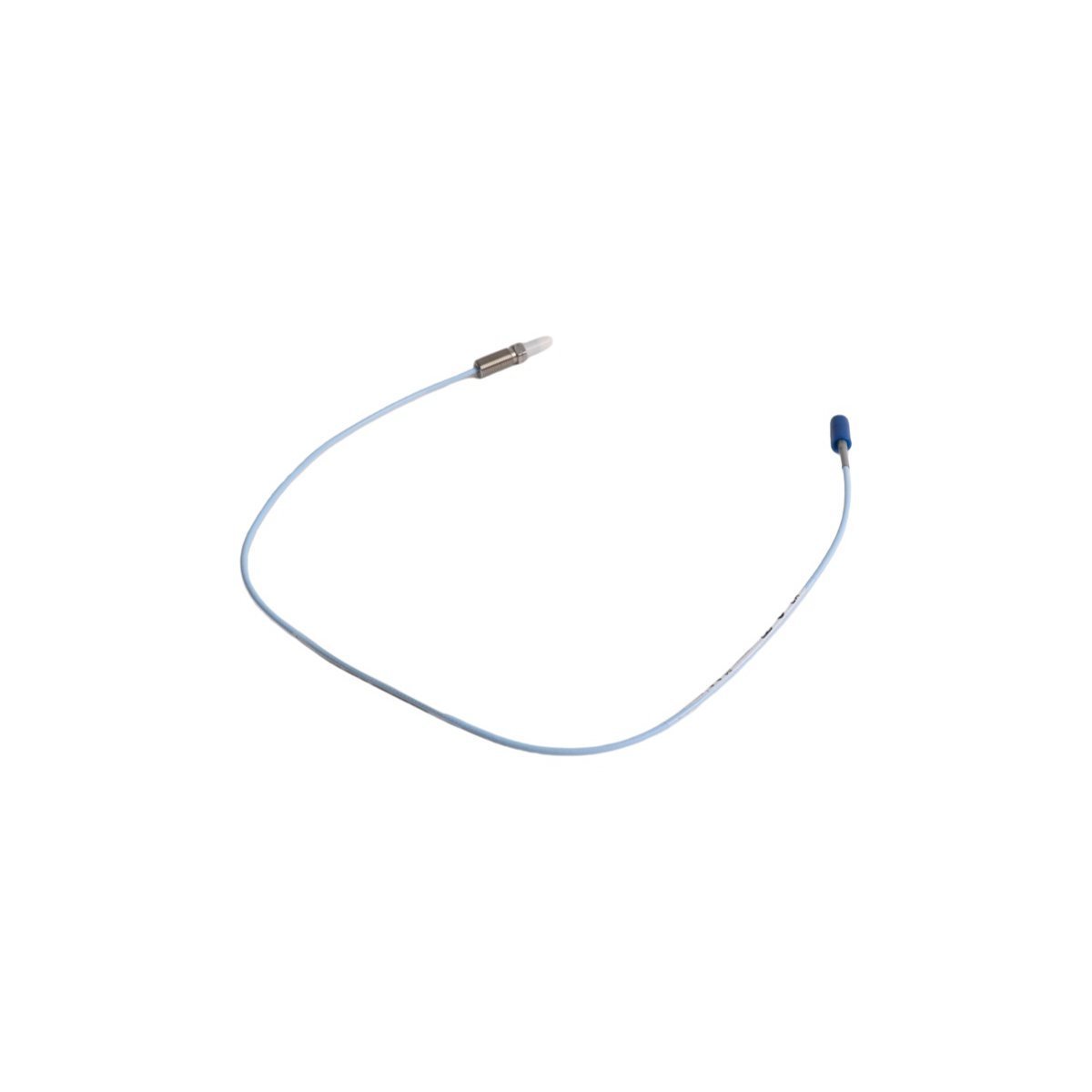

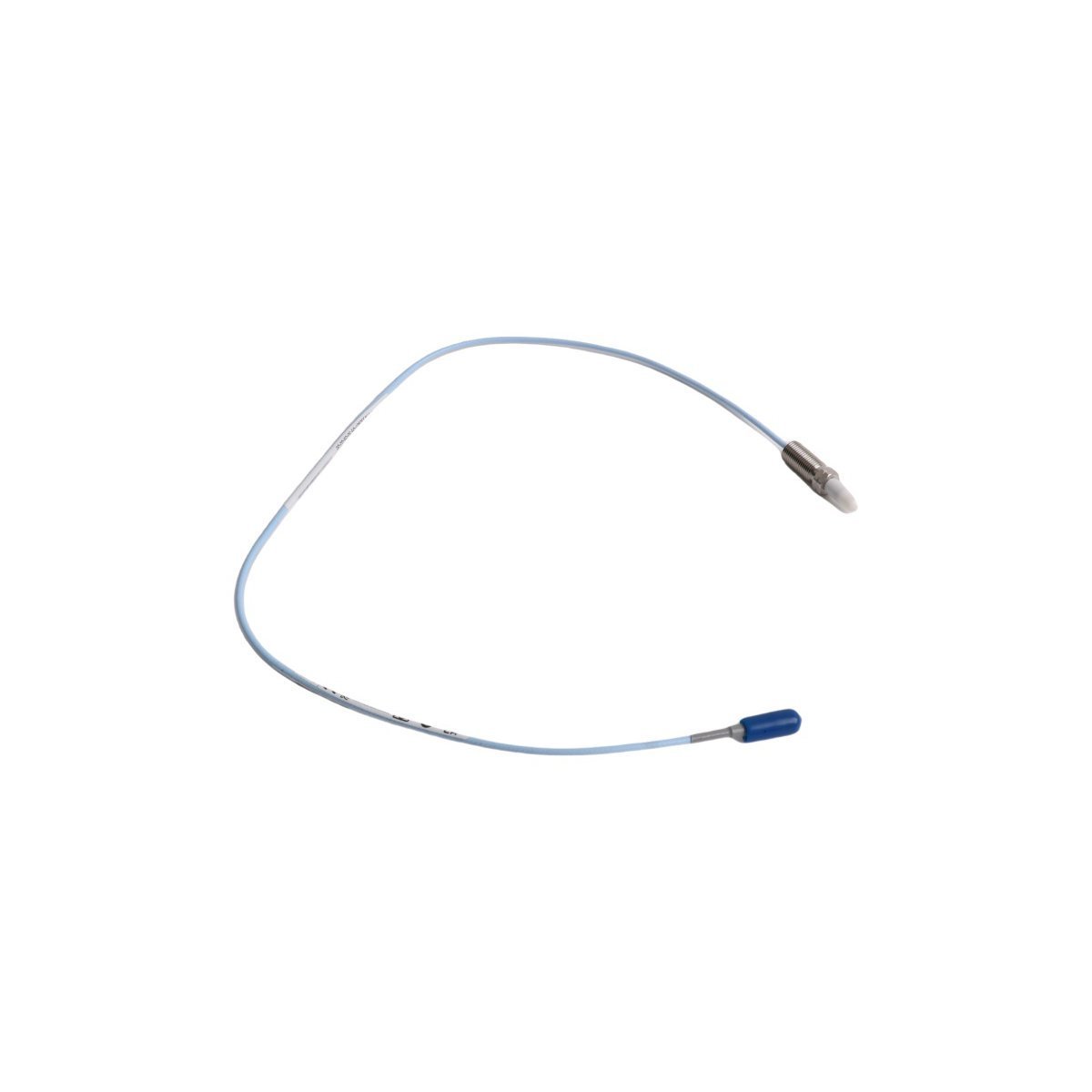

Configured for displacement and vibration monitoring in 3300 NSv systems, the Bently Nevada 330907-05-30-05-02-05 (330907 Proximity Probe) provides direct physical/electrical execution of non-contact shaft position sensing via a reverse-mount configuration. This transducer employs eddy-current induction to generate a voltage signal proportional to the gap between the probe tip and the observed conductive target. The component functions as part of a measurement chain, requiring a compatible Proximitor sensor for excitation and signal demodulation to output displacement data for rotating machinery analysis.

Model Matrix Breakdown

The 330907-05-30-05-02-05 is a modular transducer defined by specific factory configurations:

• 05: Unthreaded length (5 mm)

• 30: Overall case length (30 mm)

• 05: Total length (5.0 m)

• 02: Connector type (Miniature coaxial)

• 05: Agency approval (Multiple approvals)

Hardware Specifications

Mechanical Monitoring & TSI Characteristics

The NSv probe series is optimized for small-diameter shaft applications. Eddy-current probe scaling is calibrated to ensure linear output relative to gap distance. During installation, gap voltage validation is mandatory; installers must target -10 VDC when the probe is positioned at the center of its linear range. Rotor dynamics analysis depends on this precise gap setting to accurately capture shaft centerline position and vibration vectors. Cross-talk suppression must be maintained by adhering to physical spacing requirements between adjacent probes to prevent frequency interference from overlapping excitation signals.

Ordering Info

• 330907 NSv Proximity Probe

• Technical installation manual

• Protective thread cover

• Standard mounting accessories not included

Field Installation Guidelines

• Gap Setting: Utilize a feeler gauge to establish the initial gap and confirm output voltage at the Proximitor terminals to verify the -10 VDC center point.

• Torque Application: Apply the manufacturer-specified torque to the probe locknut to prevent mechanical loosening caused by casing vibration.

• Cabling: Ensure the coaxial cable is routed in dedicated conduit to minimize EMI/RFI and protect against mechanical damage.

• Grounding: Establish electrical continuity between the probe case and the machine ground to provide a stable common reference for the signal.

• Surface Prep: Confirm the target surface is free of non-conductive coatings, burrs, or debris before final calibration.

Frequently Asked Questions

• Q: Is the 330907 compatible with standard 3300 XL Proximitors?

• A: No, the 330907 NSv probe must be paired with a compatible 3300 NSv Proximitor to ensure correct scaling and linearity.

• Q: What does reverse mount configuration imply?

• A: It indicates the probe is designed to be mounted through a bracket or bulkhead from the rear of the sensing location, rather than standard forward mounting.

• Q: Can the coaxial cable be shortened?

• A: No, the cable length is an integral part of the transducer system calibration; modification will alter impedance and degrade measurement accuracy.

• Q: What is the primary purpose of the -10 VDC gap target?

• A: It centers the probe within the linear operating range, allowing the system to measure both positive and negative vibration excursions without clipping.

• Q: How does temperature affect the probe?

• A: The probe is rated for operation up to 177 deg C; however, extreme thermal gradients can cause minor bias shifts, requiring baseline verification after thermal stabilization.

• Q: How often should gap voltage be verified?

• A: Gap voltage should be confirmed during initial commissioning and as part of regular maintenance intervals to ensure long-term measurement consistency.

• Q: Is the miniature coaxial connector waterproof?

• A: No, the connector is not environmentally sealed and must be installed within a protective housing or junction box to prevent moisture and contamination.

• Q: What causes signal noise in the measurement loop?

• A: Noise is typically induced by ground loops, poor cable shielding, or electromagnetic interference from nearby high-power electrical equipment.
