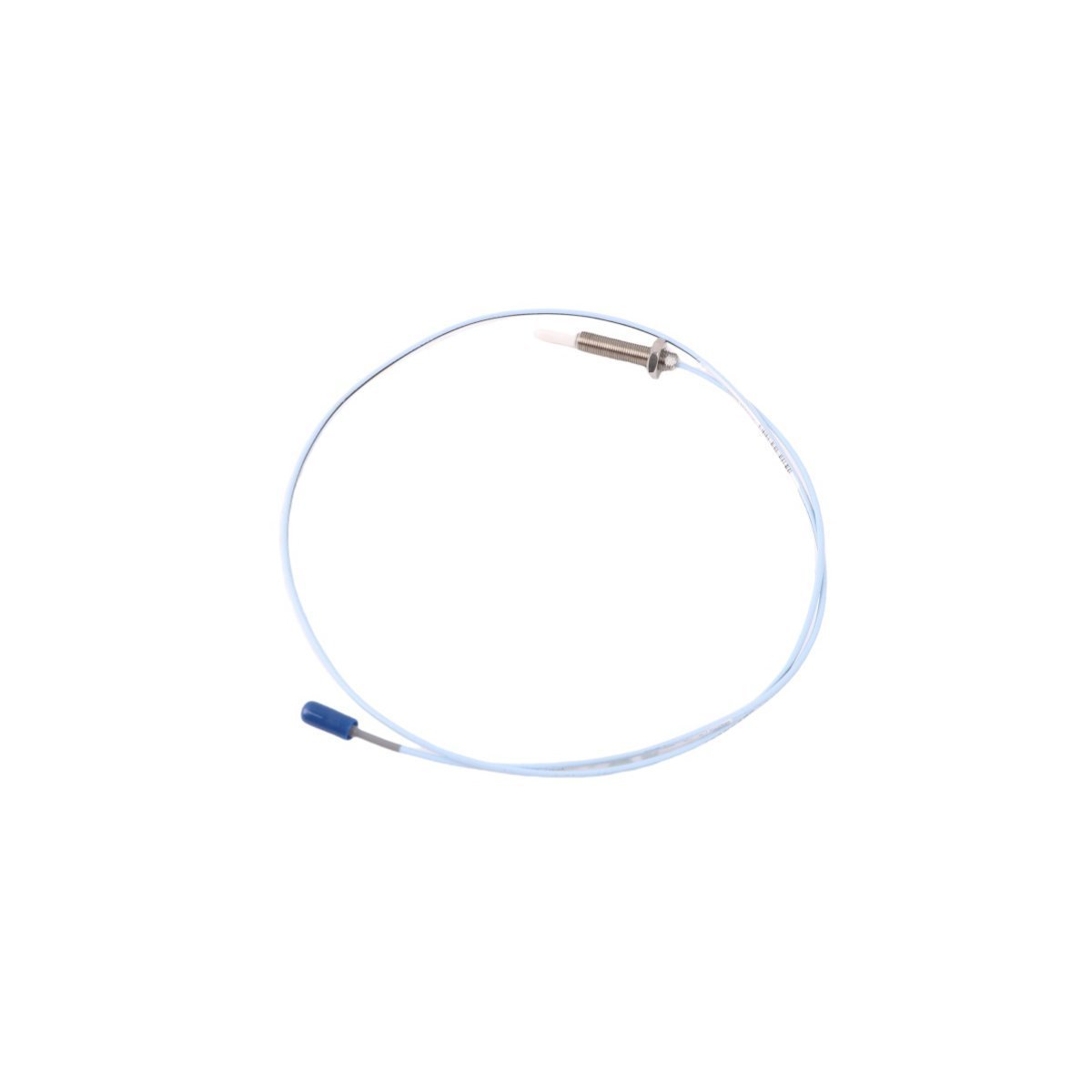

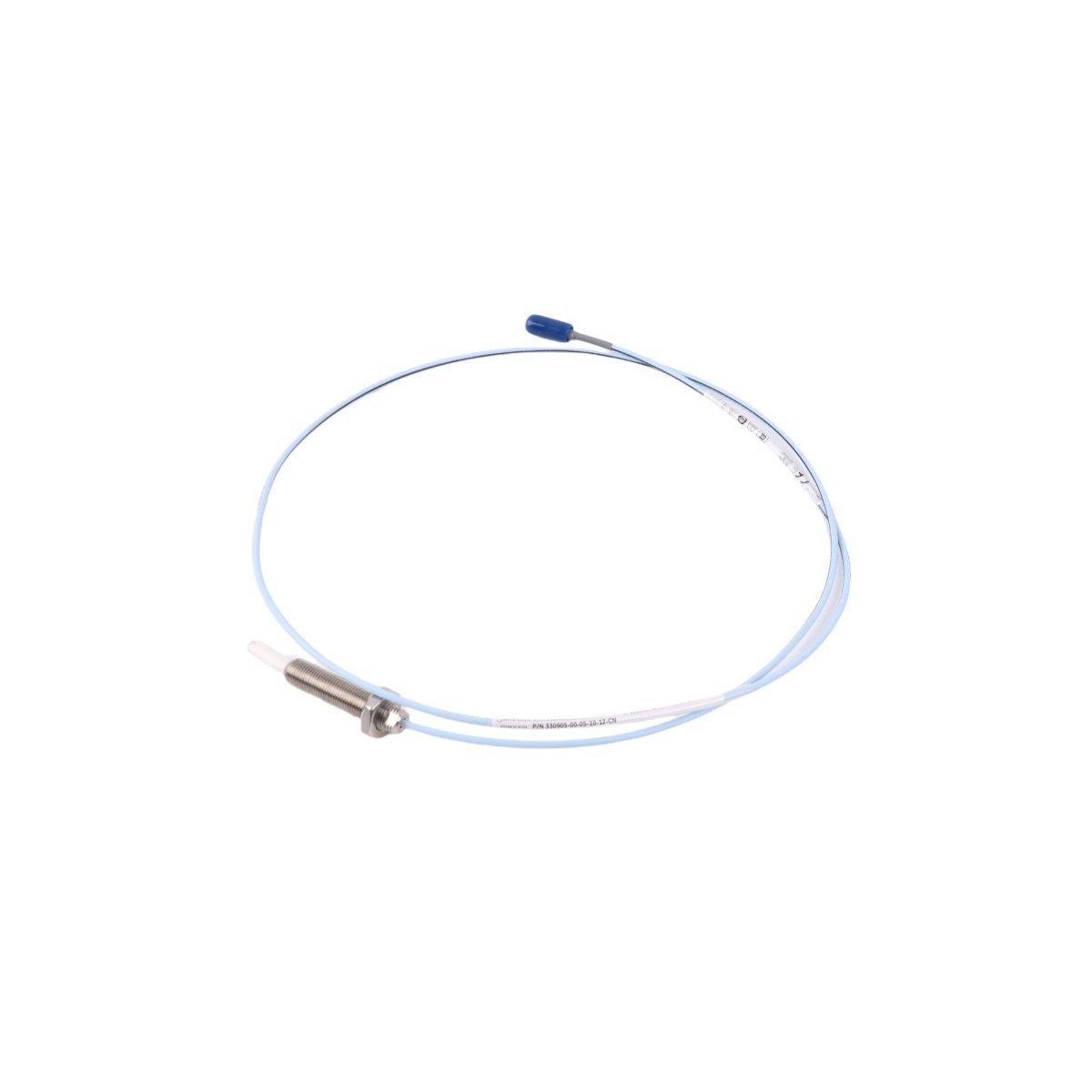

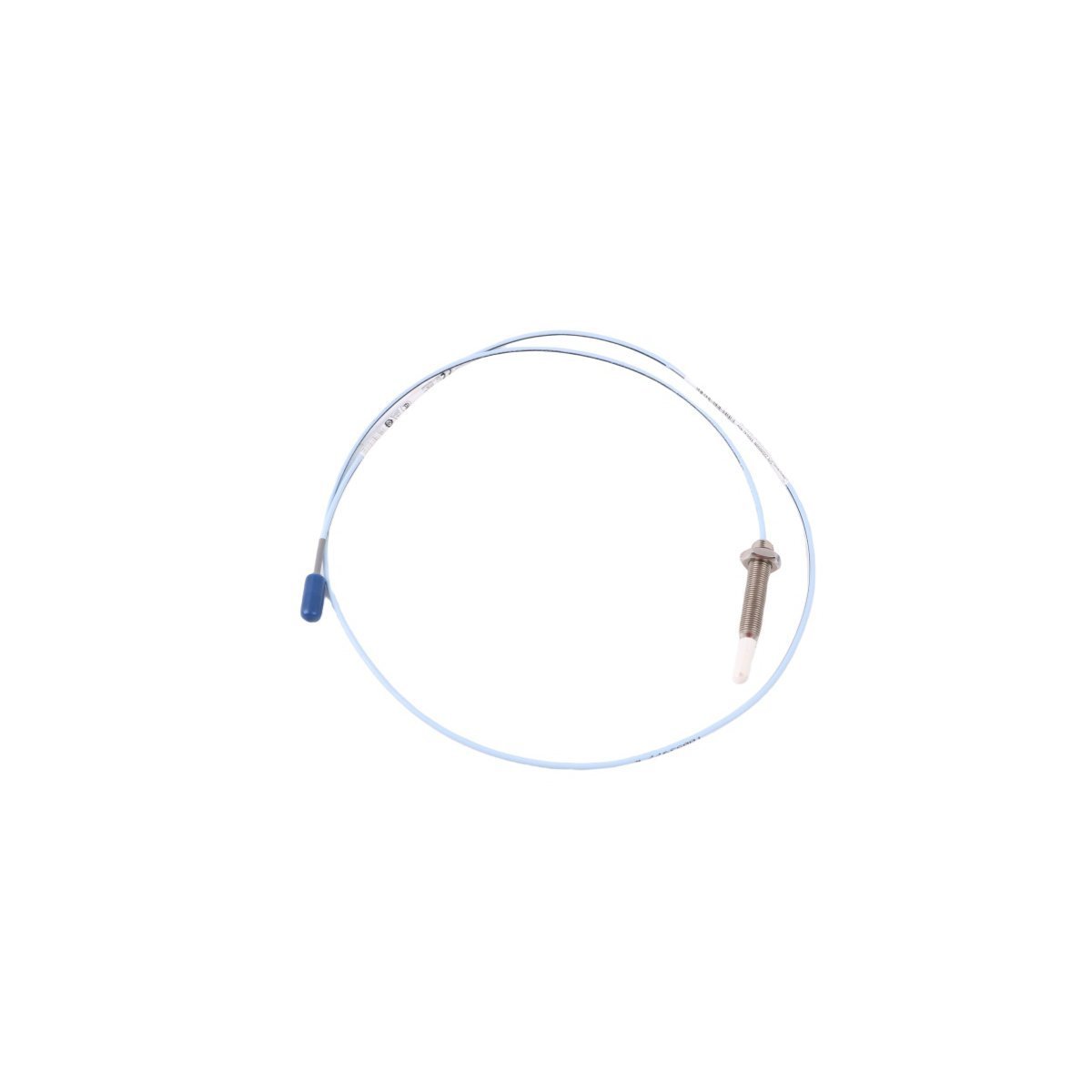

The Bently Nevada 330905-00-05-10-02-05, also cataloged as the 330905-00-05-10-02-05 Proximity Probes, operates as a dedicated hardware component for non-contacting displacement measurement within 3300 NSv transducer systems.

Suffix Breakdown & Model Matrix

The part number 330905-00-05-10-02-05 is decomposed according to the Bently Nevada 3300 NSv Proximity Transducer System configuration standard:

• 330905: Base Model (3300 NSv Proximity Probe)

• 00: Unthreaded Length (00 mm)

• 05: Overall Case Length (05 mm)

• 10: Total Length (1.0 meter)

• 02: Connector Type (Miniature coaxial ClickLoc connector)

• 05: Agency Approval (Multiple approvals, including CSA/NRTL/C and ATEX/IECEx options)

Hardware Specifications

Mechanical Monitoring & TSI Characteristics

The 3300 NSv transducer system employs eddy-current probe scaling to convert small-gap shaft motion into a linearized voltage signal. During installation, gap voltage validation against -10 VDC targets is required to ensure the probe tip operates within the optimal linear range of the transducer. The oscillator provides the necessary excitation frequency, while the system architecture supports rotor dynamics analysis by maintaining high signal integrity. Cross-talk suppression is maintained through matched frequency tuning, preventing signal interference in multi-channel monitoring installations.

Ordering Info

• One (1) 330905-00-05-10-02-05 Proximity Probe

• Connector protector cap

• Technical documentation

Field Installation Guidelines

• Mounting: Install the probe into the threaded machine casing; adjust the physical gap using a feeler gauge to align with the -10 VDC gap voltage target.

• Cabling: Route the factory-terminated coaxial cable through grounded metallic conduit; adhere to minimum bend radius requirements to prevent cable damage.

• Grounding: Secure the probe body to the machine frame to establish a singular, reliable electrical reference for the eddy-current field.

• Verification: Conduct a static gap voltage test using a high-impedance voltmeter at the Proximitor output terminals before initiating rotation.

Frequently Asked Questions

• Q: Is the 330905 probe compatible with 3300 XL standard oscillators?

  A: No, the 3300 NSv probe is designed specifically for the NSv oscillator system and is not interchangeable with 3300 XL hardware.

• Q: How is the probe tip gap validated?

  A: Measure the output voltage at the oscillator terminals with a high-impedance multimeter; the target value is -10 VDC when at the nominal gap.

• Q: Can the coaxial cable be field-spliced?

  A: No, field-splicing alters the electrical resonance and characteristic impedance of the system, which invalidates the factory-calibrated scale factor.

• Q: How does material type impact probe output?

  A: The probe is calibrated for 4140 steel; other materials require a scaling factor adjustment to maintain measurement accuracy.

• Q: What is the purpose of the cable armor?

  A: Cable armor provides physical protection against debris, oil, and vibration-induced wear in industrial environments.

• Q: Does the probe require external power?

  A: The probe is a passive device; it receives excitation power via the radio-frequency carrier generated by the 3300 NSv oscillator.

• Q: What causes erratic signal readings?

  A: Erratic signals are typically caused by loose connectors, electromagnetic interference, or damage to the coaxial cable insulation.

• Q: Is thread locking compound recommended?

  A: No, thread locking compounds can interrupt the electrical ground path between the probe body and the machine casing.
