Product Overview

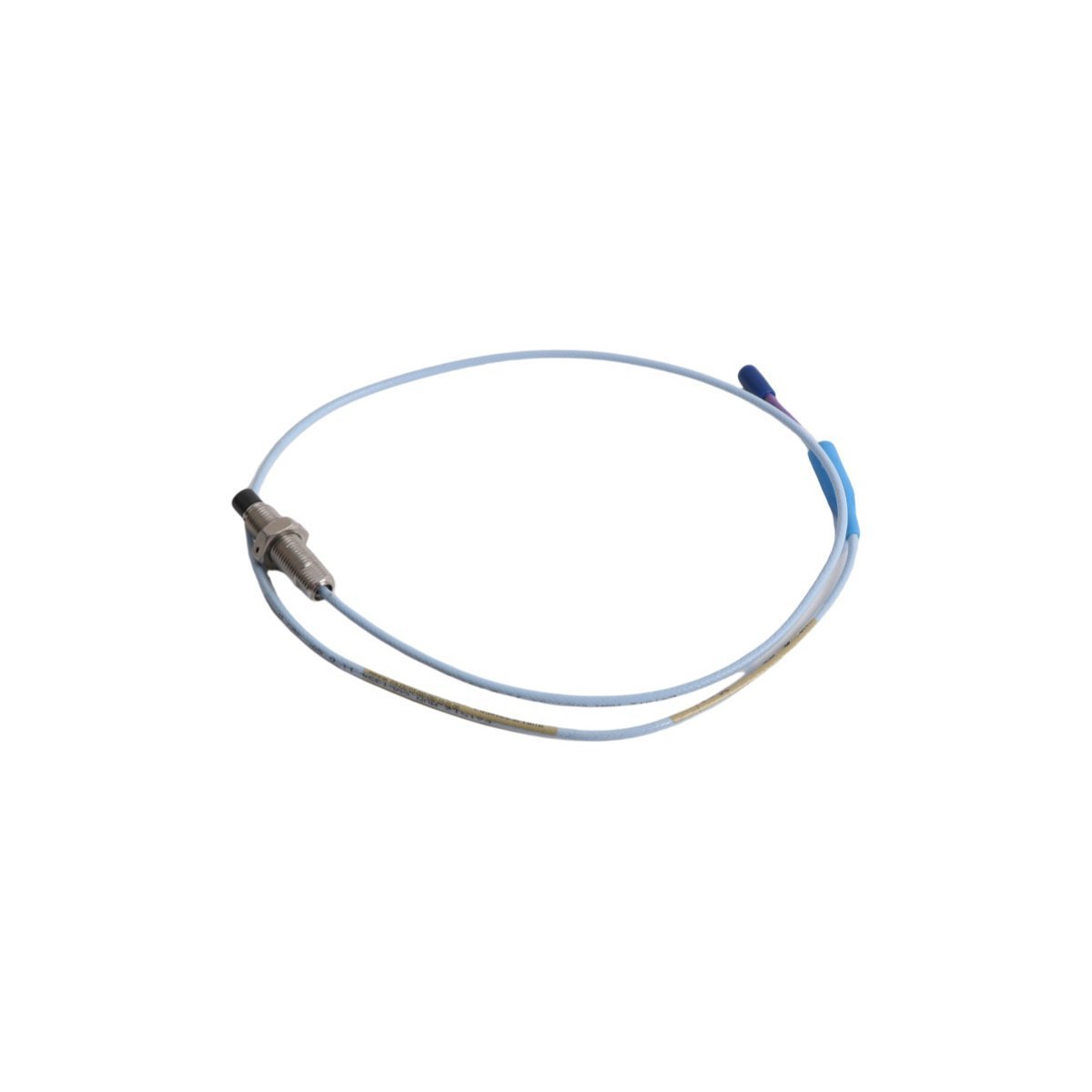

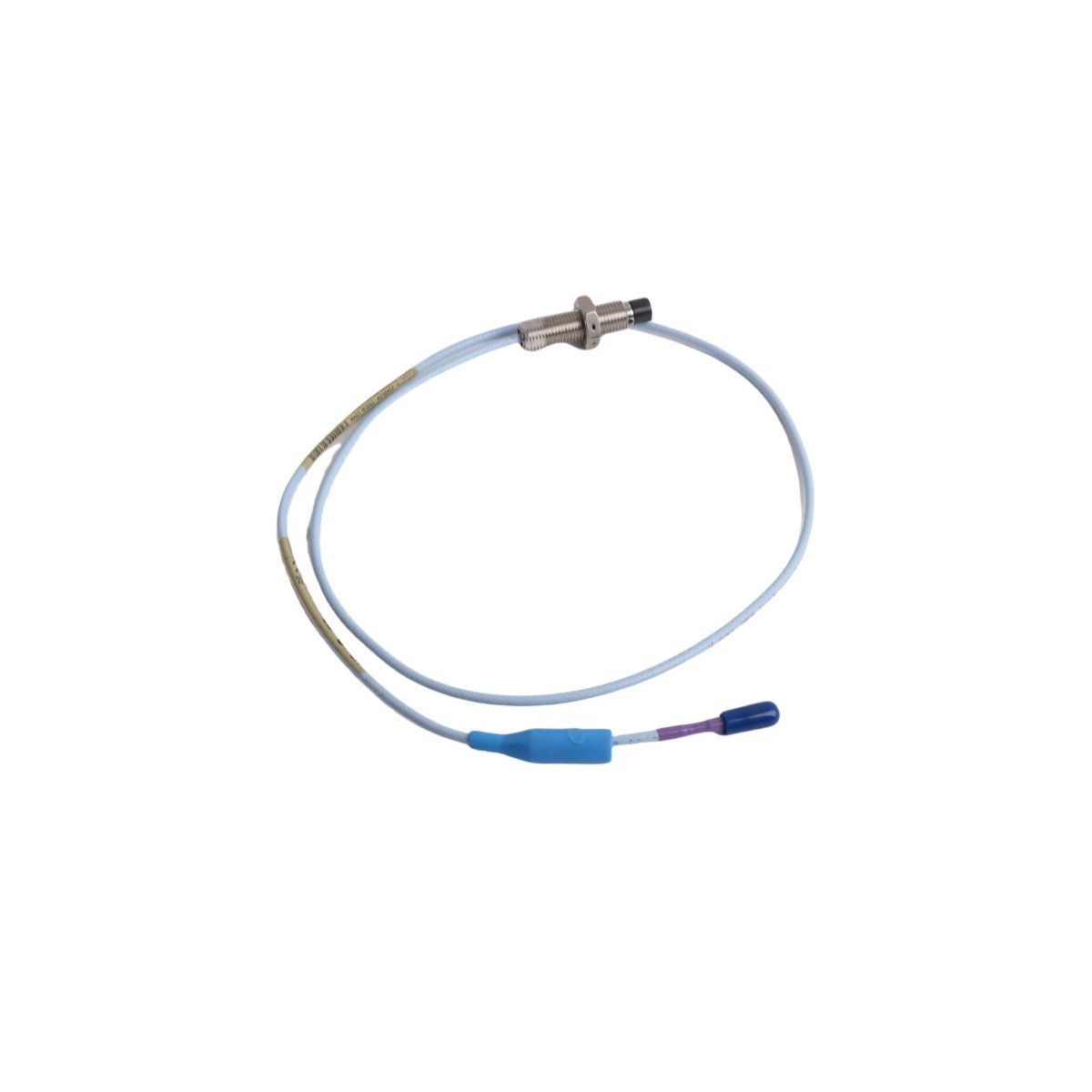

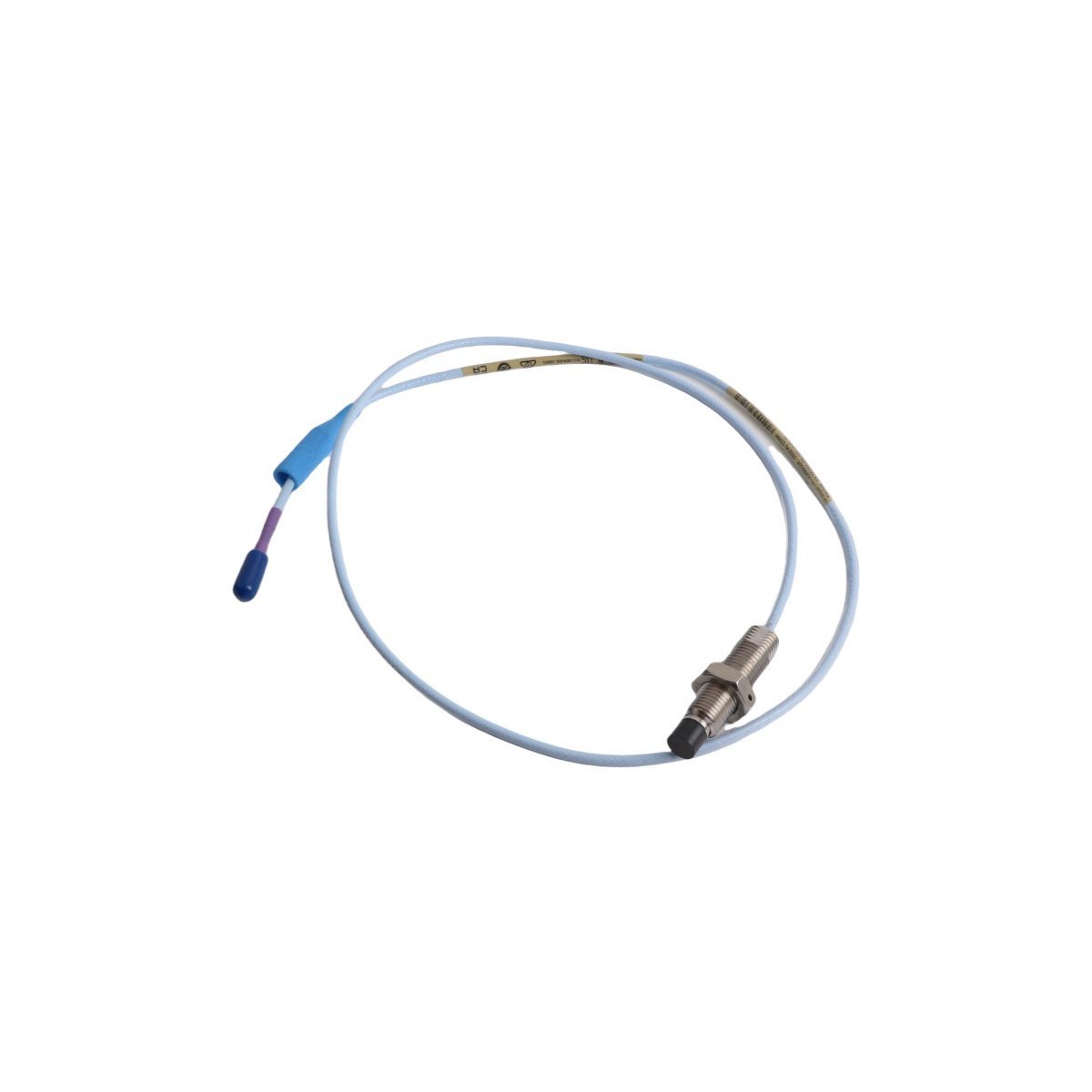

The Bently Nevada 330730-080-12-05 is a high-precision extension cable assembly engineered for the 3300 XL 11 mm proximity transducer system. In critical Turbine Supervisory Instrumentation (TSI) and condition monitoring applications, this component serves as the essential signal bridge between the 11 mm proximity probe and the Proximitor sensor. Its primary function is to maintain the rigorous electrical impedance standards required by the eddy-current sensing loop, ensuring that displacement and vibration data—such as rotor radial motion or shaft axial position—are transmitted without attenuation or signal degradation.

Constructed for reliability in harsh industrial environments, the 330730-080-12-05 incorporates advanced coaxial shielding that effectively suppresses electromagnetic interference (EMI) and radio frequency interference (RFI). This extension cable features Bently Nevada’s signature ClickLoc connector technology, which provides a mechanically secure, vibration-resistant coupling that is imperative for long-term operational stability on high-speed rotating machinery. As an integral part of the 3300 XL 11 mm ecosystem, this cable is factory-calibrated to integrate seamlessly with matched probes and sensors, facilitating precise gap-to-voltage conversion. Utilizing genuine Bently Nevada cabling is a critical best practice for maintenance teams aiming to eliminate signal noise and maintain the linear measurement response required by API 670 standards.

Technical Specifications

Model Configuration Explanation

The part number 330730-080-12-05 specifies the configuration details for this assembly:

• 330730: Base identifier for 11 mm 3300 XL series extension cables.

• 080: Specifies an 8.0-meter cable length.

• 12: Indicates the specific connector type and protection configuration.

• 05: Defines the agency approval rating for hazardous area compliance.

Typical Applications

The 11 mm 3300 XL cable assembly is critical for:

• Large-diameter steam and gas turbine monitoring where longer cable runs are required to reach junction boxes.

• Industrial centrifugal compressors operating in high-vibration zones.

• Predictive maintenance racks monitoring slow-speed, high-mass rotating shafts.

• Remote sensing applications where Proximitors are mounted in central rack rooms away from the machine.

• Industrial gearboxes and high-load drive motors where EMI rejection is vital for accurate vibration analysis.

System Compatibility

The 330730-080-12-05 is designed exclusively for the 3300 XL 11 mm system:

• 3300 XL 11 mm Proximity Probes (standard and reverse mount).

• 3300 XL 11 mm Proximitor sensors (calibrated for the specific 8.0m length).

• Standard Bently Nevada conduit hardware and cable mounting brackets.

• 3500 and 3300 series machinery protection racks.

Installation Guidelines

• Pre-Installation Inspection: Check connectors for cleanliness and integrity of the ClickLoc locking mechanism.

• Routing: Install within dedicated, grounded industrial conduit. Maintain physical separation from high-voltage AC cables to prevent induced noise.

• Connector Engagement: Use a steady axial motion to engage the ClickLoc connector. A tactile and audible "click" is mandatory to ensure continuity.

• Strain Relief: Do not permit the cable to carry mechanical load. Use cable ties near the Proximitor and probe entry points to provide necessary strain relief.

• Bend Radius: Avoid sharp bends. Respect the minimum bend radius of the FEP cable to prevent damage to the internal coaxial core and shielding.

• Grounding: Ensure the cable path is bonded correctly to the machine's ground potential to maintain the shielding effectiveness of the sensing loop.

Product Advantages

• Impedance Matching: Factory-tuned electrical characteristics prevent signal reflection and ensure compliance with the 3300 XL linear range.

• Robust Environmental Protection: The FEP cable jacket provides superior resistance to harsh lubricants, chemicals, and extreme temperatures found in turbine bearing housings.

• Vibration Durability: The ClickLoc design maintains a constant electrical contact under the continuous harmonic oscillation of heavy industrial assets.

• Ease of Commissioning: Designed as a standardized component, it ensures quick and repeatable installation during machine turnarounds.

• Signal Purity: Superior shielding prevents the corruption of raw sensor data, leading to more reliable diagnostic outputs.

Ordering Information

The 330730-080-12-05 assembly includes the extension cable, protective connector caps, and compliance documentation. Always confirm that the total system length of your installation (probe length + extension length) matches the calibration requirements of your Proximitor sensor before procurement.

Frequently Asked Questions

• Can I cut the 8.0m cable to fit my specific rack distance?

  No. Modifying the cable length alters the electrical impedance of the transducer loop, which invalidates factory calibration and causes significant measurement errors.

• Is this cable interchangeable with 8 mm proximity cable?

  No. The 11 mm system components are uniquely tuned. Using an 8 mm extension cable with an 11 mm system will cause system instability and inaccurate readings.

• What does the "05" agency approval mean?

  It indicates the cable is compliant with specific hazardous area standards (e.g., CSA/NRTL/C). Confirm your site zoning requirements before ordering.

• How do I identify a faulty extension cable?

  Intermittent signal drops, "Gap Error" messages on the monitoring rack, or unexplained spikes in vibration readings often point to a compromised cable shield.

• Can the connectors be cleaned if oil enters the housing?

  Yes, use a professional-grade electronics contact cleaner. Ensure the cable is fully dried before reconnecting to the system.

• Why is the ClickLoc connector important?

  It provides a positive, tool-free mechanical and electrical lock that prevents the connector from vibrating loose during high-amplitude machine cycles.

• How should the cable be protected in high-heat areas?

  The FEP jacket is rated for high temperatures, but ensure the cable is routed away from direct exhaust manifolds or steam leak points.

• Is the 330730-080-12-05 an armored cable?

  This model is standard; Bently Nevada also offers armored variants for areas requiring additional protection against physical abrasion or impact.
