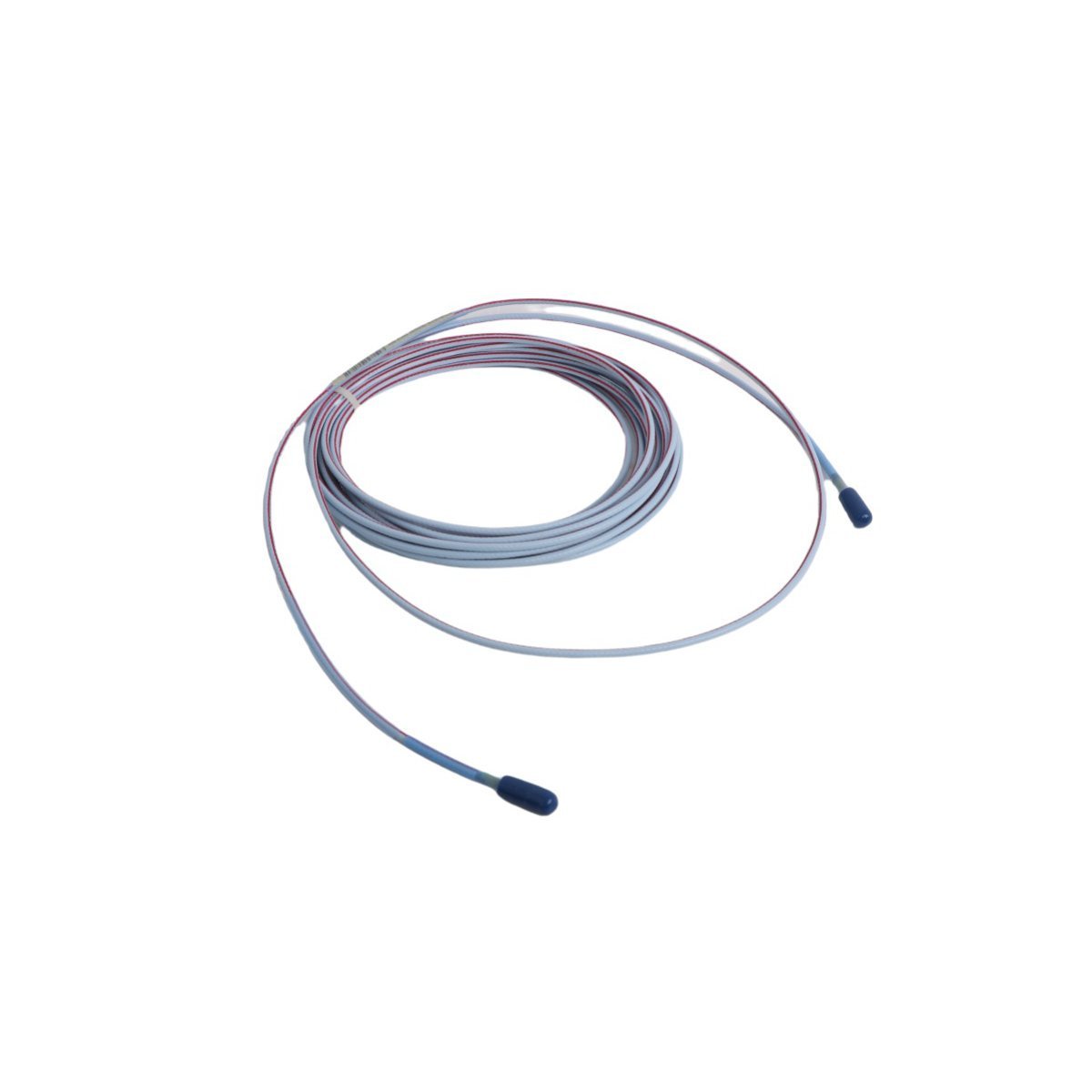

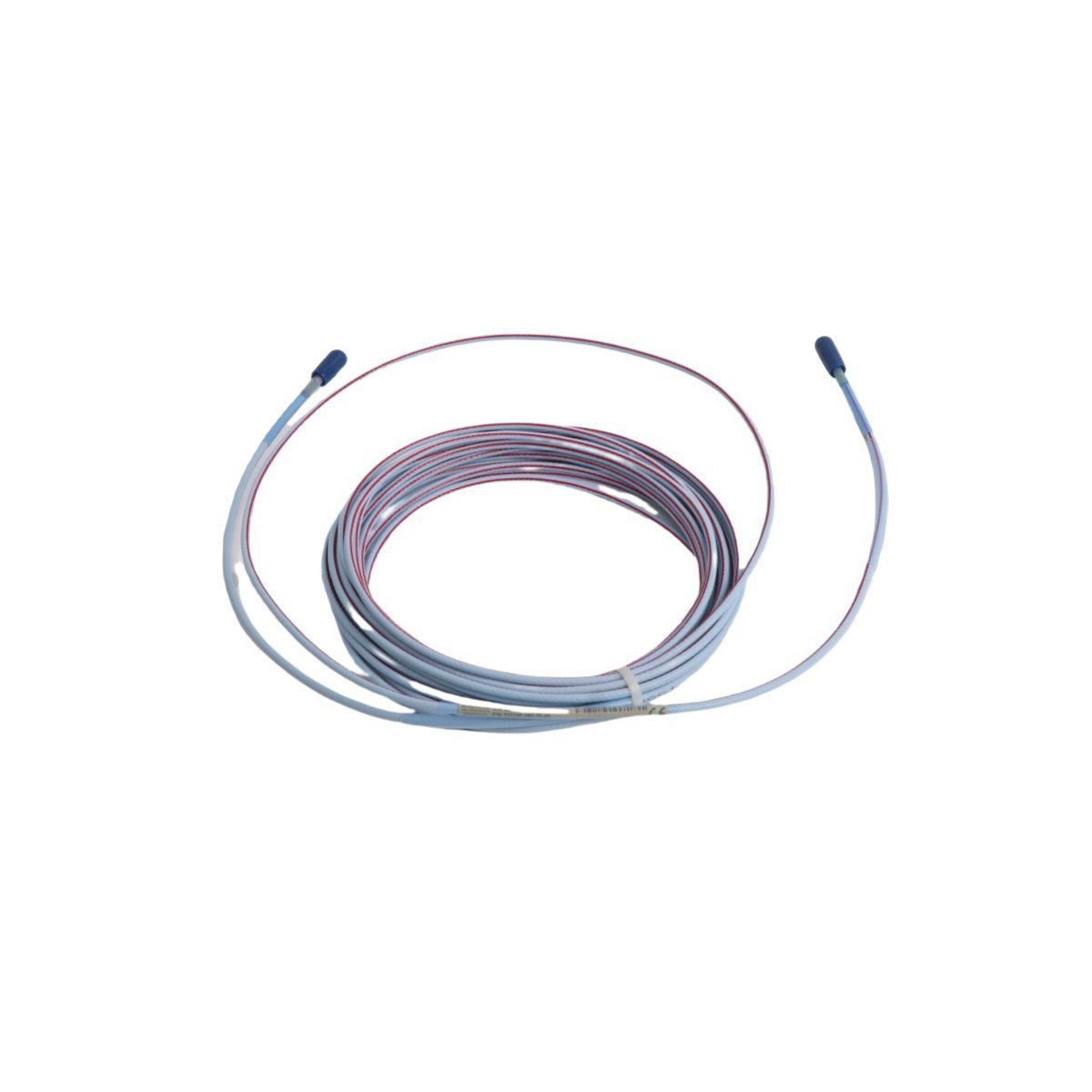

The Bently Nevada 330192-00-60-10-00 serves as the primary 330192 Proximity Sensor utilized to execute contactless eddy-current displacement processing across 3300 XL 8 mm ETR platforms. The hardware consists of an Extended Temperature Range (ETR) probe configuration designed to generate high-frequency radio frequency fields for tracking relative shaft motion and static position variables.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics Calibration

The 330192-00-60-10-00 requires strict calibration matching targeted eddy-current probe scaling configurations to ensure uninterrupted linearity across the 80 mils tracking window under elevated thermal profiles. Manual gap voltage validation (-10 VDC targets) must be checked during machine stoppage to align the sensor face within the middle of the calibrated voltage slope. Maintaining structural tuning over the 1.0 meter electrical loop protects data harvesting lines from impedance degradation, optimizing cross-talk suppression inside crowded fluid-film bearing housings where dense rotor dynamics observations occur.

Frequently Asked Questions

Q: What operational variance does the ETR designation indicate for this probe series?

A: The Extended Temperature Range (ETR) designation indicates that the probe body, coaxial cable, and connector elements are configured to withstand continuous exposure up to +218 deg C without scaling degradation or output voltage drift.

Q: Can this 1.0 meter total system length probe be combined with a 5.0-meter extension cable?

A: No. Coaxial matching parameters require that the sum of the probe length and extension cable length equals the designated operational length of the Proximitor sensor core, which must be rated for either 5.0 meters or 9.0 meters total system length.

Q: Is hot-swapping of the ClickLoc connection path safe during live monitor operation?

A: No. Disconnecting or connecting the internal miniature coaxial joint while the parent monitor loop is energized can cause instantaneous voltage transients that flag false errors on the TSI rack input modules.

Field Component Assembly Protocols

• Verify that the host machinery is shut down and completely stationary before inserting the sensor tip into the threaded bore.

• Maintain strict clearance distances around the 8 mm probe tip to prevent side-loading interference from adjacent mechanical bracket walls.

• Avoid exceeding the maximum structural installation torque values specified for 3/8-24 UNF threads during counter-nut lock down.

• Ensure the miniature coaxial connector is clean and dry before snapping the ClickLoc interface into position.

• Secure the outer cable braiding to the primary copper ground bus bar within the local junction terminal container.

Material Kit Contents

• 1 x 330192-00-60-10-00 Proximity Probe Assembly

• 2 x Stainless Steel Hex Lock Nuts (3/8-24 Threaded)

• 1 x Fluorosilicone Connector Protection Sleeve

Packaging and Freight Processing

Components are sealed inside high-durability anti-static industrial packaging to negate electrical static hazards during transit. Standard tracking schedules verify arrival within 2-7 days when payment finish using premium DHL/FEDEX/UPS express air freight services.
