Product Overview

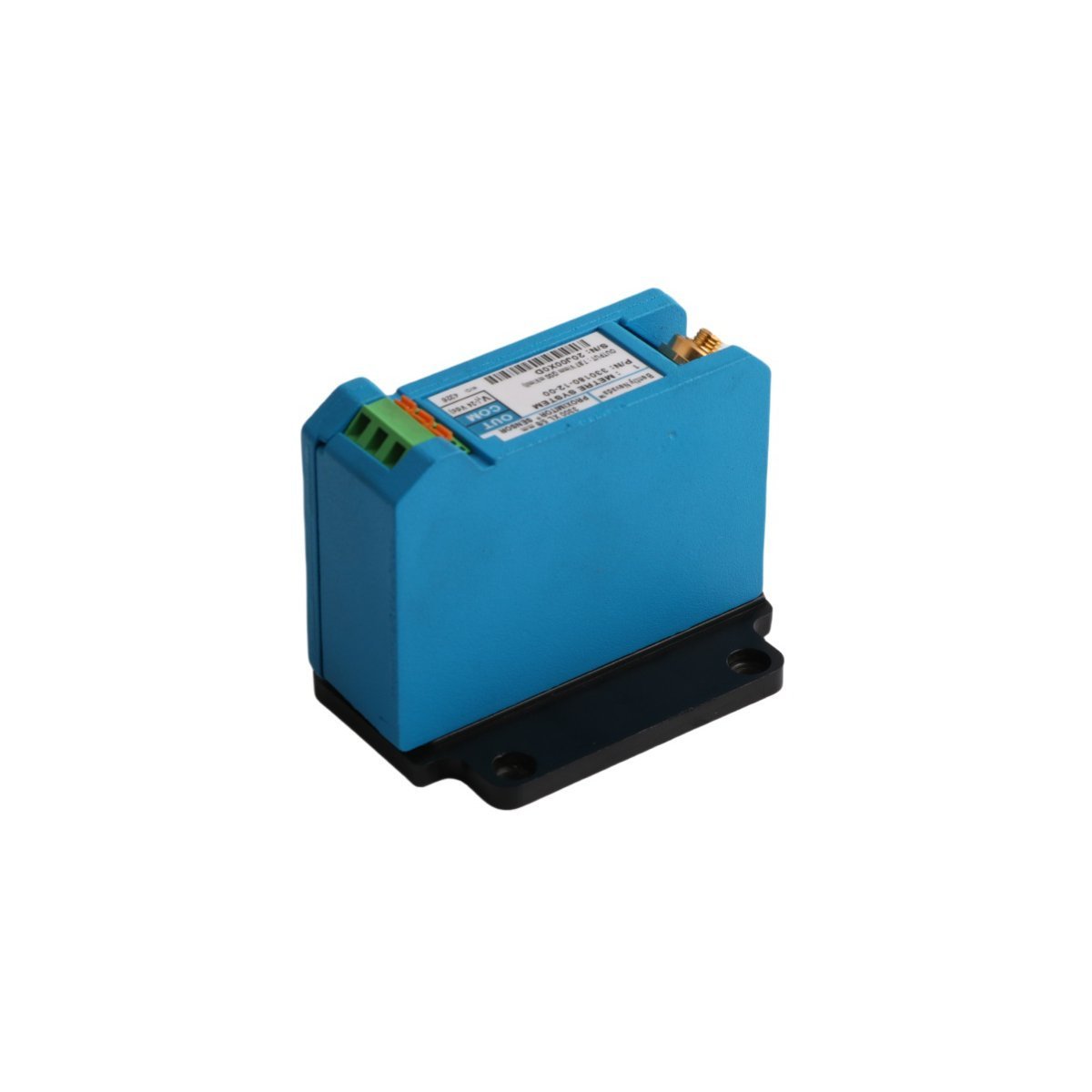

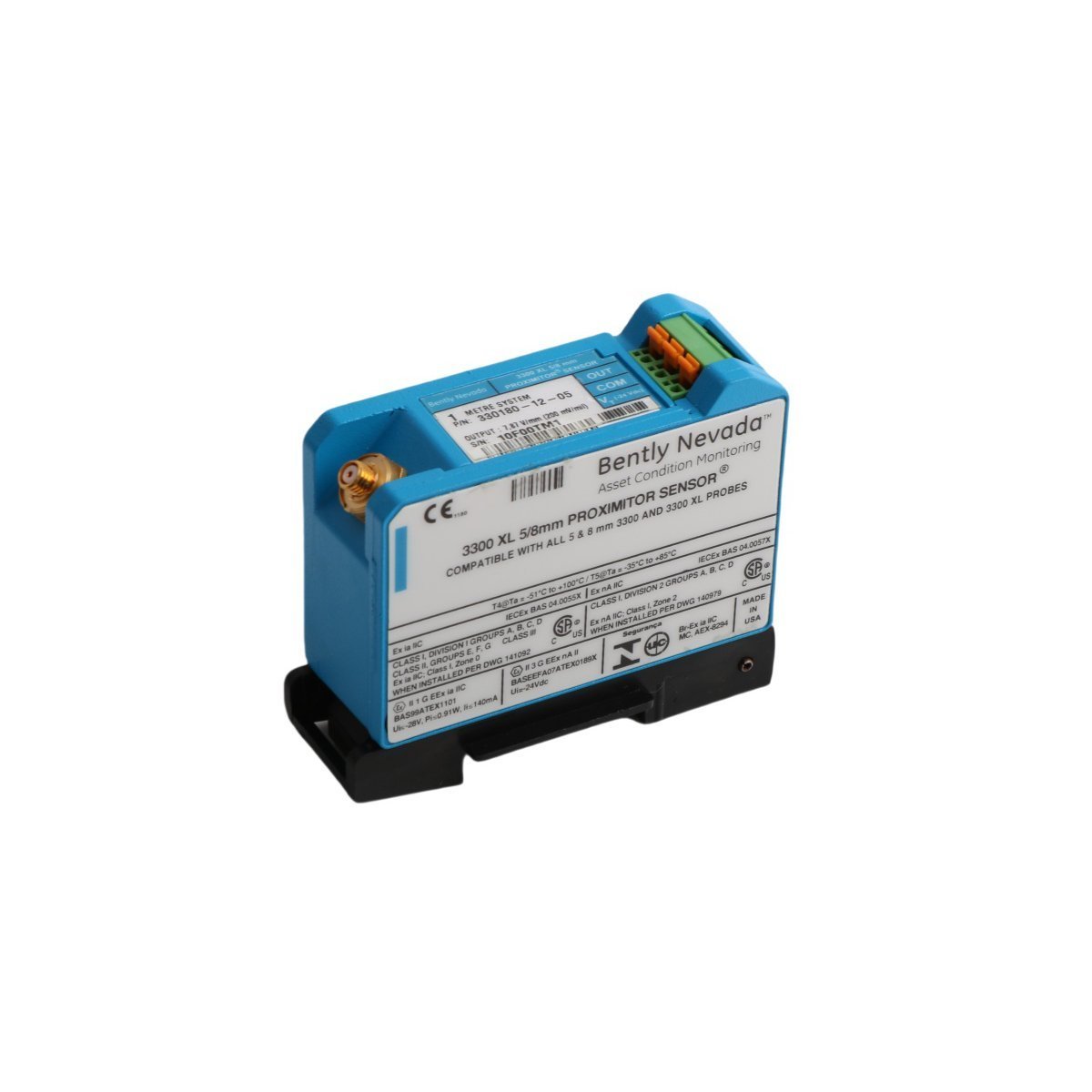

The Bently Nevada 330180-10-05 is a high-precision signal conditioning interface designed for the 3300 XL Proximity Transducer System. This module is specifically calibrated for a 1.0-meter (3.3 feet) total system length, providing the electronic excitation required for proximity probes to measure shaft displacement. It translates eddy-current data into a linear voltage signal, enabling accurate monitoring of radial vibration, axial thrust position, and rotational speed.

As a core element of Turbine Supervisory Instrumentation (TSI), the 330180-10-05 is engineered to meet the stringent API 670 standards for machinery protection. Its design prioritizes signal stability and electrical isolation, allowing for direct mounting on panels or high-density DIN rails without the need for additional isolator plates. This makes it an ideal solution for retrofitting legacy systems or integrating into modern 3500-series monitoring racks.

Key Technical Characteristics

• API 670 Standard Compliance: Guarantees industry-leading performance regarding linear range, accuracy, and temperature stability for critical machinery protection.

• Superior Interference Resistance: Features advanced RFI/EMI immunity that meets CE mark requirements, permitting installation in non-metallic enclosures without the need for specialized shielded conduit.

• Tool-Free SpringLoc Terminals: Utilizes innovative SpringLoc terminal strips for fast, secure, and vibration-proof wiring connections, eliminating the maintenance issues associated with traditional screw-type terminals.

• Universal Component Matching: Part of the 3300 XL "universal match" architecture, allowing for the complete interchangeability of probes and cables without manual bench calibration.

• Integrated Electrical Isolation: The module's base provides inherent isolation from the mounting surface, simplifying grounding and reducing installation complexity and cost.

• Global Hazardous Area Certification: Fully approved by CSA, ATEX, and IECEx for safe deployment in potentially explosive industrial environments.

Technical Specifications

• Manufacturer: Bently Nevada (Baker Hughes)

• Model Number: 330180-10-05

• Product Series: 3300 XL / 3300 Proximity Transducer System

• Total System Length: 1.0 Meter (3.3 ft)

• Calibration Target: AISI 4140 Steel (Standard)

• Scale Factor: 7.87 V/mm (200 mV/mil)

• Output Impedance: 50 Ω

• Operating Temperature: -40°C to +85°C

• Weight: 0.22 kg

• Dimensions: 8.8 x 3.5 x 7.0 cm

• HS Code: 8537101190

• Origin: USA

Industrial Application Areas

• Power Generation: Monitoring high-speed steam and gas turbines for shaft stability and thrust position.

• Oil & Gas Processing: Essential protection for centrifugal compressors, expanders, and large-scale blowers.

• Water & Wastewater: Speed sensing and vibration analysis for critical high-capacity pump sets.

• Manufacturing: Real-time condition monitoring for any high-speed rotating asset utilizing fluid-film bearings.
