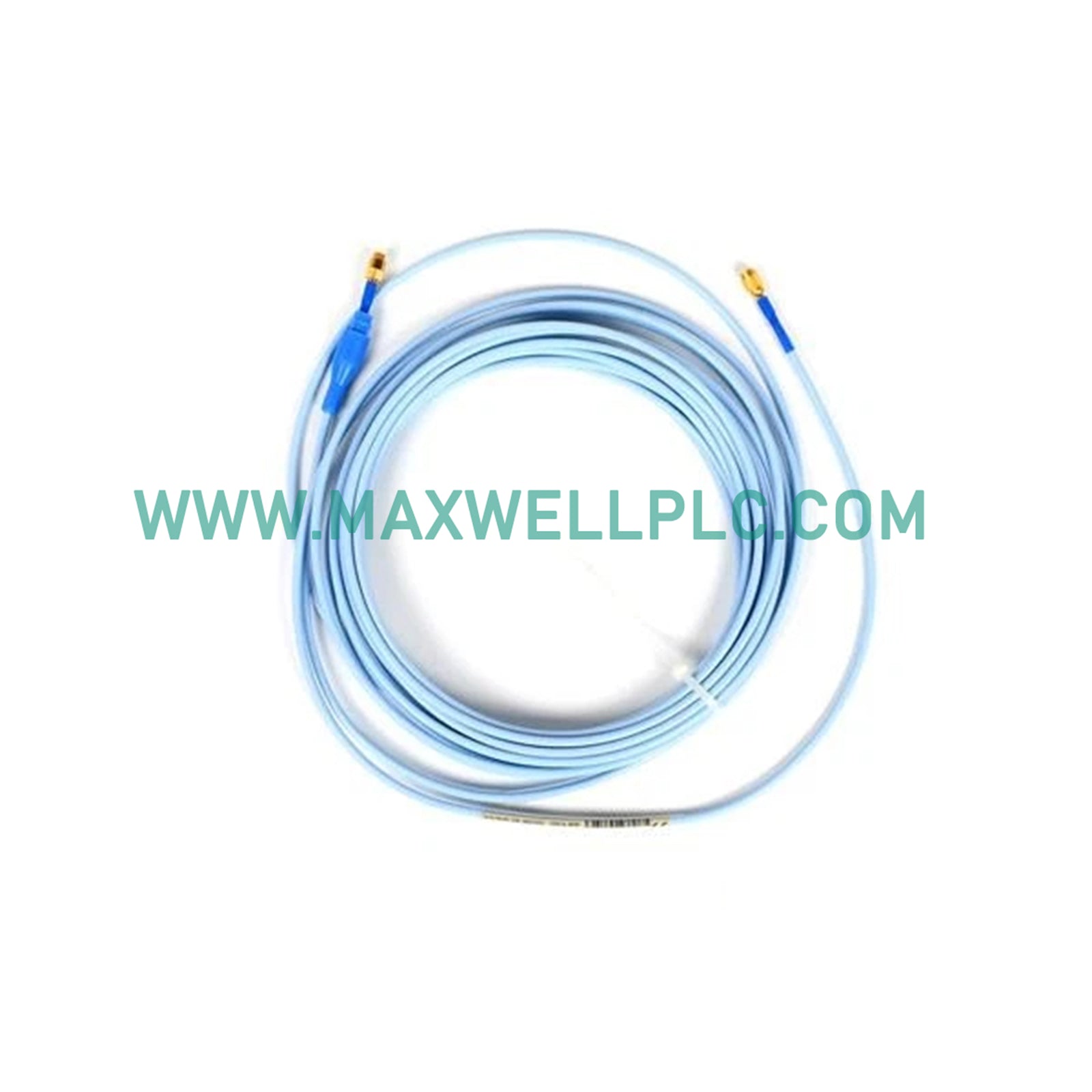

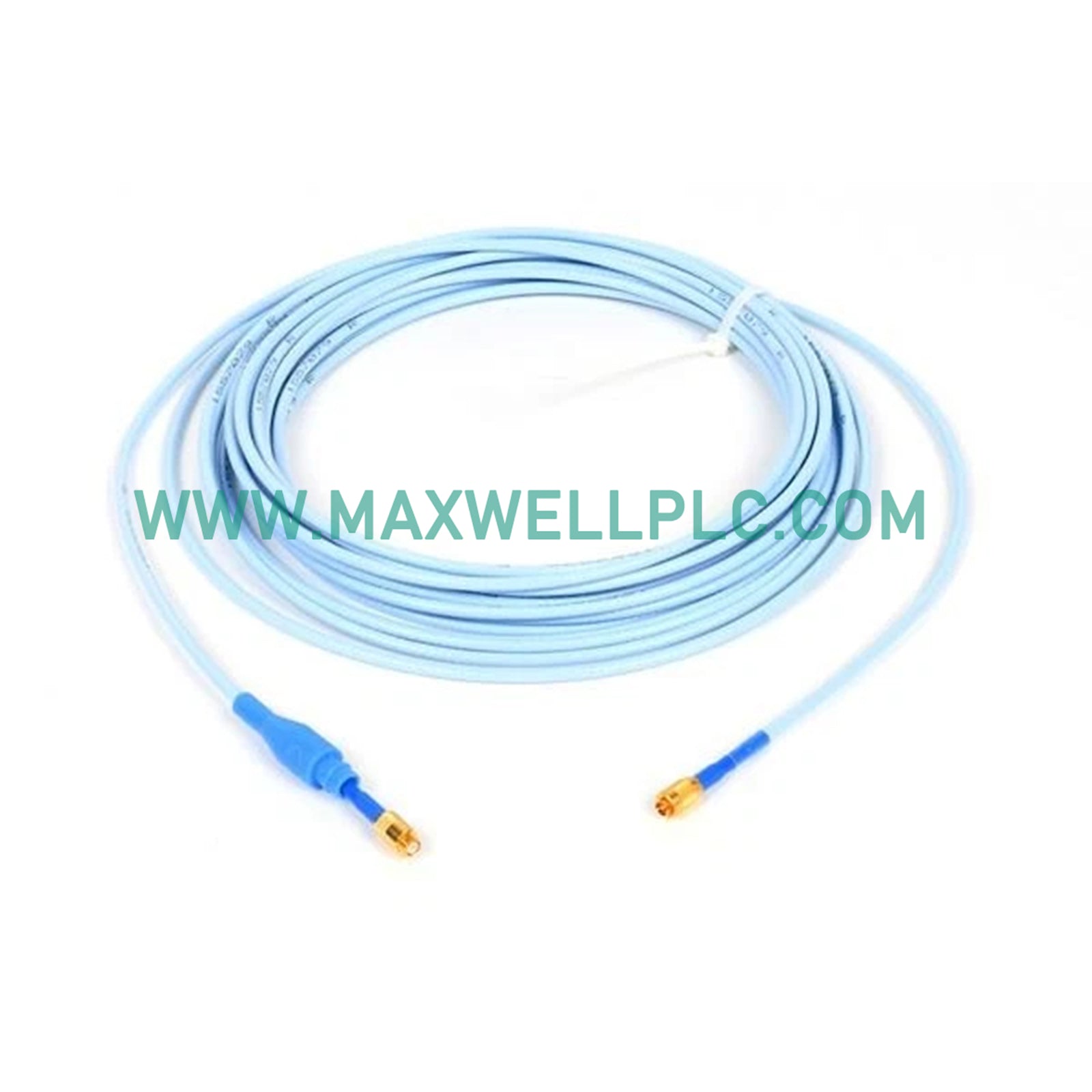

Configured for precision displacement monitoring in rotating machinery, the Bently Nevada 330103-00-08-05-02-00 (330103 3300 XL 8 mm Proximity Probe) provides direct physical signal acquisition via an eddy-current transduction circuit. This sensor system converts the relative gap between the probe tip and a metallic target into a proportional electrical signal, facilitating high-fidelity monitoring of shaft vibration and position within industrial machinery platforms.

Configuration Parameters

The 330103-00-08-05-02-00 is defined by the following specifications:

• Thread: M10 x 1 (with armor)

• Minimum unthreaded length: 0 mm

• Minimum case length: 80 mm

• Total system length: 0.5 meter (1.6 feet)

• Connector: Miniature coaxial ClickLoc standard cable

• Approval: Not required

Hardware Specifications

Eddy-Current Signal Dynamics

The 3300 XL system generates an electromagnetic field at the probe tip to measure target proximity. Accurate rotor dynamics analysis depends on consistent eddy-current probe scaling; therefore, the gap voltage must be validated during commissioning. Operators should target -10 VDC when the probe is centered within its linear range. To ensure measurement integrity, users must implement effective cross-talk suppression by maintaining adequate spacing between adjacent probes, preventing interference from overlapping electromagnetic fields that can result in inaccurate displacement readings and corrupted orbital waveforms.

Ordering Info

• 330103-00-08-05-02-00 Proximity Probe

• Installation instruction documentation

• Protective thread lock nuts

Mechanical Mounting and Field Installation

• Threaded Engagement: Ensure the probe is installed with adequate thread engagement to maintain mechanical stability and prevent loosening during machine operation.

• Signal Shielding: Route coaxial cables through grounded steel conduit to minimize external electromagnetic interference (EMI) and radio frequency interference (RFI).

• Radial Clearance: Maintain a clear view of the target shaft; ensure no metallic obstructions are within a distance equivalent to 3 probe tip diameters.

• Connector Integrity: Ensure the ClickLoc connectors are securely fastened and protected from moisture or contaminants to prevent resistive signal losses in the loop.

Logistics Overview

• Delivery time: 2-7 days when payment finish.

• Dispatched via DHL, FEDEX, or UPS.

• Components are housed in anti-static industrial packaging to mitigate potential ESD and mechanical impact during transit.

Frequently Asked Questions

• What material targets are supported? The probe is factory-calibrated for AISI 4140 steel. Using a target material with different magnetic permeability or electrical conductivity will require a site-specific scale factor adjustment to ensure measurement accuracy.

• What is the probe sensitivity? The system operates at a standard sensitivity of 7.87 V/mm (200 mV/mil) for the 3300 XL series.

• How often should calibration be verified? Annual verification is standard procedure. For critical machinery protection, verification should adhere to the established intervals defined by the facility's preventive maintenance program.

• Can the probe operate in hazardous environments? This model is not certified for hazardous area use. Systems requiring intrinsic safety must select models with appropriate agency ratings.

• What extension cables are compatible? Only the 3300 XL series extension cables are compatible. Impedance characteristics are matched within this series to ensure accurate signal transmission without reflection or attenuation.

• What causes unstable gap voltage? Instability is generally indicative of a loose installation, cable damage, or surface imperfections on the monitored shaft, such as electrical or mechanical runout.

• How is probe health tested? Health is verified through static gap measurements and dynamic frequency response testing, ensuring the probe output tracks linearly with physical displacement changes.

• What is the expected service life? The probe is designed for continuous operation; service life is primarily limited by the operating temperature and mechanical fatigue cycles experienced in the specific machine environment.
