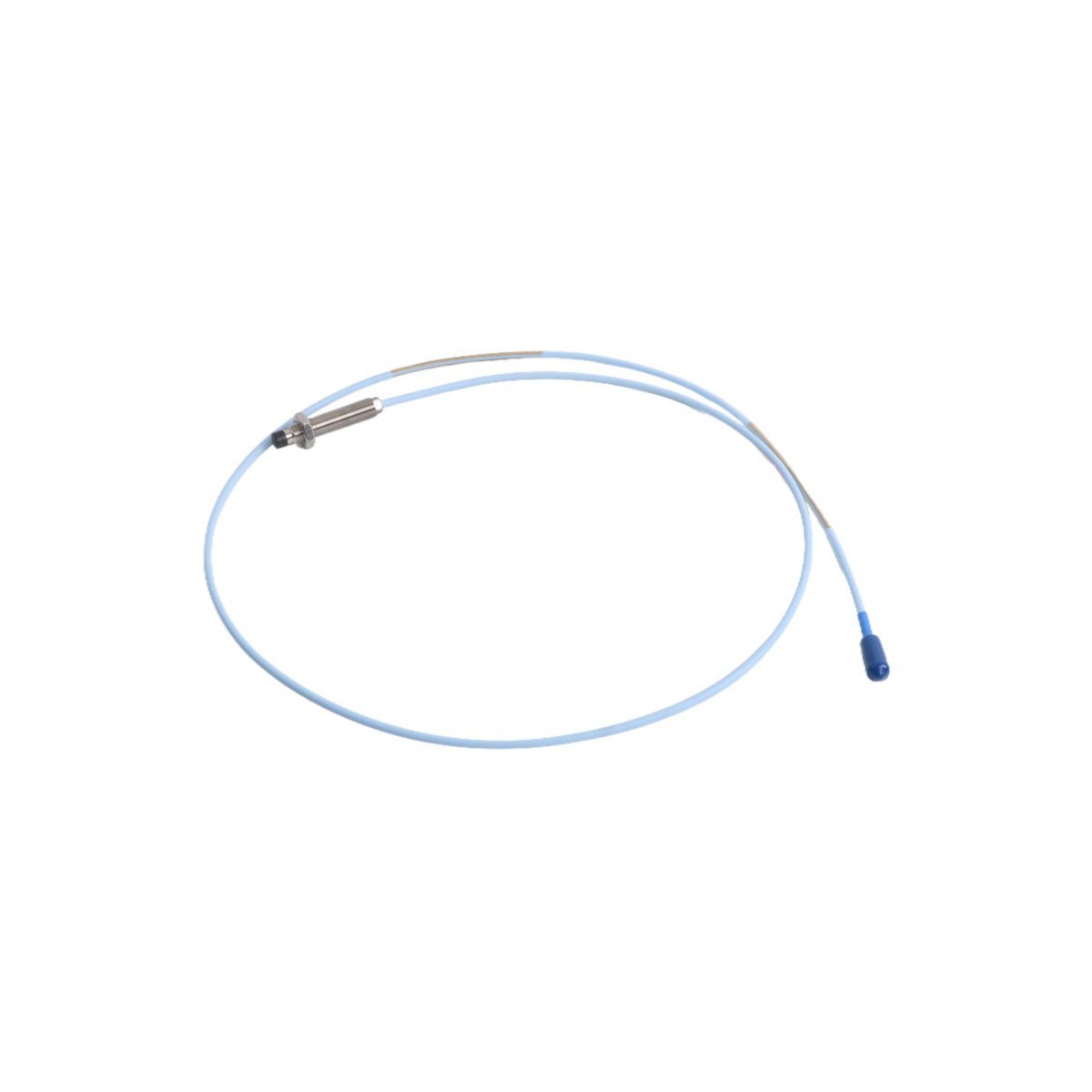

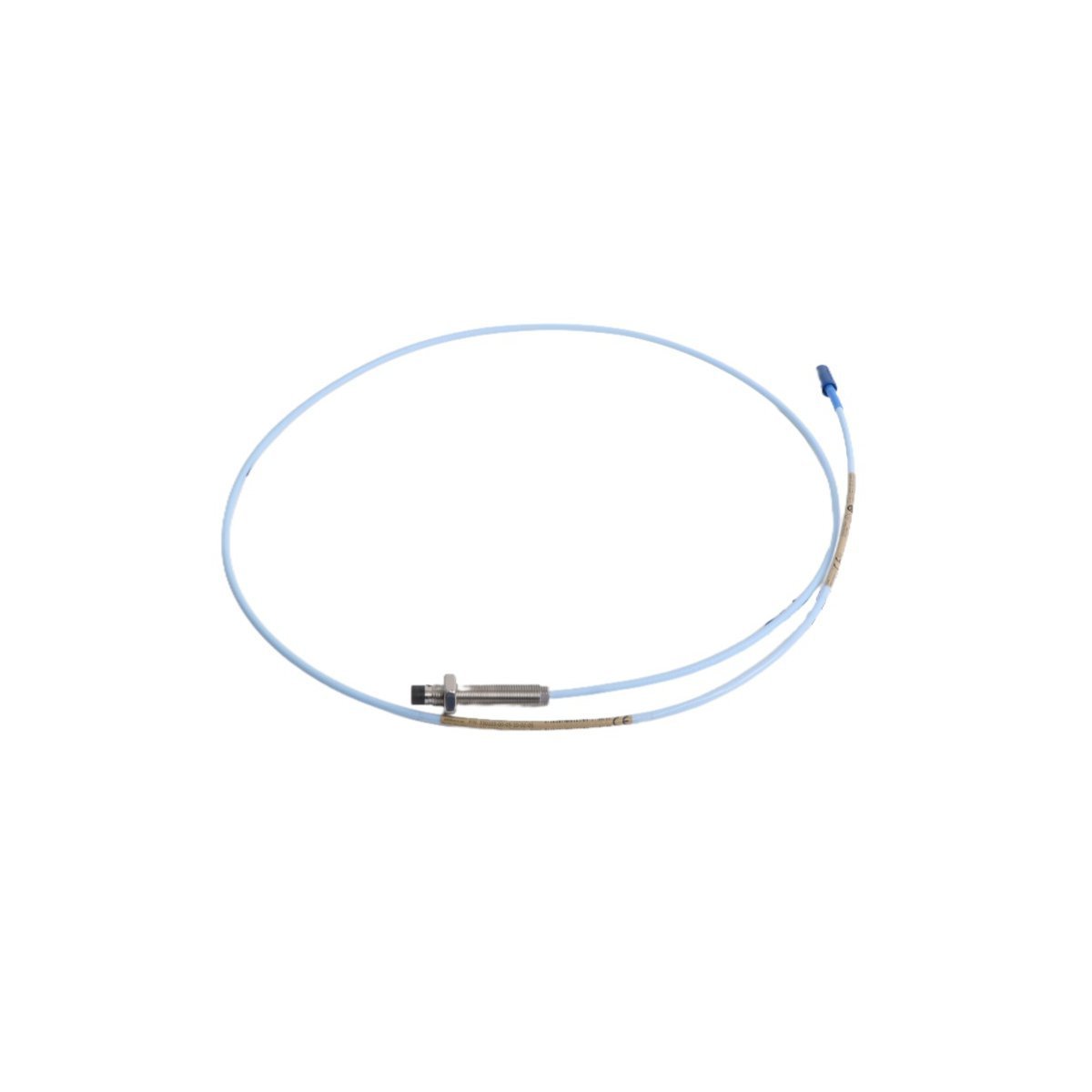

330103-00-05-10-02-05 Bently Nevada 3300 XL 8 mm Eddy Current Proximity Probe
-
Dimensions: 1.8 x 1.6 x 123 cm
-
Country of origin: USA
-
Payment: T/T, Western Union
-
Shipping port: Xiamen
Product Overview
The Bently Nevada 330103-00-05-10-02-05 is a 3300 XL 8 mm proximity probe used for non-contact measurement of relative shaft displacement on rotating machinery. The probe operates on eddy-current sensing principles and is installed near a conductive target to track shaft motion. When implemented as a complete proximity transducer channel with the correct extension cable and Proximitor sensor, it supports both dynamic vibration measurement and static position trending for machinery protection and condition monitoring.
This part number identifies a specific mechanical and cable configuration intended for field replacement or new installations where the 3300 XL 8 mm platform is specified. Correct performance depends on proper mounting geometry, target material, and the correct gap setting during commissioning.
Hardware Parameters
| Parameter | Specification |
|---|---|
| Model / Order Number | 330103-00-05-10-02-05 |
| Product Family | 3300 XL Proximity Transducer System |
| Probe Type | 8 mm eddy-current proximity probe |
| Measurement | Non-contact displacement (relative) |
| Thread | M10 x 1 |
| Integral Cable Length | 1.0 m (3.3 ft) |
| Connector | Miniature coaxial ClickLoc locking connector |
| Connector Construction | Corrosion-resistant, gold-plated contact surfaces (typical for ClickLoc) |
| Approvals (as configured) | CSA, ATEX, IECEx referenced by listing |
| System-Level Scaling (typical) | 100 mV/mil (3.94 V/mm) with matched 3300 XL Proximitor and correct system length |
| Condition | Brand New |
| Availability | In Stock |
| Country of Origin | USA |
| Net Weight | 0.06 kg |
| Dimensions | 1.8 x 1.6 x 123 cm |
| HS Code | 8537101190 |
| MOQ | 1 |
| Lifecycle Status | Active |
Implementation notes
-
This probe is a passive sensing element; it does not provide a direct 4–20 mA output. Output characteristics are established by the Proximitor sensor and the monitoring input module.
-
Use a matching 3300 XL extension cable and Proximitor sensor for the required total system length to maintain calibration behavior.
Industrial Applications
-
Radial shaft vibration monitoring on turbines, compressors, pumps, motors, and generators with fluid-film bearings
-
Shaft position and displacement trending for protection functions and diagnostics (system and monitor dependent)
-
Predictive maintenance programs requiring stable proximity measurement in oil and gas, petrochemical, power generation, and heavy industry
-
Maintenance replacement in existing 3300 XL 8 mm proximity channels where M10 x 1 mounting is used
