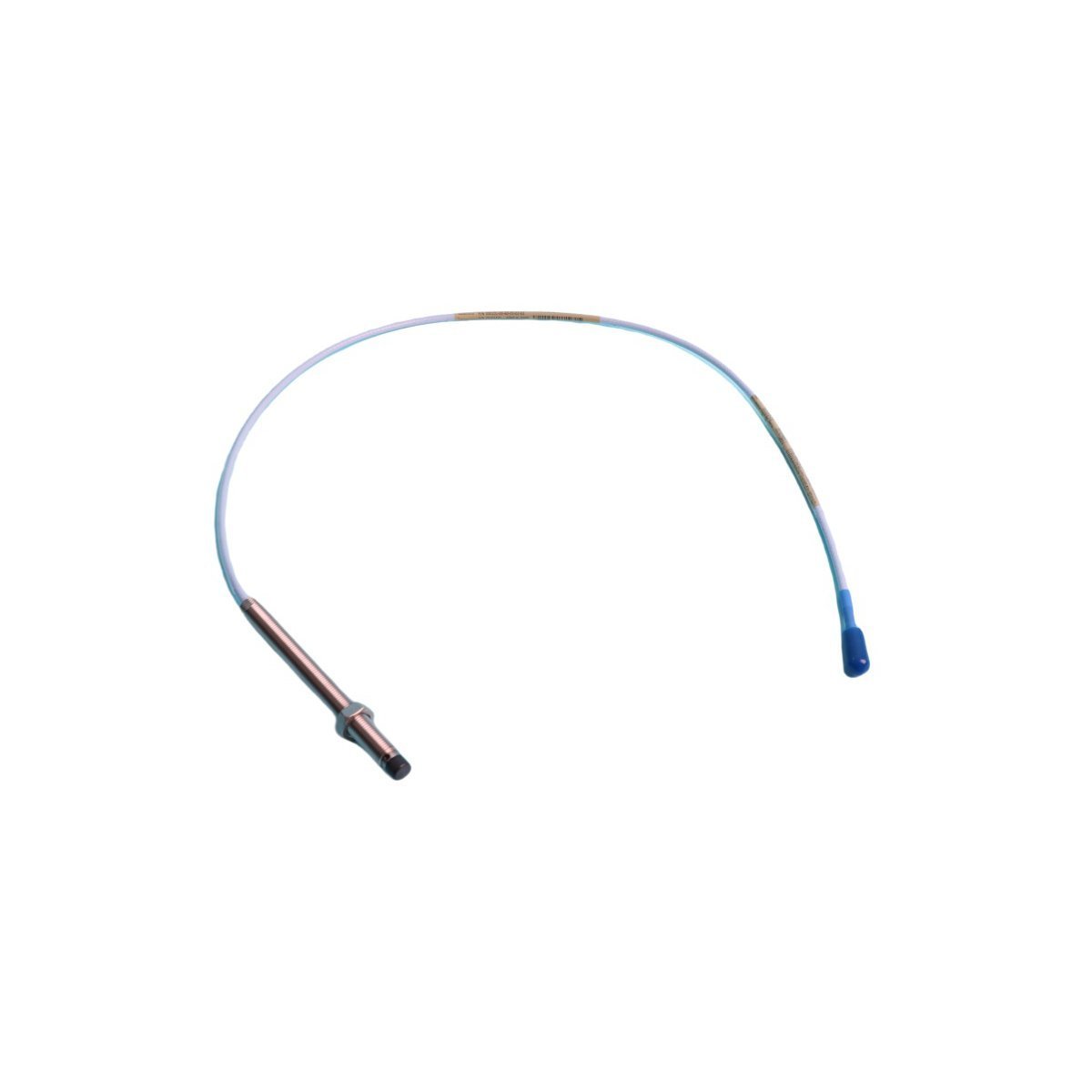

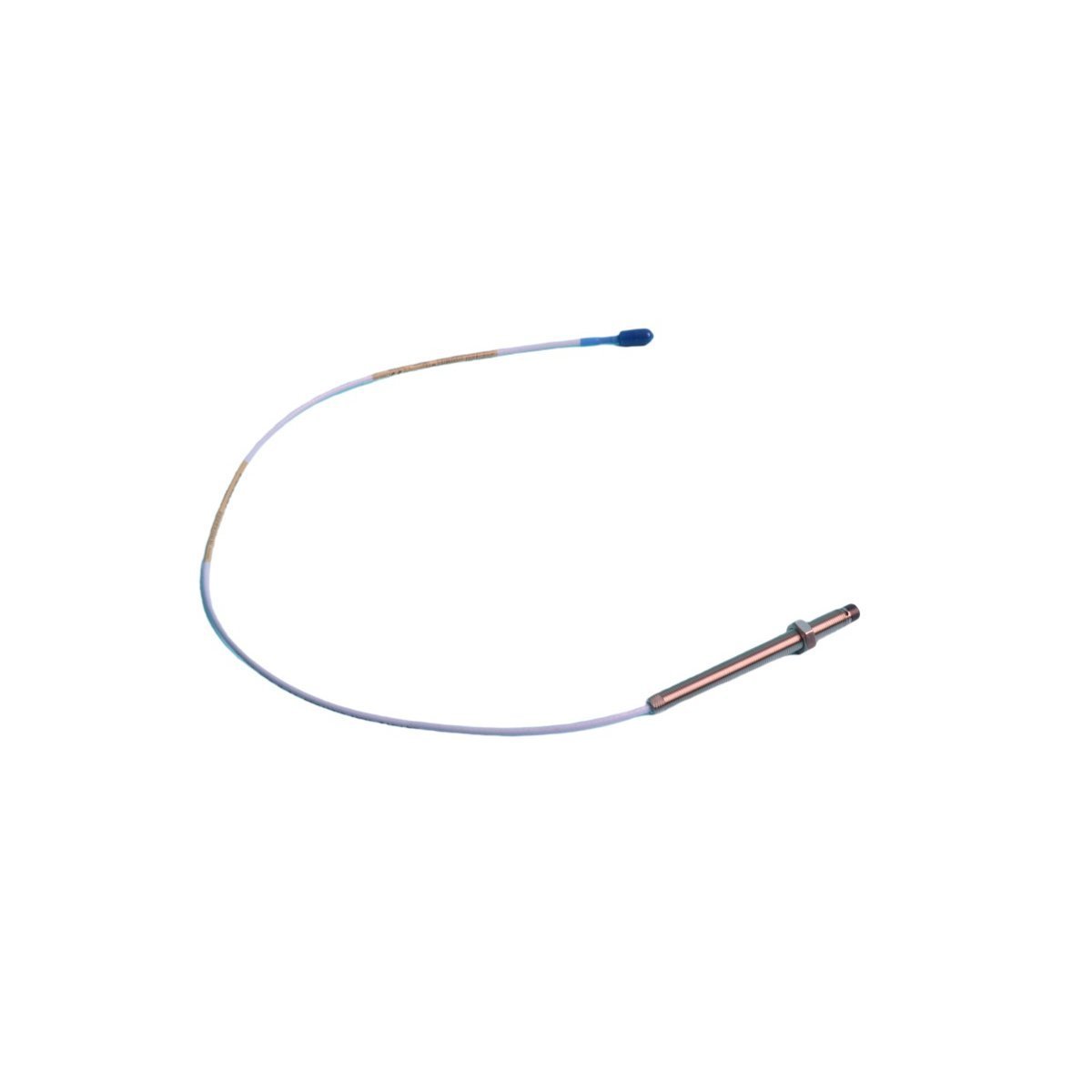

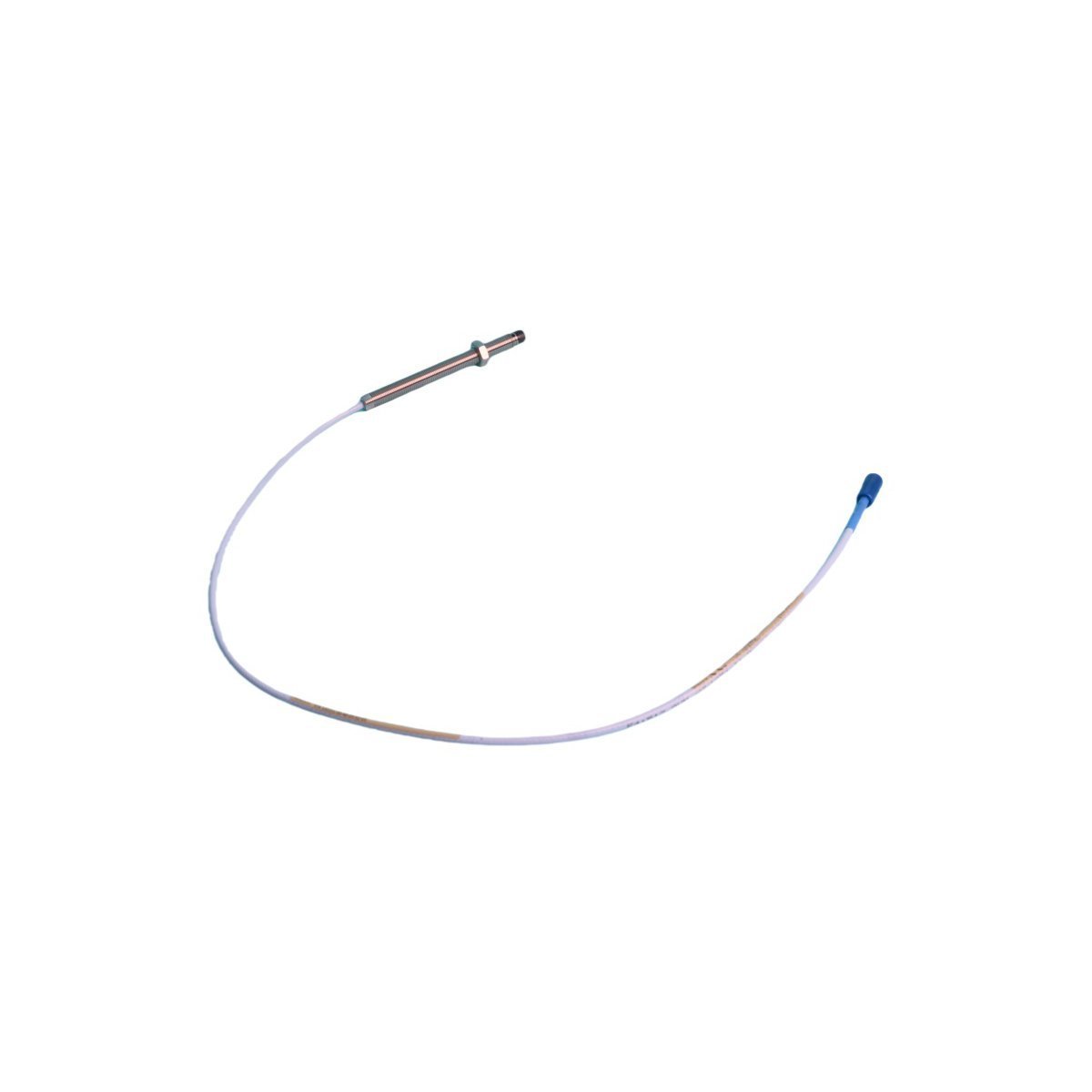

The Bently Nevada 330101-00-43-15-02-05, also cataloged as the 330101-00-43-15-02-05 Proximity Probe, operates as a dedicated hardware component for non-contacting displacement and vibration measurement within 3300 XL transducer systems.

Suffix Breakdown and Configuration

The 330101 series utilizes a specific nomenclature to denote mechanical and electrical interface parameters. This particular configuration (-00-43-15-02-05) defines the thread pitch, total case length, integral lead length, and connector termination standard required for precise installation in 3300 XL monitoring environments.

Technical Hardware Specifications

Transducer Electrical Integrity and Rotor Dynamics

Measurement accuracy is contingent upon maintaining consistent eddy-current probe scaling. This sensor requires gap voltage validation (-10 VDC targets) during commissioning to verify operation within the calibrated linear range. In high-speed turbomachinery, cross-talk suppression is achieved by ensuring proper electromagnetic shielding continuity from the probe through the extension cable to the Proximitor. Improper routing or shielding termination will introduce noise into the rotor dynamics signal path, potentially causing false alarm triggers.

Ordering Information

• 330101-00-43-15-02-05 Proximity Probe assembly

• Stainless steel mounting nuts (x2)

• Protective connector dust caps

• Installation reference documentation

Field Installation Guidelines

• Mechanical Orientation: Ensure the probe axis is perpendicular to the shaft target to maintain output linearity.

• Thread Engagement: Confirm at least 5 threads are engaged in the mounting bracket to ensure mechanical rigidity.

• Torque Management: Tighten lock nuts to 15 Nm to prevent sensor movement under vibration load.

• Shielding Continuity: Maintain shield integrity; do not ground the cable shield at both the monitor end and the probe end simultaneously.

• Environment: Keep connector interfaces clean; remove debris or oil to prevent resistive paths between the center conductor and ground.

Shipping and Logistics

• Delivery time: 2-7 days when payment finish.

• Dispatched via DHL/FEDEX/UPS.

• Components are sealed in anti-static industrial packaging to ensure protection against impact and electrostatic discharge.

Frequently Asked Questions

• Can this probe be used in 3300 standard (non-XL) systems? No, 3300 XL probes are specifically impedance-matched to 3300 XL Proximitors.

• What is the impact of PPS tip deformation? Tip damage alters the electromagnetic field pattern and will result in non-linear measurement data.

• Is the cable length field-adjustable? No, changing the cable length alters the electrical capacitance of the circuit and invalidates calibration.

• How do I check for ground loops? Use a multimeter to measure the DC voltage offset on the signal cable while the machine is stationary.

• Can I use this in cryogenic environments? No, the dielectric materials are rated for a minimum of -35 deg C; lower temperatures may embrittle the assembly.

• Does this probe require maintenance? No, it is a sealed, passive device; periodic verification of gap voltage is the only necessary check.

• What is the sensitivity? The standard system sensitivity is 200 mV/mil (7.87 V/mm).

• How is the probe grounded? The case is grounded through the mechanical housing interface to the machine chassis.
