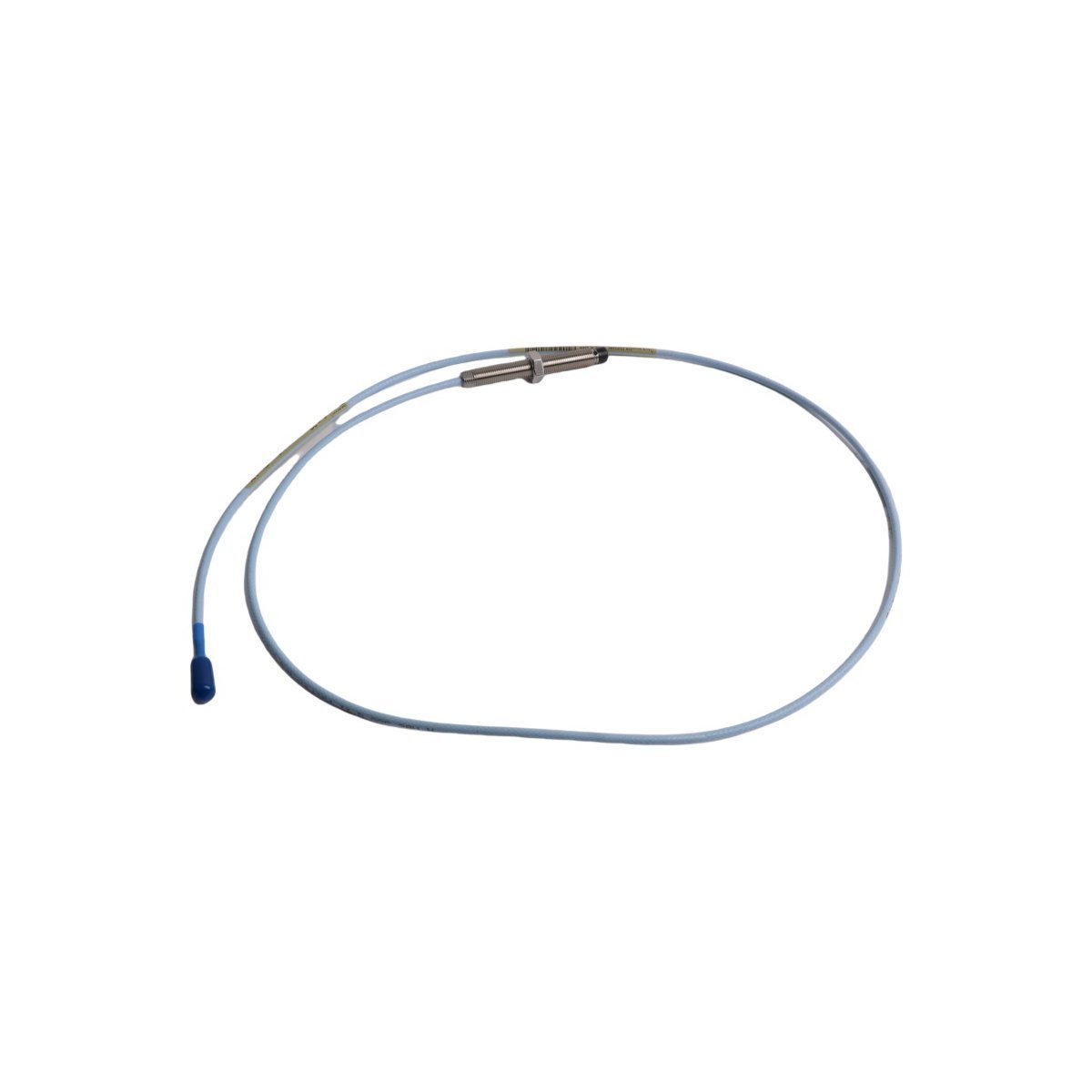

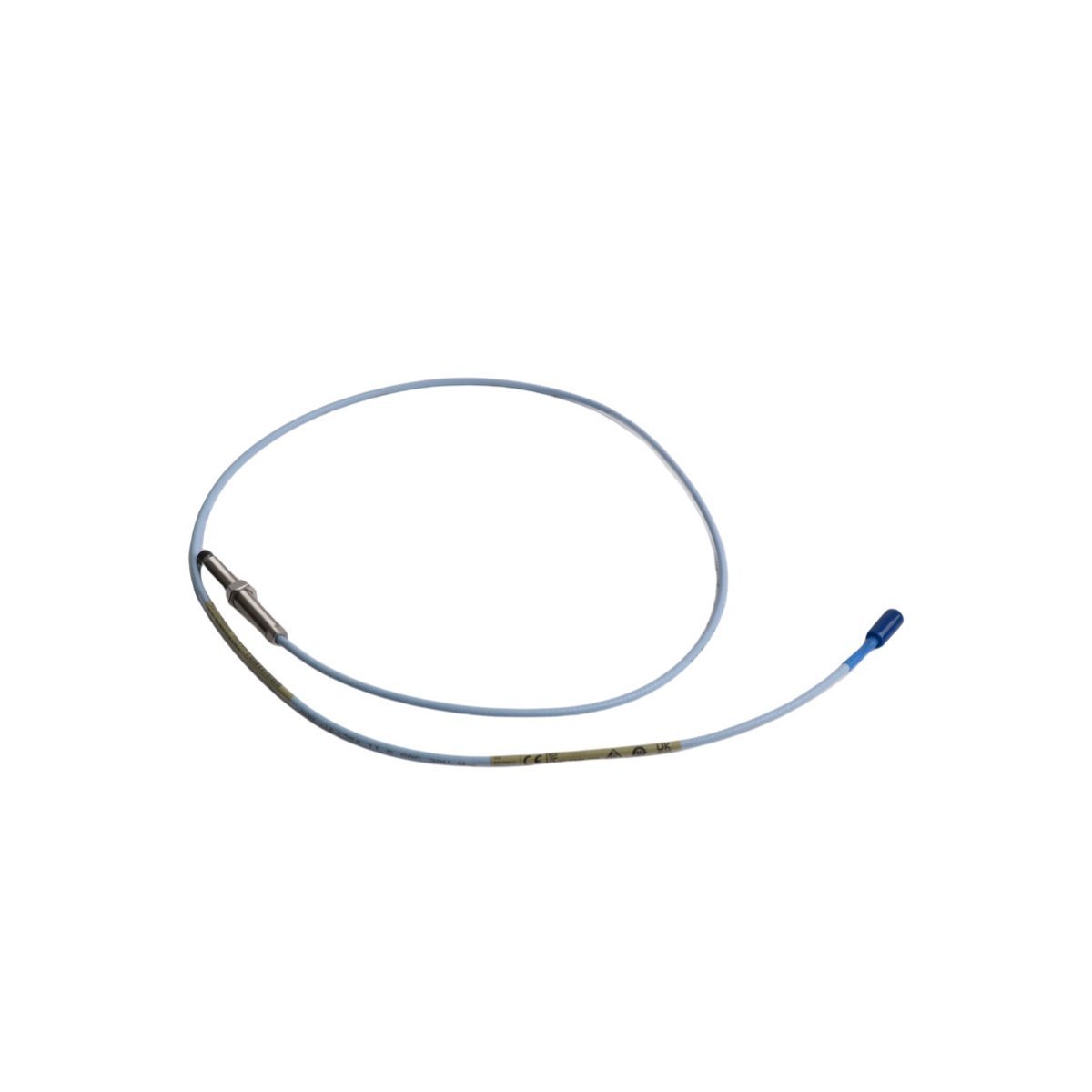

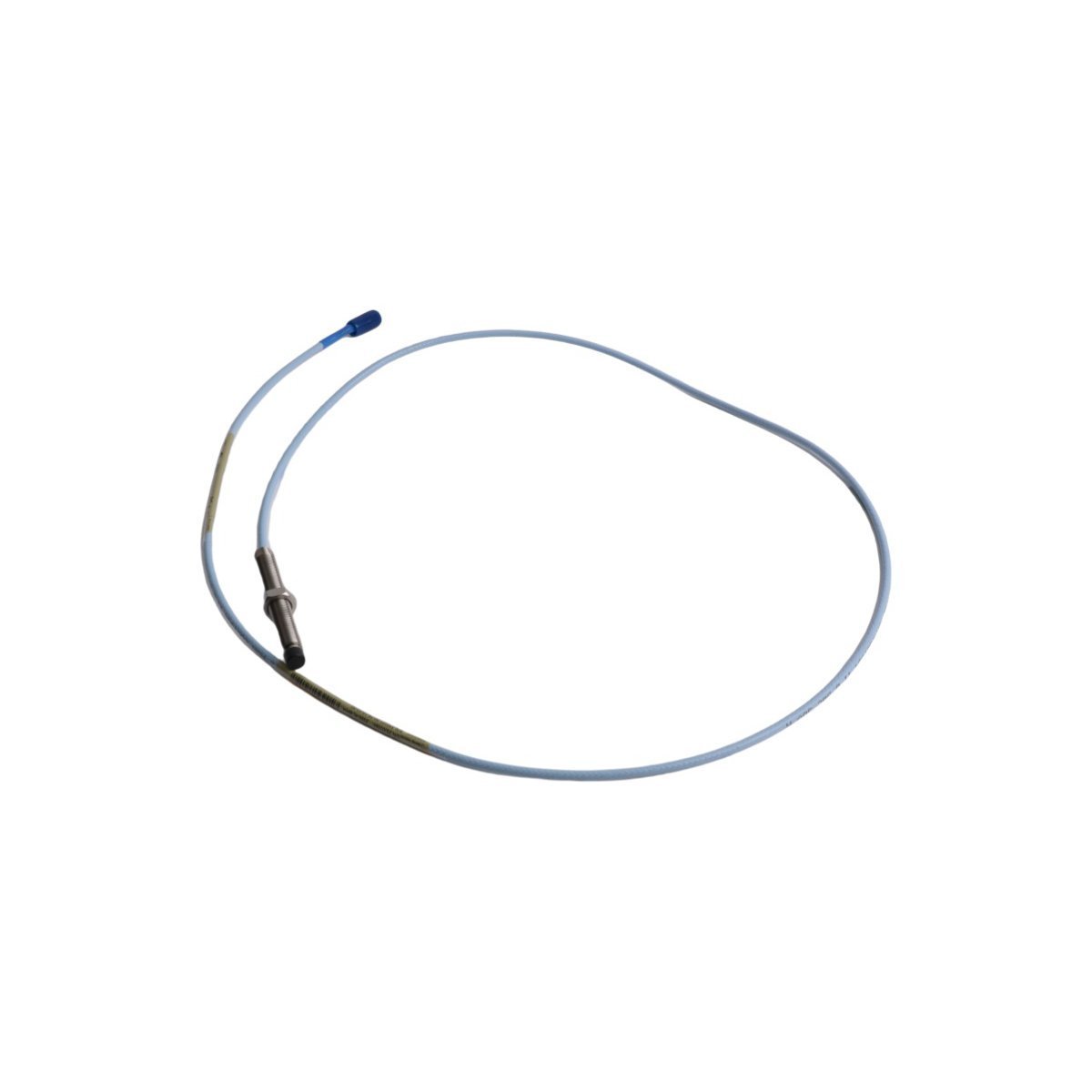

Bently Nevada 330101-00-27-10-02-00 Proximity Probes 3300 XL

330101-00-27-10-02-00 Bently Nevada Proximity Probes 3300 XL

330101-00-27-10-02-00 Bently Nevada 3300 XL Proximity Probes

Bently Nevada 330101-00-27-10-02-00 3300 XL Proximity Probes

Product Overview

The Bently Nevada 330101-00-27-10-02-00 stands as an industry-standard 8 mm proximity probe assembly, meticulously engineered for the Bently Nevada 3300 XL transducer system. In the realm of industrial machinery protection, this sensor is the frontline defender for critical rotating assets. By utilizing eddy-current technology, the probe captures high-resolution data on shaft radial vibration, axial thrust position, and speed. It serves as the primary input for Turbine Supervisory Instrumentation (TSI) systems, enabling engineers to monitor the health of high-speed shafts within steam turbines, gas compressors, and large-scale industrial generators.

This transducer is built to survive the harshest environments found in petrochemical, power generation, and manufacturing plants. It features Bently Nevada’s proprietary TipLoc design, which ensures a permanent, high-strength bond between the sensor tip and the stainless-steel casing. This engineering milestone eliminates the risk of tip separation, a common failure mode in lower-quality instrumentation. With strict adherence to API 670 standards, the 330101-00-27-10-02-00 provides the linear, stable output required for accurate machine protection, ensuring that your monitoring system triggers alarms only when genuine mechanical distress is detected. For procurement managers and maintenance teams, this part represents the gold standard in asset protection, offering long-term reliability that drastically reduces the Total Cost of Ownership (TCO) for your monitoring infrastructure.

Technical Specifications

Model Configuration Explanation

The ordering string 330101-00-27-10-02-00 is a precise roadmap of the component's architecture:

• 330101: Defines the 3300 XL 8 mm standard mount proximity probe family.

• 00: Indicates 0 mm of unthreaded length, allowing maximum threaded adjustment for gap setting.

• 27: Specifies the probe case length of 27 mm.

• 10: Denotes a total calibrated system length of 1.0 meter.

• 02: Specifies the standard ClickLoc connector type for secure, tool-free installation.

• 00: Represents the standard regulatory approval for non-hazardous industrial zones.

Typical Applications

This proximity probe is deployed across a variety of mission-critical industrial sectors:

• Power Generation: Radial vibration monitoring in steam and gas turbine bearing journals to detect imbalance or alignment issues.

• Oil & Gas: Precise axial position measurement in centrifugal compressors to safeguard thrust bearings against contact.

• Industrial Manufacturing: Monitoring large electric motors for rotor instability and dynamic air-gap deviations.

• Hydroelectric Plants: Reliable displacement sensing in slow-speed, high-mass rotating shafts.

• Predictive Maintenance: Providing the raw diagnostic signal required for ODS (Operating Deflection Shape) and orbit analysis.

System Compatibility

The 330101-00-27-10-02-00 is fully integrated into the Bently Nevada 3300 XL ecosystem:

• Proximitor Sensors: Designed for use with 3300 XL 8 mm Proximitor sensors, factory-calibrated for 1.0m, 5.0m, or 9.0m total system loops.

• Extension Cables: Compatible with 3300 XL series coaxial extension cables.

• Monitoring Hardware: Direct interface with 3500 series vibration monitoring racks and 3300 series legacy hardware.

• Mounting Hardware: Compatible with all standard Bently Nevada probe housings and machine-mounting brackets.

Installation Best Practices

To ensure the high-fidelity output required for machine protection, please adhere to these guidelines:

• Threading and Sealants: Ensure machine ports are clean. Use appropriate high-temperature thread sealants if necessary, while ensuring the probe casing maintains a reliable electrical ground contact with the machine.

• Gap Setting: Use a calibrated depth micrometer to set the probe at the specified nominal gap. Verify the DC gap voltage at the monitor card test pin (typically -10 VDC).

• Alignment: Ensure the probe tip is perpendicular to the shaft centerline to maintain linearity throughout the entire measurement swing.

• Strain Relief: Use provided lock nuts to secure the probe housing firmly. Avoid overtightening, which can distort the housing or damage internal threads.

• Grounding: Secure the probe casing to a clean, low-impedance machine ground to maintain effective RFI/EMI shielding.

• Connector Engagement: Use a straight, axial motion to mate the ClickLoc connectors. Ensure the connection is fully seated until a firm tactile click is felt.

Product Advantages

• API 670 Compliance: Ensures consistent performance across global industrial standards.

• Advanced TipLoc Technology: The high-strength bond between tip and casing prevents common transducer failure modes.

• EMI/RFI Shielding: Advanced coaxial construction filters out the noise common in complex industrial electrical environments.

• Thermal Robustness: The probe maintains precise calibration even under the extreme thermal fluctuations of turbine bearing housings.

• Global Availability: As a staple of Bently Nevada stock, these probes ensure quick replacement, reducing machine downtime during critical overhauls.

Ordering Information

The probe is provided with standard locking nuts and installation washers. Before purchasing, verify that the 1.0m total system length matches your Proximitor sensor's calibration. Each unit is delivered in anti-static packaging with a factory linearity certification against standard 4140 steel, ensuring the highest confidence for your maintenance team.

Frequently Asked Questions

• Can I use this probe with an older 3300-series Proximitor?

  The 3300 XL probe is electrically optimized for XL-series Proximitors. Using it with legacy 3300 sensors may lead to measurement errors and is not recommended.

• What does the 1.0 meter length refer to?

  This is the total system length (Probe + Cable). It is factory-calibrated, meaning you must not cut or splice the cable as it will ruin the impedance match.

• What happens if the probe tip is scratched?

  Surface scratches on the PPS tip change the eddy-current field. This can cause non-linear readings and requires immediate replacement.

• Is this probe suitable for underwater or high-pressure applications?

  The probe body is pressure-tight if installed with correct sealants, but it is not intended for direct submersion in non-industrial fluids.

• Does the probe require external power?

  The probe is passive. It receives its operating power through the Proximitor sensor, which is powered by a standard -24 VDC industrial supply.

• How often should these probes be calibrated?

  While the sensor is stable, the entire transducer loop should be verified during periodic machine turnarounds or if signal drift is detected.

• Why is the "ClickLoc" connector important?

  The ClickLoc design prevents connectors from loosening due to machine vibration, which is a common cause of signal noise in older connector types.

• Is the probe compatible with stainless steel shafts?

  The probe is calibrated for 4140 steel. If your shaft material differs, you must adjust the scale factor on your monitor card to ensure accurate readings.

• How do I know if the probe is functioning?

  A healthy probe will output a stable DC gap voltage at the monitor card test points. Erratic voltages suggest a damaged cable or internal short.

• Can I use a magnetic base for installation?

  Magnetic bases are for temporary diagnostic checks only. Permanent monitoring setups require a rigid, threaded mount to ensure high-frequency signal fidelity.
