Product Overview

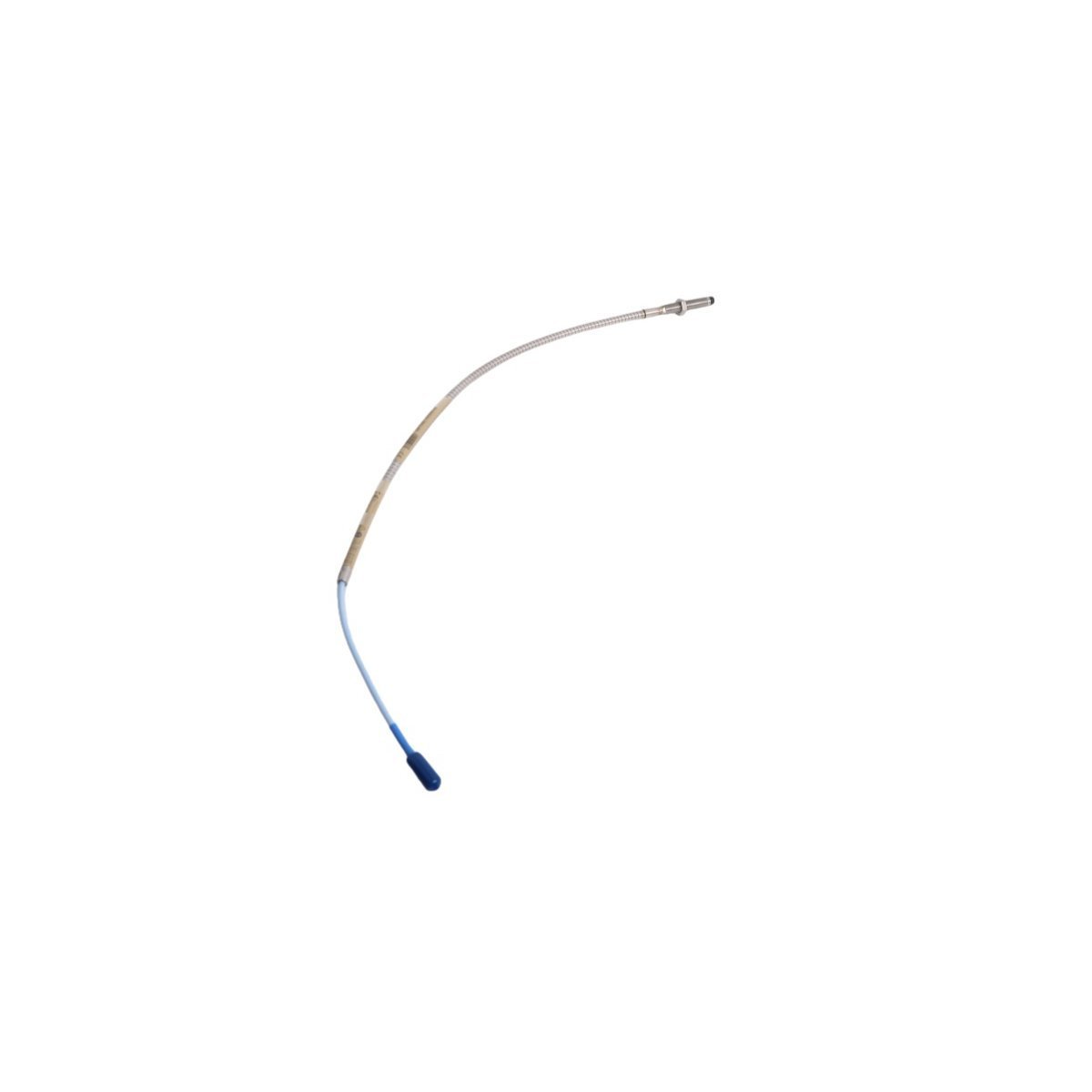

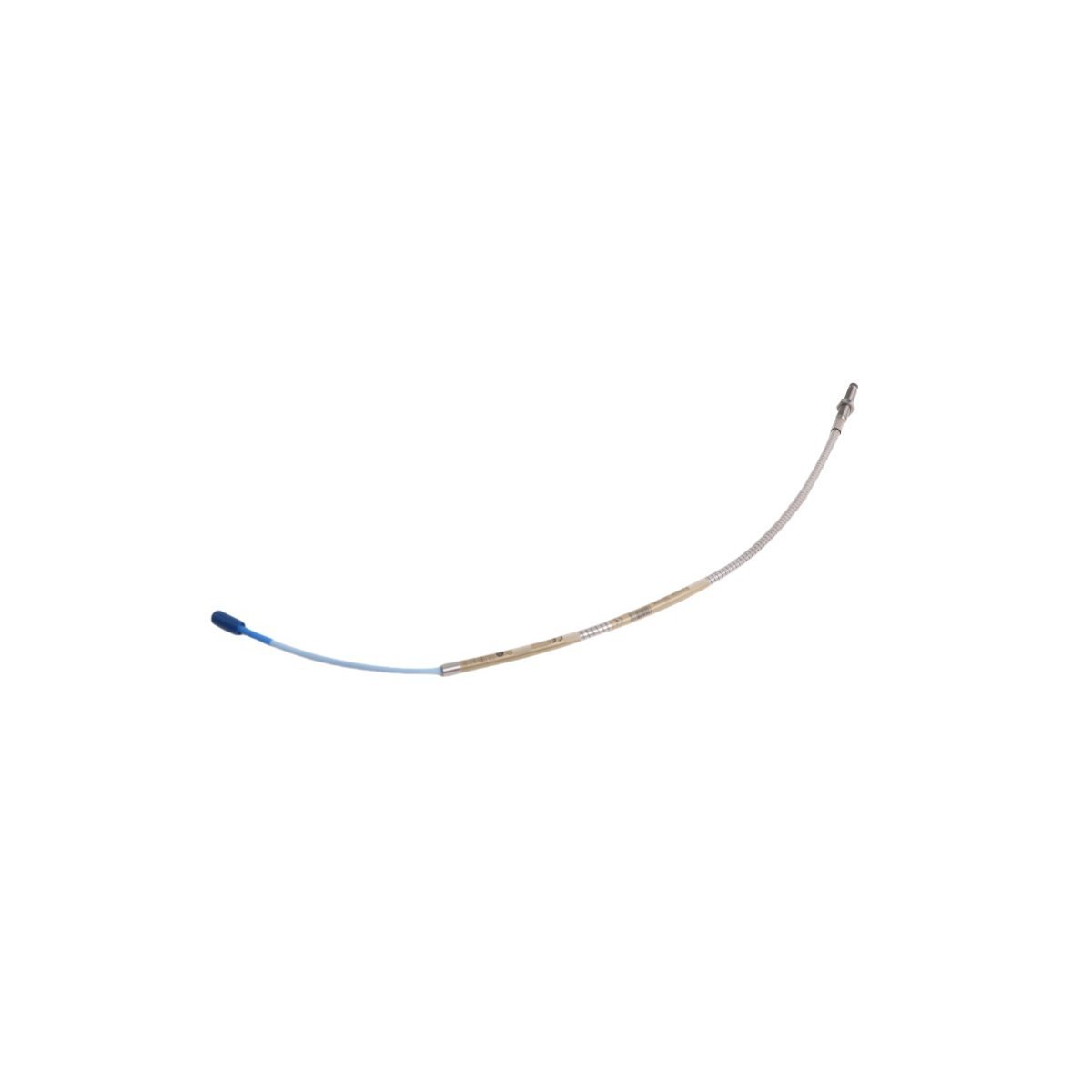

The Bently Nevada 330101-00-20-05-02-05 is a high-performance 8 mm proximity probe belonging to the industry-leading 3300 XL transducer system. Engineered for critical turbomachinery protection, this sensor provides precise, non-contact measurement of shaft displacement, position, and vibration. As a cornerstone of the Bently Nevada vibration monitoring ecosystem, the 330101 series is designed to withstand harsh industrial environments while delivering the extreme reliability required by condition monitoring engineers and maintenance managers globally.

When you look to buy the 330101-00-20-05-02-05, you are investing in a proven solution that minimizes downtime and ensures the structural integrity of rotating equipment such as steam turbines, centrifugal compressors, and large industrial pumps.

Key Features

• Advanced Non-Contact Sensing: Eliminates physical wear and tear on measured surfaces, ensuring long-term operational stability.

• API 670 Compliance: Fully meets the rigorous standards of the American Petroleum Institute (API) 670 for machine protection systems.

• Enhanced Electrical Protection: Features improved RFI/EMI immunity, ensuring signal integrity in electrically noisy industrial plants.

• Rugged Construction: Built with high-grade, chemically resistant materials suitable for high-temperature and high-pressure zones.

• Seamless Integration: Fully compatible with 3300 XL Proximitor sensors and existing monitoring hardware architectures.

Technical Specifications

Model Configuration Explanation

The 330101-00-20-05-02-05 part number is specifically configured for precision:

• 330101: Base model for the 3300 XL 8 mm Proximity Probe.

• 00-20: Unthreaded length of 0.0 inches and total case length of 2.0 inches.

• 05: Standard mounting thread (3/8-24 UNF-2A).

• 02: Integral connector with mounting hardware.

• 05: Total probe case length of 0.5 meters (50 cm).

Typical Applications

This probe is widely utilized in:

• Power Generation: Turbine supervisory instrumentation for steam and gas turbines.

• Petrochemical/Refinery: Vibration monitoring of centrifugal compressors and blowers.

• Oil & Gas: Shaft position and radial vibration monitoring in high-speed rotating equipment.

• Manufacturing: Predictive maintenance on heavy-duty gearboxes and cooling fans.

System Compatibility

The 330101-00-20-05-02-05 is designed for use exclusively with the Bently Nevada 3300 XL Proximitor Sensor. It is backward compatible with legacy 3300 monitoring systems when used with the appropriate extension cables, making it a versatile choice for plant retrofits and system upgrades.

Installation Guidelines

1. Preparation: Ensure the mounting bracket is rigid to prevent resonant vibrations from affecting the signal.

2. Gap Setting: Utilize the supplied calibration tools to establish the correct initial gap (typically -10V or -12V) between the probe tip and the shaft.

3. Cable Routing: Always route coaxial cables through dedicated conduit to avoid signal interference from power lines.

4. Testing: Perform a loop check after installation to verify signal linearity within the operating range.

Product Advantages

• Reliability: The 3300 XL series is the "Gold Standard" for industrial machine protection.

• Accuracy: Superior linearity across the full measurement range.

• Versatility: Suitable for both continuous monitoring and periodic diagnostic analysis.

Ordering Information

To secure a competitive 330101-00-20-05-02-05 price, please contact our sales desk. We maintain a large inventory of Bently Nevada components in stock, ensuring minimal lead times for urgent maintenance needs. As a leading Bently Nevada supplier, we guarantee that all units are genuine parts.

Logistics and Shipping

We utilize professional anti-static industrial packaging for all shipments. Every probe is wrapped in moisture-barrier, anti-static shielding and encased in custom-molded, shock-absorbent foam to prevent damage during transit. Whether via air freight or courier, your sensitive electronics will arrive in factory-fresh condition.

Why Choose Maxwell PLC

With 30 years of experience in industrial automation, Maxwell PLC is your trusted partner for high-end instrumentation. We don't just sell parts; we provide solutions.

• Technical Expertise: Deep knowledge in TSI and vibration monitoring systems.

• Quality Assurance: Every unit is inspected and tested in our lab before dispatch to ensure it is "hot-swap" ready.

• Documentation: We provide detailed test reports and compliance certificates upon request.

• Supply Chain: Direct access to factory inventory ensures you get the latest revisions of your required spare parts.

Frequently Asked Questions

• Is this part currently in stock?

  Yes, we maintain a live inventory. Contact us today to confirm availability for immediate dispatch.

• Does this probe come with a warranty?

  Yes, all genuine Bently Nevada parts supplied by Maxwell PLC carry a standard 12-month industrial performance warranty.

• Can I use this with a 3500 series monitoring system?

  Yes, the 3300 XL probe is fully compatible with the Bently Nevada 3500 system when connected via the appropriate Proximitor sensor.

• What is the lead time for this specific model?

  Standard items are in stock and ready to ship within 24-48 hours.

• Are your parts refurbished?

  We specialize in genuine new parts. We do not sell refurbished units unless explicitly requested by the customer.

• How is the probe protected during shipping?

  We use premium anti-static industrial packaging to prevent electrostatic discharge and impact damage.

• Do you offer volume discounts?

  Yes, we offer tiered pricing for large-scale MRO (Maintenance, Repair, and Operations) procurement.

• How can I verify the authenticity of this part?

  Every unit comes with the original Bently Nevada serial number and factory test documentation.

• Do you provide technical support for installation?

  Our team of experienced automation engineers is available to guide you through installation troubleshooting.

• What payment methods do you accept?

  We accept wire transfers, letters of credit, and major commercial payment terms for established partners.
