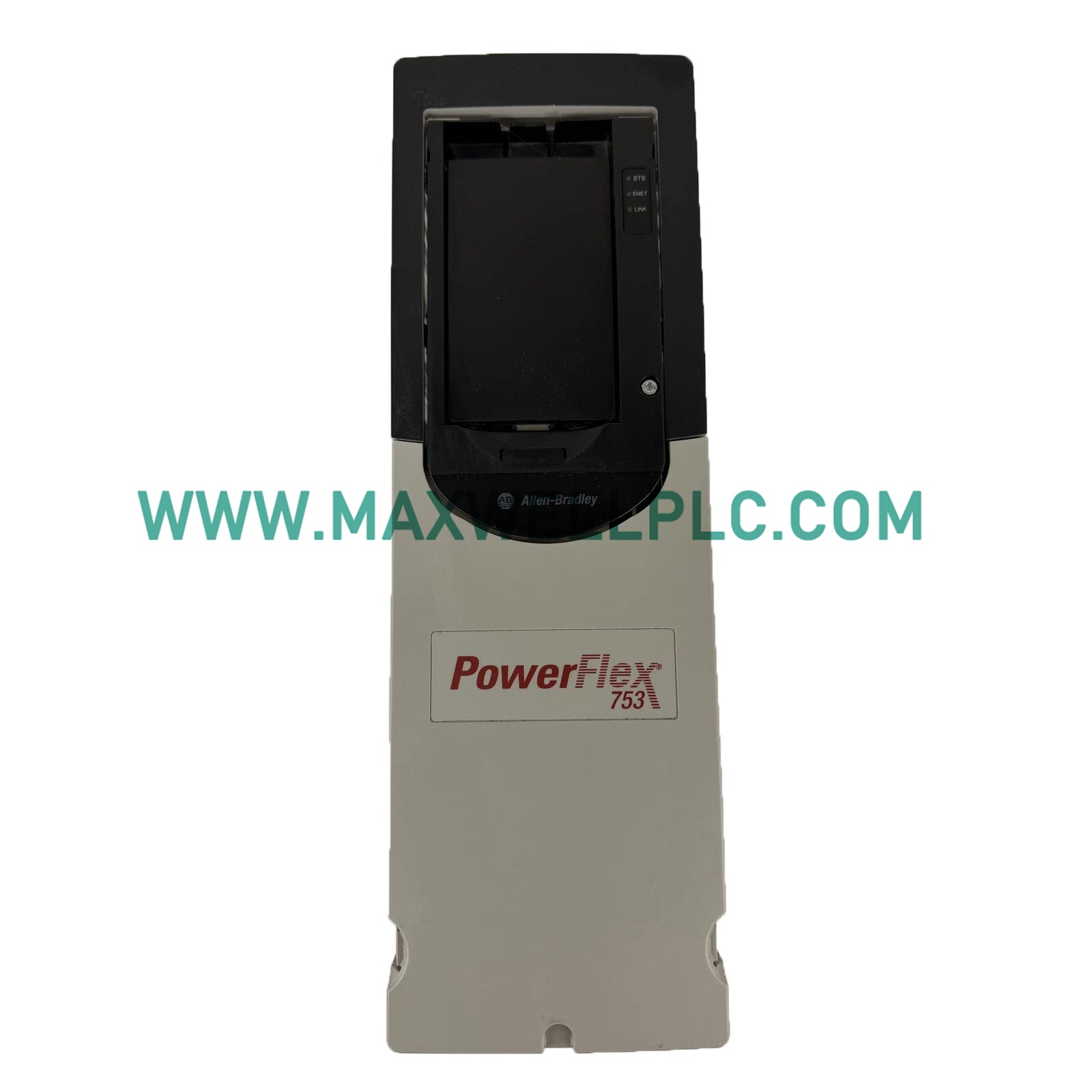

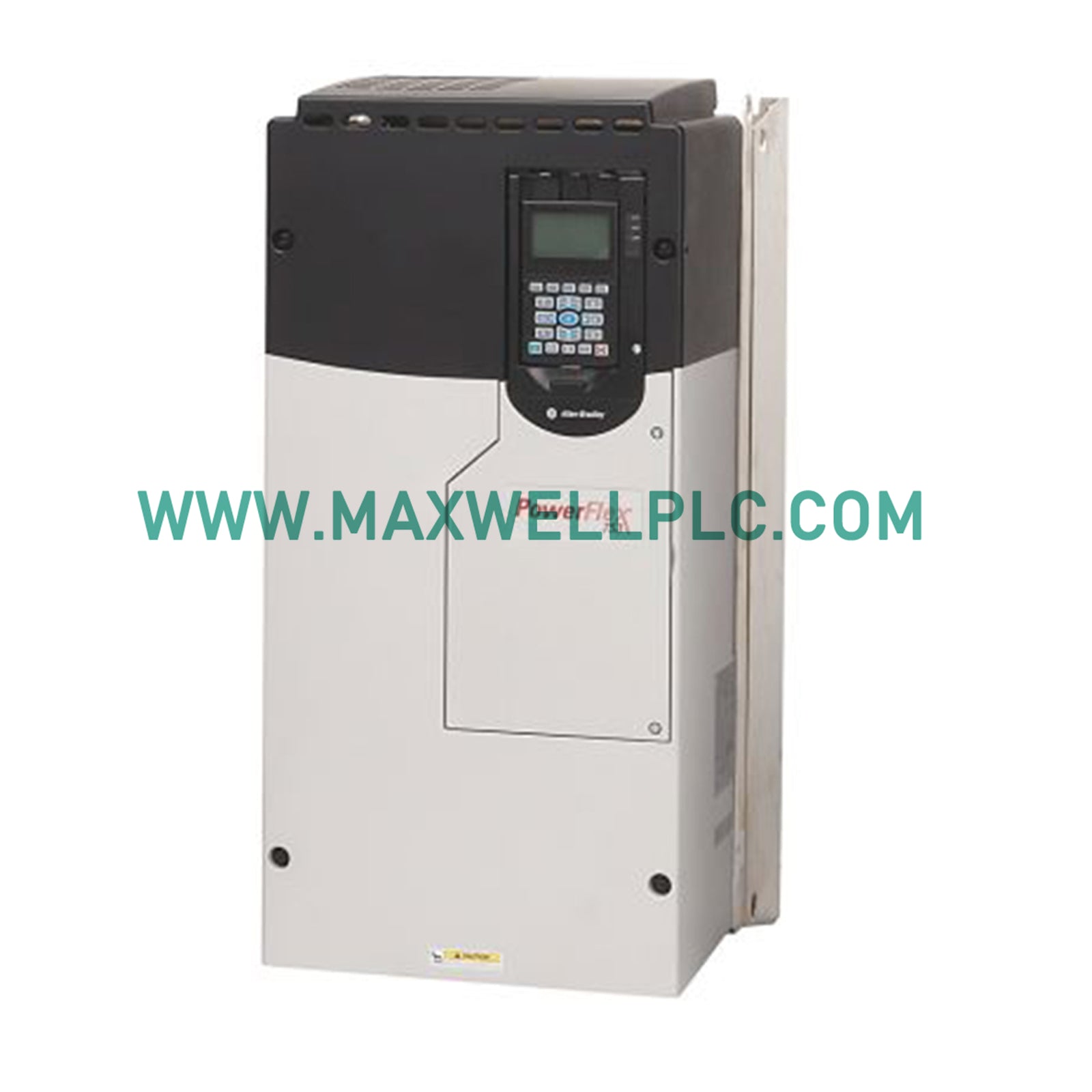

Configured for frequency-controlled motor regulation in industrial drive systems, the Allen-Bradley 20F11GC022JA0NNNNN (20F11GC022JA0NNNNN Frequency AC drive) provides direct physical/electrical execution.

Device Configuration Overview

• Series: PowerFlex 753

• Enclosure: IP54, NEMA/UL Type 12

• Input: 400 VAC / 540 VDC

• Filtering: Integrated

• CM Connection: Jumper Installed (Common-Mode Cap)

Hardware Specifications

Deterministic Control and Integration

The PowerFlex 753 architecture supports high-speed EtherNet/IP deterministic networks, enabling precise synchronization within multi-drive automation systems. Integrated backplane communication protocols facilitate I/O density scaling, allowing developers to extend control loops without compromising latency. Firmware flash compatibility ensures that the drive logic remains interoperable with current control platforms and safety-rated network configurations.

Ordering Info

• 1 unit 20F11GC022JA0NNNNN AC drive

• 1 set of protective DC terminal covers

• 1 technical documentation packet

Installation and Field Guidelines

• Mounting Orientation: Install the drive vertically on a conductive, grounded surface to ensure proper thermal dissipation through the chassis heat sink.

• Clearance Requirements: Observe a minimum 100 mm air gap above and below the drive to permit unobstructed airflow.

• Grounding: Secure a low-impedance protective earth (PE) connection to the chassis grounding lug.

• Cable Shielding: Use shielded motor power cables, terminating the shield braid directly to the drive chassis using an EMC clamp to reduce conducted emissions.

• Environment: Ensure all liquid-tight cable glands are correctly torqued to maintain the IP54/NEMA 12 enclosure rating against dust and moisture ingress.

Frequently Asked Questions

• Does the drive support hot-swap of communication modules?

  Yes, option modules can be replaced while the drive is energized, provided the system is not in an active Run state.

• What is the default function of the CM jumper?

  The jumper connects internal common-mode capacitors to the chassis, providing a filtered path for high-frequency noise in grounded distribution systems.

• Can this drive operate without a HIM?

  Yes, the device is fully operational via remote network commands and software configuration without requiring a physical Human Interface Module.

• What is the maximum permissible ambient temperature?

  The drive is specified for operation within a -10 to 50 deg C ambient temperature range; exceeding this requires derating.

• Is the firmware user-upgradeable?

  Yes, firmware updates are performed through the drive peripheral interface via official software tools.

• Does this model include a dynamic braking transistor?

  Yes, the drive includes an integrated dynamic braking transistor as per standard configuration.

• What DC bus voltage is supported?

  The drive is compatible with a 540 VDC common bus system input.

• Are the I/O terminals optically isolated?

  Yes, the embedded I/O channels are optically isolated from the main control board to prevent electrical transients from affecting logic.
