Product Overview

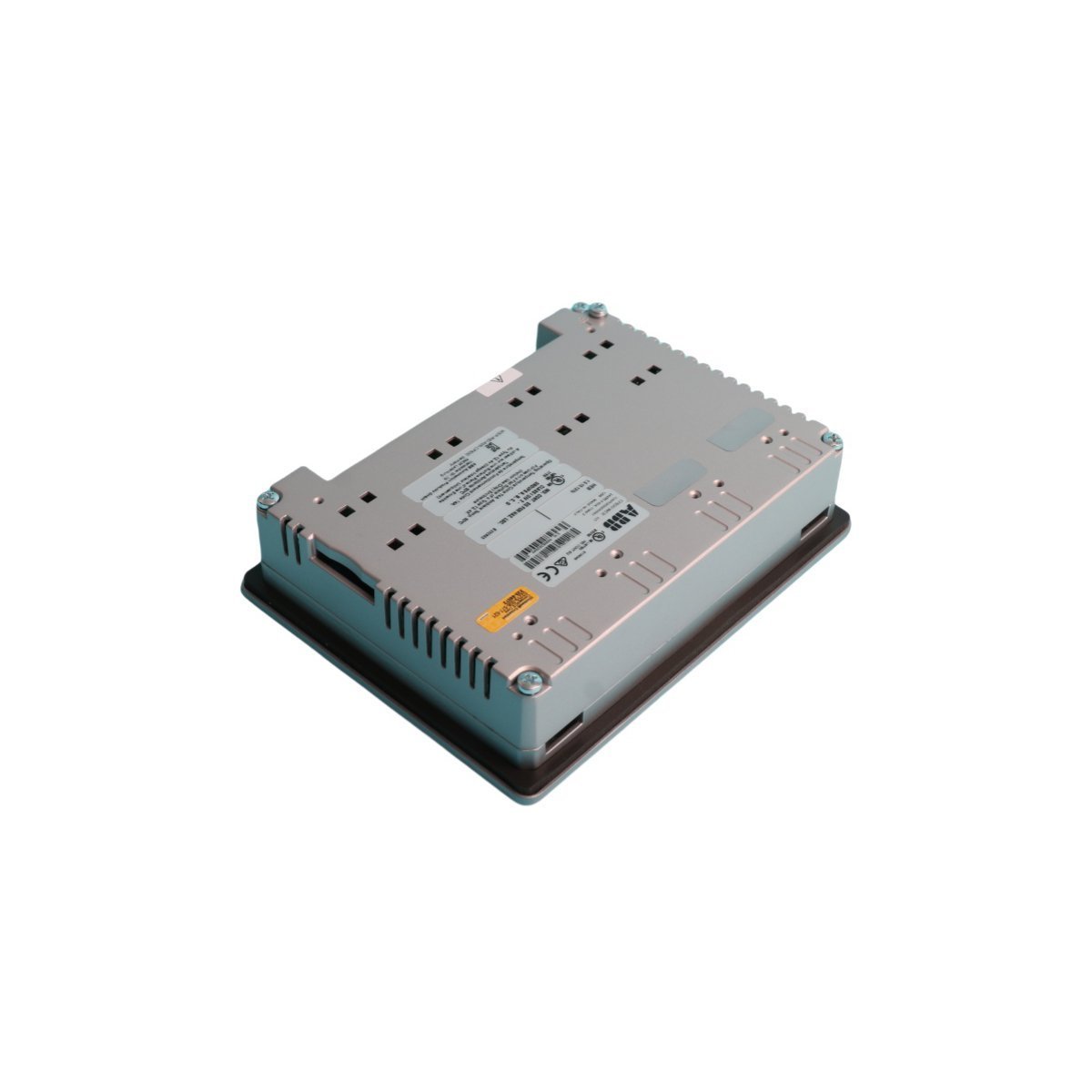

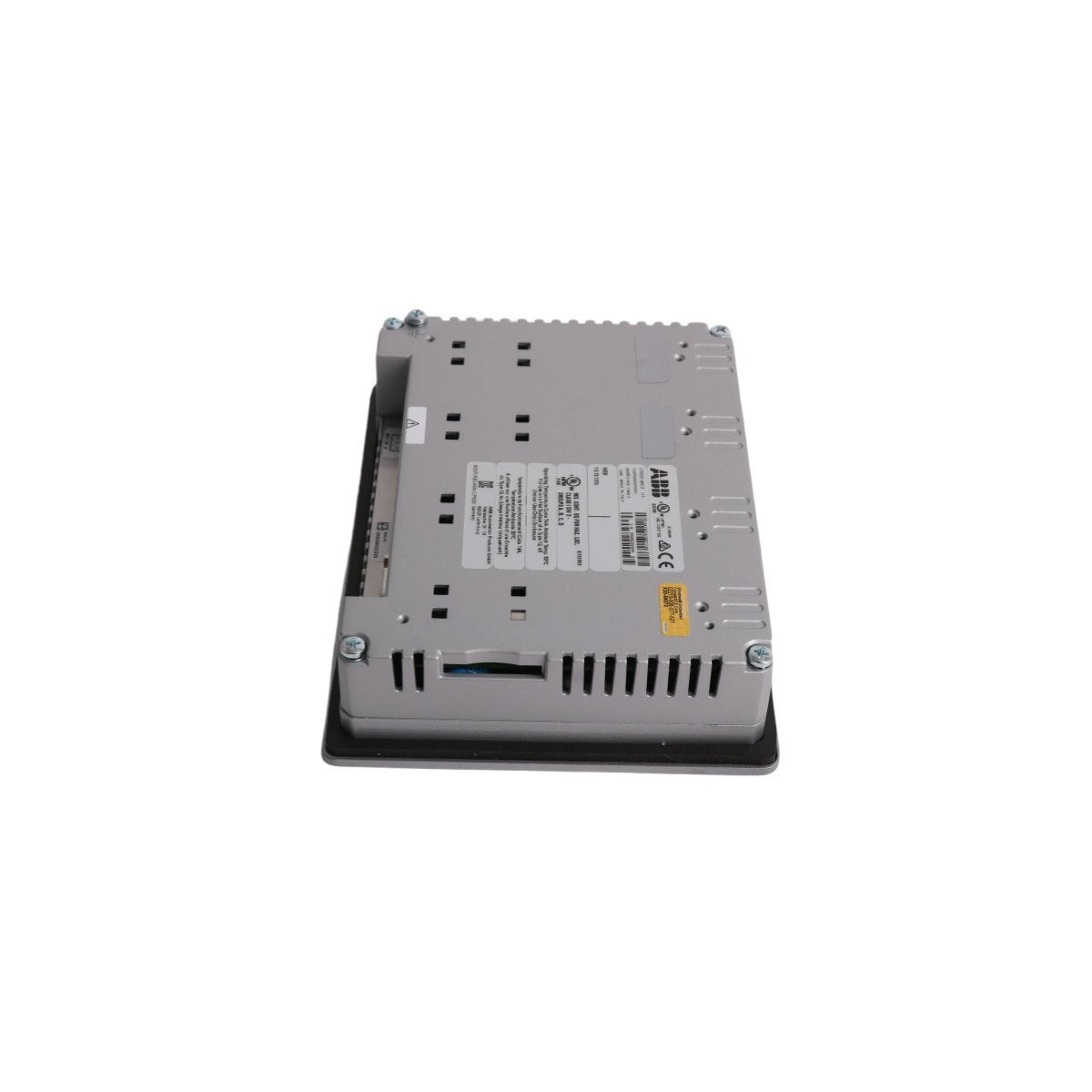

The ABB CP630-WEB (1SAP530200R0001) is a specialized Human Machine Interface (HMI) terminal designed for advanced visualization and localized control within industrial automation networks. Equipped with a 5.7-inch TFT resistive touch display, this unit functions as a high-performance web client, allowing operators to interact directly with controller-based web servers. By integrating substantial onboard memory and a high-speed processor, the CP630-WEB facilitates seamless graphic rendering and real-time data monitoring. It serves as a durable and responsive gateway for personnel to oversee complex decentralized control systems (DCS) while maintaining a compact footprint suitable for dense control cabinet installations.

Hardware Specifications and Functional Attributes

Engineered for the rigorous demands of the factory floor, the CP630-WEB balances energy efficiency with robust computing resources to ensure long-term operational stability.

• Order Code 1SAP530200R0001

• Model Designation CP630-WEB

• Display Technology 5.7-inch TFT Color Touch Screen

• Memory Resources 256 MB DDR RAM for program execution and 128 MB Flash for user data storage

• Input Voltage Range 18 V DC to 30 V DC (24 V DC Nominal)

• Power Efficiency Typical consumption of 16.8 W

• Interface Modes Dual-mode access including User Mode (touch-and-hold) and System Mode (power-up sequence)

• Connectivity Integrated Ethernet port for web-server communication and router services

• Physical Weight 1.48 kg

• Chassis Dimensions 33.5 x 27.5 x 8 cm

• Manufacturing Standards Engineered in Sweden for global industrial compliance

Practical Deployments and Sector Implementations

The CP630-WEB is a versatile HMI solution utilized across various sectors where localized web-based visualization is essential for process management.

• Decentralized Control Visualization Acts as a dedicated portal for AC500 or 800xA controllers, allowing operators to access internal web visualizations without the need for a full PC workstation.

• Packaging and Material Handling Provides a compact interface for machine operators to adjust parameters, monitor cycle times, and clear faults in high-speed sorting and packing lines.

• Water and Wastewater Management Deployed in remote pumping stations to provide on-site diagnostics and setpoint adjustments through secured web-based interfaces.

• HVAC and Building Automation Serves as a central control point for large-scale environmental systems, managing air handling units and chiller plants via standardized web protocols.

• Control Cabinet Integration Its slim profile and low heat dissipation make it ideal for integration into space-constrained electrical panels in specialized OEM machinery.
