Product Overview

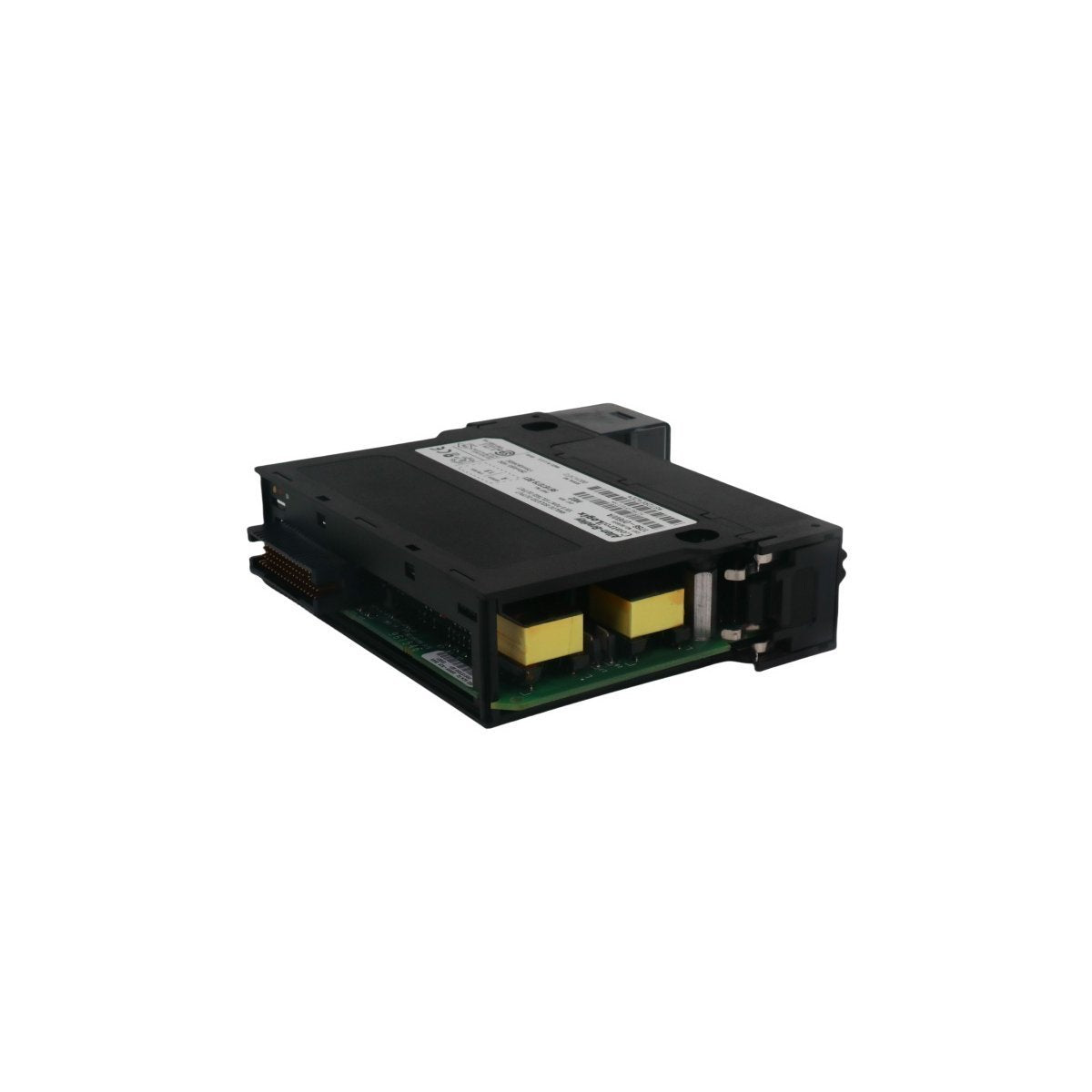

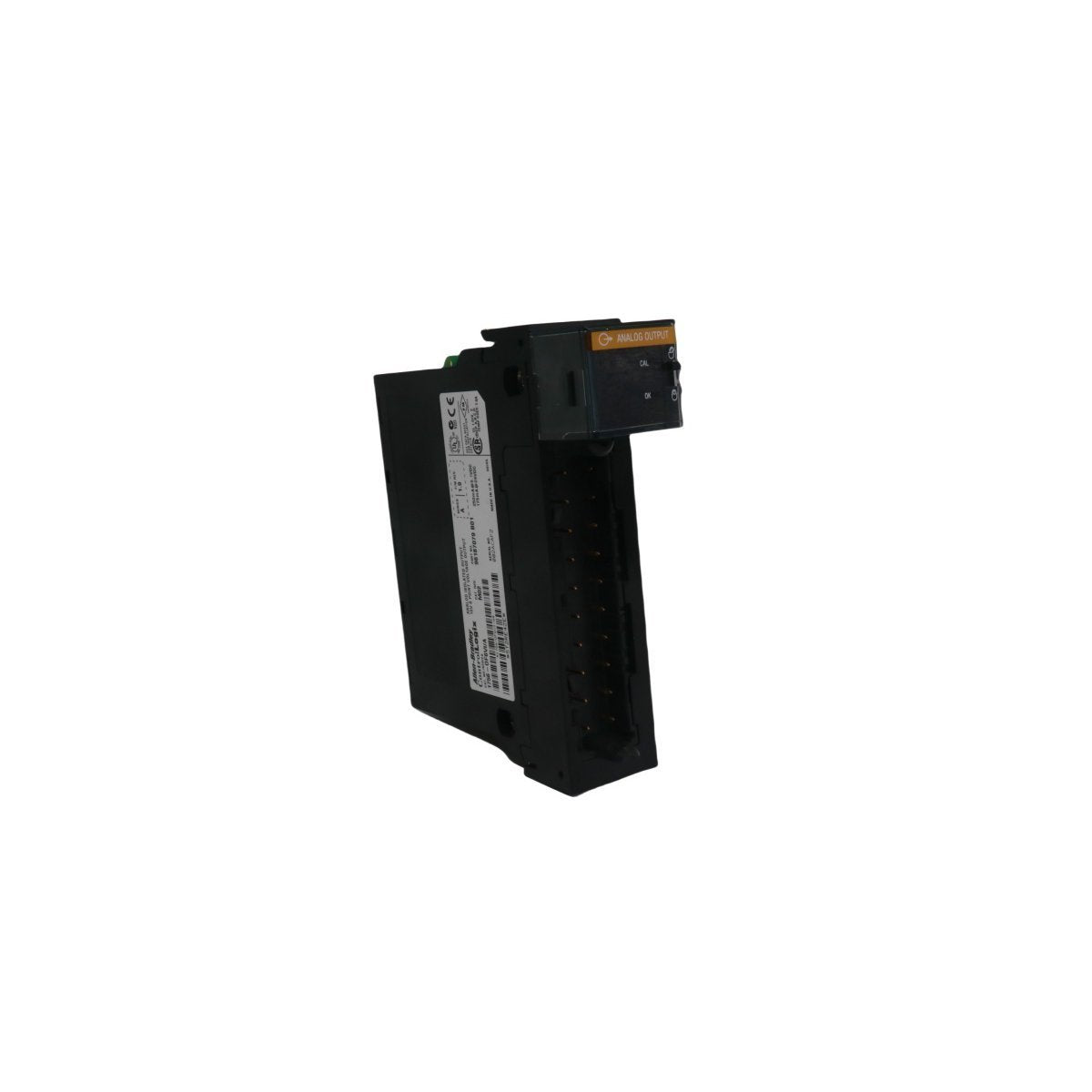

The Allen-Bradley 1756-OF6VI is a high-precision analog output module engineered for the ControlLogix® platform, offering six individually isolated voltage output channels. This module is specifically designed for applications where signal integrity and electrical separation are paramount. By providing channel-to-channel isolation, the 1756-OF6VI eliminates ground loop interference and prevents crosstalk between field devices, ensuring that each control signal remains accurate and unaffected by noise in the surrounding industrial environment.

As a versatile component of the Logix5000™ family, this module excels in driving actuators, variable frequency drives (VFDs), and other voltage-controlled devices. Its integration into the Studio 5000 Logix Designer® environment provides engineers with comprehensive configuration options, including real-time diagnostics and scaling, making it a cornerstone for sophisticated process control and automation architectures.

High-Performance Signal Conditioning

The 1756-OF6VI is built to deliver stable, high-resolution voltage signals across diverse industrial scenarios. Its hardware architecture focuses on protection and precision.

• Channel-to-Channel Isolation: Each of the six outputs is electrically separated from the others and from the backplane, protecting the controller logic from field-side transients and grounding disparities.

• Voltage Range Flexibility: Supports multiple standard industrial voltage ranges, typically including ±10V, 0–10V, and 0–5V, allowing for broad compatibility with various end-effectors.

• Integrated Diagnostics: The module monitors its own health and the status of field connections, providing feedback on hardware failures or calibration issues directly to the controller tags.

• Seamless Backplane Interface: Utilizing the producer/consumer model, the 1756-OF6VI ensures that output data is updated synchronously with the controller scan for real-time responsiveness.

Technical Specifications

• Manufacturer: Allen-Bradley (Rockwell Automation)

• Model Number: 1756-OF6VI

• Module Type: Isolated Analog Voltage Output

• Number of Channels: 6 Isolated Outputs

• Output Range: ±10V (Nominal)

• Resolution: 14-bit to 16-bit (depending on configuration)

• Backplane Current (5.1V): 250 mA

• Backplane Current (24V): 175 mA

• Isolation Voltage: 250V (Continuous) Channel-to-Channel and Channel-to-Backplane

• Operating Temperature: 0°C to 60°C (32°F to 140°F)

• Dimensions: 3.6 x 14.0 x 14.6 cm

• Weight: 0.28 kg (0.62 lbs)

Operational Reliability and Applications

• Process Control: Ideal for regulating precision valves and dampers where incremental voltage adjustments are required for flow or pressure management.

• Drive Coordination: Provides the reference voltage for motor drives in multi-axis systems, ensuring synchronized movement through isolated, low-noise signal paths.

• Rugged Construction: Designed for the 1756 chassis, it withstands standard industrial vibration and shock while maintaining a compact single-slot footprint.

• Calibration: Factory-calibrated with support for field calibration through the software interface to maintain accuracy over the module's lifecycle.
