Product Overview

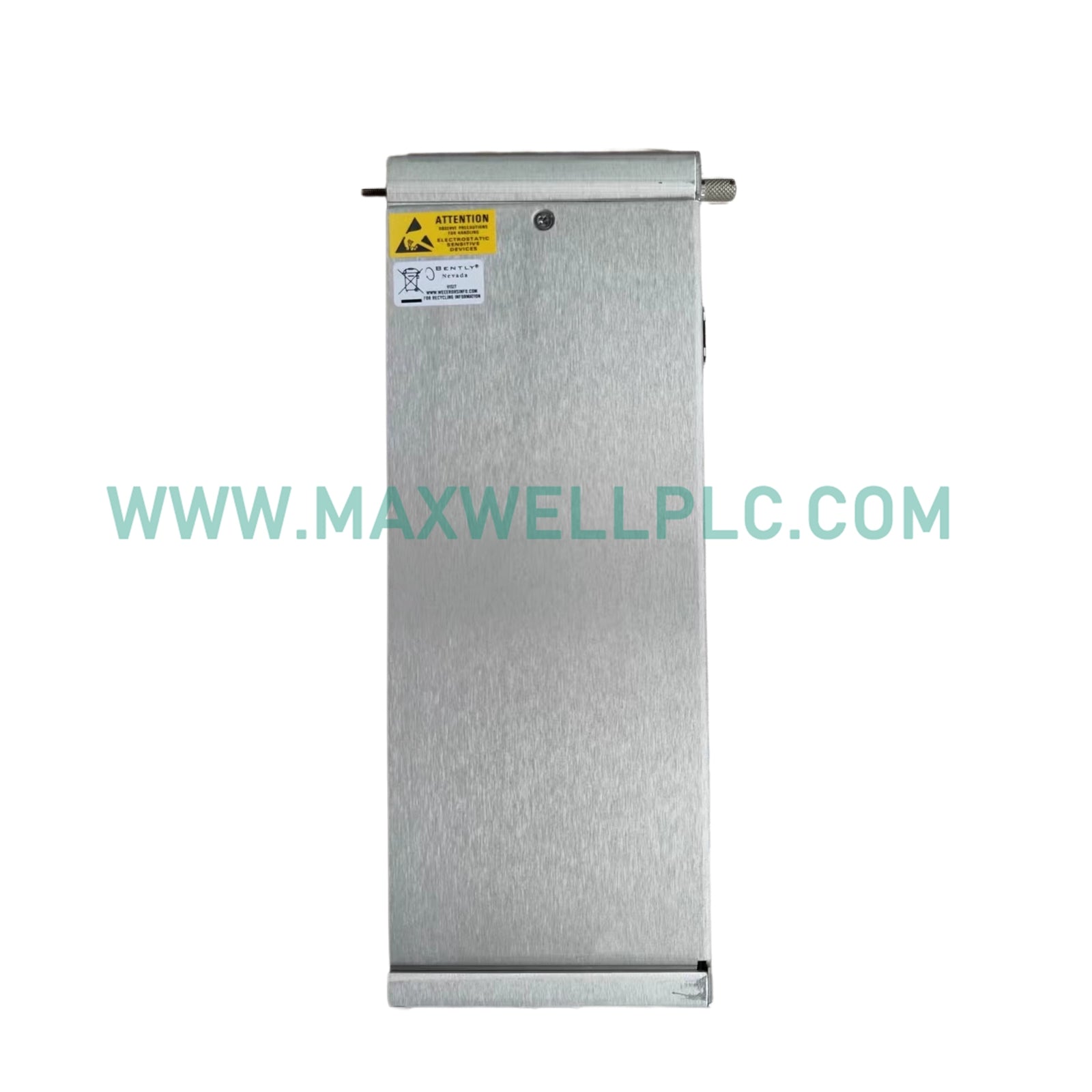

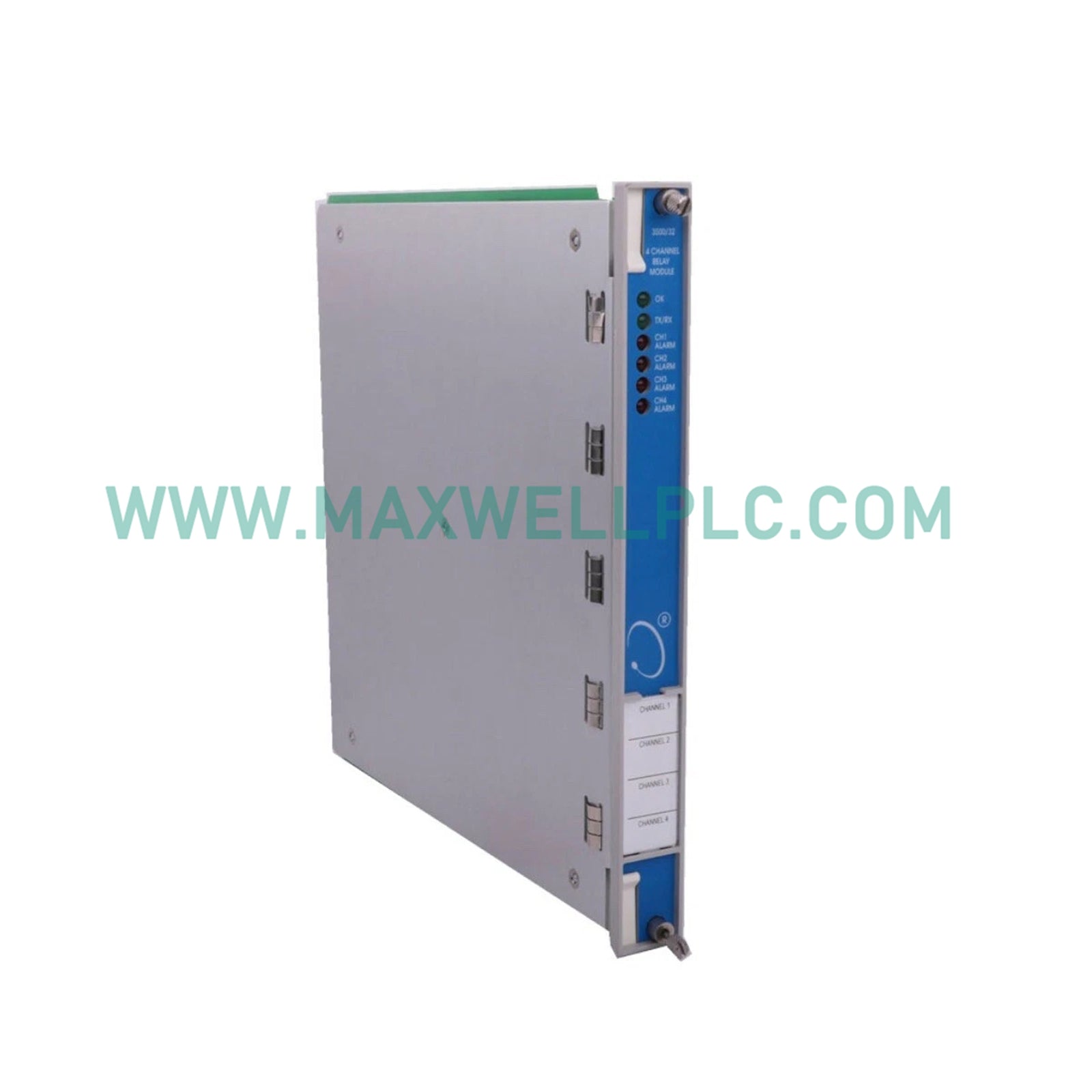

The Bently Nevada 3500/32-01-00 is a critical executive component of the 3500 Machinery Protection System, serving as the primary hardware interface for automated safety actions. This assembly, consisting of the 149986-02 (upgraded from 125712-01) control module and the 125720-01 I/O termination block, translates complex software alarm logic into high-reliability mechanical contact closures. Engineered to act as the final defense for rotating assets, this 4-channel relay system can be programmed with sophisticated "Voting Logic" (AND/OR configurations). This capability allows the system to cross-reference multiple sensor inputs before triggering a machine trip, effectively balancing the need for absolute machinery protection with the requirement to prevent expensive, unnecessary downtime caused by single-point sensor failures.

Technical Architecture & Mechanical Data

The 3500/32 is designed for long-term stability in corrosive and high-vibration industrial environments through specialized epoxy sealing and redundant circuit paths.

• Logic Capacity: 4 Independent channels with programmable Alarm Drive Logic

• Relay Configuration: Double-pole, double-throw (DPDT)

• Contact Switching Capacity: 5A at 24 Vdc or 120 Vac

• Operational Modes: Supports both Normally Energized and Normally De-energized setups

• Integrated Diagnostics: LED indicators for OK status, TX/RX activity, and individual Relay Alerts

• Hardware Protection: Industrial-grade epoxy-sealed circuitry

• Combined Net Weight: 1.5 kg

• Main Module (149986-02) Size: 24 x 24 x 2 cm

• I/O Module (125720-01) Size: 24 x 2 x 9 cm

• Global Classification: HS Code 8537101190

• Origin: Made in USA

Industrial Application Scenarios

The 3500/32-01-00 is a standard requirement for facilities operating high-value rotating equipment where fail-safe execution is mandatory:

• Emergency Shutdown Systems (ESD): Acting as the physical trigger to close fuel valves or trip circuit breakers on large-scale steam and gas turbines.

• Remote Signaling: Interfacing with Distributed Control Systems (DCS) or Safety PLCs to provide verified alarm status across the plant network.

• Audible and Visual Annunciation: Activating high-decibel sirens or strobe lights in local machinery enclosures when vibration thresholds are breached.

• Fail-Safe Power Loss Protection: Configuring the relays in a "Normally Energized" state so that a total loss of monitoring power automatically triggers a safe machinery shutdown.

FAQ

Q: What is the benefit of the AND/OR voting logic in the 3500/32?

A: Voting logic prevents "nuisance trips." For example, you can program a relay to trip only if two different sensors on the same bearing both detect high vibration (2-out-of-2 logic), ensuring a real fault exists before stopping production.

Q: Is the 125720-01 I/O module included with this part number?

A: Yes, this specific assembly includes both the main processing module and the rear I/O termination block required for field wiring.

Q: Can this module handle high-voltage AC switching?

A: The contacts are rated for up to 120 Vac at 5A. For higher voltage requirements, these relays should be used to pilot a larger external contactor.

Q: How does the epoxy sealing improve reliability?

A: In facilities like refineries or paper mills, corrosive gases can degrade copper traces on circuit boards. The epoxy seal creates an airtight barrier, preventing environmental damage to the internal electronics.

Q: What do the TX/RX LEDs indicate?

A: These lights show active communication between the relay module and the Rack Interface Module (RIM), confirming that the relay is receiving updated alarm data from the rest of the rack.
