Product Overview

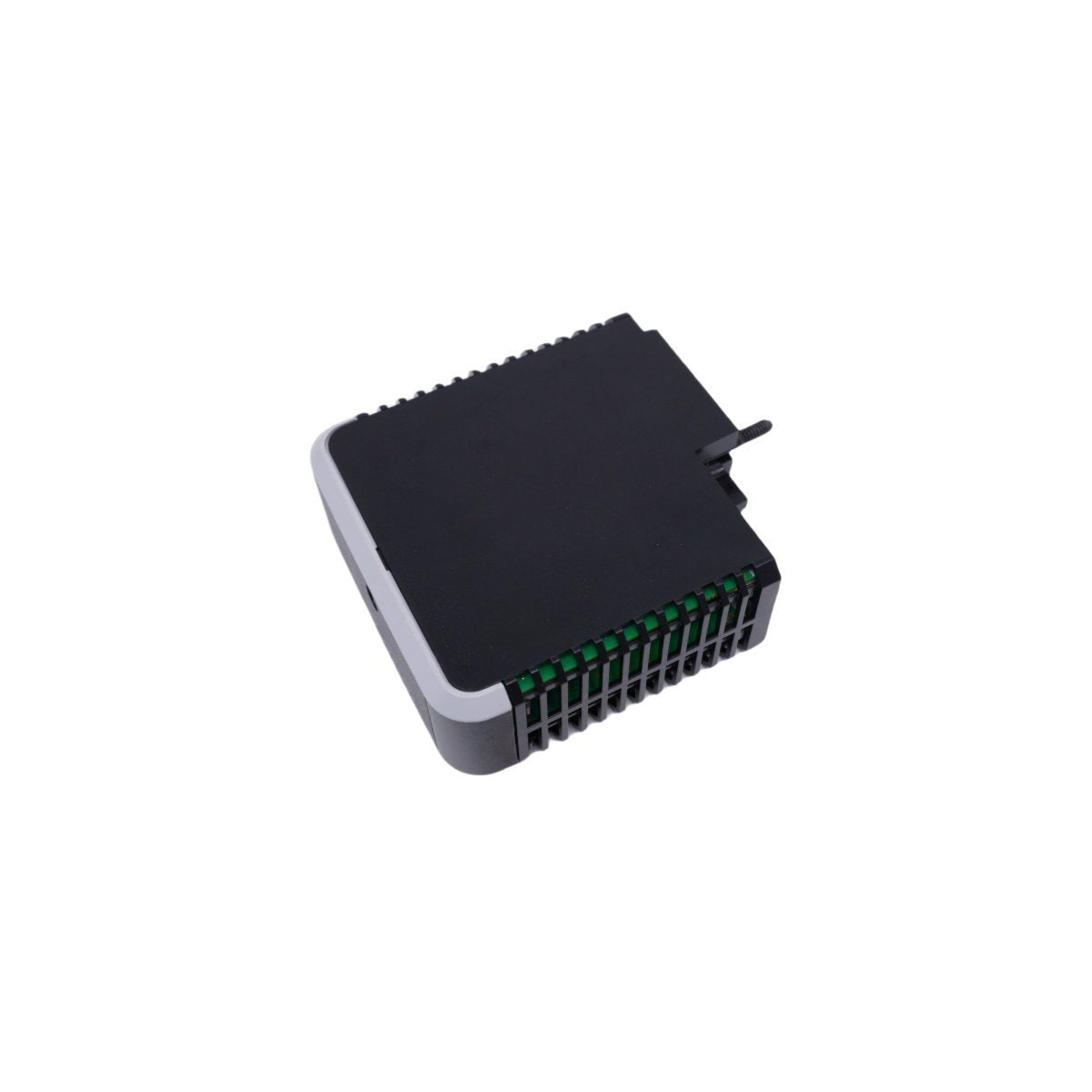

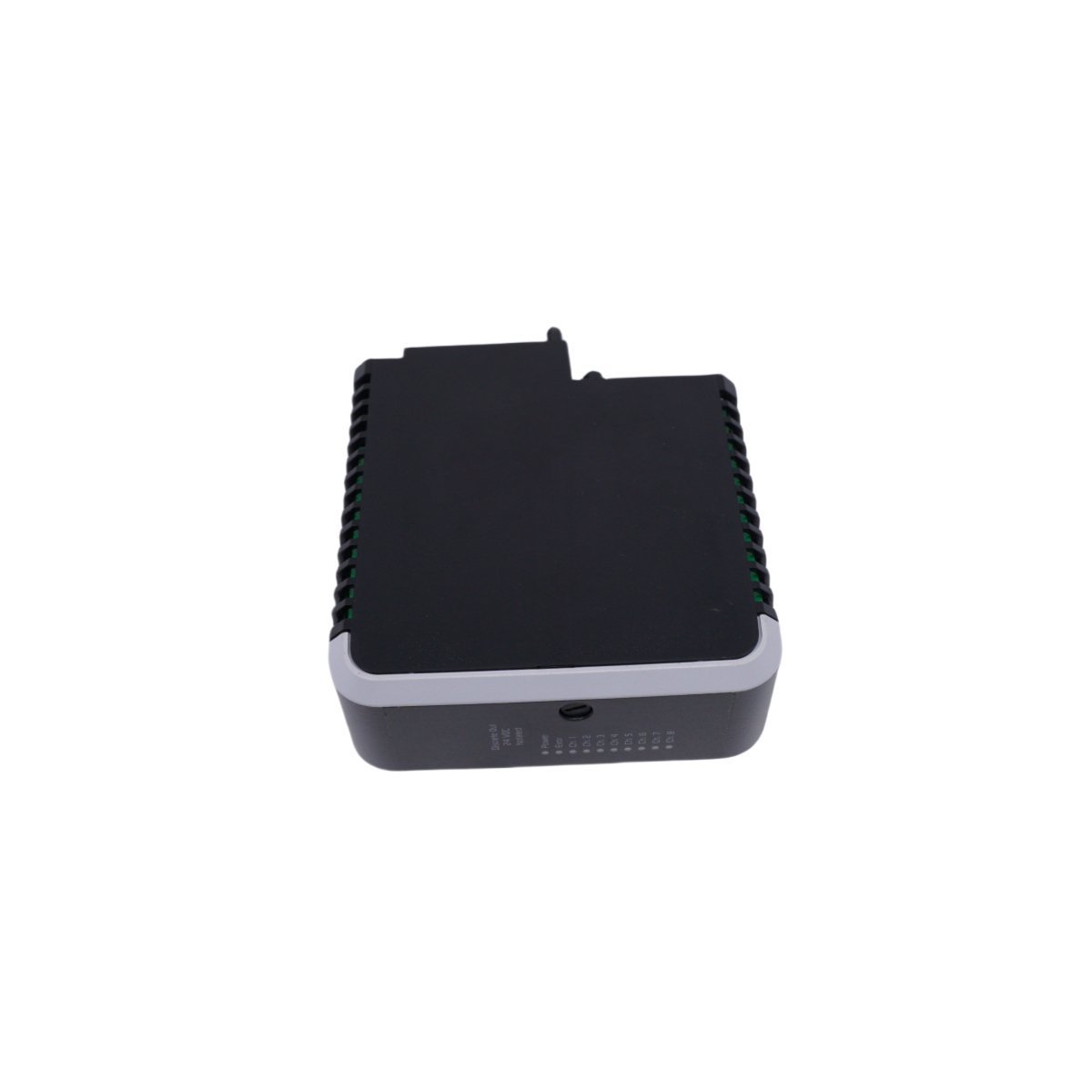

The Emerson KJ3208X1-BA2, recognized by assembly part number 13P0105X012, is a high-performance 8-channel Analog Input module integrated with HART protocol capabilities. Specifically engineered for the DeltaV™ M-series I/O subsystem, this module serves as a sophisticated bridge between intelligent field instruments and the Distributed Control System (DCS). It does not merely capture 4-20 mA process variables; it also unlocks the digital diagnostic data embedded in HART-compliant devices. By facilitating this dual-layer communication, the KJ320381-BA2 provides operators with deep insights into instrument health and calibration status, ensuring high-fidelity signal processing in complex automation environments.

Core Hardware Architecture and Technical Specs

• Model Identification KJ3208X1-BA2

• Engineering Code 13P0105X012

• Module Function 8-Channel Analog Input (AI) with HART

• Signal Range 4-20 mA DC Standard

• Communication Protocol Integrated Highway Addressable Remote Transducer (HART)

• System Lineage DeltaV™ M-series I/O Subsystem

• Conversion Precision High-resolution Analog-to-Digital (A/D) conversion

• Isolation Galvanic isolation for superior noise immunity and signal integrity

• Mass 0.2 kg

• Footprint Dimensions 16.8 cm x 8.7 cm x 4.4 cm

• Manufacturing Origin USA

• Compliance Standards Industrial grade for hazardous and rugged environments

Industrial Deployment and Field Utility

The KJ3208X1-BA2 is a foundational component for advanced process management across several critical industries:

Asset Management and Predictive MaintenanceUtilizing HART data to monitor the health of smart transmitters in chemical plants, allowing maintenance teams to identify sensor drift or hardware failure before it impacts process safety.

Refinery Flow and Pressure MonitoringProviding high-speed, 8-channel acquisition of critical process variables where the module's robust construction ensures stability amidst thermal fluctuations and electrical interference.

Upstream Oil and Gas ProductionManaging remote instrumentation where the modular design allows for rapid hot-swapping and system scaling without de-energizing the entire I/O carrier.

Power Generation Thermal OversightInterfacing with analog sensors across steam and water cycles, delivering precise data to the controller to maintain optimal efficiency and equipment protection.

Legacy DCS Support and SustainabilityServing as an essential "Brand New" replacement for M-series components discontinued in late 2018. This allows facilities to sustain their existing DeltaV infrastructure with original equipment manufacturer (OEM) precision.
