Product Overview

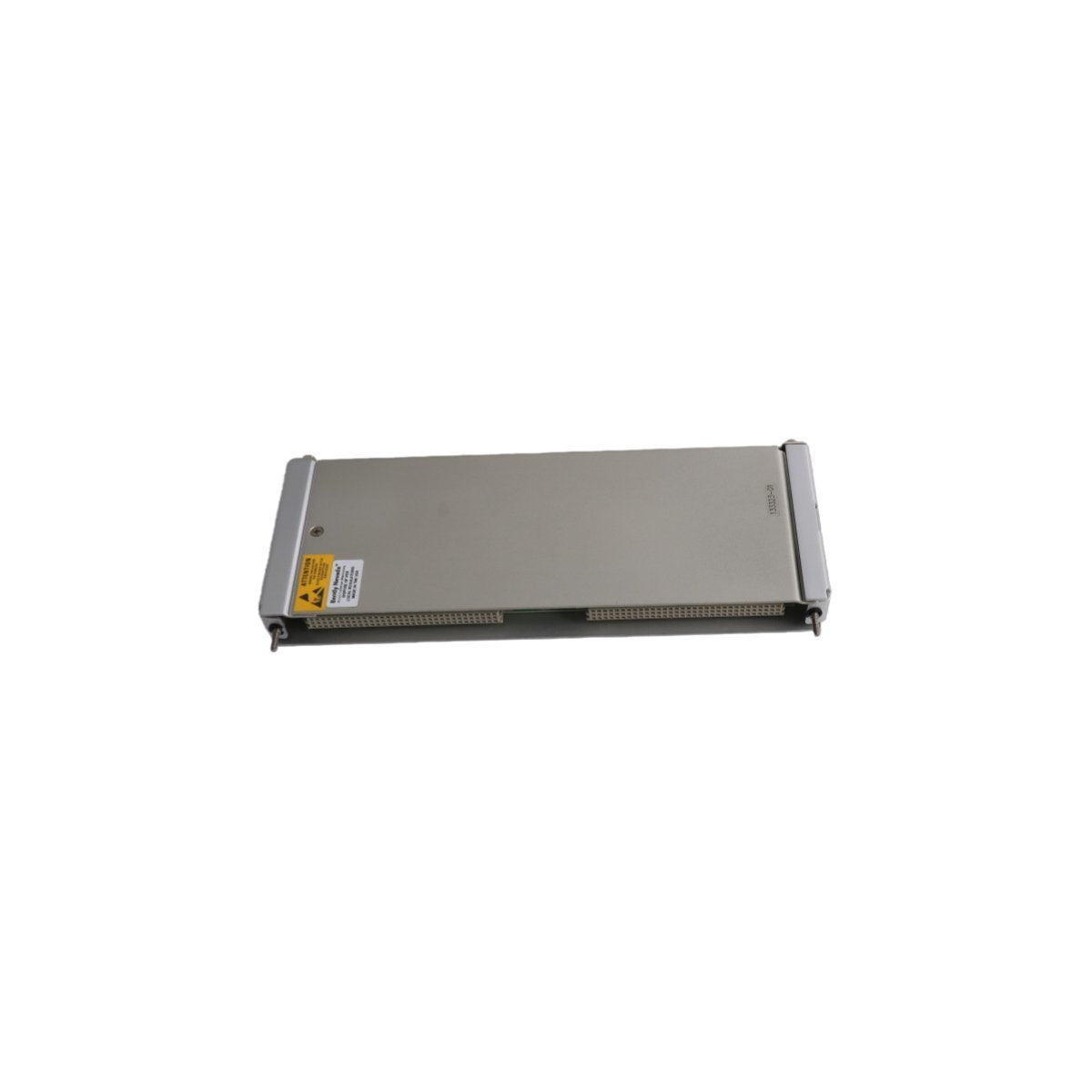

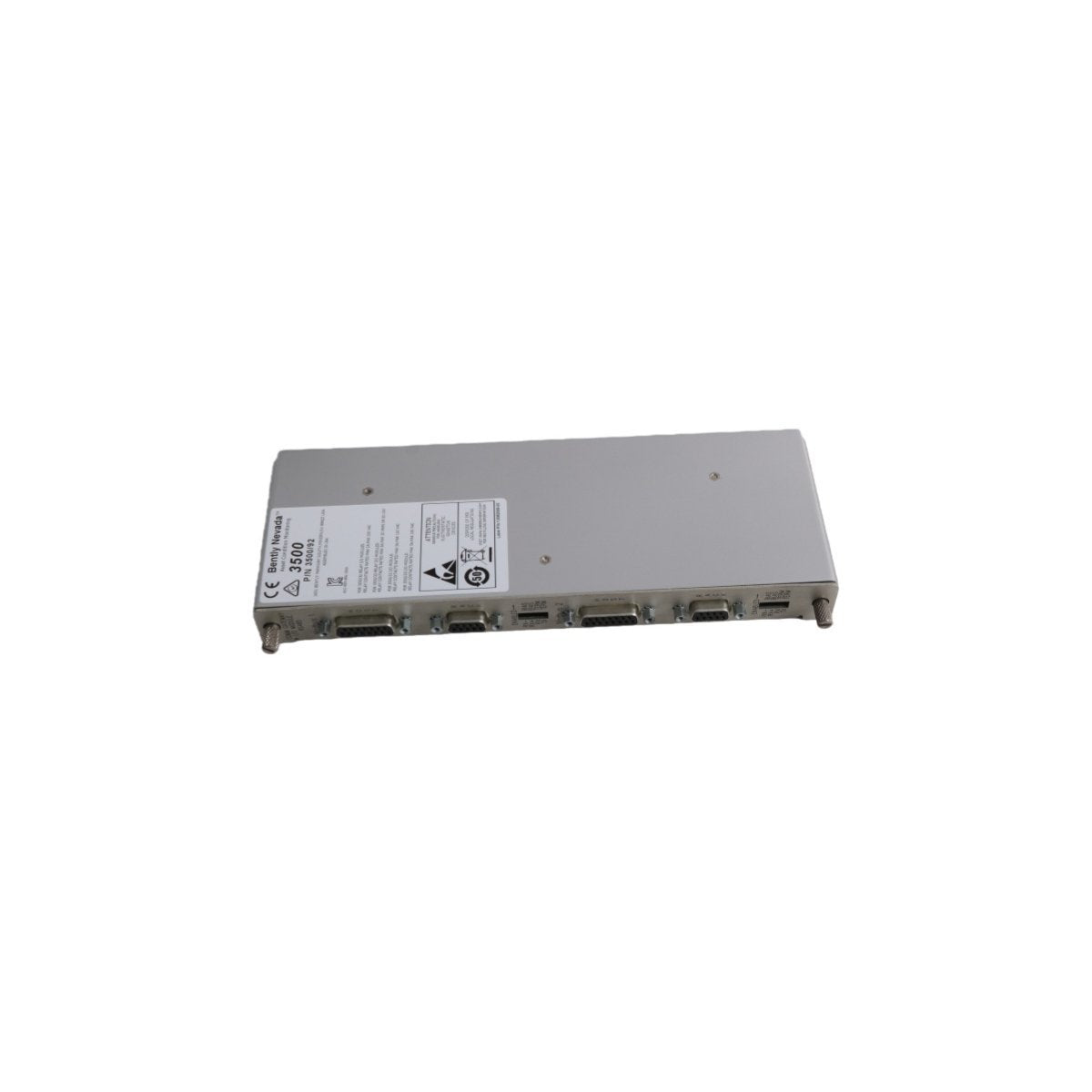

The 134819-01 serves as a critical Display Interface I/O Module within the Bently Nevada 3500 Series Machinery Protection System. While often confused with seismic transducers in generic documentation, this specific hardware is a rear-rack I/O module designed to facilitate the connection between the 3500/93 LCD Display or external VGA display systems and the 3500/94 VGA Module. Its primary role is to bridge the internal rack data with visual monitoring interfaces, providing local operators with real-time access to vibration, position, and system status information without requiring a separate workstation.

Technical Hardware Parameters

The 134819-01 is engineered for seamless backplane integration and high-speed data relay. It features the following technical specifications:

• Model Number 134819-01

• Module Class Display Interface I/O (Full-height)

• Compatibility Exclusively for Bently Nevada 3500/94 VGA Display Modules

• Communication Ports Supports RS232/RS422/RS485 serial interfaces and display output links

• Mounting Location Rear slot of the 3500 Monitoring Rack, directly behind the Main Module

• Operating Voltage Powered via the 3500 internal rack backplane

• Temperature Range -30°C to +65°C (-22°F to +150°F)

• Data Protocols Modbus RTU support for integration with external HMI or DCS systems

Industrial Applications

The 134819-01 I/O module is essential in power plants, refineries, and petrochemical facilities where local machine-side visualization is required. It is most commonly used in Turbine Supervisory Instrumentation (TSI) suites to drive the 3500/93 local display or to output rack data to a remote VGA monitor. By providing a direct Modbus link and display interface, it allows maintenance teams to perform immediate diagnostics on steam turbines, compressors, and large-scale pumps. This module ensures that critical alarm data and trend values are visible to field personnel, facilitating rapid decision-making during machine startup or high-vibration events.
