Product Overview

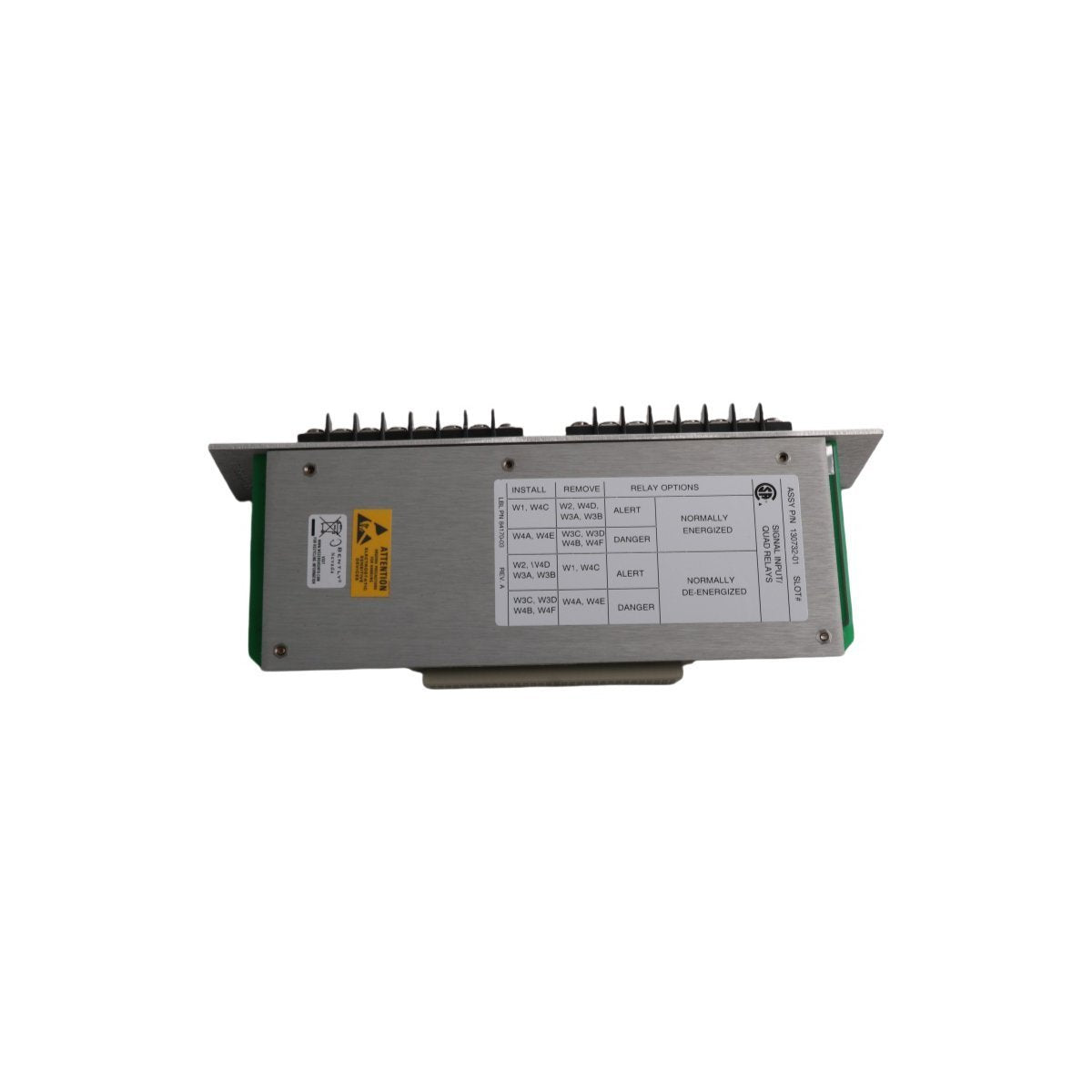

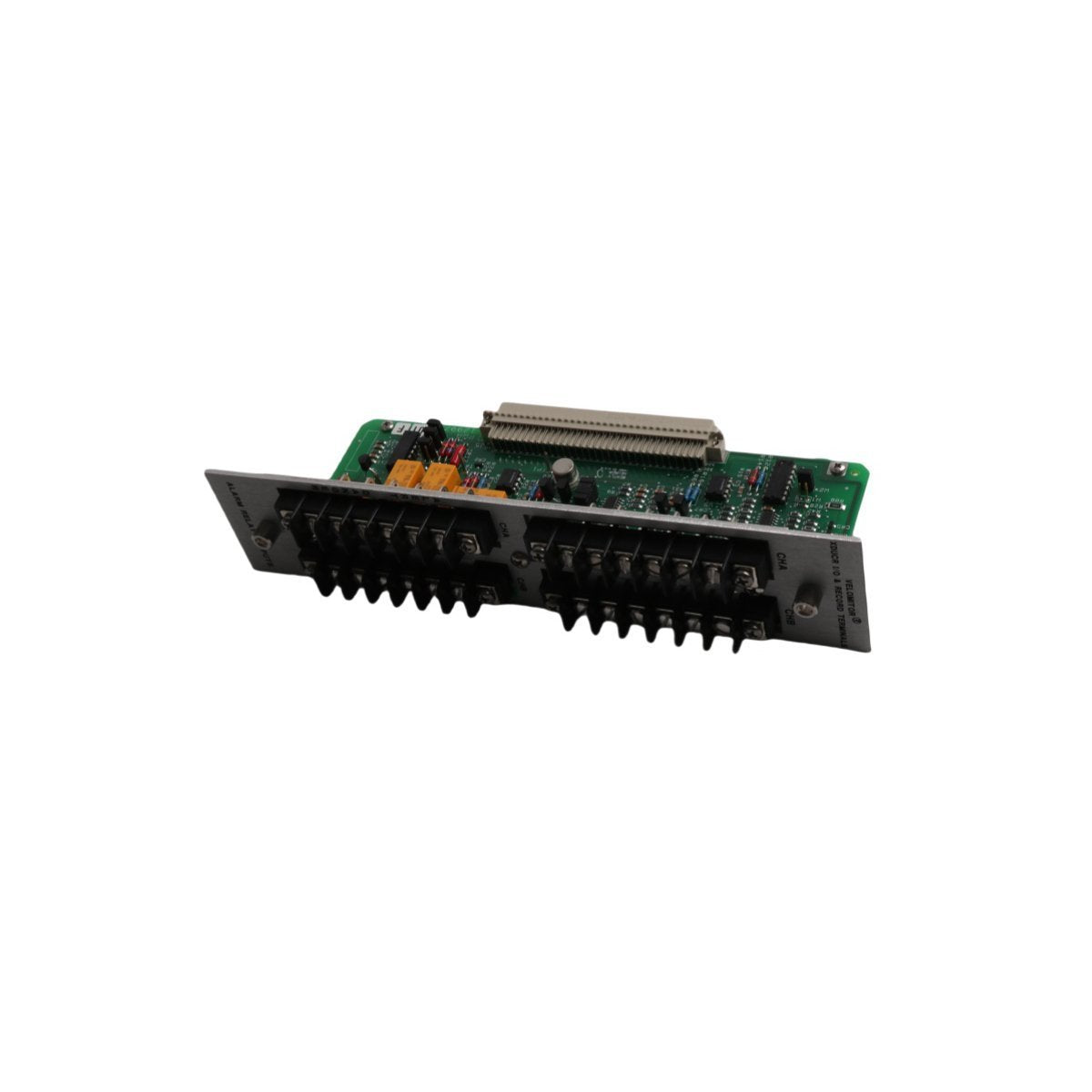

The Bently Nevada 130732-01 is a high-performance Velomiter Terminal Card designed for the 3300 series machinery protection system. This circuit board assembly serves as the critical interface between seismic velocity transducers and the monitoring rack, facilitating dual-channel signal processing for absolute vibration measurement. By supporting multiple sensor technologies, including Velomitor® piezo-velocity sensors and Velocity Seismoprobe® transducers, the 130732-01 eliminates the requirement for external signal conditioning modules. Its primary function is to provide the 3300 system with precise, real-time casing vibration data, enabling automated machinery protection and providing essential diagnostic information for Turbine Supervisory Instrumentation (TSI) applications.

Technical Hardware Parameters and System Specifications

The 130732-01 is engineered for versatility, allowing site technicians to modify signal processing behavior directly on the hardware level to match specific machinery profiles.

• Model Number 130732-01

• Monitor Type Dual-Channel Velocity Monitor Terminal Card

• Transducer Compatibility Velomitor, High Temperature Velomitor (HTVS), and Seismoprobe Velocity Transducers

• Signal Conditioning Integrated high-pass and low-pass filtering

• Field Adjustability Plug-in jumpers for selecting filter corner frequencies

• Input Channels Two independent, non-interacting channels

• System Integration Designed specifically for the Bently Nevada 3300 rack backplane

• Operating Principle Converts seismic transducer output into velocity engineering units (mm/s or in/s)

• Circuitry Build Industrial-grade PCB with high EMI/RFI noise immunity

• Dimensions 5.0 x 9.8 x 22.8 cm

• Weight 0.35 kg

Industrial Applications and Operational Use Cases

This terminal card assembly is a fundamental component for monitoring assets where casing-mounted seismic sensors are the preferred method for tracking vibration health.

• Gas and Steam Turbines Measuring absolute casing vibration to detect structural resonances or mechanical looseness in power generation units.

• Large Industrial Pumps Continuous monitoring of vertical or horizontal pumps in water treatment and oil transport to prevent bearing housing failure.

• Air-Cooled Heat Exchangers Ideal for cooling tower fan motors where low-frequency vibration signatures must be accurately filtered and monitored.

• Reciprocating Compressors Tracking frame vibration and cylinder motion to ensure mechanical integrity during high-pressure cycles.

• Predictive Maintenance Programs Providing the raw and processed signals necessary for long-term trending in manufacturing plants and refineries.
