Product Overview

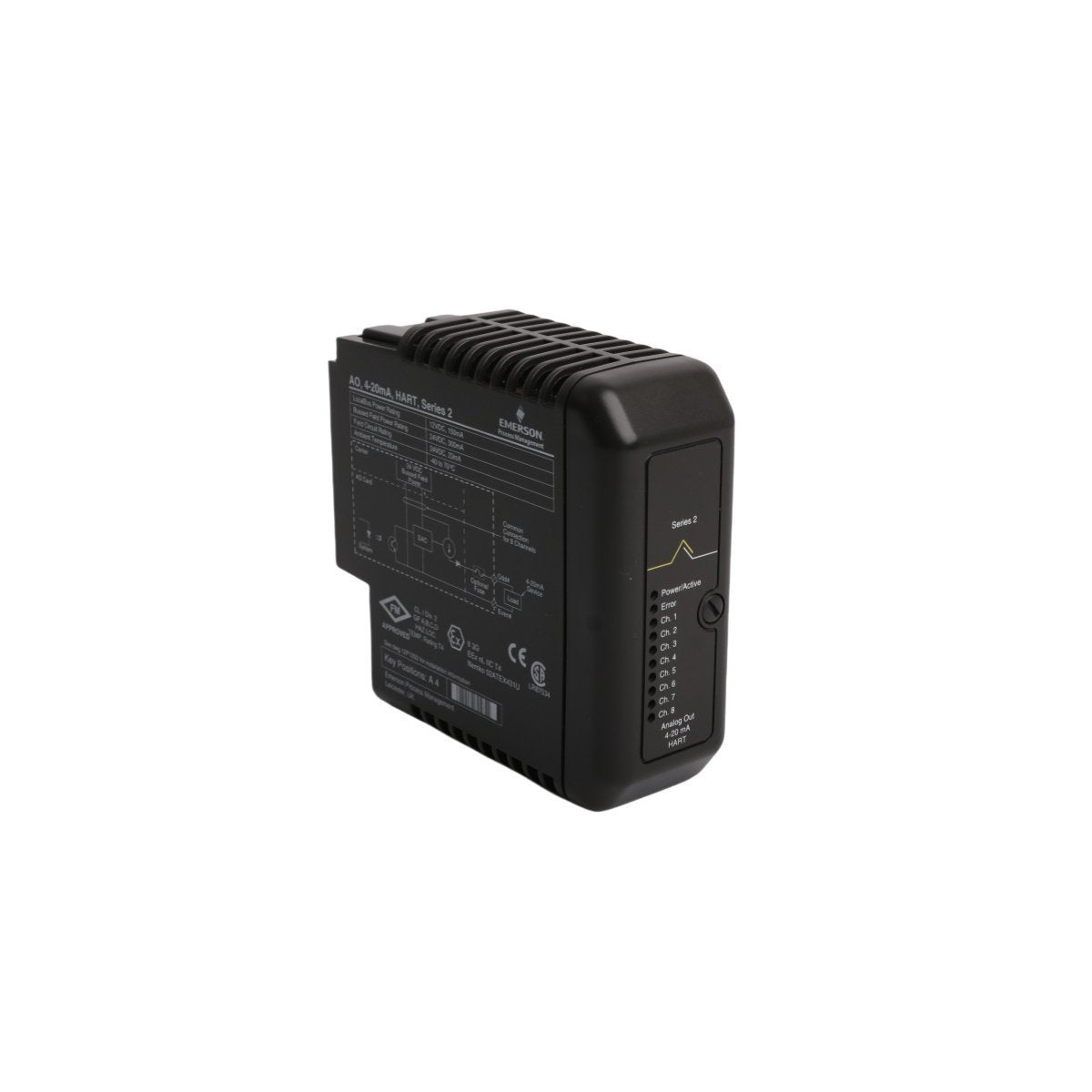

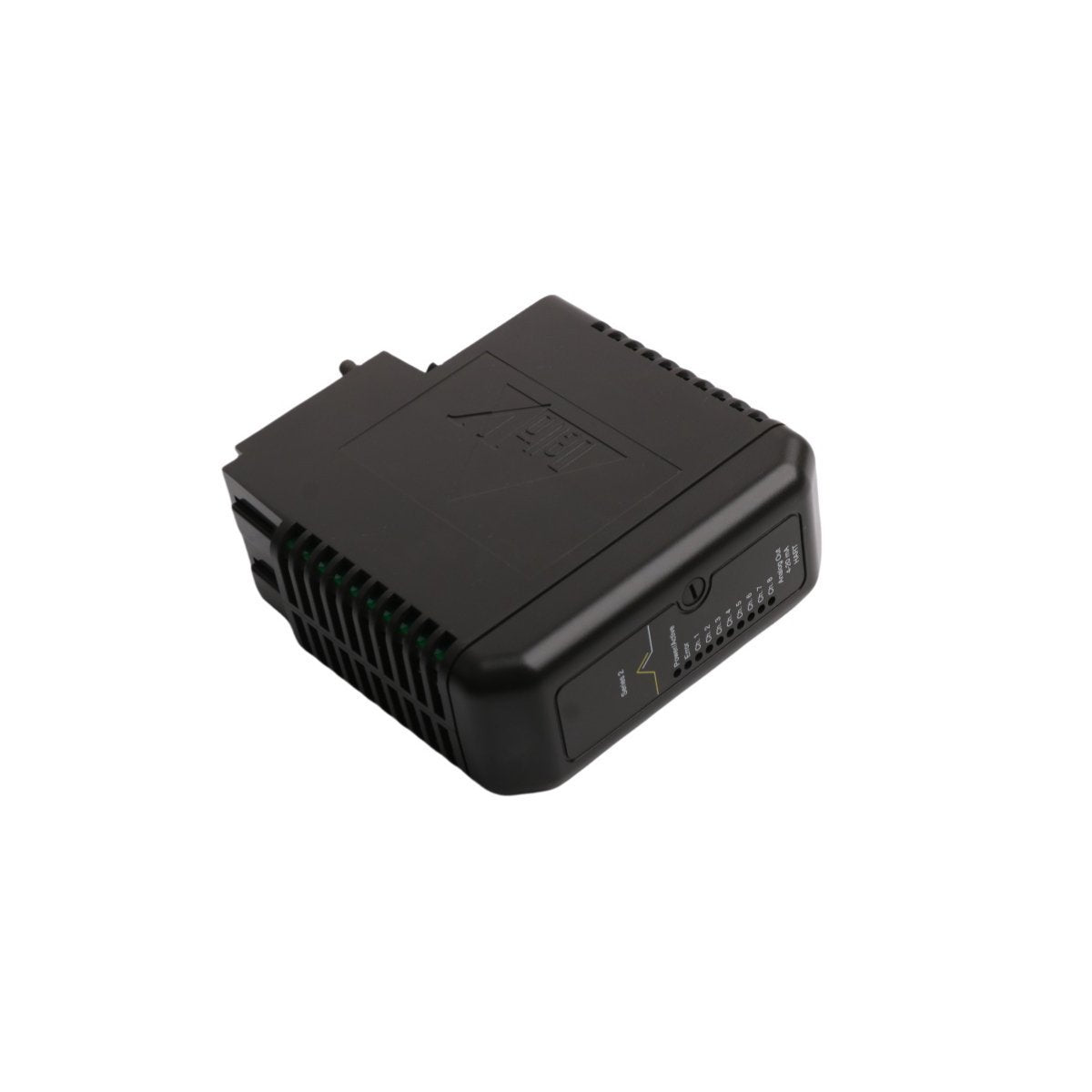

The Emerson KJ3203X1-BK1 (Part Number 12P4694X032, Model SE4001S2T2B4) is a high-density discrete input card designed for the DeltaV™ M-series I/O subsystem. This module provides 32 independent channels for monitoring digital "On/Off" states from field devices such as limit switches, motor starters, and pushbuttons. By utilizing a 24 VDC dry contact sensing architecture, it efficiently translates field signals into actionable data for the Distributed Control System (DCS).

Engineered for performance-critical environments, this card features a wide input voltage tolerance (5–60 VDC) and high-integrity group-to-group isolation. This electrical separation prevents local power disturbances from affecting the broader system, making it an essential component for complex industrial automation architectures where signal reliability is paramount.

Technical Characteristics and Architecture

The KJ3203X1-BK1 is built to facilitate rapid data acquisition while maintaining a compact physical footprint within the control cabinet.

• High-Density Channel Count: 32 discrete channels allow for significant I/O concentration, reducing the number of required carriers and saving rail space.

• Flexible Logic Thresholds: Features a defined switching profile with On-state voltage ≤ 5 VDC and Off-state voltage ≥ 15 VDC, ensuring clear signal differentiation.

• Robust Electrical Protection: Provides 300 VAC RMS group-to-group isolation to protect the internal Localbus and adjacent modules from surges or ground loops.

• Industrial Hardening: Fully functional in extreme temperature ranges from -40°C to +70°C and designed to operate in non-condensing humidity up to 95%.

• Simplified Field Wiring: Compatible with removable terminal blocks that support 12–22 AWG wire sizes, enabling fast maintenance and module replacement without disturbing field cables.

• G3 Corrosive Protection: Meets ISA-S71.04 Class G3 standards, providing long-term durability in environments with airborne contaminants.

Technical Specifications

• Manufacturer: Emerson (Fisher-Rosemount)

• Model Number: KJ3203X1-BK1 / SE4001S2T2B4

• Part Number: 12P4694X032

• Input Type: Discrete / Digital Input

• Channel Density: 32 Channels

• Input Impedance: 3.3 kΩ (Typical)

• Operating Voltage: 5–60 VDC

• Isolation: 300 VAC RMS (Group-to-Group)

• Dimensions: 4.2 x 12.5 x 10.5 cm

• Weight: 0.2 kg

• Country of Origin: USA

Industrial Applications

The Emerson 12P4694X032 Discrete Input Module is widely deployed across sectors where binary status monitoring is critical for safety and efficiency:

• Petrochemical & Refining: Monitoring valve position feedback and emergency stop triggers.

• Power Generation: Tracking breaker statuses and auxiliary equipment interlocks.

• Chemical Processing: Supervizing discrete sensors on reactors and storage vessels.

• Pharmaceutical Manufacturing: Managing cleanroom door interlocks and batch process triggers.
