Product Overview

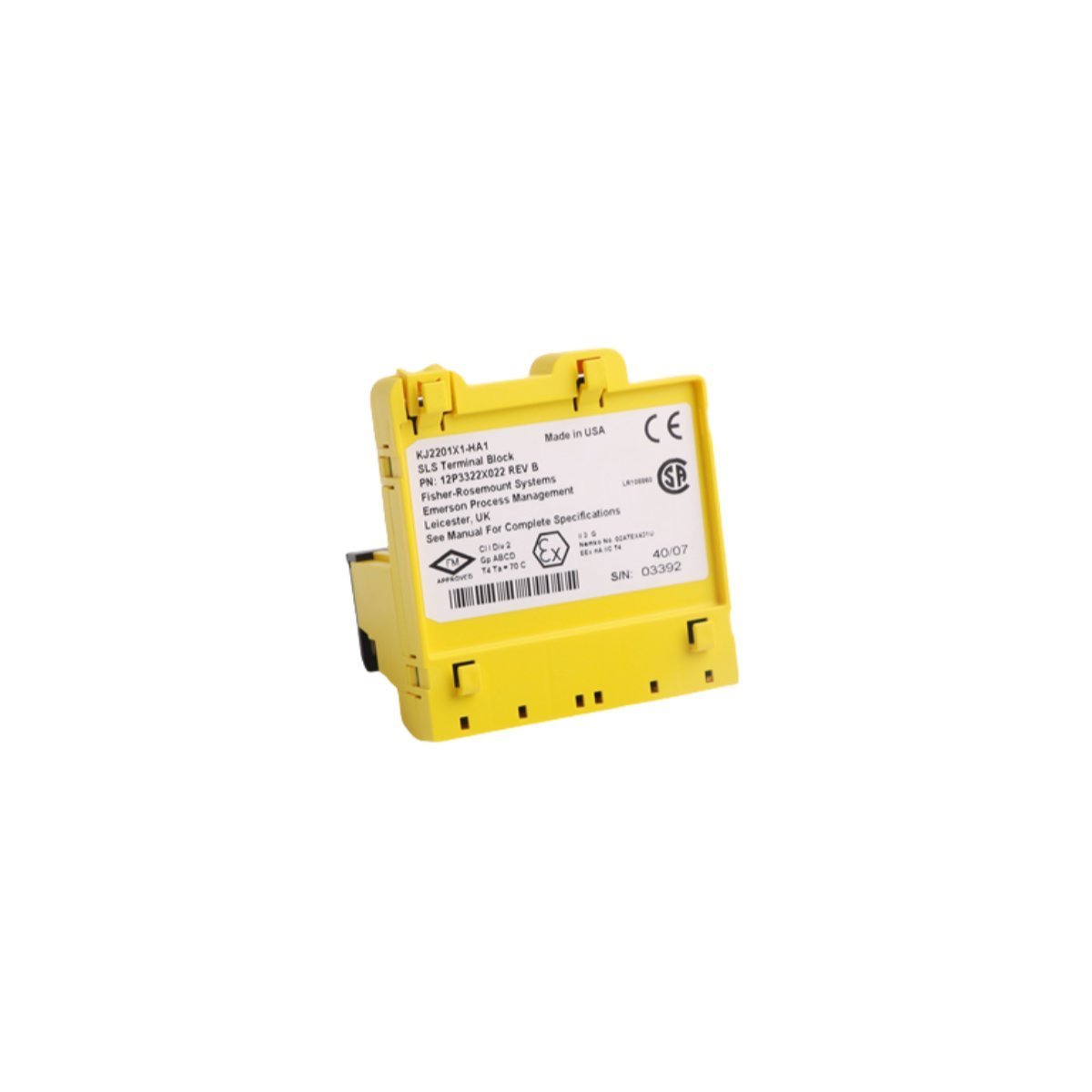

The Emerson KJ2201X1-HA1 (Part Number 12P3322X022) is a Smart Logic Solver (SLS 1508) designed specifically for the DeltaV SIS™ process safety system. This safety-certified module is the primary execution engine for Safety Instrumented Functions (SIF), providing dedicated logic processing independent of the standard process control environment. It is engineered to monitor critical field sensors and execute high-speed protective actions—such as Emergency Shutdown (ESD) or Fire and Gas (F&G) mitigation—within a sub-second response window.

As a modular safety controller, the SLS 1508 provides 16 channels of configurable I/O, including HART-capable analog inputs and discrete inputs/outputs. By utilizing a "safety-by-design" approach, this module offers superior diagnostic coverage and hardware fault tolerance, making it a cornerstone for achieving SIL 3 safety ratings in industrial plants.

Technical Characteristics and Safety Integrity

The KJ22201X1-HA1 is built to ensure that safety loops remain functional and reliable under the most demanding industrial conditions.

• Autonomous Logic Execution: Operates as a localized safety controller, ensuring that safety logic continues to execute even if the main DCS controller or network communication is interrupted.

• High-Fidelity Diagnostics: Features internal self-testing that detects hardware failures and field-circuit anomalies, such as line faults or stuck-on/off conditions, ensuring the system fails to a safe state.

• HART Passthrough Support: Integrated HART communication allows for the monitoring of diagnostic data from smart safety transmitters, enabling proactive maintenance of the safety loop.

• Redundancy Capabilities: Supports redundant pairing to provide bumpless hardware switchover, significantly increasing system availability and preventing spurious trips.

• Galvanic Isolation: Provides complete electrical isolation between field circuitry and the system backplane, protecting the internal safety logic from field-side surges and noise.

• Industrial Hardening: Designed for installation in hazardous locations, the module is resilient against vibration, electromagnetic interference, and thermal stress.

Technical Specifications

• Manufacturer: Emerson (Fisher-Rosemount)

• Model Number: KJ2201X1-HA1 (SLS 1508)

• Order Number: 12P3322X022

• Module Type: Smart Logic Solver

• Series: DeltaV SIS™

• I/O Capacity: 16 Channels (Configurable)

• Safety Rating: Suitable for SIL 1-3 applications

• Dimensions: 8.4 x 9 x 5.5 cm

• Net Weight: 0.18 kg

• Origin: USA

Industrial Applications

The Emerson KJ2201X1-HA1 is essential for managing safety-critical processes in high-risk environments:

• Emergency Shutdown Systems (ESD): Immediate isolation of process units during overpressure or thermal runaway events.

• Fire and Gas Systems (F&G): Coordinating logic between flame detectors and suppression hardware.

• Burner Management Systems (BMS): Ensuring safe startup and operation of industrial boilers and furnaces.

• Critical Interlock Management: Protecting high-value rotating equipment and reactor vessels from mechanical damage.
