Product Overview

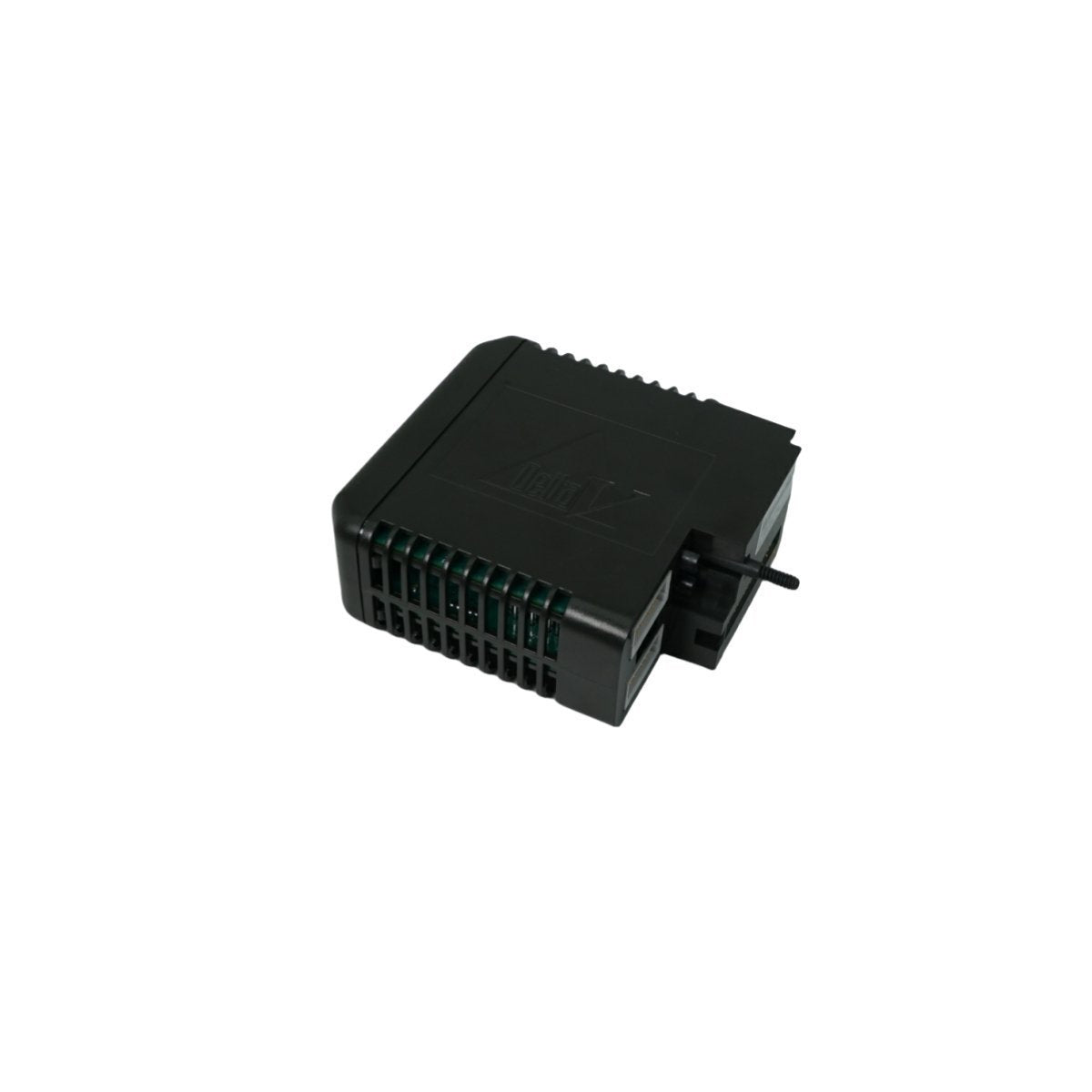

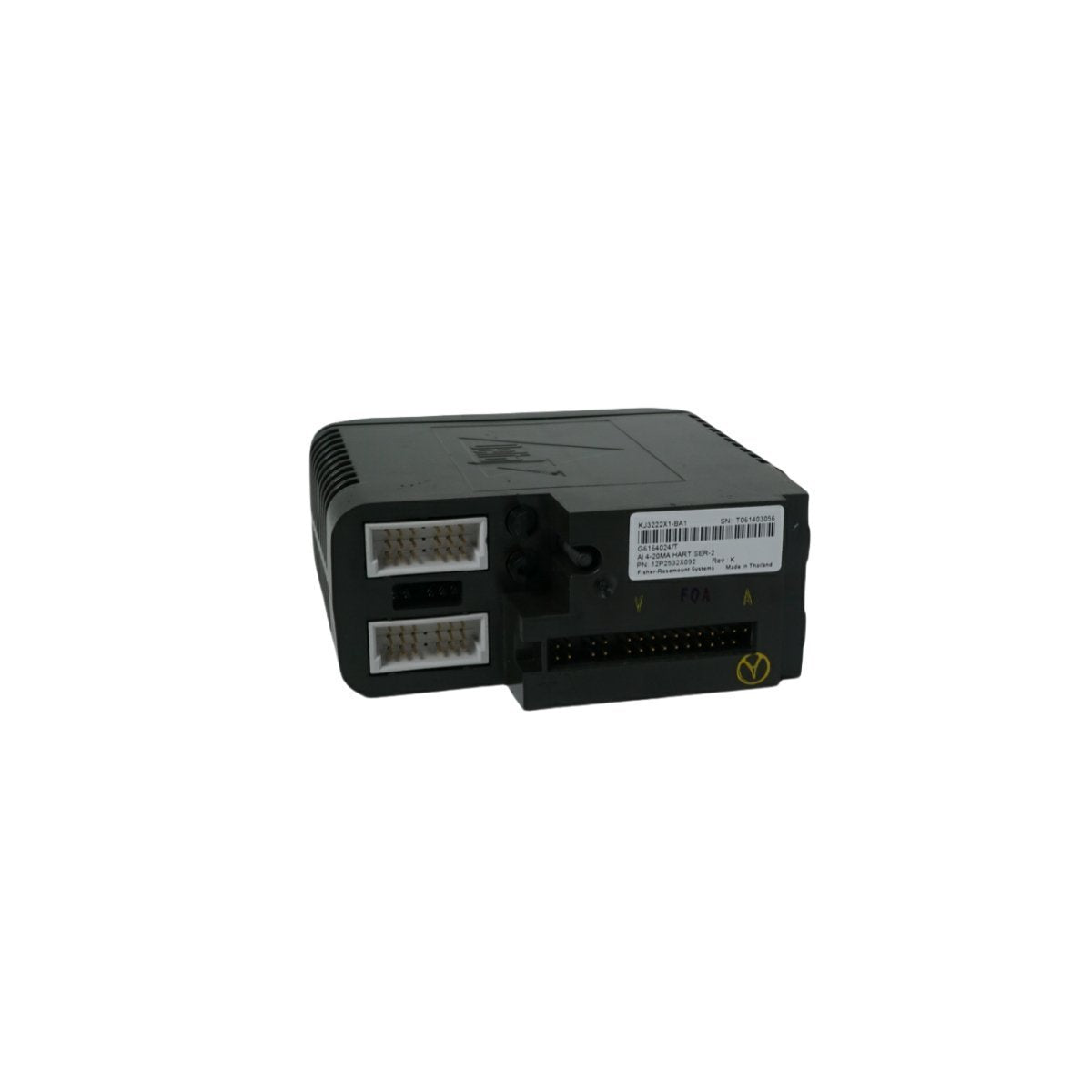

The Emerson 12P2532X092, model KJ3222X1-BA1, is a specialized 8-channel analog input module engineered for the DeltaV™ M-series I/O subsystem. This module is designed to capture standard 4-20mA signals from field transmitters and convert them into high-resolution digital values for process control logic. A standout feature of this hardware is its native support for HART (Highway Addressable Remote Transducer) protocol communication. This capability allows the Distributed Control System (DCS) to perform bidirectional digital communication with "smart" field devices, facilitating remote configuration, multi-variable data acquisition, and advanced instrument diagnostics without interrupting the analog signal.

Key Technical Characteristics

• Channel Density: 8 high-accuracy analog input channels.

• Signal Support: Standard 4-20 mA DC current loops with HART digital pass-through.

• Data Conversion: 14-bit A/D resolution for precise signal granularity.

• Redundancy: Fully compatible with redundant carrier configurations to ensure maximum process availability.

• Diagnostics: Real-time detection of open loops, short circuits, and out-of-range hardware conditions.

• Smart Integration: Supports HART v5, v6, and v7 device variables and status information.

• Hot-Swappable: Modular design allows for replacement under power to minimize maintenance downtime.

• Physical Profile: Ultra-light 0.18 kg construction; Dimensions 4.3 x 12.5 x 10.5 cm.

• Environmental Build: Ruggedized circuitry suitable for Class G3 harsh environments.

Industrial Applications

The KJ3222X1-BA1 is a critical interface in automated facilities where predictive maintenance and precision are priorities. In Petrochemical Refining, it is used to monitor high-stakes pressure and temperature loops where HART diagnostics can provide early warning of transmitter failure. Within Water and Wastewater Treatment, the module handles flow and level inputs, enabling remote calibration of submerged sensors. Additionally, it is a staple in Pharmaceutical Manufacturing, where the 14-bit resolution ensures exact adherence to batch recipes. By leveraging the HART protocol, plant operators can reduce field trips by performing device health checks and range adjustments directly from the control room, significantly lowering operational costs and increasing safety in hazardous areas.
