Product Overview

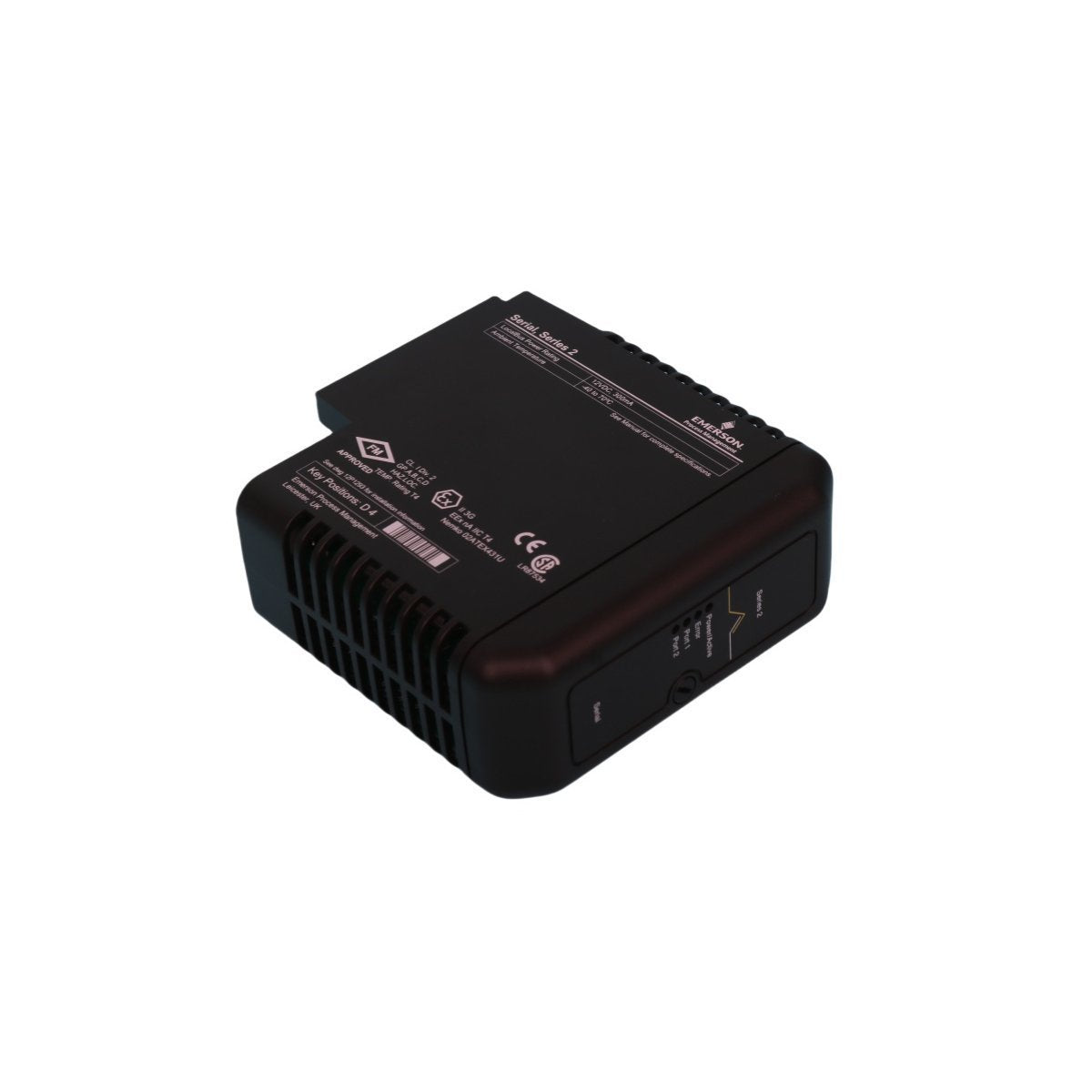

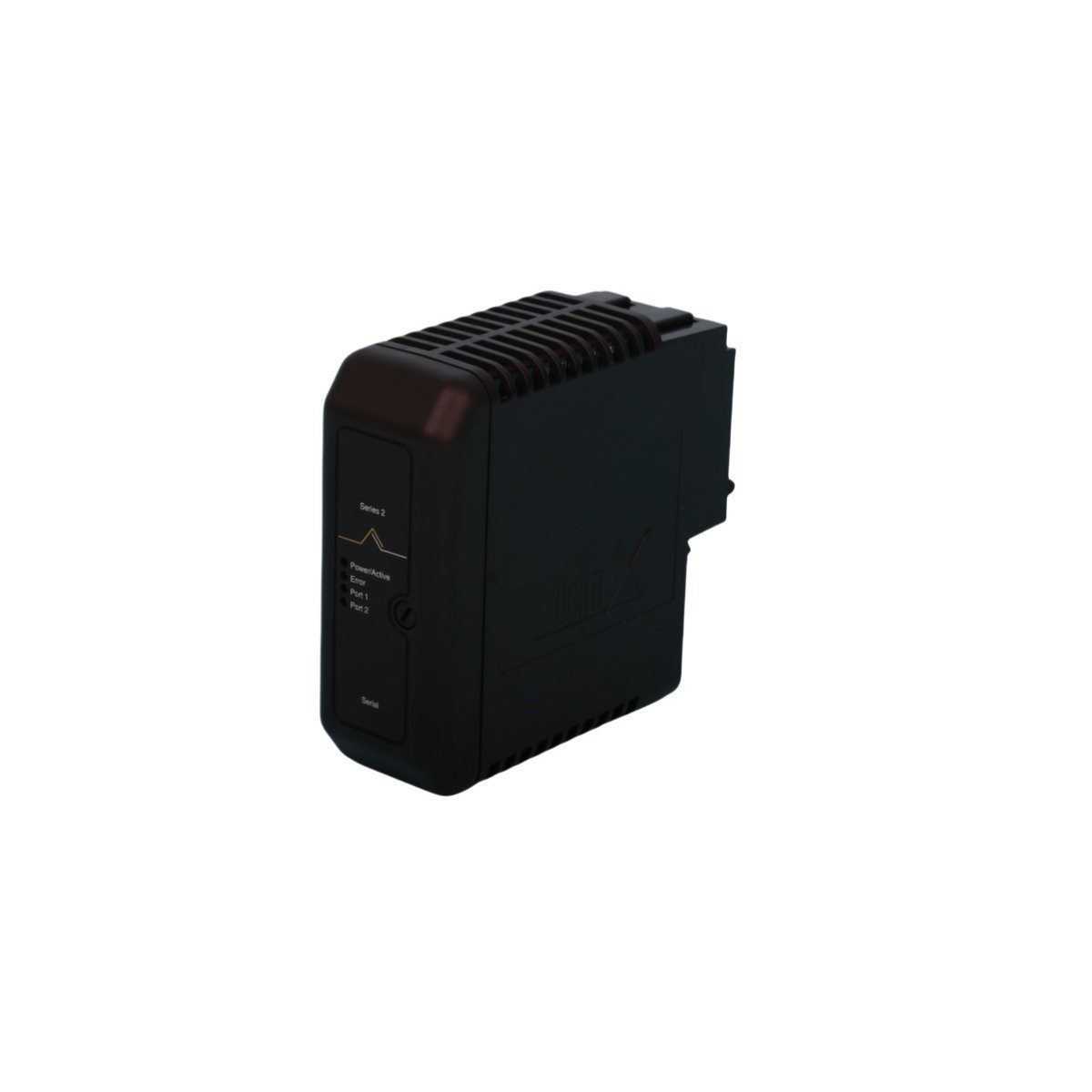

The Emerson KJ3241X1-BA1 (Order Number 12P2506X052) is a specialized Foundation Fieldbus (FF) H1 Interface Card designed for the DeltaV™ M-series I/O Subsystem. This module serves as the primary communications gateway between the DeltaV controller and field-based H1 segments. It is engineered to support the bidirectional digital communication requirements of smart field instruments, enabling the transmission of not only process variables but also advanced diagnostic data and instrument configuration parameters.

As a critical link in modern distributed control systems, the KJ3241X1-BA1 facilitates "Control in the Field" (CIF) capabilities. It manages the H1 segment schedules and ensures precise synchronization between the DCS and field devices. The module is built to maintain high signal integrity in electrically noisy industrial environments, providing the bedrock for reliable asset management and proactive maintenance strategies.

Technical Characteristics and Redundancy

The 12P2506X052 card is defined by its architectural resilience and compliance with stringent industrial safety standards.

• Dual-Channel Redundancy: Supports redundant H1 segment configurations, providing a failover path that ensures continuous process visibility and control even if a physical cable fault occurs on a single channel.

• Smart Keying System: Features a integrated rotary keying mechanism that ensures the card is only mated with the correct terminal block, preventing hardware damage during installation or hot-swapping.

• Wide Input Voltage Range: Operates effectively within a field power spectrum of 9 to 32 VDC, allowing for flexible deployment across various segment lengths and power conditioner setups.

• Environmental Tolerance: Engineered to perform in extreme climates with an operating temperature range of -40°C to +70°C, making it suitable for unconditioned field enclosures.

• Intrinsic Safety Compliance: Designed to interface with intrinsically safe barriers, making it ideal for hazardous area applications such as those found in petrochemical and offshore facilities.

• G3 Corrosive Protection: Built to meet ISA-S71.04-1985 Class G3 standards, protecting the internal circuitry from airborne contaminants and corrosive gases.

Technical Specifications

• Manufacturer: Emerson (Fisher-Rosemount)

• Model Number: KJ3241X1-BA1

• Part Number: 12P2536X052 / 12P2506X052

• Module Type: Foundation Fieldbus H1 Interface Card

• System Platform: DeltaV™ M-series I/O

• Field Power: 9–32 VDC

• Mounting: Carrier-based (DIN Rail compatible)

• Dimensions: 4.2 x 12.5 x 10.4 cm

• Unit Weight: 0.1 kg

• Product Origin: USA

Industrial Applications

The Emerson KJ3241X1-BA1 H1 Interface Card is a standard component for digital transformation in several key sectors:

• Upstream Oil & Gas: Managing complex wellhead instrument clusters and separator logic via Fieldbus.

• Chemical Processing: Providing high-integrity communication for smart control valves and multivariable transmitters.

• Power Generation: Integrating safety-critical thermal and pressure sensors into the DCS backbone.

• Refining: Supporting large-scale asset management by capturing real-time valve health and instrument diagnostics.
