Product Overview

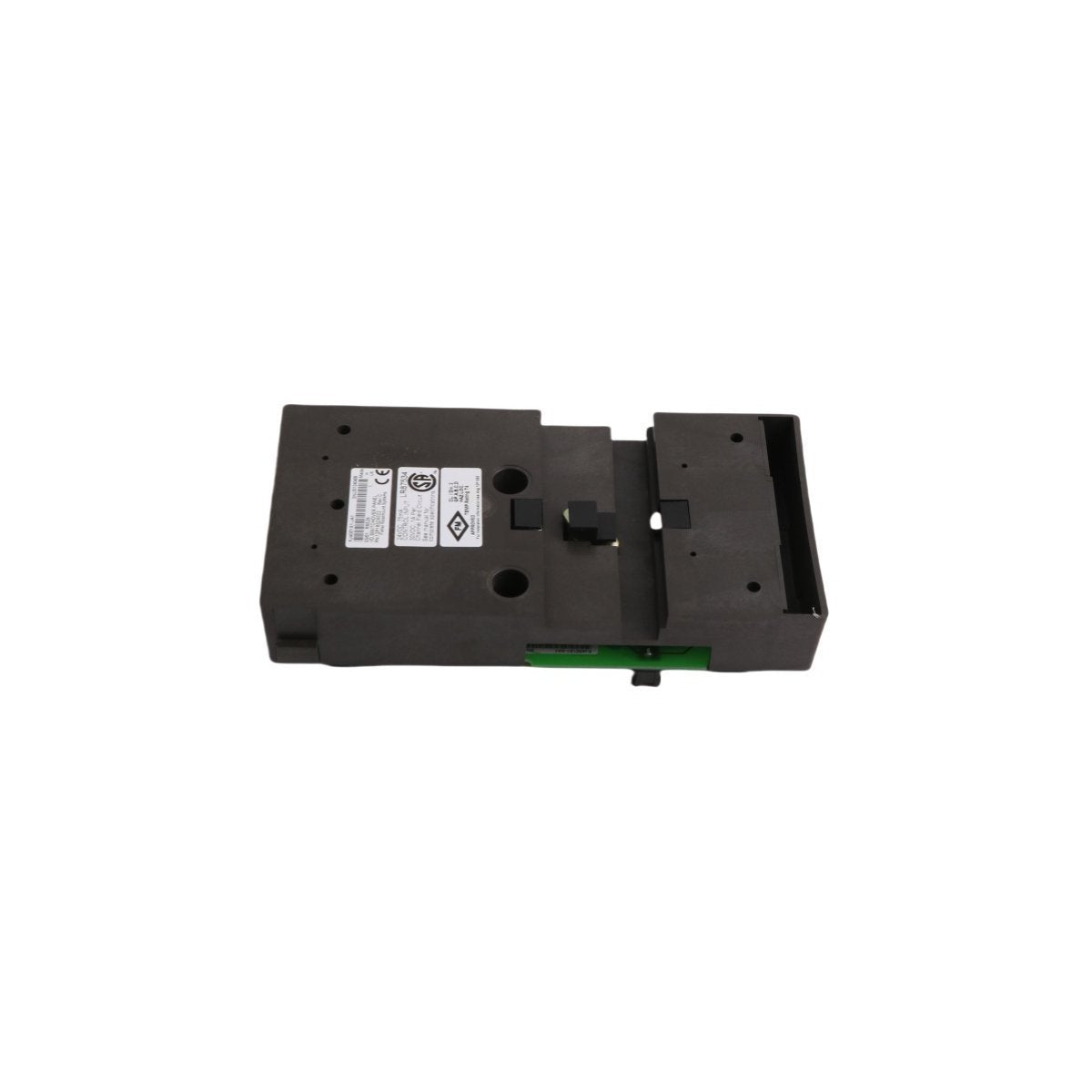

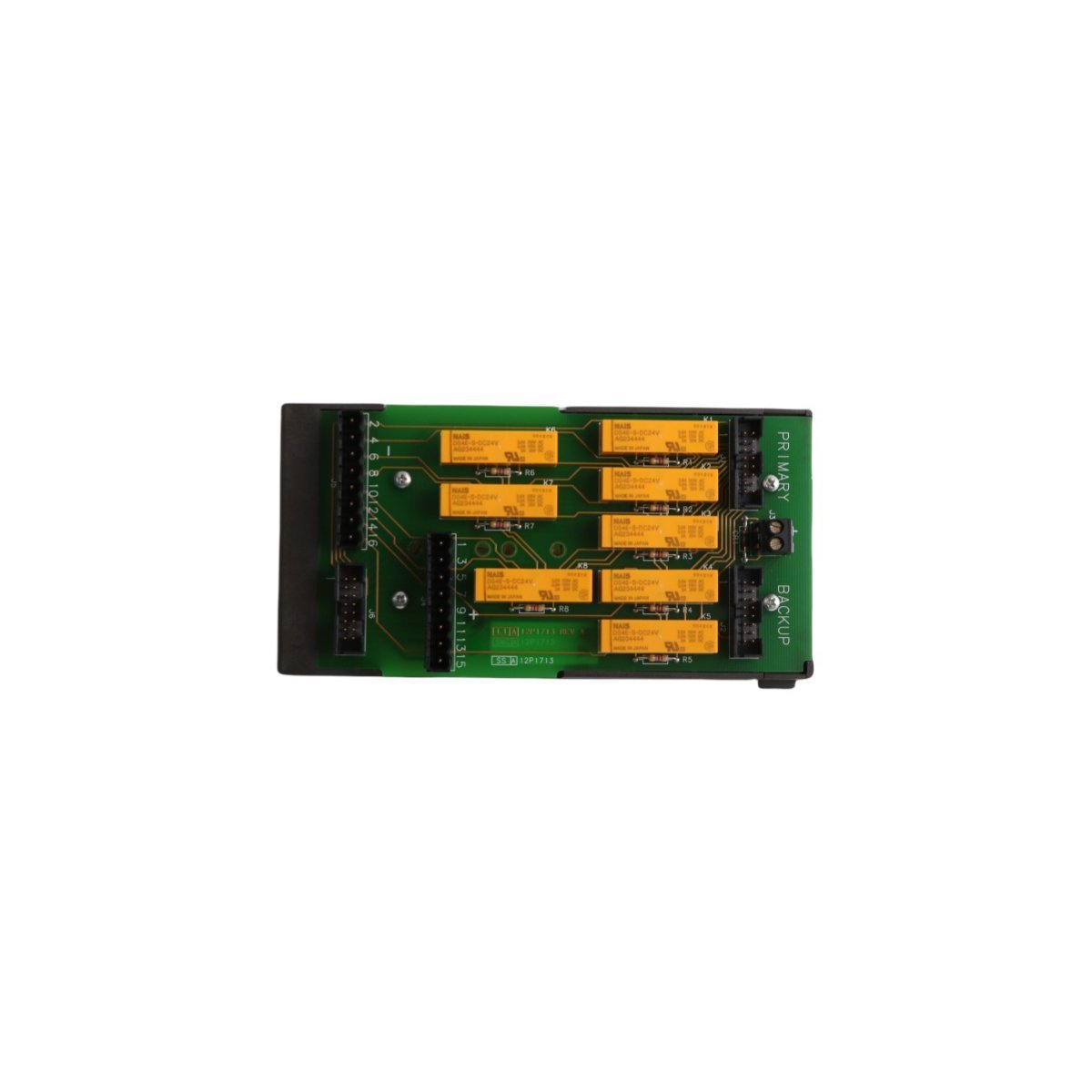

The Emerson KJ4001X1-JA1, also identified by assembly number 12P1832X022, is a high-availability Redundant Safety Logic Solver (SLS) Terminal Block designed for the DeltaV™ M-series I/O subsystem. This critical interface module provides the physical and electrical termination for redundant safety loops, ensuring that process safety functions remain active even during hardware maintenance or single-component failure. Specifically engineered for the Fisher-Rosemount DeltaV architecture, this terminal block facilitates the high-integrity communication and power distribution necessary for SIS (Safety Instrumented Systems). Its robust design minimizes the footprint in control cabinets while maximizing the reliability of fail-safe operations in high-stakes industrial environments.

Essential Hardware Data and Physical Metrics

• Component Designation KJ4001X1-JA1

• Engineering Order Number 12P1832X022

• Module Architecture Redundant SLS (Safety Logic Solver) Termination

• System Family DeltaV™ M-series I/O Subsystem

• Electrical Capacity Rated for 12 VDC operation at 8 A to ensure bus stability

• Thermal Endurance Fully functional from -40°C up to +70°C

• Mass 0.24 kg (Net Weight)

• Chassis Footprint 16.6 cm x 8.8 cm x 4.5 cm

• Safety Integration Designed for high-integrity safety instrumented loops

• Production Status Active Replacement (System legacy date: Dec 2018)

• Country of Manufacture USA

• Harmonized Code 8537101190

Industrial Implementation and Deployment Roles

The KJ4001X1-JA1 terminal block is an indispensable asset for facilities prioritizing safety and operational continuity:

Critical Safety Loop RedundancyServing as the primary junction for redundant Safety Logic Solvers, this module ensures that emergency shutdown (ESD) systems remain online by providing dual-path signal routing to the field.

Harsh Process Control EnvironmentsUtilizing its ruggedized construction to maintain stable 8 A power distribution in extreme temperature zones, preventing voltage-related communication drops in outdoor or unconditioned control rooms.

SIS (Safety Instrumented System) IntegrationProviding the validated hardware interface required for DeltaV SIS applications in chemical refineries and power plants where fault-tolerant logic is mandatory for personnel safety.

Legacy System Lifecycle ManagementActing as a "Brand New" replacement for M-series hardware discontinued in late 2018, allowing plant managers to maintain existing safety certifications without a complete system overhaul.

Space-Efficient Cabinet ConfigurationLeveraging its lightweight and compact 16.6 cm profile to consolidate safety terminations, reducing the overall rack space required for high-density safety logic solver clusters.
