Product Overview

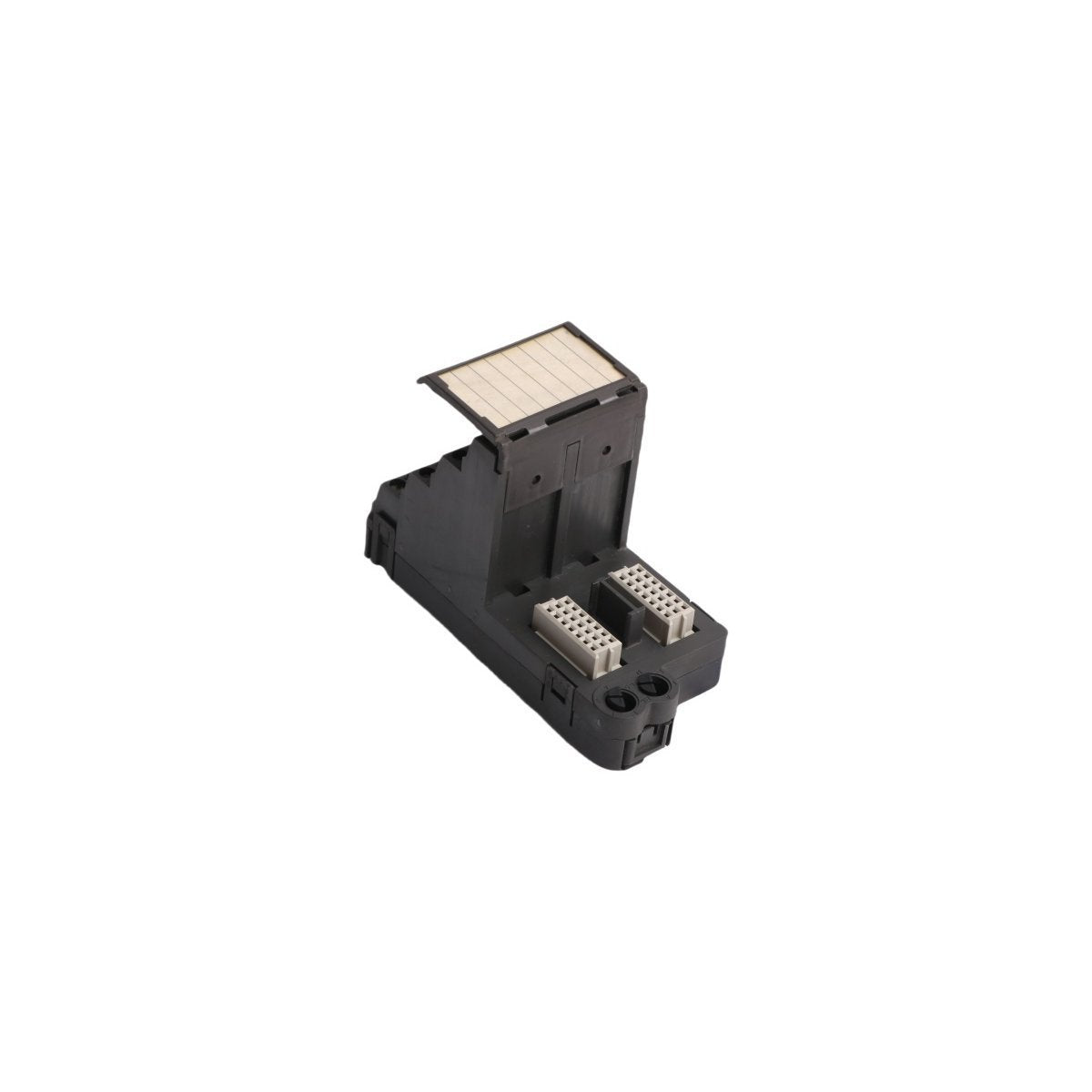

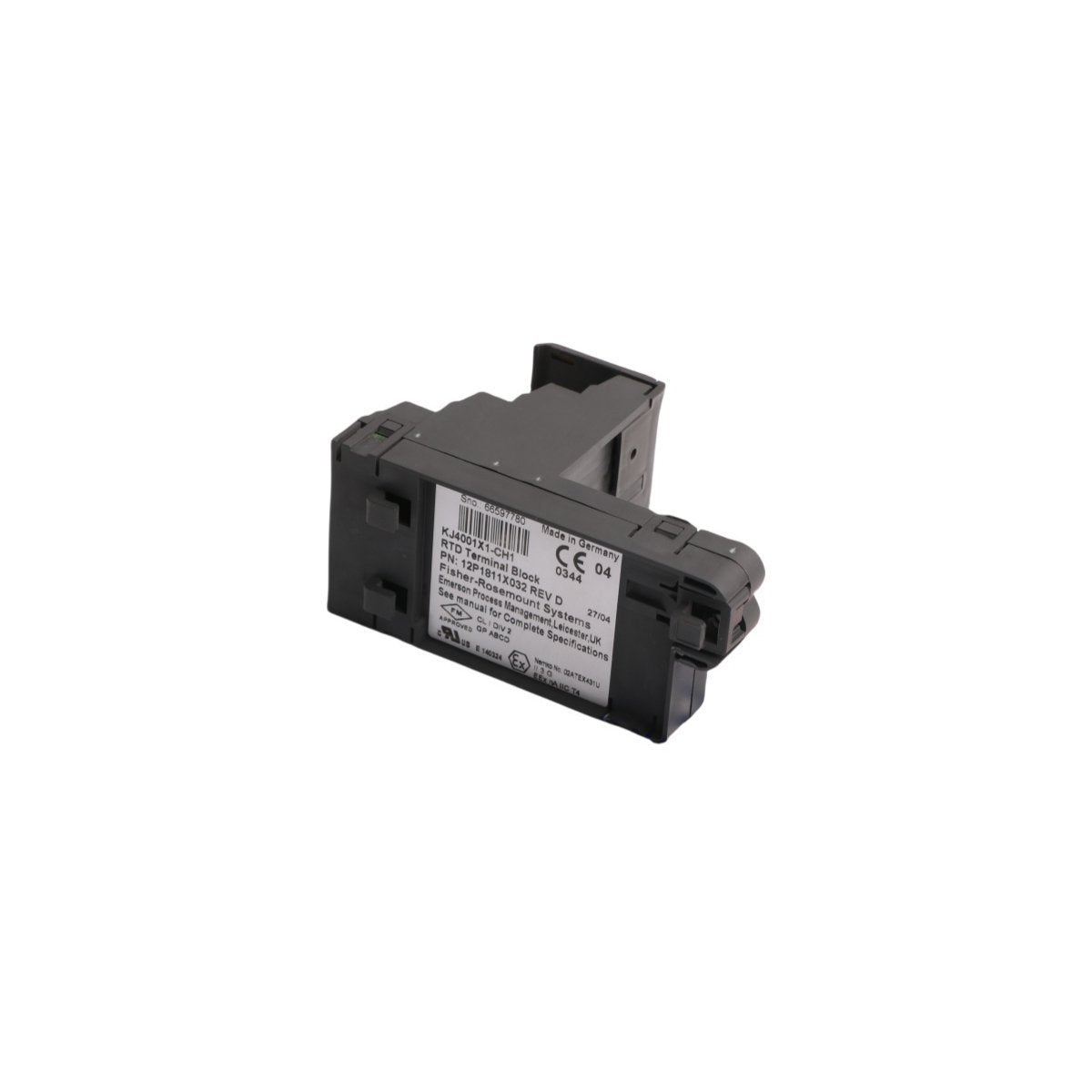

The Emerson KJ4001X1-CH1, part number 12P1811X032, is a specialized RTD (Resistance Temperature Detector) Terminal Block designed for the DeltaV™ M-series I/O subsystem. This interface component serves as the physical termination point for field-mounted temperature sensors, providing the necessary signal conditioning and wiring stability required for high-accuracy thermal monitoring. It acts as the bridge between the field environment and the DeltaV I/O card, ensuring that resistance-based data is transmitted with minimal interference. Engineered for the rigors of Distributed Control Systems (DCS), this terminal block is essential for maintaining the integrity of sensitive analog loops in heavy industrial settings.

Hardware Parameters and Technical Specifications

• Module Function: Termination interface for RTD Input Modules.

• Wiring Configurations: Supports both 2-wire and 3-wire RTD sensor setups for lead-wire resistance compensation.

• Compatibility: Native integration with Emerson DeltaV M-series hardware carriers.

• Operating Voltage: 24V DC nominal power supply.

• Signal Support: Optimized for low-current (20mA) analog temperature loops.

• Material Build: High-grade industrial polymers and corrosion-resistant contact materials.

• Protection Rating: Rugged design capable of operating in high-vibration and diverse thermal environments.

• Physical Profile: Lightweight 0.1 kg construction; Dimensions 9.0 x 6.6 x 4.1 cm.

• Installation: Tool-less snap-on mounting for rapid deployment and hardware replacement.

Industrial Applications

The KJ4001X1-CH1 terminal block is extensively utilized in sectors requiring precise thermal regulation and asset protection. In Petrochemical and Refining operations, it provides the termination points for monitoring reactor bed temperatures and distillation column profiles. Within Power Generation facilities, it handles RTD inputs from bearing sensors and winding temperature detectors in large motors and turbines. Additionally, it is a staple in Pharmaceutical batch processing, where strict adherence to temperature setpoints is critical for product validation. Its robust design ensures that even in the presence of electromagnetic interference or corrosive atmospheres, the DeltaV system receives stable, high-fidelity data to optimize process efficiency and safety.
