Product Overview

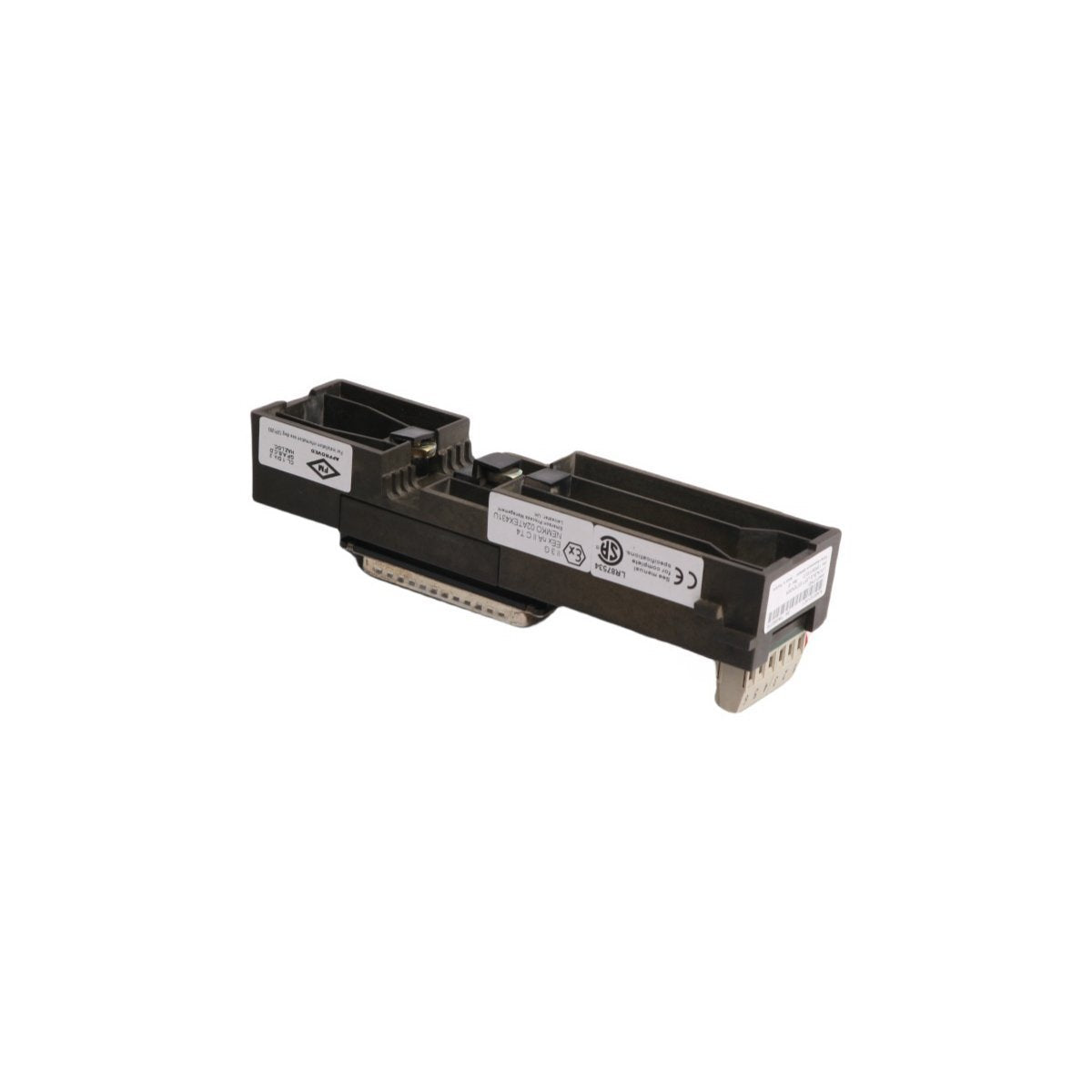

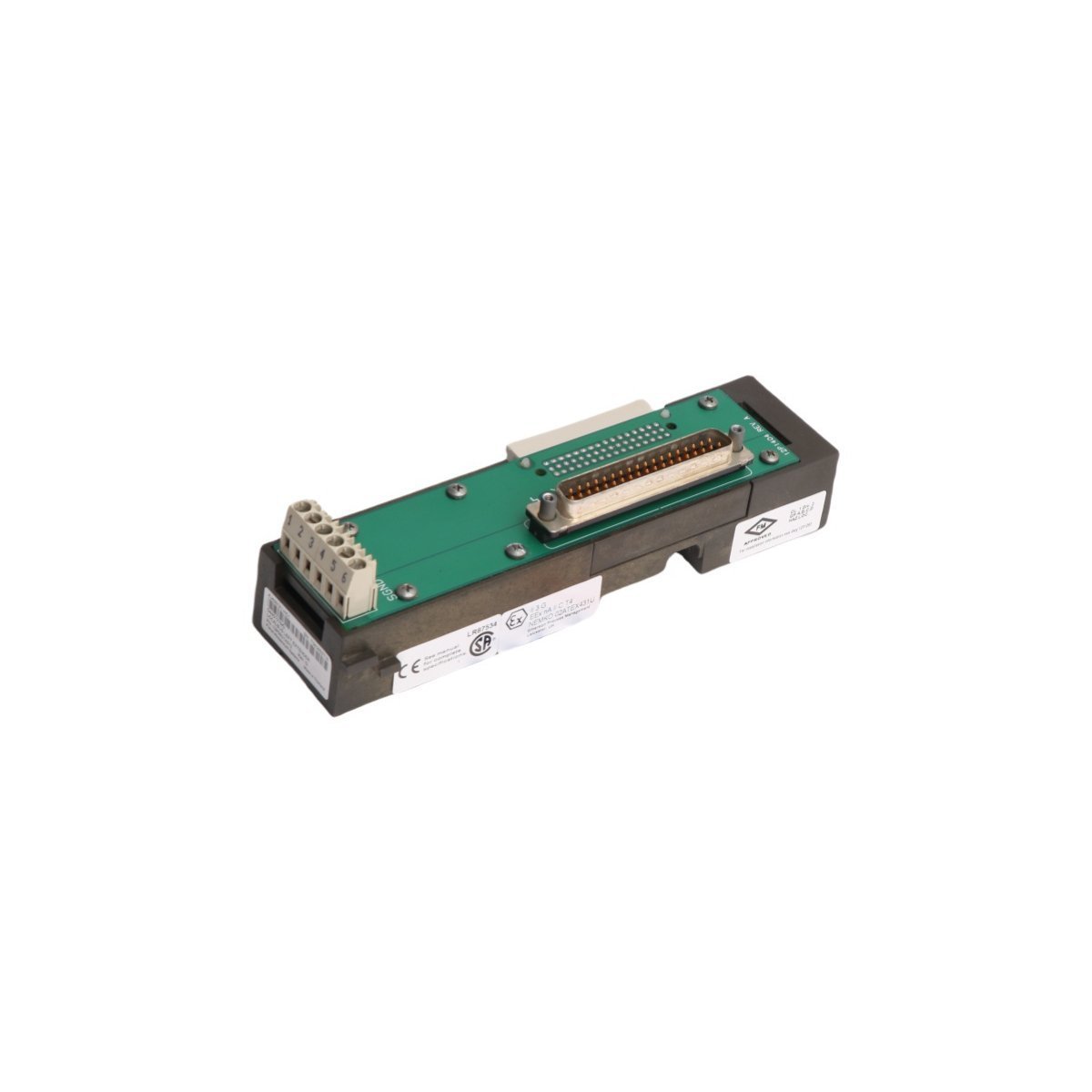

The Emerson KJ4001X1-HC1, identified by part number 12P0831X072, is a specialized hardware component designed for the physical and electrical expansion of the DeltaV™ M-series I/O backplane. Serving as a LocalBus Left Extender, this module is essential for multi-rack configurations where the control backplane must span across adjacent carriers. It provides the necessary signal continuity for the local bus, ensuring that power and data communication remain uninterrupted between the controller and expanded I/O modules. Engineered for high-integrity Distributed Control System (DCS) environments, the KJ4001X1-HC1 facilitates a modular and scalable architecture for complex industrial automation plants.

Essential Hardware Parameters and Attributes

• Model Identification KJ4001X1-HC1

• Engineering Order Number 12P0831X072

• Component Category LocalBus Extension Interface (Left-Side)

• System Series DeltaV™ M-series I/O Subsystem

• Functionality Backplane bus signal and power bridge

• Unit Weight 0.14 kg

• Physical Footprint 4.7 cm x 16.7 cm x 4.4 cm

• Mounting Location Placed on the left-hand side of the I/O carrier

• Environmental Resilience Corrosion-resistant circuitry for industrial atmospheres

• Manufacturing Origin USA

• Tariff Classification HS 8537101190

Industrial Implementation and Deployment Roles

The KJ4001X1-HC1 12P0831X072 is a fundamental utility for large-scale DeltaV infrastructure management:

Multi-Rack System ExpansionUsed in expansive control cabinets where the number of I/O modules exceeds the capacity of a single carrier, requiring the LocalBus to be extended to secondary or tertiary racks.

Control Signal SynchronizationEnsures that the 12.5 Mbps LocalBus signal maintains its integrity across physical rack boundaries, preventing communication timeouts or data packet loss in high-density I/O clusters.

Redundant Controller InterfacingFacilitates the connection between redundant controller pairs and their respective I/O segments, providing a stable electrical path for the system's "heartbeat" and process data.

Legacy Hardware MaintenanceAs a critical component for the M-series subsystem (discontinued as of 2018), this "Brand New" stock is vital for sustaining established plants in the chemical, oil, and gas sectors without requiring a complete hardware migration.

Modular Cabinet DesignAllows for flexible cabinet layouts by enabling "daisy-chaining" of I/O carriers, supporting efficient space management in offshore platforms or containerized control rooms.
