Product Overview

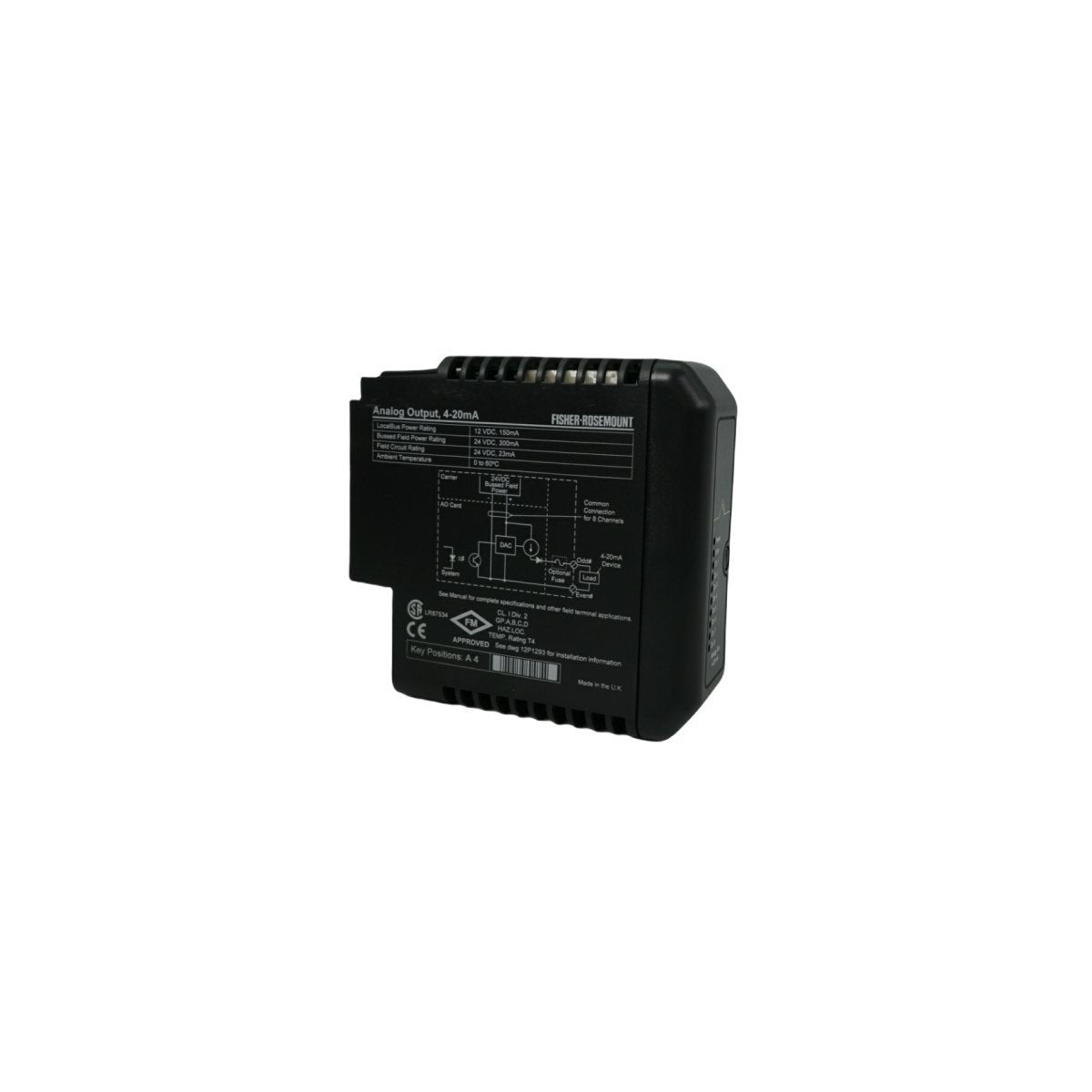

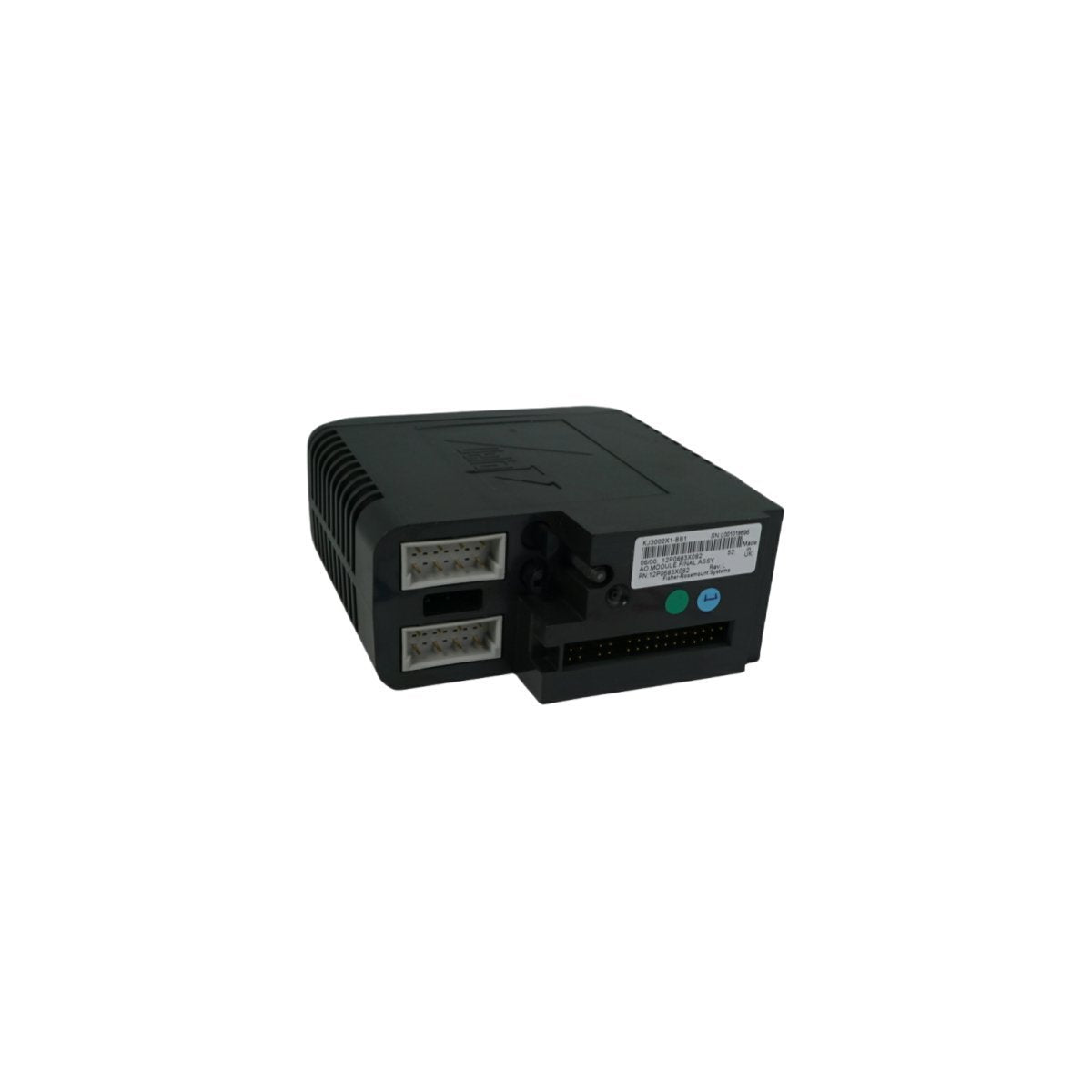

The Emerson KJ3002X1-BB1 analog output module, identified by order number 12P0683X082, is an 8-channel 4–20 mA output card engineered for the DeltaV™ M-series I/O subsystem. This module is designed to generate precise analog control signals for field devices such as control valves, positioners, actuators, and variable speed drives within distributed control systems.

Built for integration into DeltaV DCS architectures, the module converts digital control commands into stable current outputs, supporting accurate and repeatable process control. Although this hardware was discontinued in 2018, it remains widely deployed and is commonly sourced as a spare or replacement component for existing DeltaV M-series installations.

Key Technical Characteristics

• Module Function: Analog output signal generation

• Output Channels: 8 independent analog outputs

• Output Signal Range: 4–20 mA standard

• Output Resolution: High-resolution digital-to-analog conversion

• Accuracy: Suitable for closed-loop control applications

• Electrical Isolation: Channel-to-system isolation for noise immunity

• Update Performance: Fast response for real-time control loops

• Environmental Rating: Designed for industrial control cabinets

• Hardware Platform: DeltaV M-series I/O

• Model Number: KJ3002X1-BB1

• Order Number: 12P0683X082

• Dimensions: 4.3 × 12.5 × 10.5 cm

• Weight: Approx. 0.2 kg

• Country of Origin: USA

Industrial Applications

This analog output module is typically used in process automation environments where precise current signals are required to drive final control elements. Common applications include flow and pressure regulation in chemical plants, valve control in oil and gas facilities, speed control in manufacturing systems, and actuator management in power generation plants.

The KJ3002X1-BB1 is particularly suited for maintaining legacy DeltaV systems, ensuring consistent analog output performance without modifying existing control strategies or field wiring.
