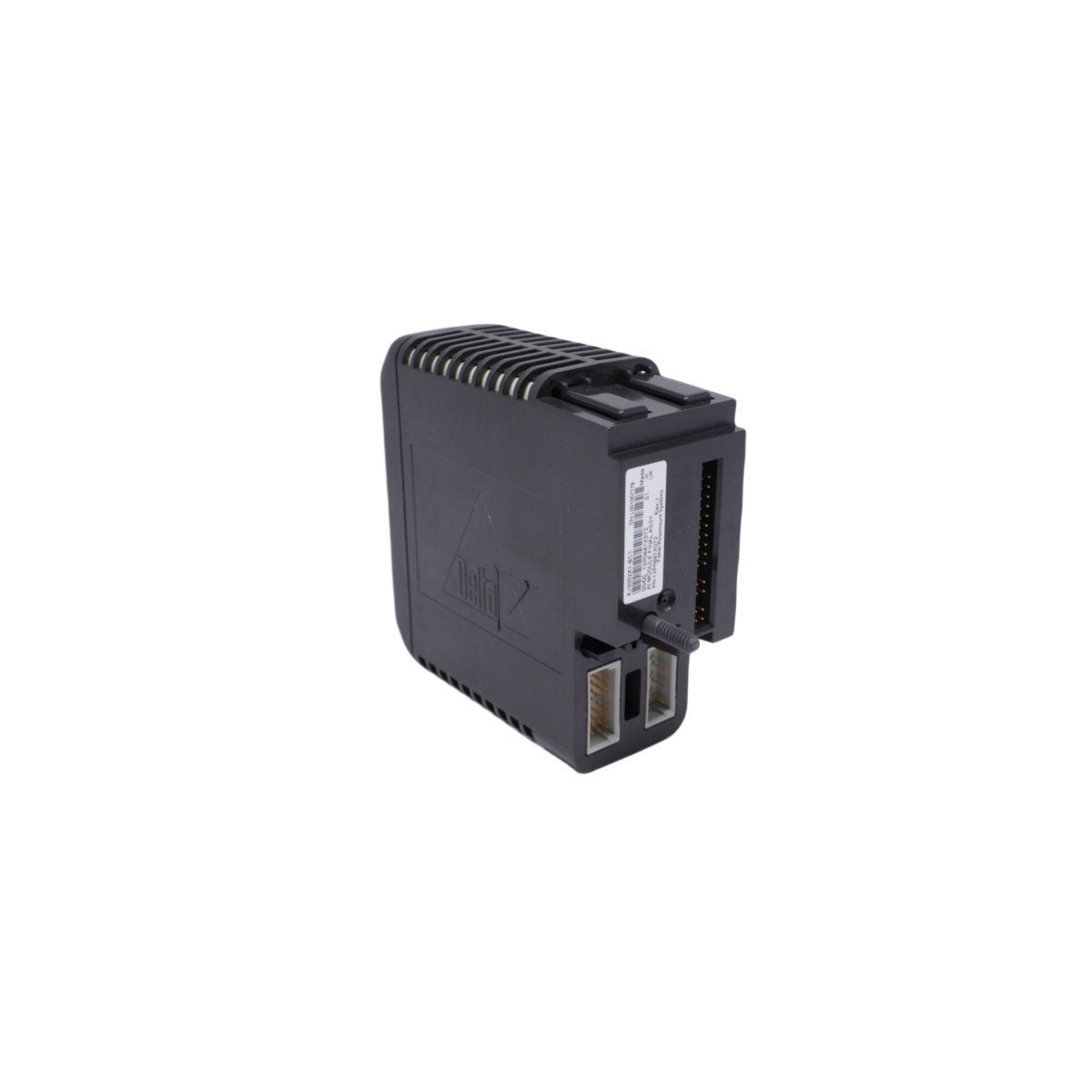

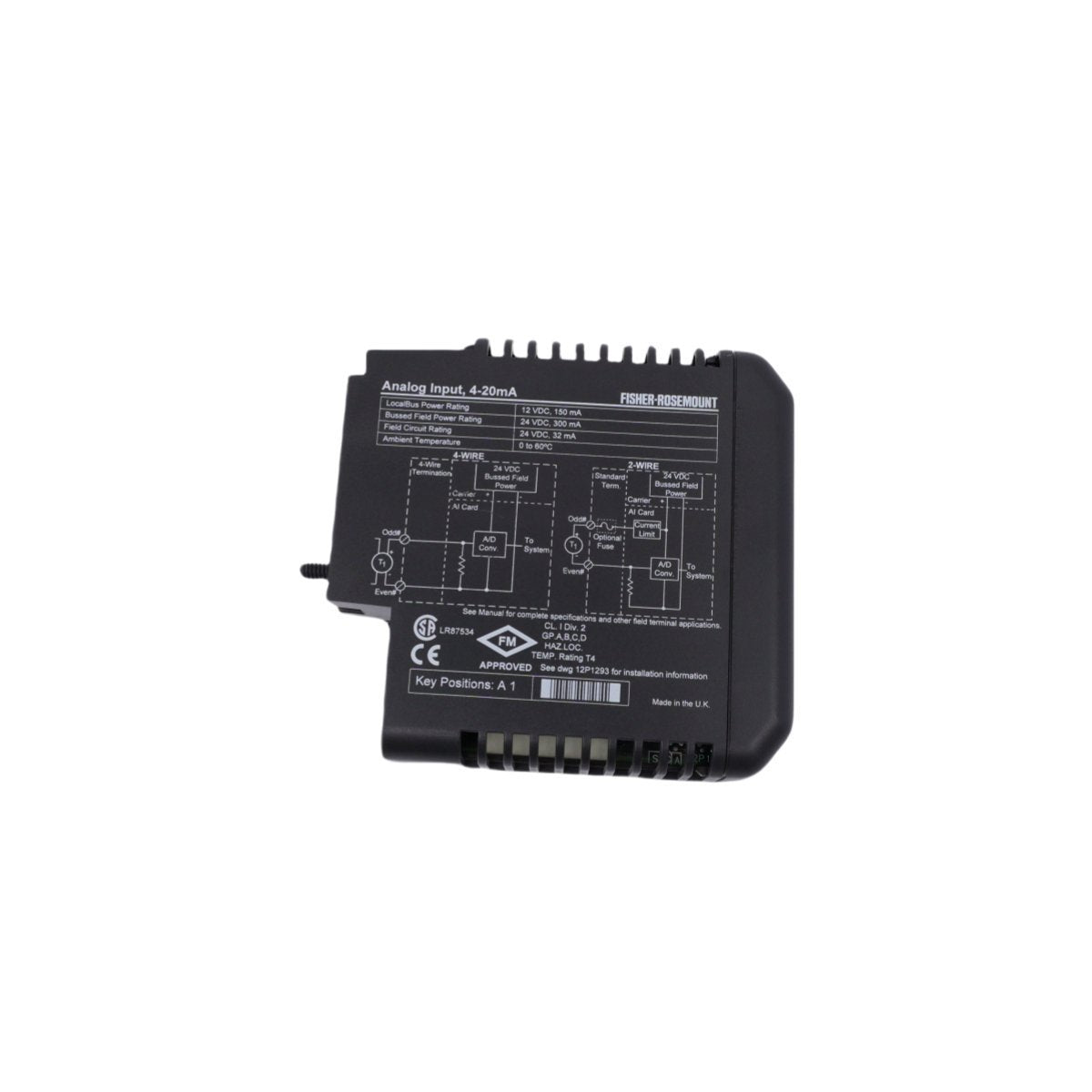

Product Overview

The Emerson KJ3002X1-BC1 (Order Number 12P0681X072, Model VE4003S1B2) is a specialized 8-channel analog input module engineered for the DeltaV™ M-series I/O subsystem. This module is specifically designed to interface with 4-wire transmitters, providing a high-precision gateway for continuous process monitoring. It converts standard 4–20 mA current signals into digital process variables, allowing the DeltaV Distributed Control System (DCS) to supervise critical metrics such as pressure, temperature, flow, and level with exceptional accuracy.

Unlike standard loop-powered interfaces, the VE4003S1B2 is optimized for externally powered (4-wire) field devices, ensuring that signal integrity is maintained even in complex electrical layouts. This module is essential for industrial environments that demand robust data acquisition, offering advanced filtering to mitigate electromagnetic interference and ensure stable signal processing for real-time automation.

Key Technical Characteristics and Resilience

The KJ3002X1-BC1 is built to provide reliable operation within the high-density environment of a DeltaV control cabinet.

• 4-Wire Signal Support: Optimized for 8 channels of 4-wire analog inputs, allowing for seamless integration with externally powered field instruments.

• Galvanic Isolation: Features robust electrical isolation between the field-side circuitry and the internal system Localbus, protecting the controller from ground loops and electrical transients.

• High-Resolution Acquisition: Provides high-fidelity analog-to-digital conversion, ensuring that subtle process fluctuations are captured and communicated to the control logic.

• Proactive System Diagnostics: Integrated firmware monitors channel health and identifies field wiring anomalies, such as open circuits, enabling rapid troubleshooting and reduced MTTR (Mean Time to Repair).

• Hot-Swappable Functionality: Supports "Removal and Insertion Under Power" (RIUP), allowing for module replacement or system expansion without shutting down the controller or interrupting the operation of adjacent modules.

• Environmental Hardening: Designed to withstand industrial stresses, including humidity and temperature variations, ensuring longevity in G3-rated corrosive environments.

Technical Specifications

• Manufacturer: Emerson (Fisher-Rosemount)

• Model Identification: KJ3002X1-BC1 / VE4003S1B2

• Part Number: 12P0681X072

• Module Type: 8-Channel 4-Wire Analog Input (AI)

• System Platform: DeltaV™ M-series I/O Subsystem

• Input Signal: 4–20 mA DC

• Mounting: Carrier-based (Localbus interface)

• Dimensions: 4.1 x 12.5 x 10.5 cm

• Weight: 0.2 kg

• Country of Origin: USA

Industrial Applications

The Emerson 12P0681X072 module is a fundamental component for automation in heavy industry sectors:

• Petrochemical Refining: Interfacing with externally powered flow meters and pressure transmitters in safety-critical units.

• Power Generation: Monitoring auxiliary plant equipment and boiler feed systems where 4-wire instrumentation is standard.

• Chemical Processing: Managing reactor variables and dosing systems requiring high-precision current loop feedback.

• Water Treatment: Capturing remote sensor data across large-scale filtration and pumping facilities.
